Product Description

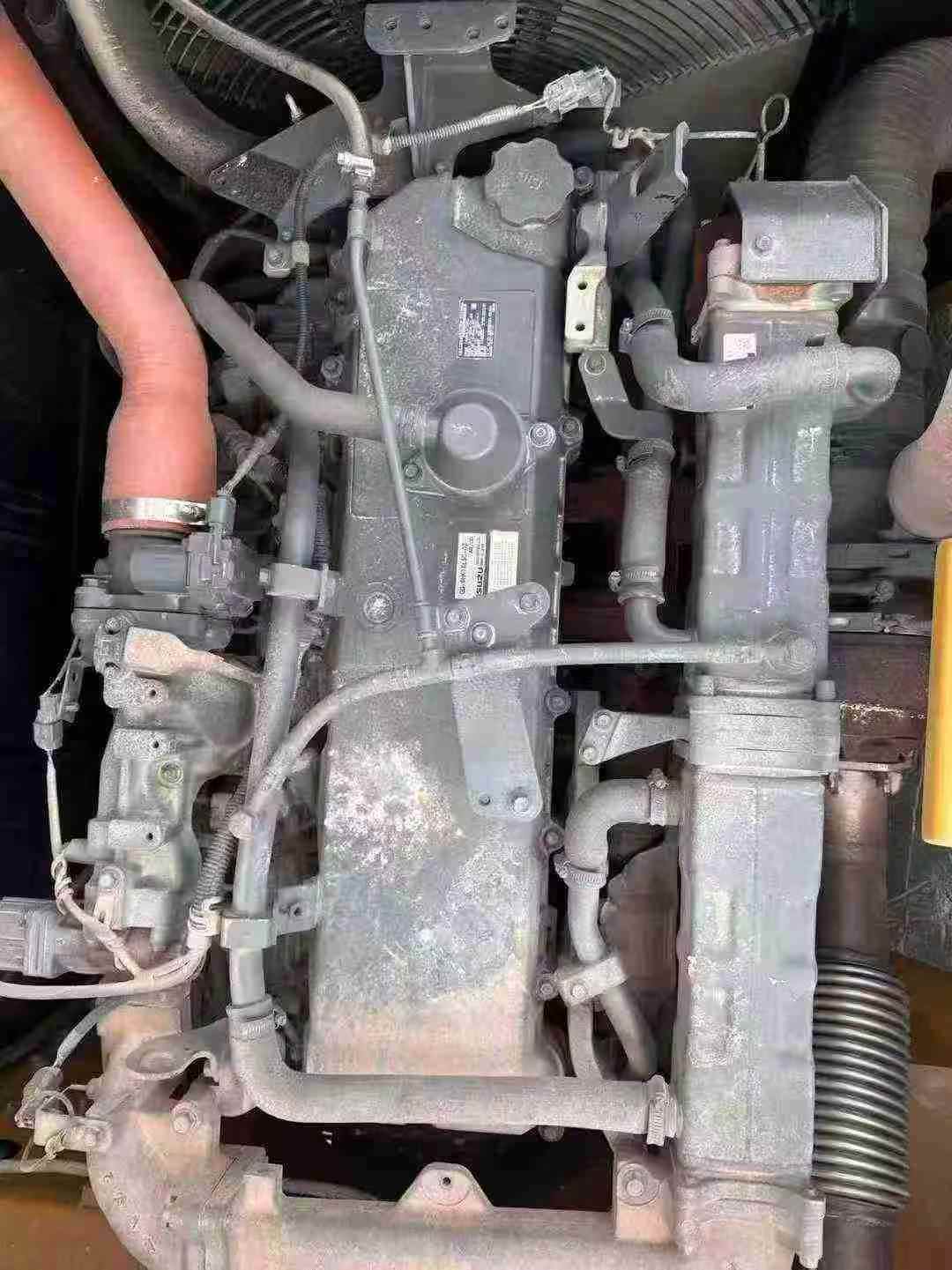

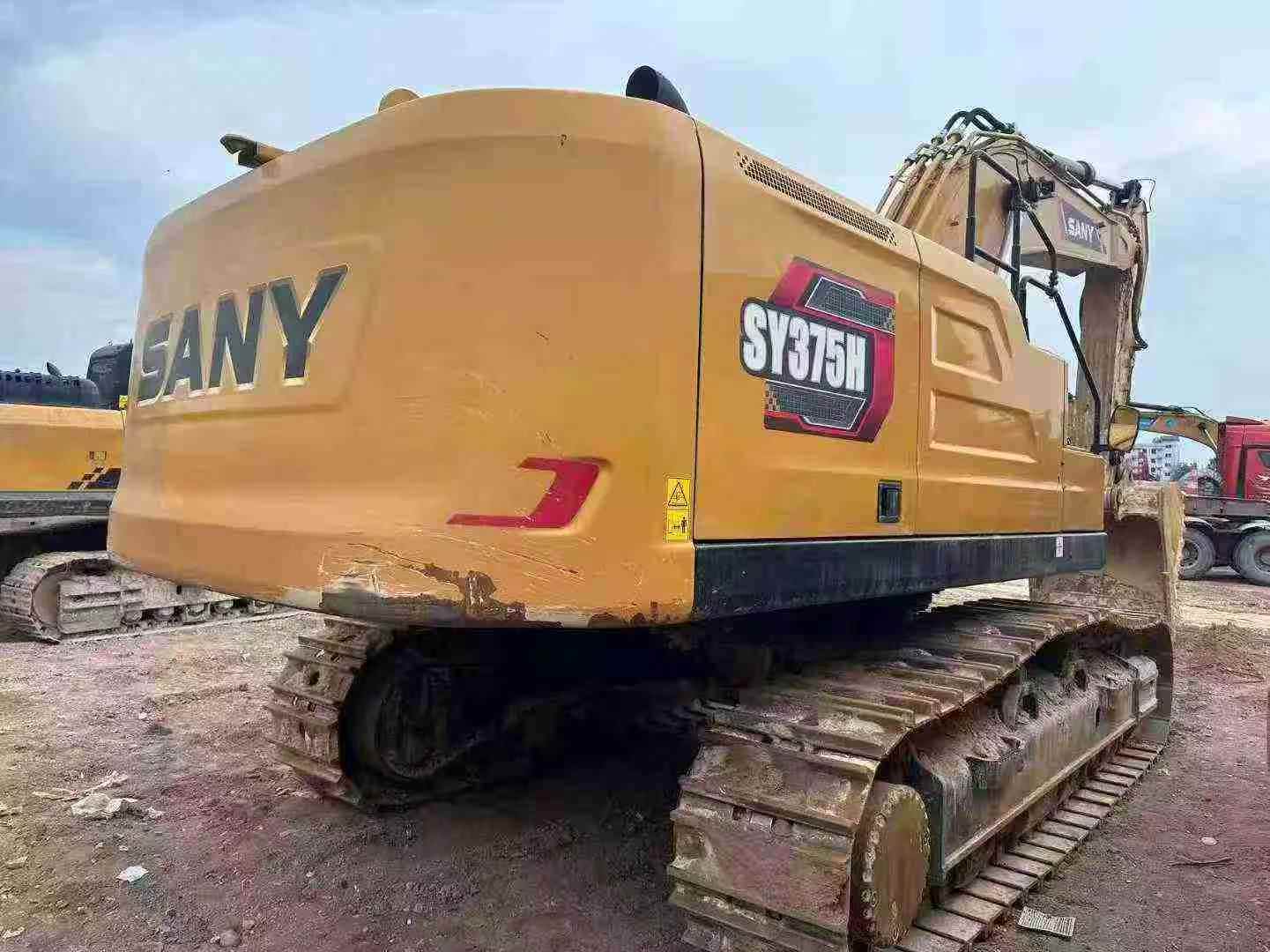

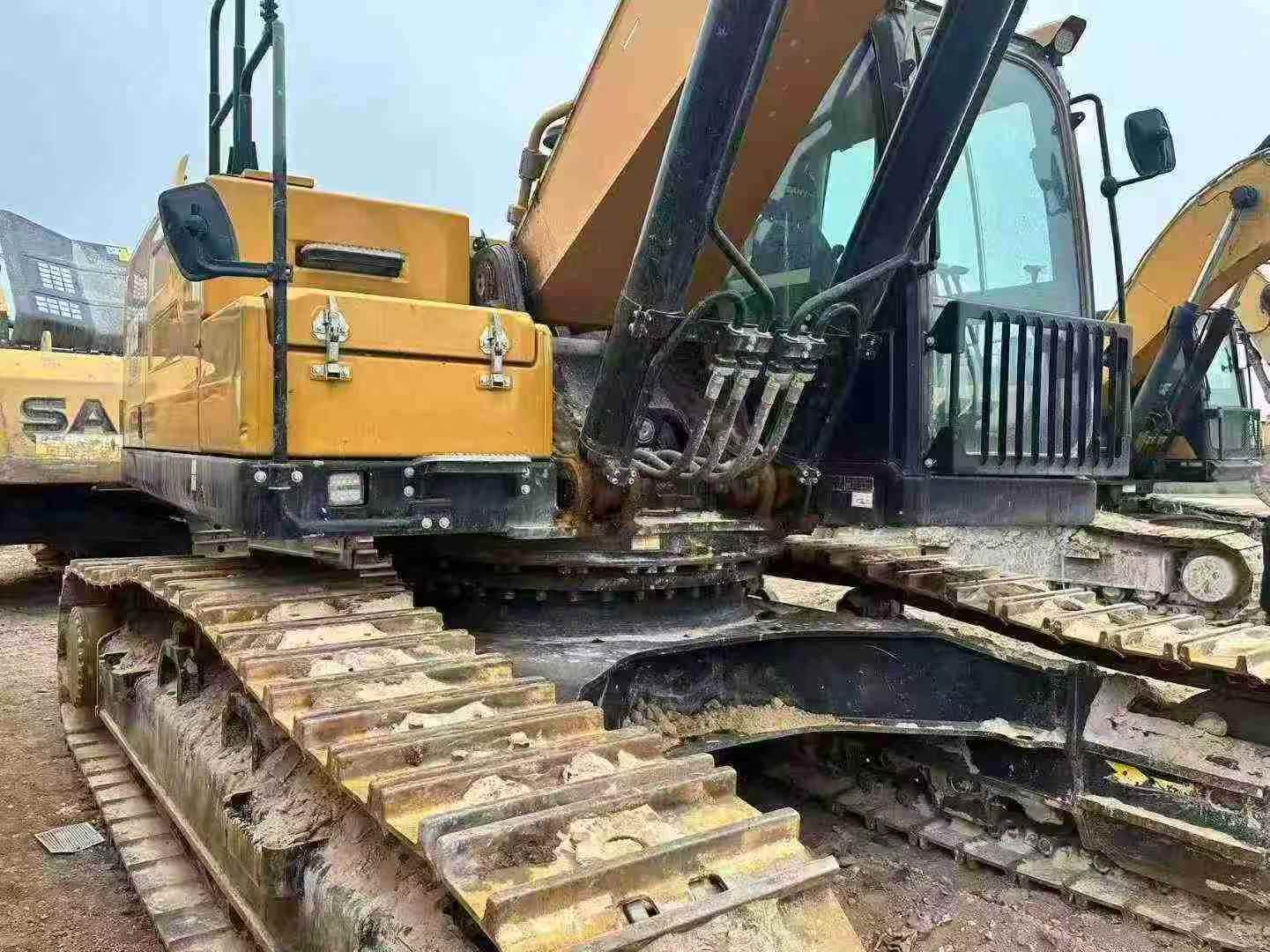

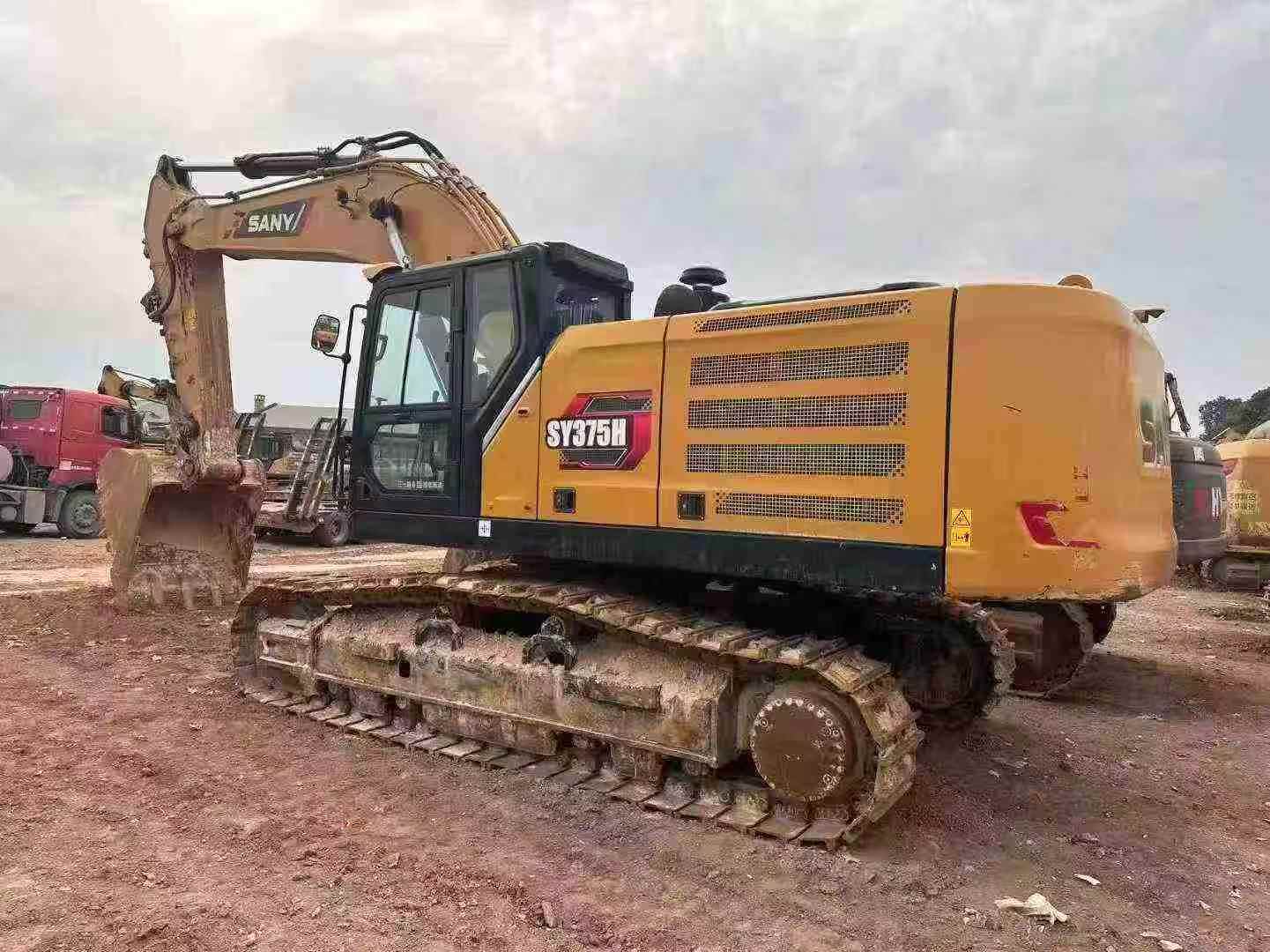

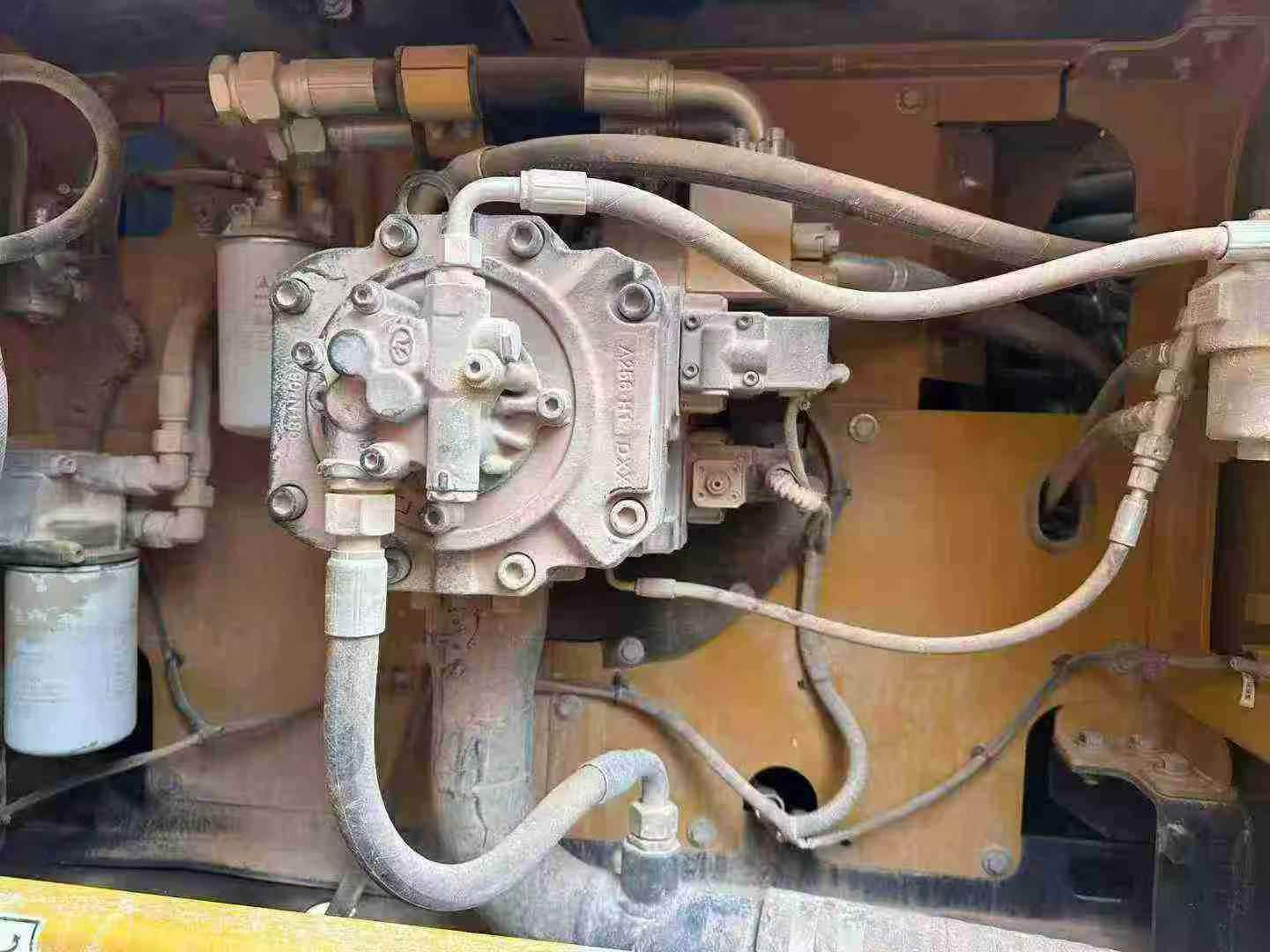

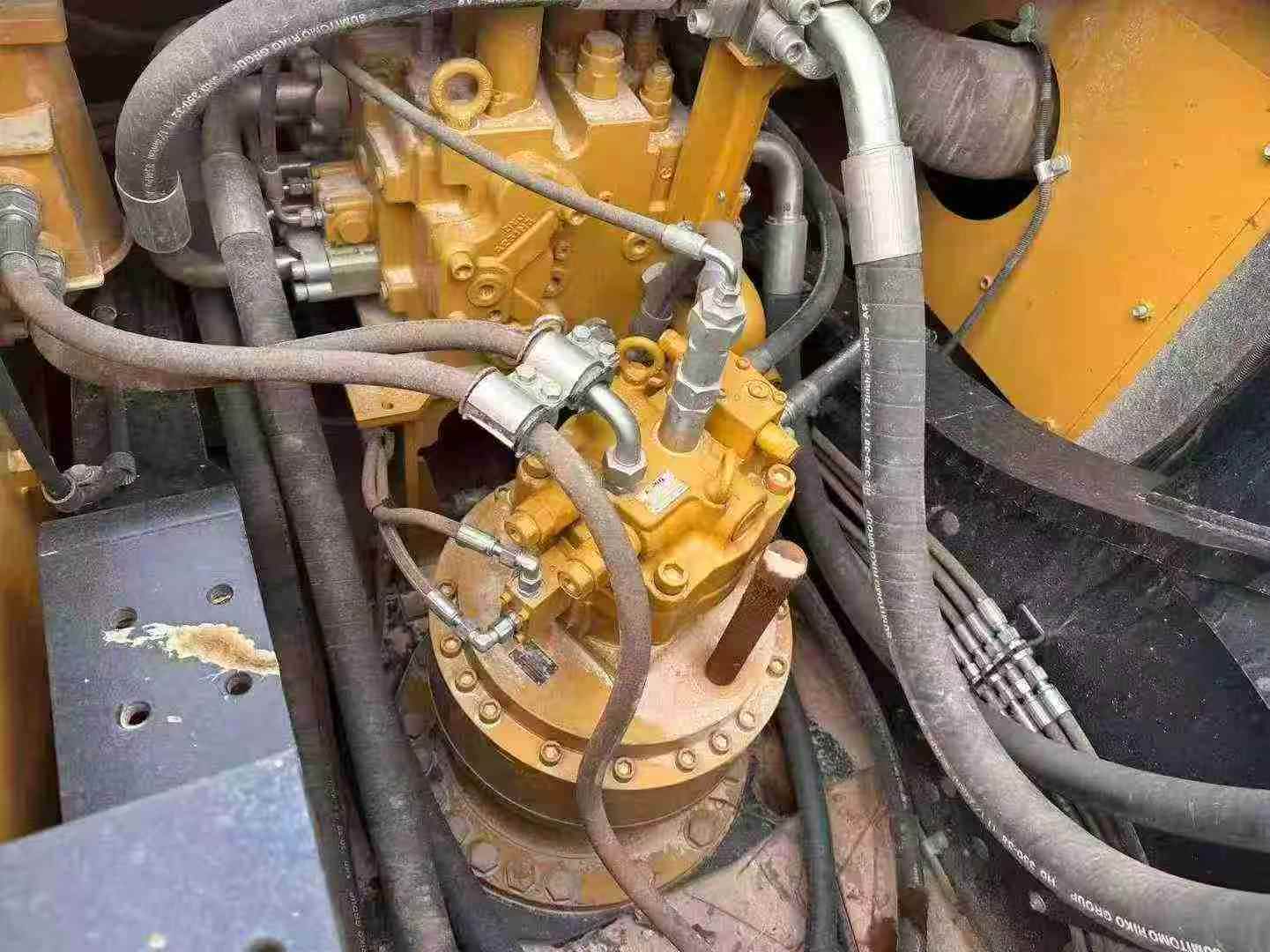

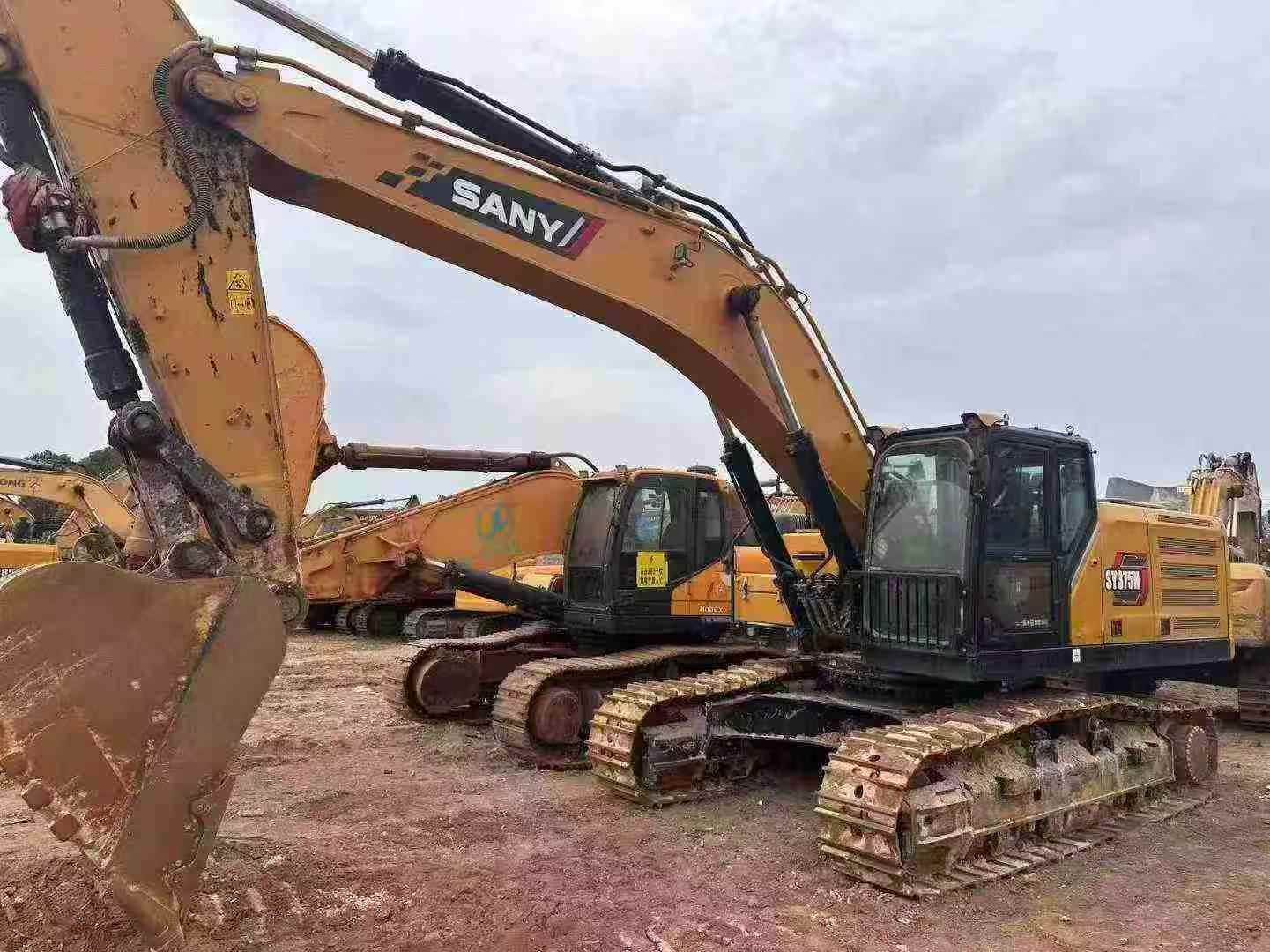

Engineered with a powerful GH-6HK1XKSC 6-cylinder turbocharged engine delivering 212kW at 2000rpm, this 2024 Sany SY375H excavator combines raw power with precision control. Its 7.79L displacement engine generates 1080 N.m maximum torque, while the advanced hydraulic system delivers 235kN bucket digging force and 210kN arm digging force—ensuring exceptional performance in demanding applications.
Built on a robust 37-ton platform with 37,500kg working weight, this machine offers superior operational capabilities:
- Maximum digging reach of 10,750mm with 7,155mm depth capacity
- 1.7-2.4m³ bucket capacity for optimal payload efficiency
- 8.8rpm rotation speed enabling smooth, productive operation
- 70% climbing ability for challenging terrain navigation
- 540L fuel tank supporting extended work cycles

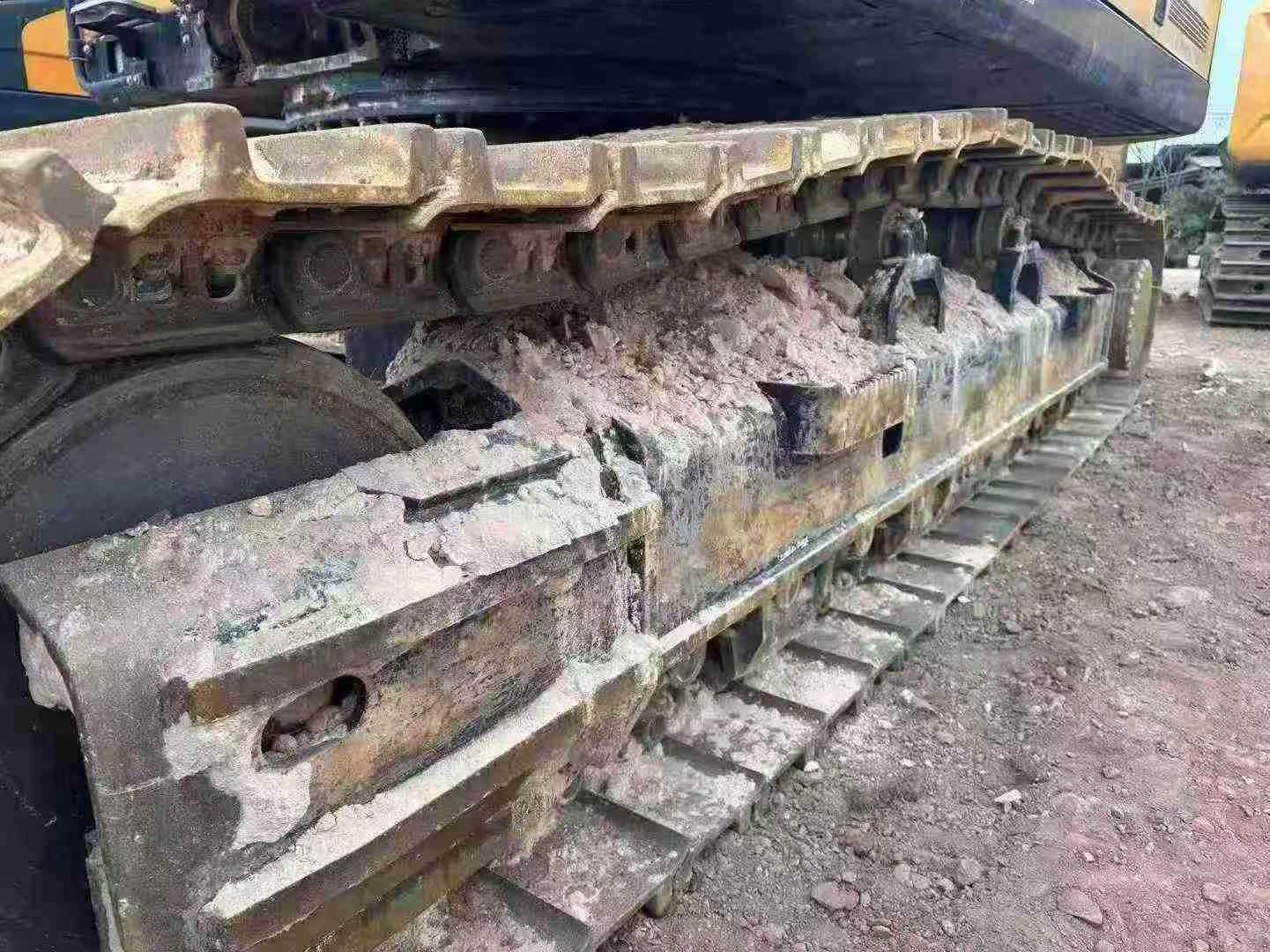

Water-cooled direct injection technology ensures consistent performance under continuous operation. With 600mm track plates and 68.8kPa ground pressure, this Chinese-manufactured excavator balances stability with minimal ground disturbance. Currently located in Sichuan, this SY375H represents proven engineering designed for high-output earthmoving operations.
| Specifications | Value |
|---|---|
| No. | 1032586 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
