HOME>>Sany>>Sany SY375H

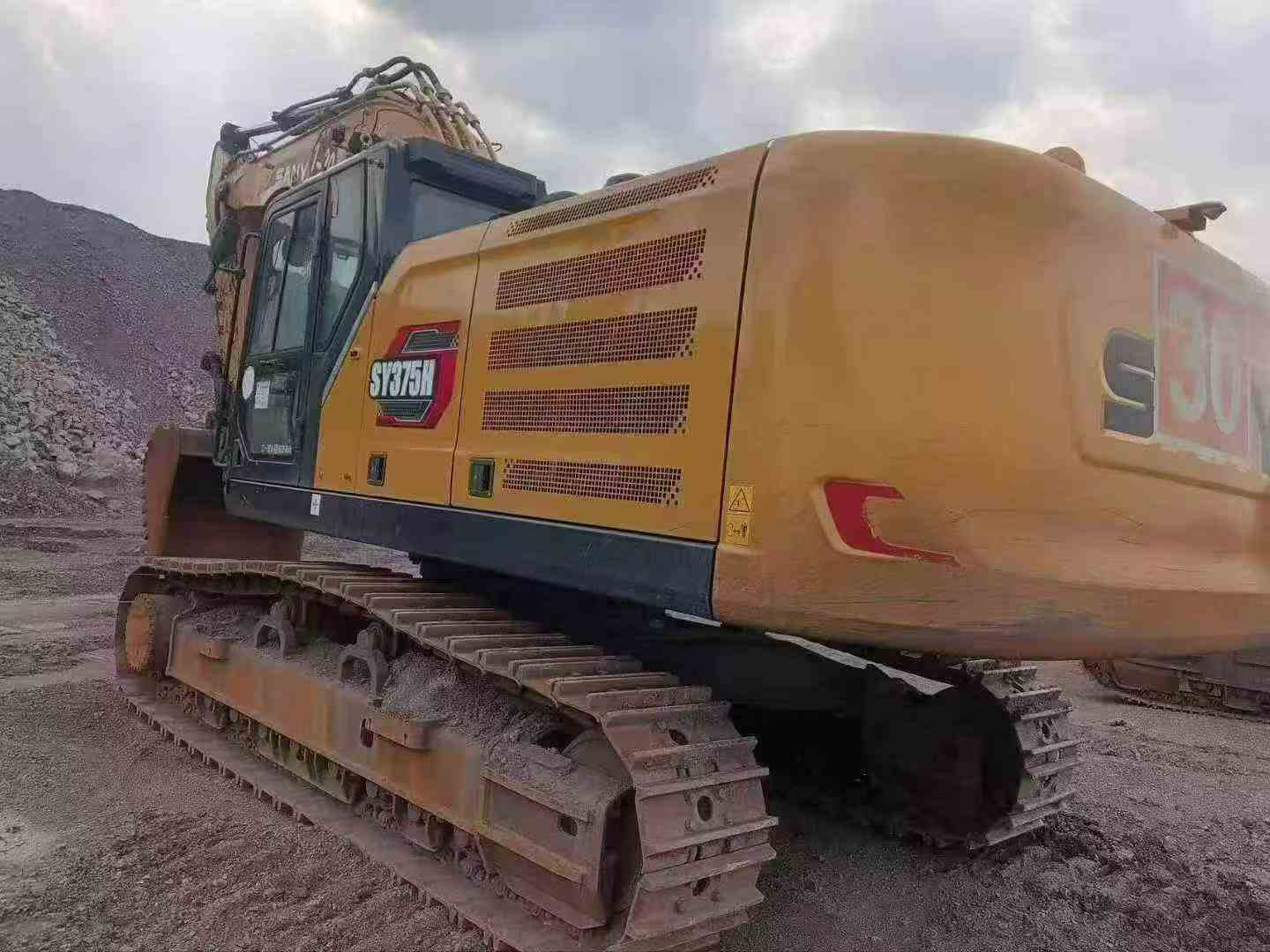

2024 Sany SY375H

1/5
Buy Sany SY375H Used Excavator / 1
Buy Sany SY375H Used Excavator / 2

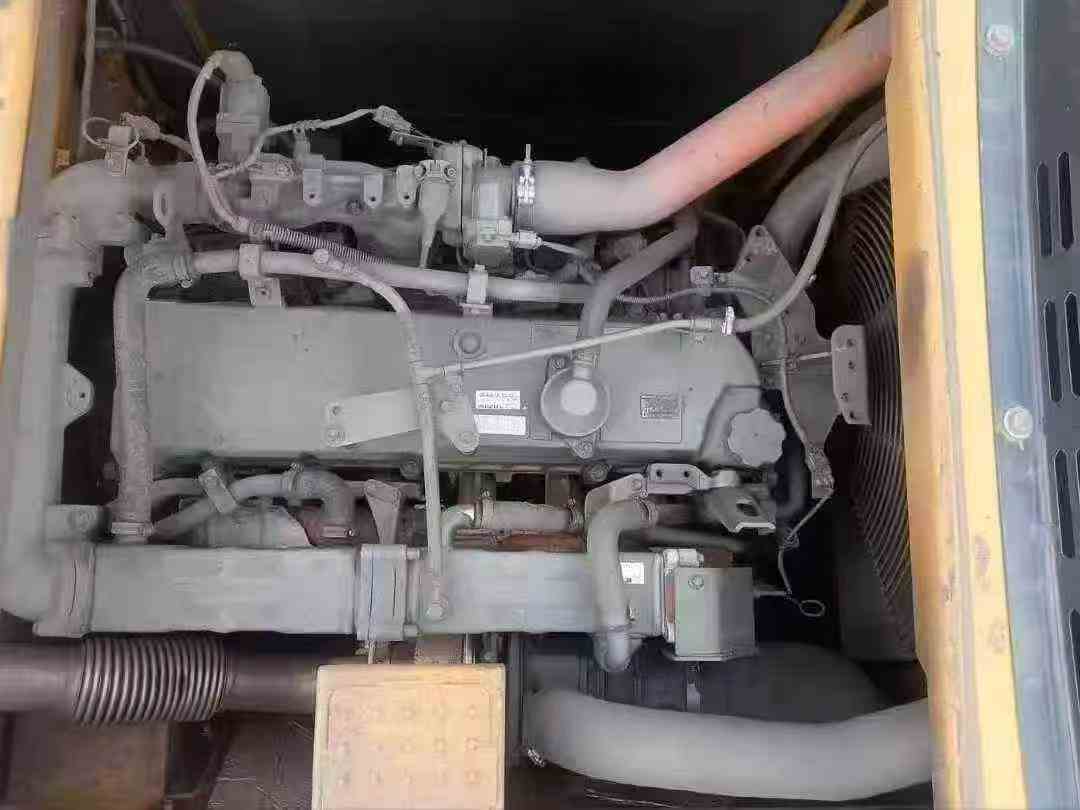

Buy Sany SY375H Used Excavator / 3

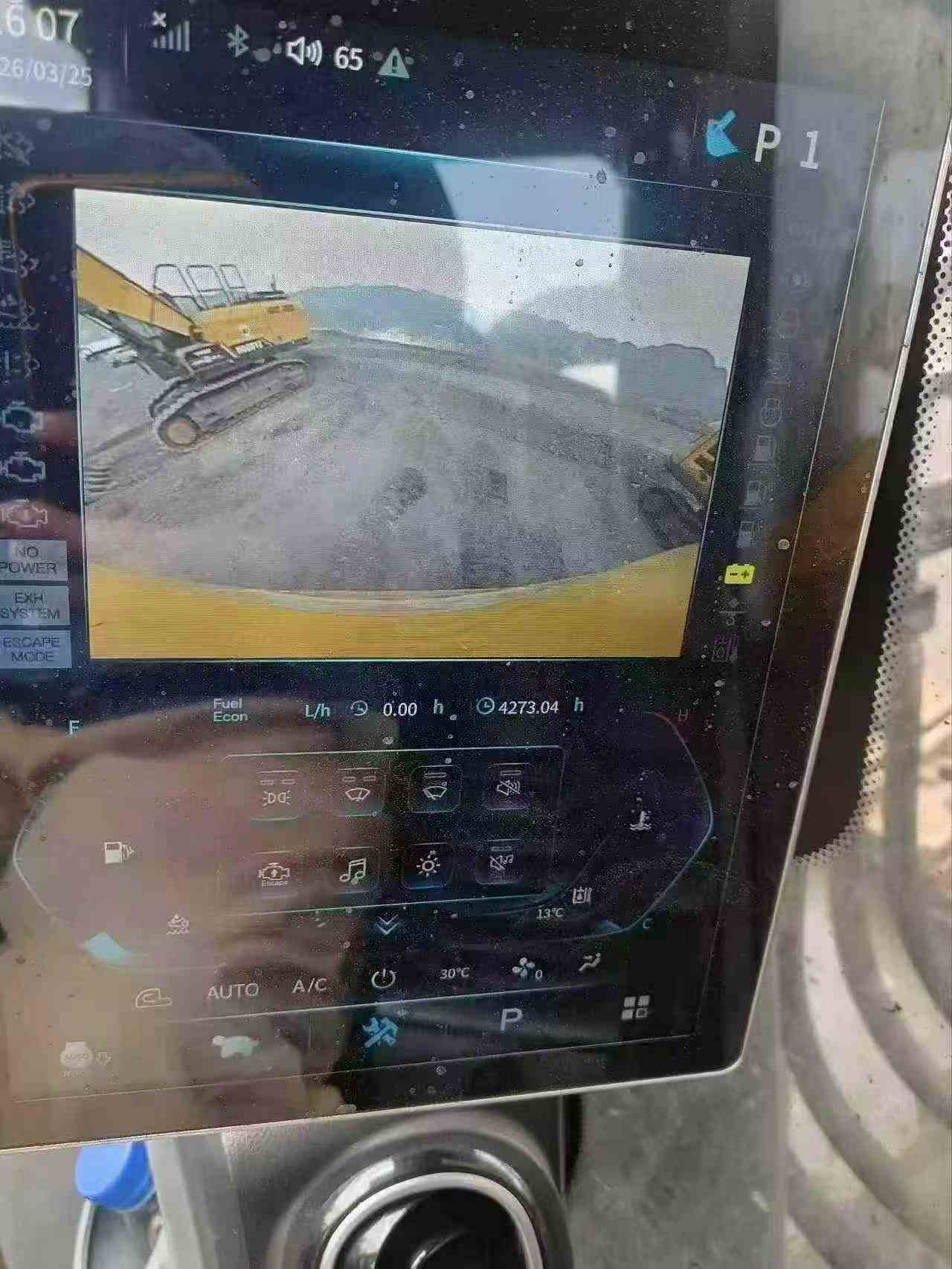

Buy Sany SY375H Used Excavator / 4

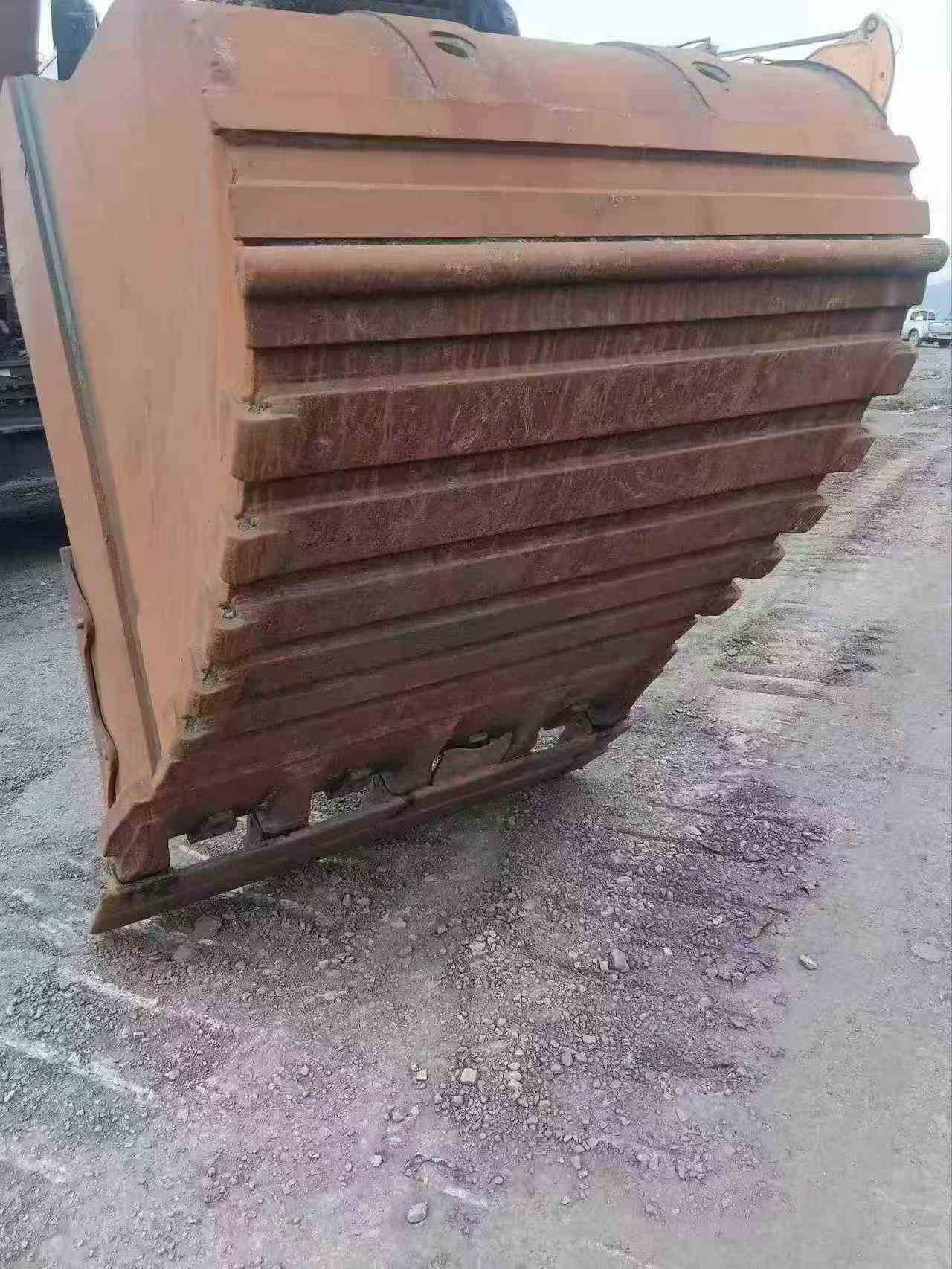

Buy Sany SY375H Used Excavator / 5

Product Description

With a powerful GH-6HK1XKSC engine, the Sany SY375H excavator, manufactured in 2024, offers exceptional performance and reliability. Boasting a rated power of 212 kW at 2000 rpm, this machine is designed for demanding tasks. Its 37-ton working weight and 1.9 m³ bucket capacity ensure robust digging capabilities, with a maximum digging force of 235 kN.

  • Enhanced operator comfort with a spacious, fully enclosed cab providing excellent visibility.
  • Stable and smooth operation, thanks to a well-balanced design and a ground specific pressure of 68.8 Kpa.
  • Effortless maneuverability, featuring a minimum turning radius of 4390 mm and a back end turning radius of 3610 mm.
  • Reliable water-cooling system and turbocharged, direct injection engine for consistent performance.
  • High travel speed of up to 5.5 km/h, enabling efficient movement on-site.

Located in 浙江温州, this excavator is ready to meet the rigorous demands of your construction projects with its superior handling, stability, and visibility.

SpecificationsValue
No.1043224
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230
Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
see more

Overview

No.1043224

Brand Name:

Sany

Model Number:

SY375H

Year:

2024

Location:

Zhejiang China

Pub Date
