Product Description
Engineered with a Kawasaki K5V200 main pump and 250kW rated power output at 2000 rpm, this 2012 Sany SY385C delivers exceptional hydraulic performance for demanding excavation projects. Operating at 38 tons working weight with a 1.8m³ backhoe bucket capacity, this crawler excavator combines robust digging force with precision control—239kN bucket force and 181kN arm force ensure efficient material handling across diverse applications.
Key technical specifications include:
- Maximum digging reach of 10,970mm with 7,050mm depth capability
- Maximum dumping height: 7,015mm for efficient truck loading
- Ground pressure: 65.7kPa minimizes surface impact
- Dual travel speeds: 5.4/3.4 km/h for operational flexibility
- 8.3 rpm rotation speed enables smooth positioning
- 70% (35°) climbing ability for challenging terrain
Currently located in Maoming, Guangdong, this China-manufactured excavator offers proven reliability for infrastructure, mining, and civil engineering operations. Transport dimensions of 11,610mm × 3,350mm × 3,690mm facilitate straightforward logistics planning.
| Specifications | Value |
|---|---|
| No. | 1031719 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38000 |
| Bucket capacity (m³) | 1.8 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 250/2000 |
| Ground specific pressure (Kpa) | 65.7 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 239 |
| Rod digging force (kN) | 181 |
| Travel speed (km/h) | 5.4/3.4 |

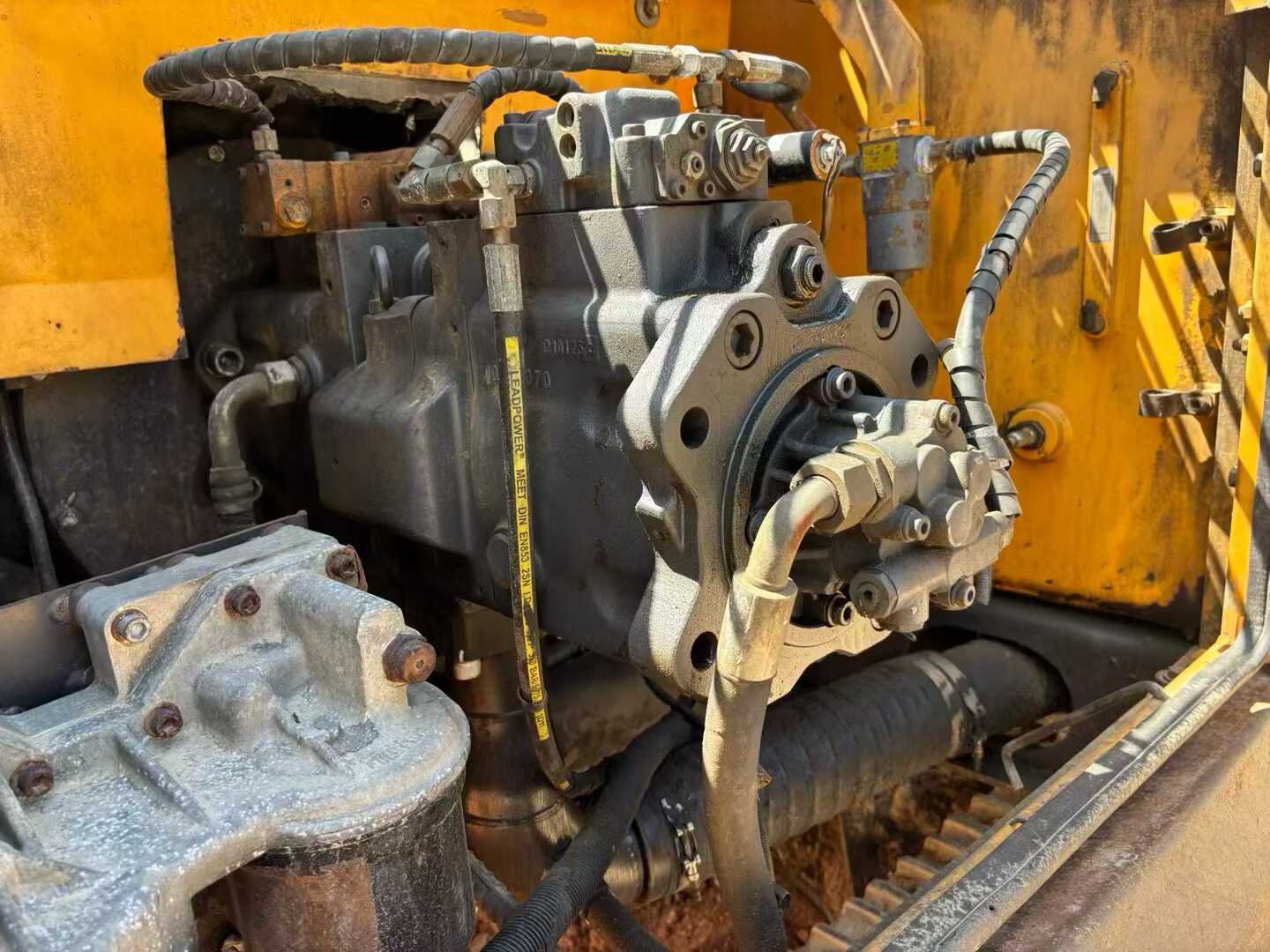

| Main pump type | Kawasaki K5V200 |
| Total transport length (mm) | 11610 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3245 |
| Minimum ground clearance (mm) | 515 |
| Minimum turning radius of front working device (mm) | 4795 |
| Back end turning radius (mm) | 3750 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 10970 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7015 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
