Product Description
With a working weight of 38,000 kg and a bucket capacity of 1.8 m³, the Sany SY385C excavator, manufactured in Kunshan, Jiangsu Province, is a testament to robust engineering. Built to last, this 2013 model has proven its durability and reliability over the years. Equipped with a traditional power engine delivering 250 kW at 2000 rpm, it ensures consistent performance. The machine's ground specific pressure of 65.7 Kpa and climbing ability of 70/35° make it versatile for various terrains. Its bucket and rod digging forces of 239 kN and 181 kN, respectively, handle tough excavation tasks efficiently. Traveling at speeds up to 5.4 km/h, it combines mobility with power, making it a reliable workhorse on any construction site.
- Location: 江西宜春
- Total transport dimensions: 11610 mm (length) x 3350 mm (width) x 3690 mm (height)
- Maximum digging radius: 10970 mm
- Maximum digging depth: 7050 mm

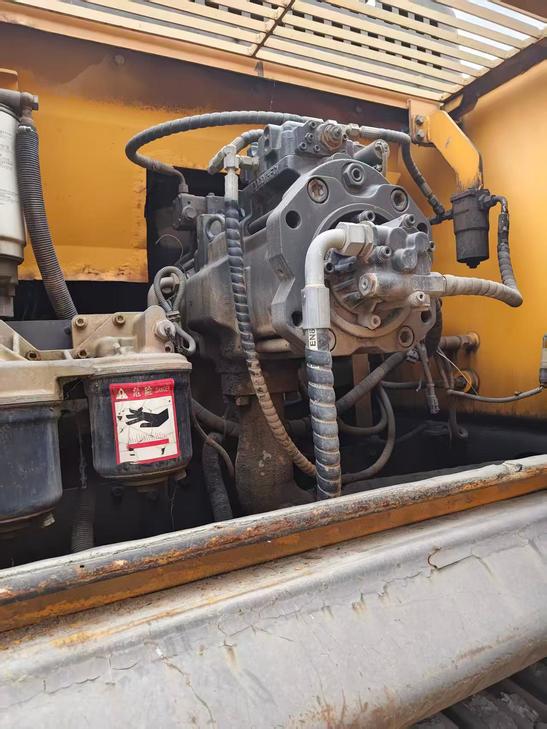

- Main pump type: Kawasaki K5V200
| Specifications | Value |
|---|---|
| No. | 1050537 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38000 |
| Bucket capacity (m³) | 1.8 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 250/2000 |
| Ground specific pressure (Kpa) | 65.7 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 239 |
| Rod digging force (kN) | 181 |
| Travel speed (km/h) | 5.4/3.4 |
| Main pump type | Kawasaki K5V200 |
| Total transport length (mm) | 11610 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3245 |
| Minimum ground clearance (mm) | 515 |
| Minimum turning radius of front working device (mm) | 4795 |
| Back end turning radius (mm) | 3750 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 10970 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7015 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
