Product Description

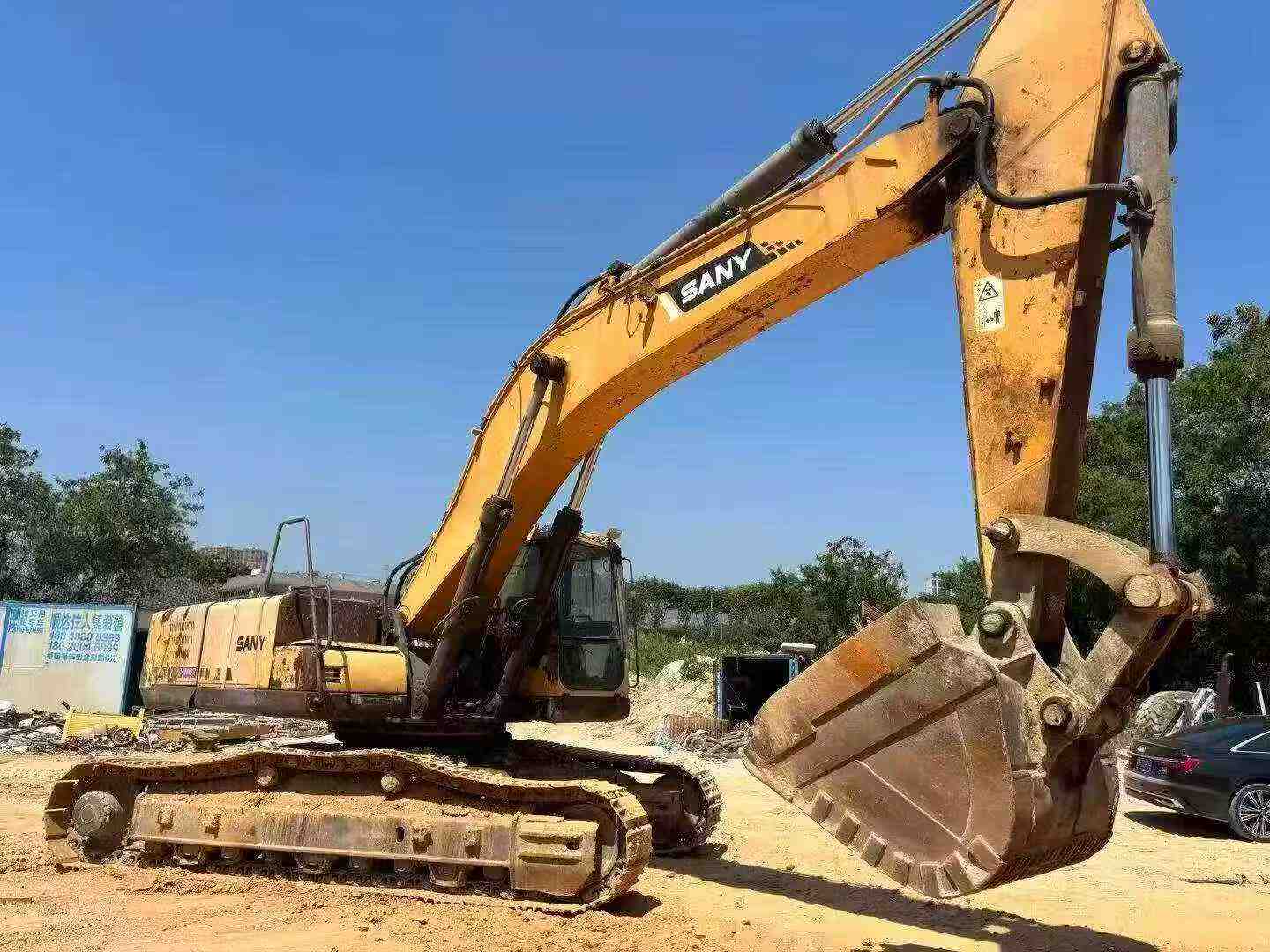

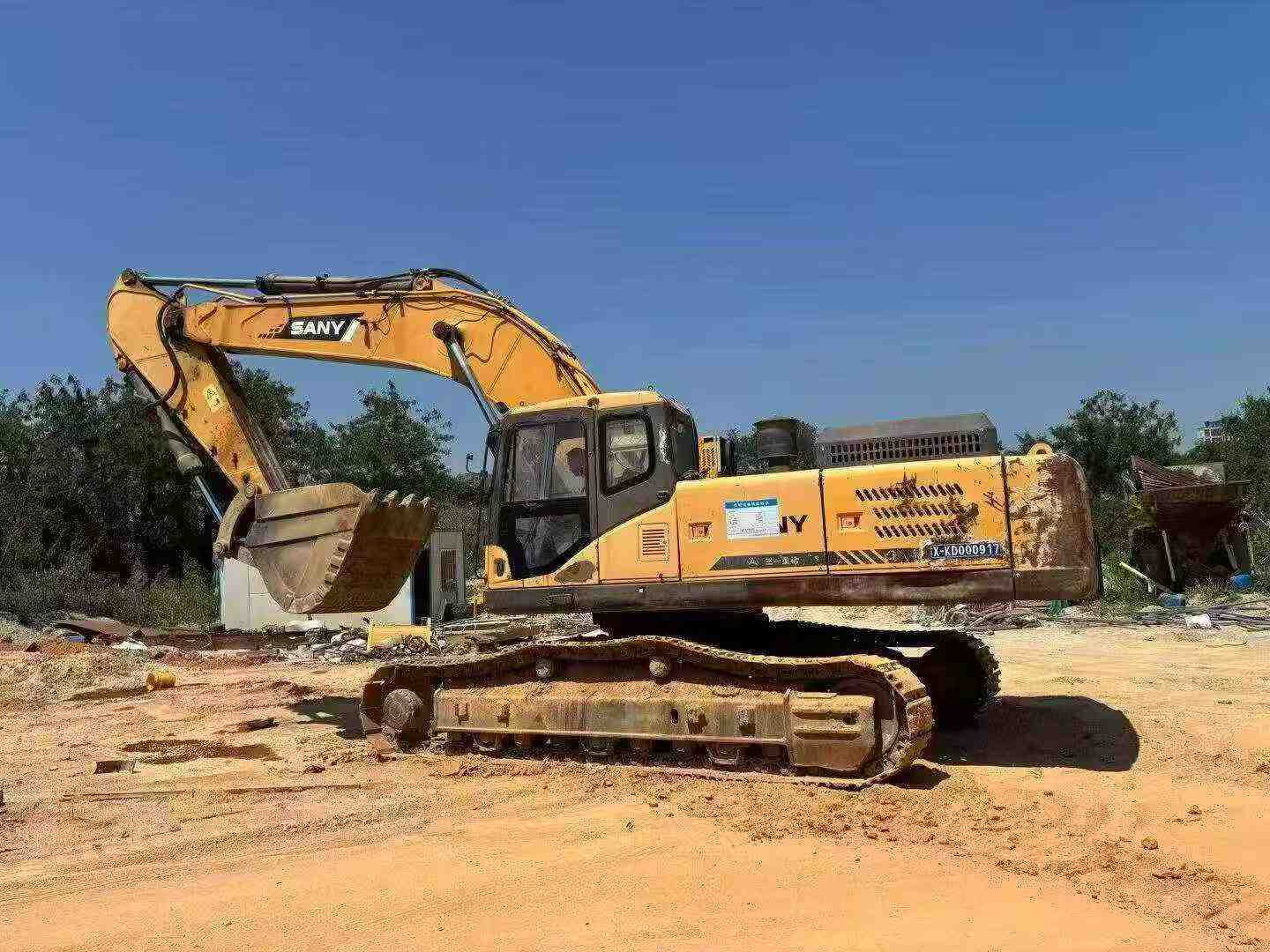

Acquire proven excavation power at a fraction of new equipment costs with this 2016 Sany SY385C crawler excavator, currently located in Luzhou, Sichuan. Operating at 38 tons with a robust 250 kW rated power output, this machine delivers serious productivity for demanding earthmoving operations without the premium price tag of factory-fresh alternatives.
Built in China with quality Kawasaki K5V200 main pumps, this excavator combines a 1.8 m³ bucket capacity with impressive digging specifications: 10,970 mm maximum reach, 7,050 mm digging depth, and 239 kN bucket digging force. Travel speeds of 5.4/3.4 km/h and 8.3 rpm rotation speed ensure efficient site mobility and cycle times.
- 38-ton working weight with 250 kW power at 2000 rpm
- 1.8 m³ bucket capacity for high-volume material handling
- 10,030 mm maximum excavation height reaches upper loading zones
- 70% gradient climbing ability tackles challenging terrain
- Kawasaki hydraulic pumps ensure reliable performance
- Transport dimensions: 11,610 mm × 3,350 mm × 3,690 mm
Smart buyers recognize that pre-owned heavy equipment from established manufacturers offers exceptional value. Invest intelligently in operation
| Specifications | Value |
|---|---|
| No. | 1033945 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38000 |
| Bucket capacity (m³) | 1.8 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 250/2000 |
| Ground specific pressure (Kpa) | 65.7 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 239 |
| Rod digging force (kN) | 181 |
| Travel speed (km/h) | 5.4/3.4 |

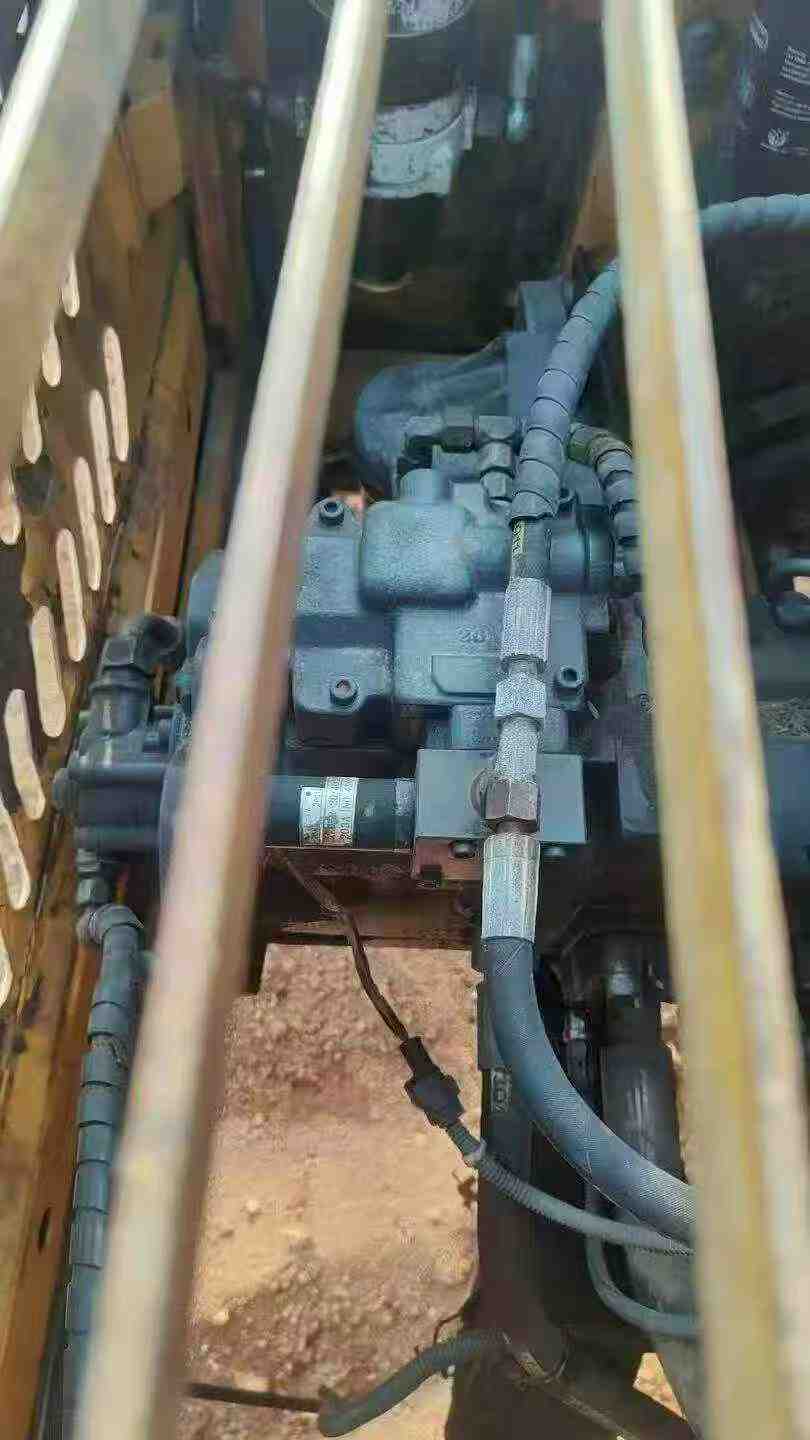

| Main pump type | Kawasaki K5V200 |
| Total transport length (mm) | 11610 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3245 |
| Minimum ground clearance (mm) | 515 |
| Minimum turning radius of front working device (mm) | 4795 |
| Back end turning radius (mm) | 3750 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 10970 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7015 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
