Product Description

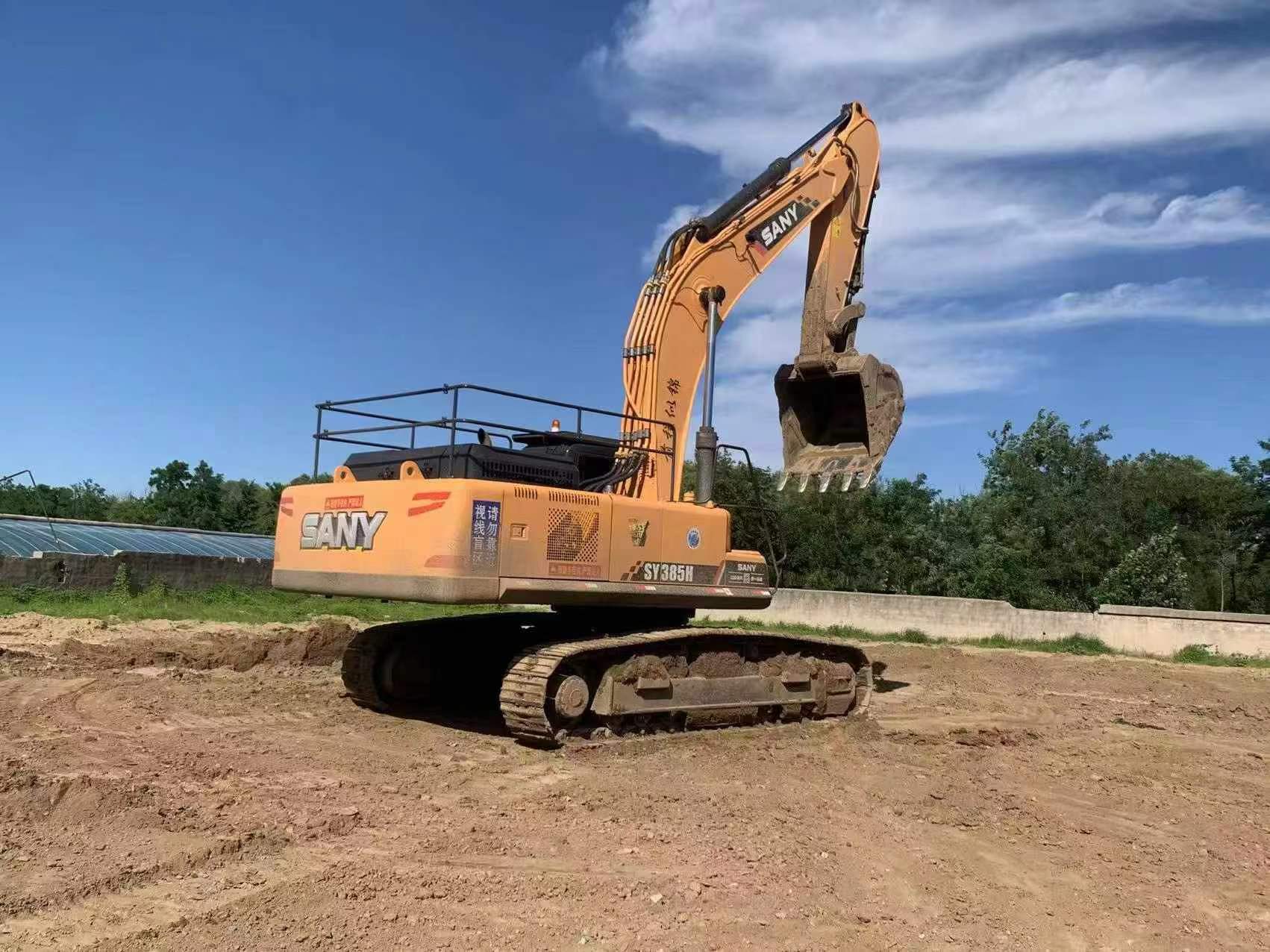

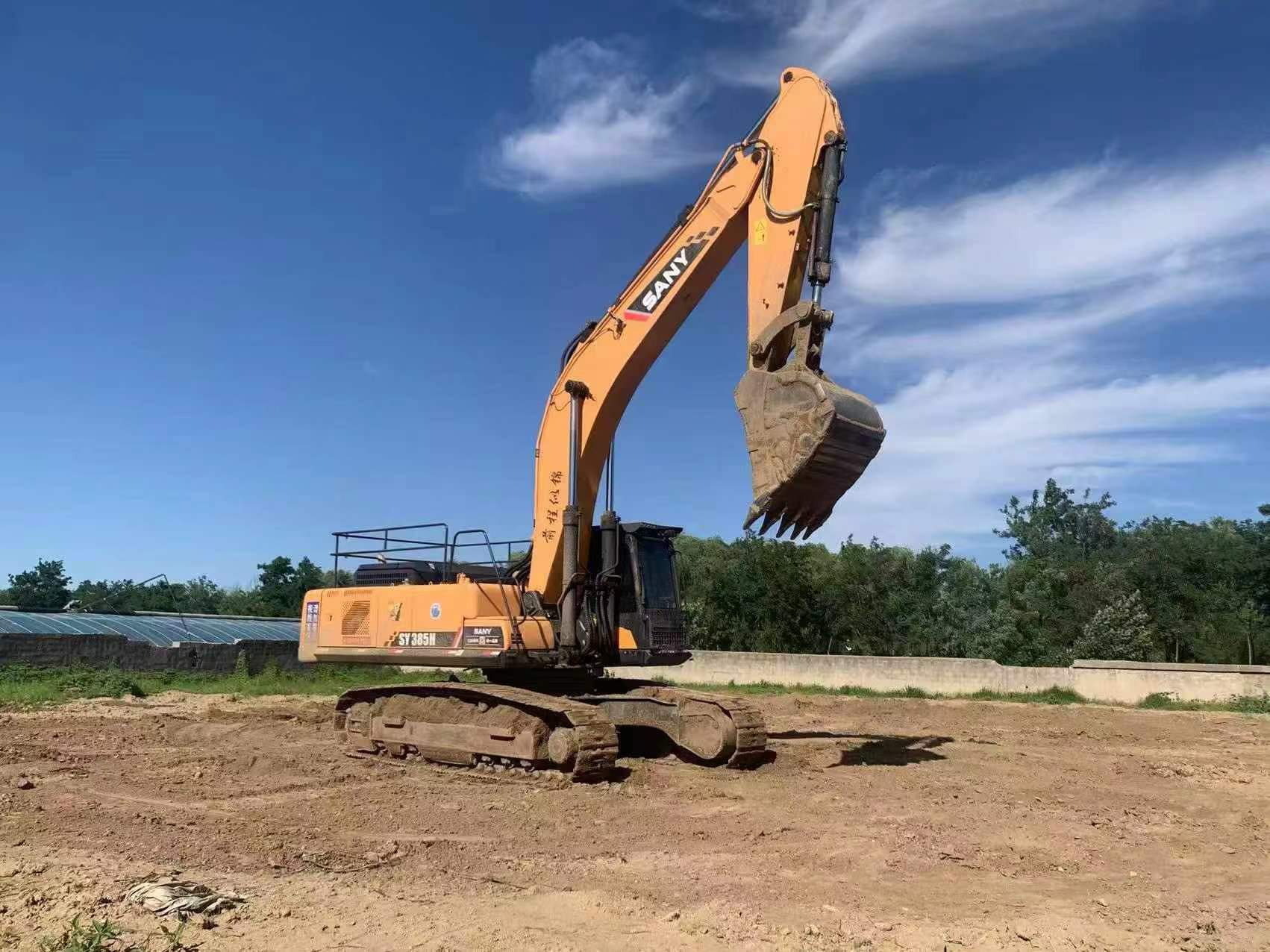

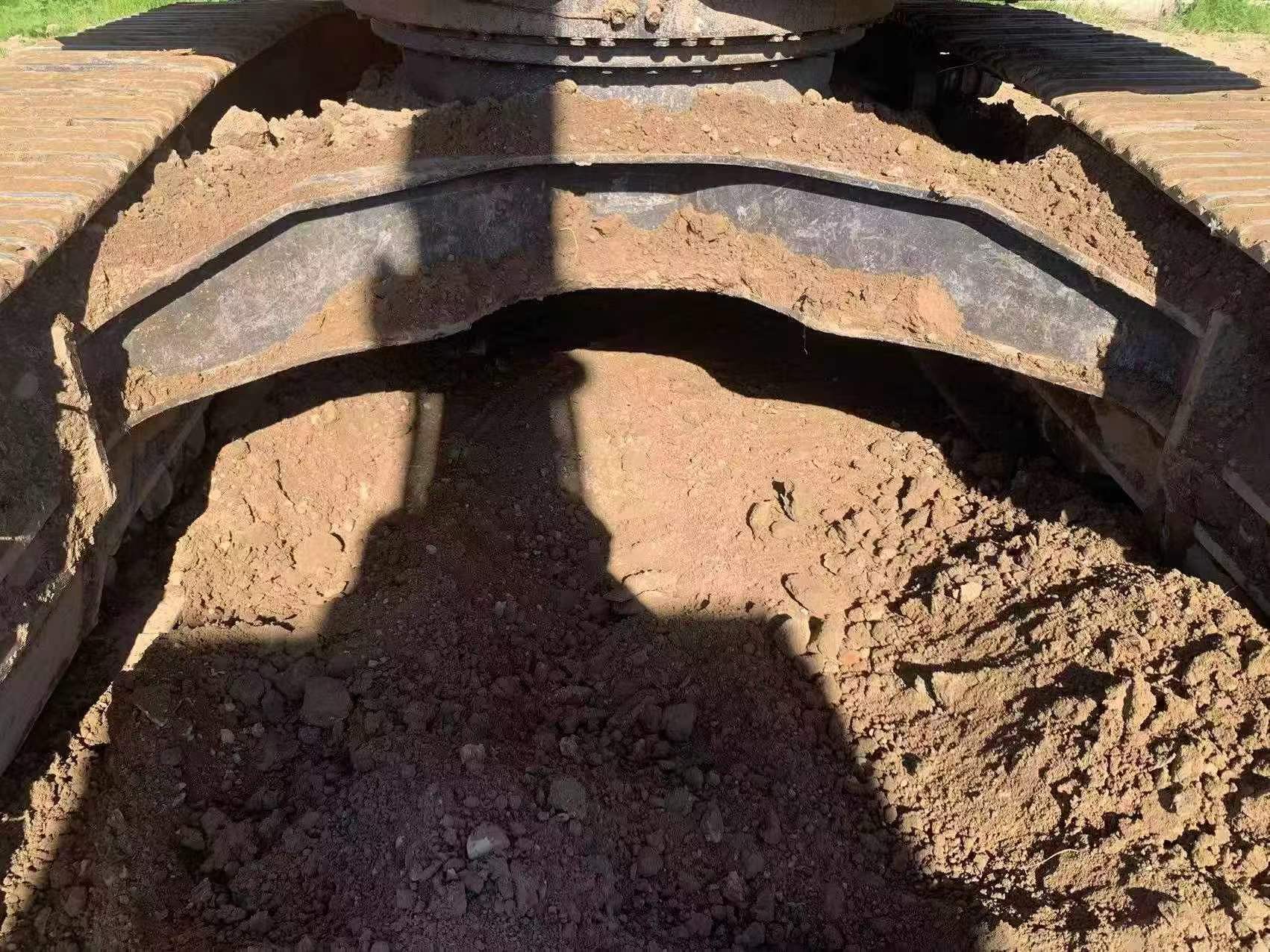

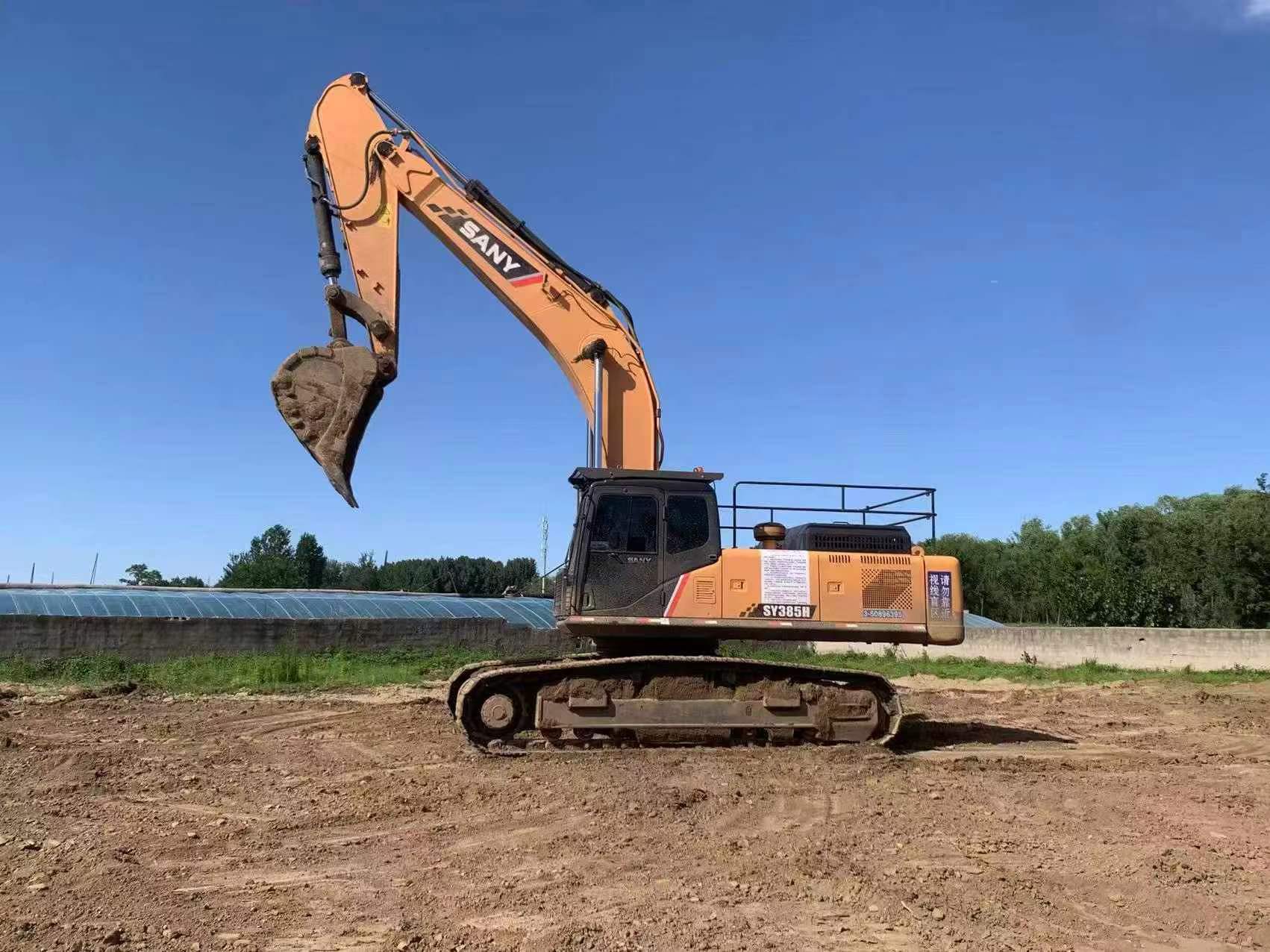

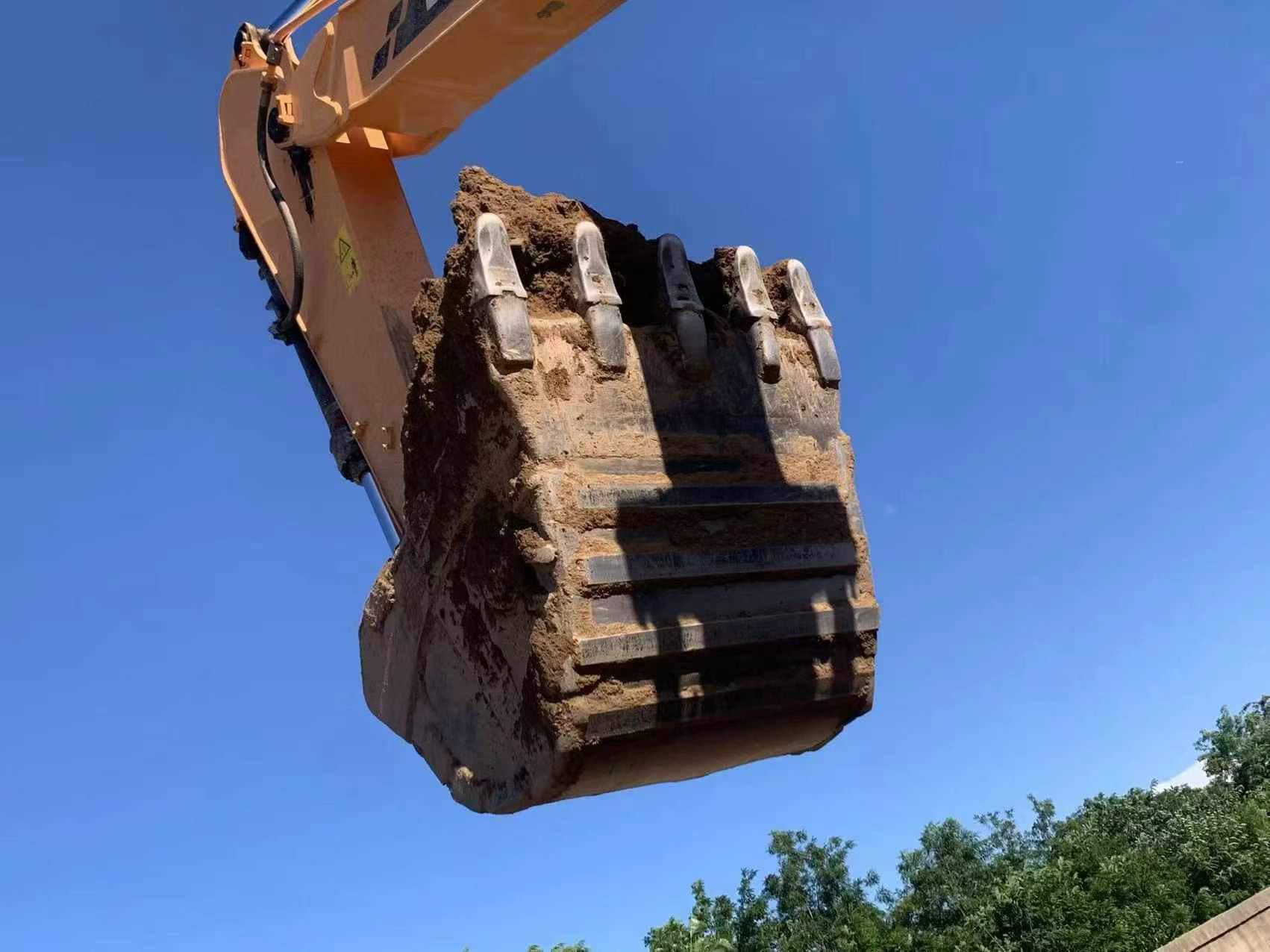

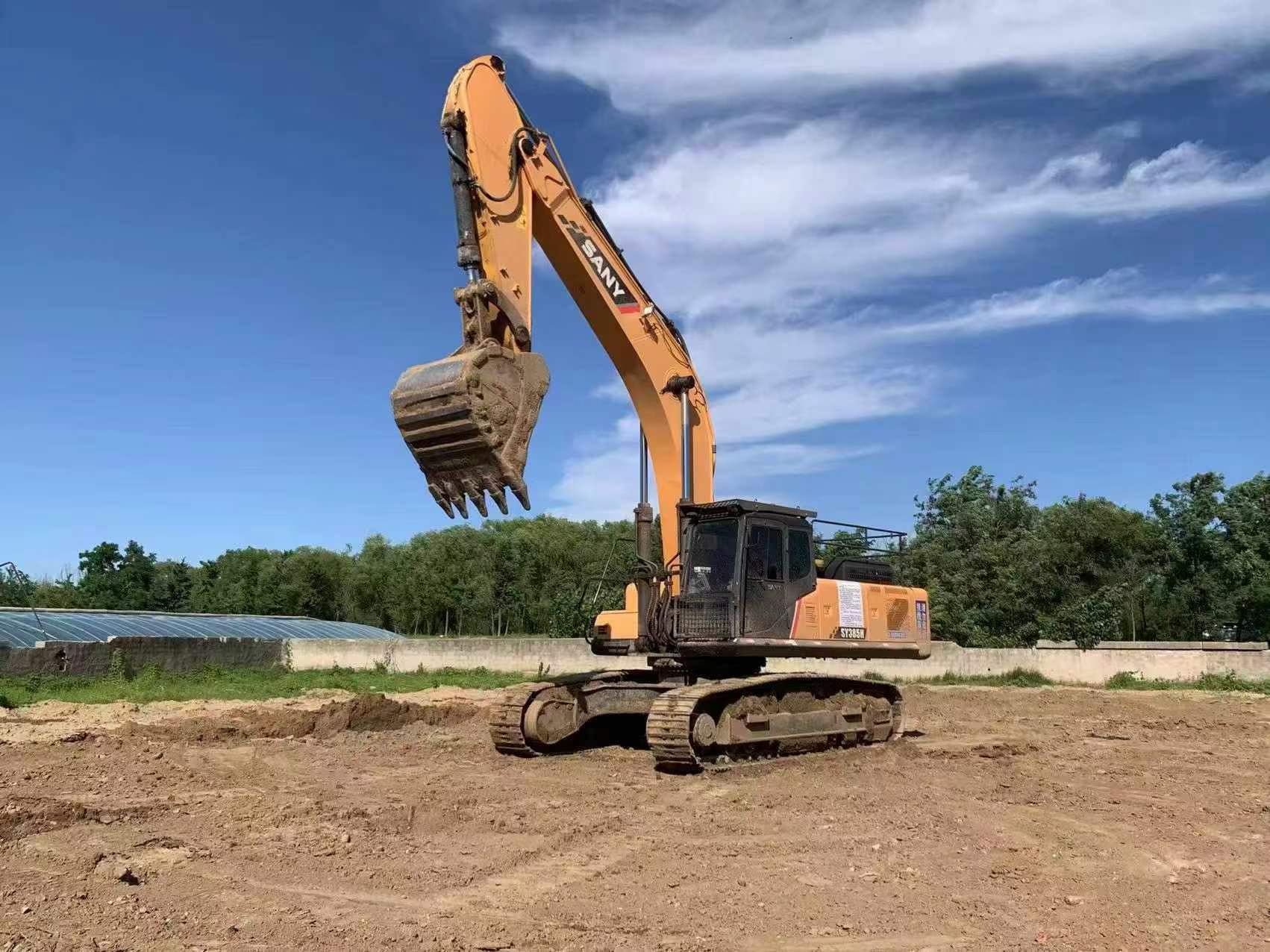

Discover the exceptional quality of a 2020 Sany SY385H-9, available in Hebei, China. This machine is in near-new condition, making it an ideal choice for demanding construction and excavation projects. Equipped with its original earthmoving bucket, the SY385H-9 delivers robust digging power and stability, thanks to its well-maintained undercarriage. Major components remain untouched, ensuring reliability and performance. Prospective buyers are welcome to inspect and test the machine on-site. Comprehensive photo and video documentation is available upon request.
- Year: 2020
- Brand: Sany
- Model: SY385H-9
- Location: Hebei, China
| Specifications | Value |
|---|---|
| No. | 1099320 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38500 |
| Bucket capacity (m³) | 1.8(Rock Bucket) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 250/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Four stroke six cylinder turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 66.2 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 240 |
| Rod digging force (kN) | 190 |
| Travel speed (km/h) | 5.3/3.4 |
| Total transport length (mm) | 11700 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3740 |
| Full cab height (mm) | 3470 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4810 |
| Back end turning radius (mm) | 3750 |
| Onboard width (mm) | 3265 |
| Total track length (mm) | 5270 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 (800/700 optional) |
| Track ground length (mm) | 4340 |
| Maximum height at minimum turning radius (mm) | 8745 |
| Maximum digging radius (mm) | 10965 |
| Maximum digging depth (mm) | 7050 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7015 |
| Maximum vertical digging depth (mm) | 4460 |
