2020 Sany SY385H-9

1/9
Buy Sany SY385H-9 Used Excavator / 1
Buy Sany SY385H-9 Used Excavator / 2
Buy Sany SY385H-9 Used Excavator / 3
Buy Sany SY385H-9 Used Excavator / 4
Buy Sany SY385H-9 Used Excavator / 5
Buy Sany SY385H-9 Used Excavator / 6
Buy Sany SY385H-9 Used Excavator / 7
Buy Sany SY385H-9 Used Excavator / 8
Buy Sany SY385H-9 Used Excavator / 9

Product Description

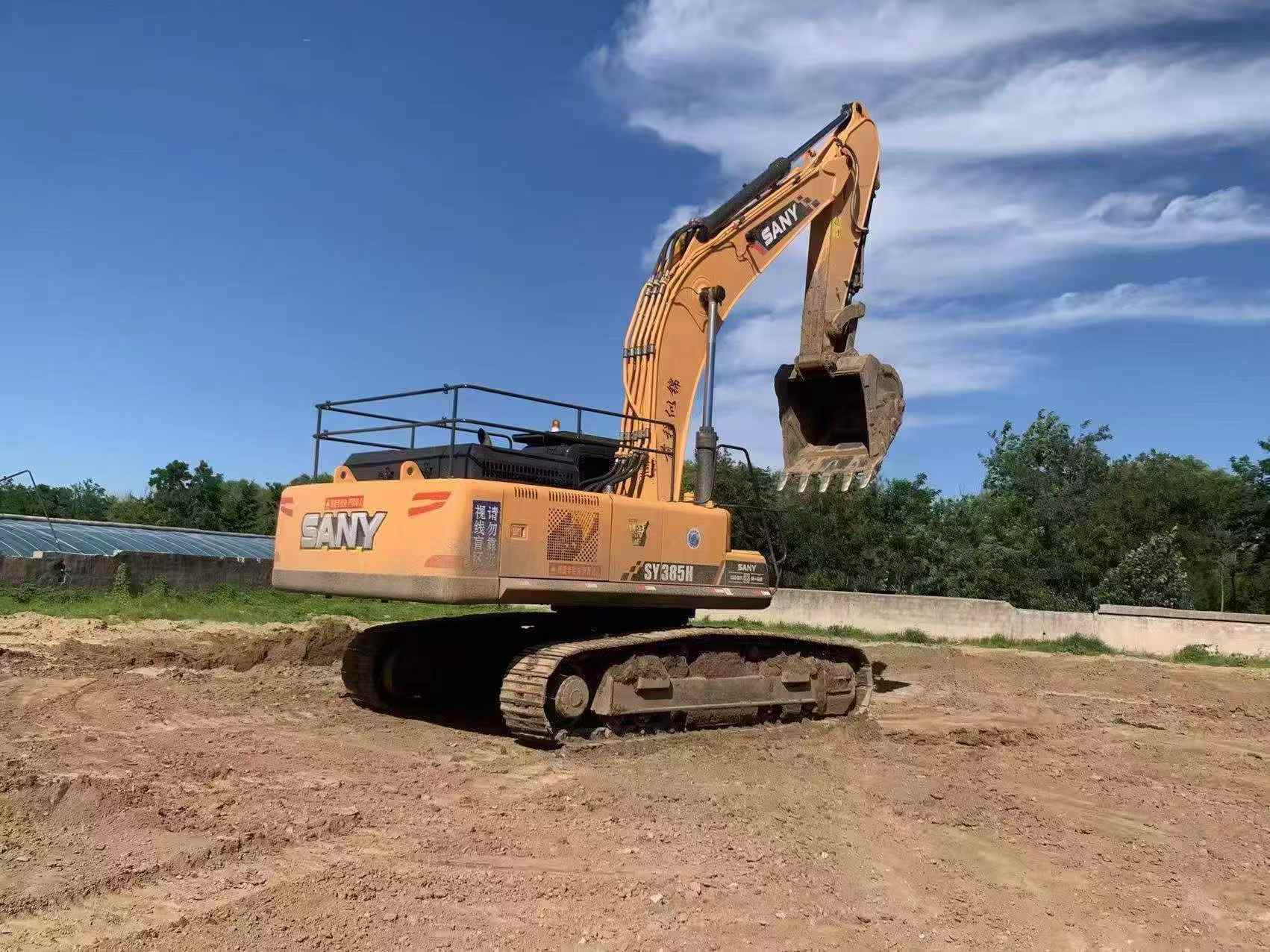

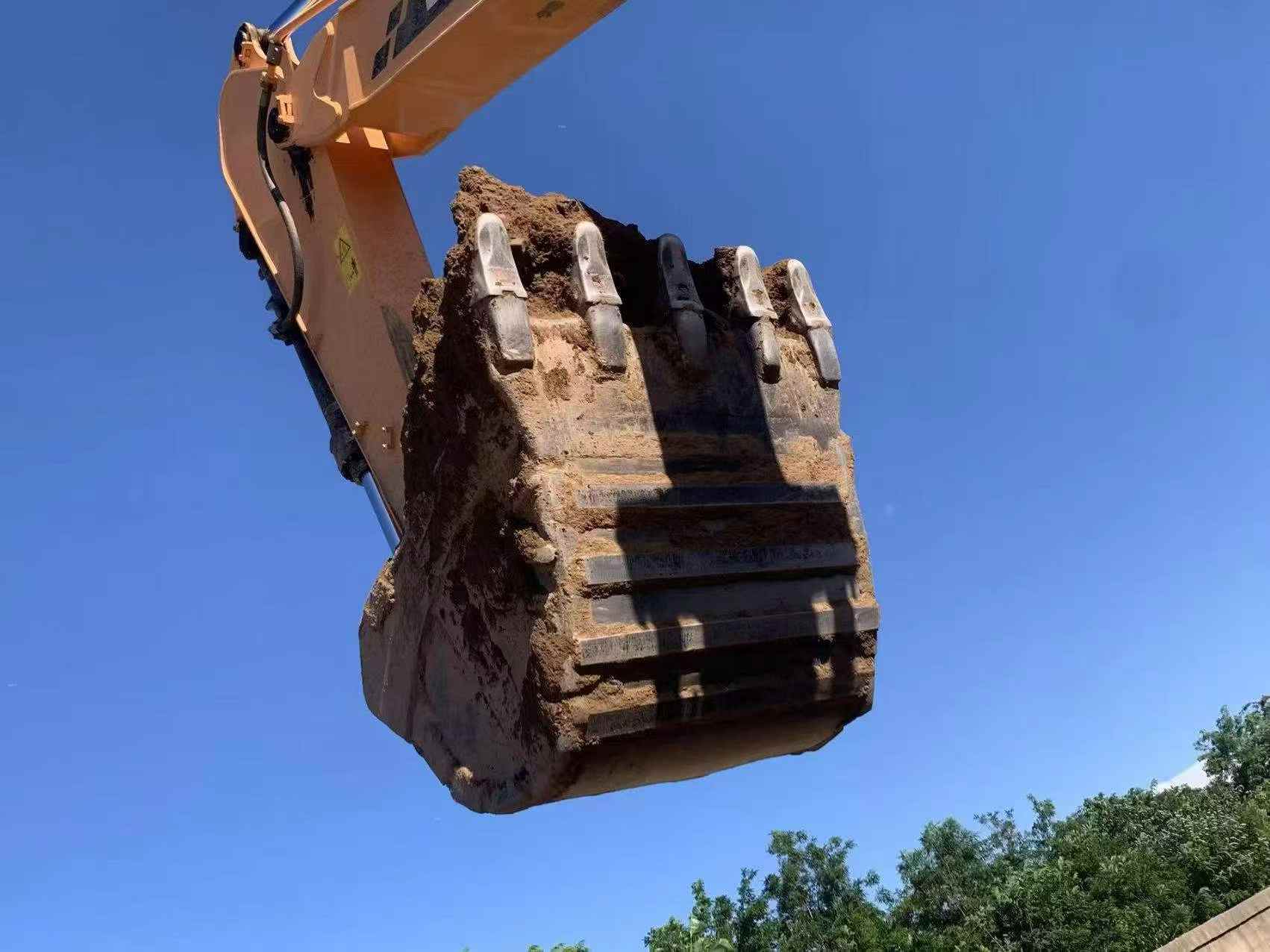

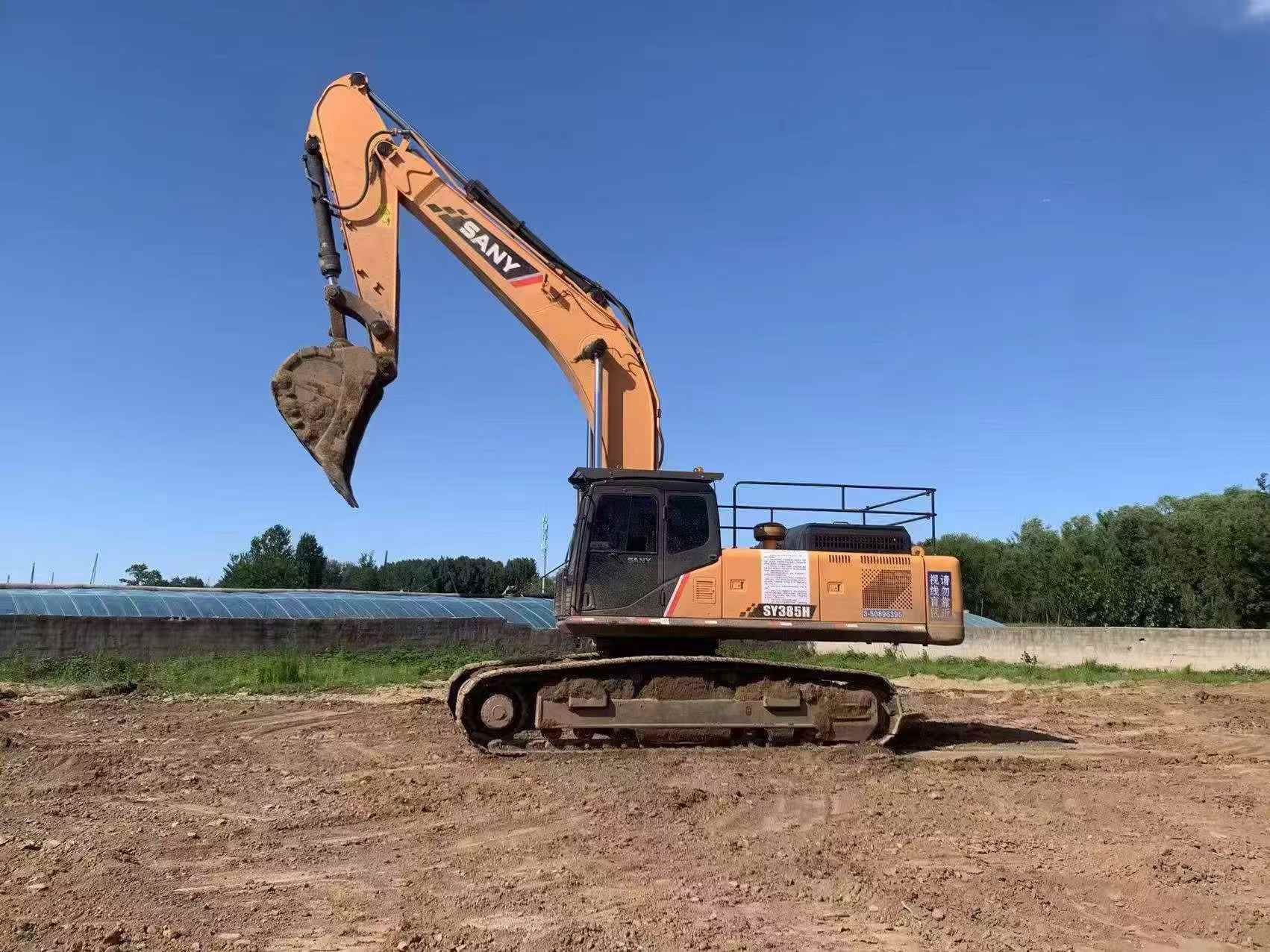

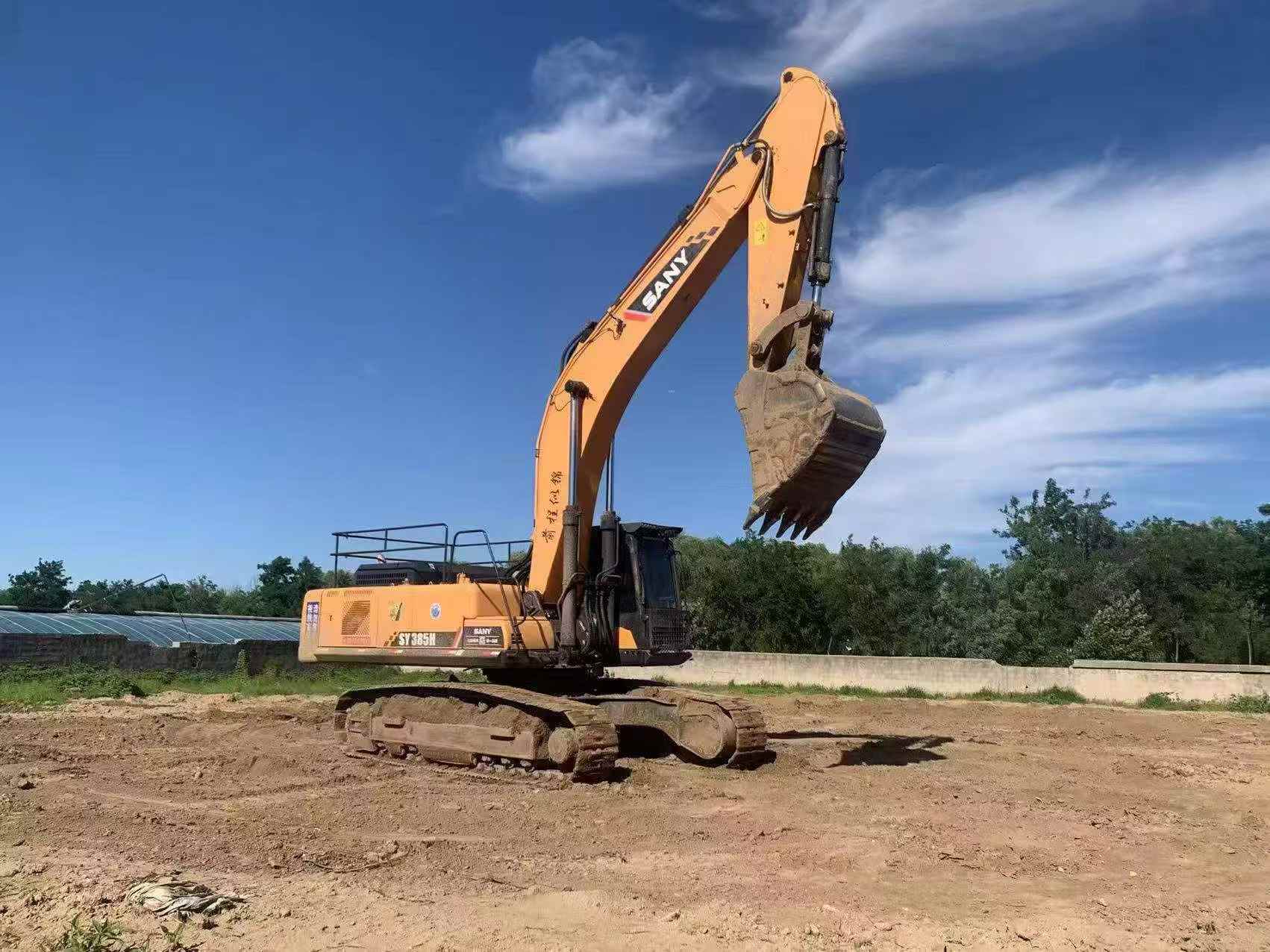

This 2020 Sany SY385H-9 hydraulic excavator represents excellent value in the used heavy equipment market. Sourced from Hebei, China, this machine presents in near-new condition with minimal operating hours. The excavator retains its original earthmoving bucket and features a straight undercarriage with no structural damage or repairs to major components.

  • Strong digging performance with reliable hydraulic systems
  • All major assemblies remain original and unmodified

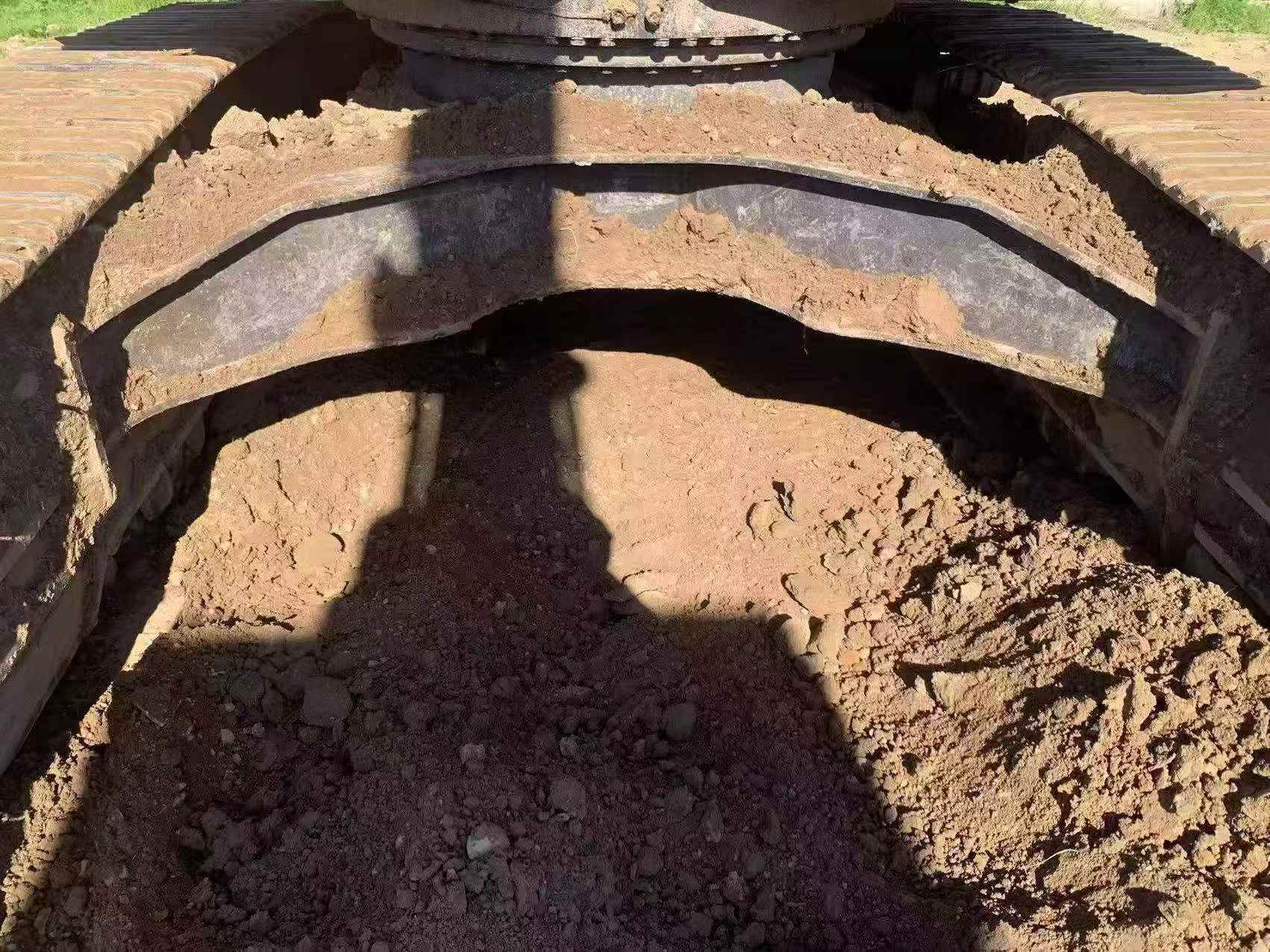

  • Undercarriage shows proper alignment and wear patterns
  • Available for on-site inspection and operational testing
  • Complete documentation and imagery provided

The SY385H-9 is well-suited for earthmoving, excavation, and general construction applications. This unit demonstrates the durability expected from Sany's heavy equipment lineup. Inspection welcomed.

SpecificationsValue
No.1105226
Tonnage (tons)38
Working weight (kg)38500
Bucket capacity (m³)1.8(Rock Bucket)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)250/2000
Cooling modewater-cooling
Number of cylinders (PCS)6-cylinder
Working formFour stroke six cylinder turbocharged intercooled direct injection engine
Ground specific pressure (Kpa)66.2
Rotation speed (rpm)8.3
Climbing ability (%)70% / 35 °
Bucket digging force (kN)240
Rod digging force (kN)190
Travel speed (km/h)5.3/3.4
Total transport length (mm)11700
Total transport width (mm)3360
Total transport height (mm)3740
Full cab height (mm)3470
Minimum ground clearance (mm)505
Minimum turning radius of front working device (mm)4810
Back end turning radius (mm)3750
Onboard width (mm)3265
Total track length (mm)5270
Track gauge (mm)2750
Track plate width (mm)600 (800/700 optional)
Track ground length (mm)4340
Maximum height at minimum turning radius (mm)8745
Maximum digging radius (mm)10965
Maximum digging depth (mm)7050
Maximum excavation height (mm)10030
Maximum unloading height (mm)7015
Maximum vertical digging depth (mm)4460
see more

Overview

No.1105226

Brand Name:

Sany

Model Number:

SY385H-9

Year:

2020

Location:

Hebei China

Pub Date
