Product Description
Discover the robust performance and reliability of the 2019 Sany SY415H, now available for purchase. This used excavator, located in Fujian, China, is a testament to Sany's commitment to quality and durability. Ideal for a wide range of construction and excavation projects, the SY415H offers excellent power and efficiency, making it a valuable addition to any fleet. With a reputation for delivering high productivity and low maintenance, this model is perfect for businesses looking to enhance their operational capabilities without compromising on cost. Contact us today to discuss pricing and arrange a viewing.
- Year: 2019
- Brand: Sany
- Model: SY415H
- Location: Fujian, China
| Specifications | Value |
|---|---|
| No. | 1116154 |
| Tonnage (tons) | 41 |
| Working weight (kg) | 41500 |
| Bucket capacity (m³) | 1.9/2.2 (Rock) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

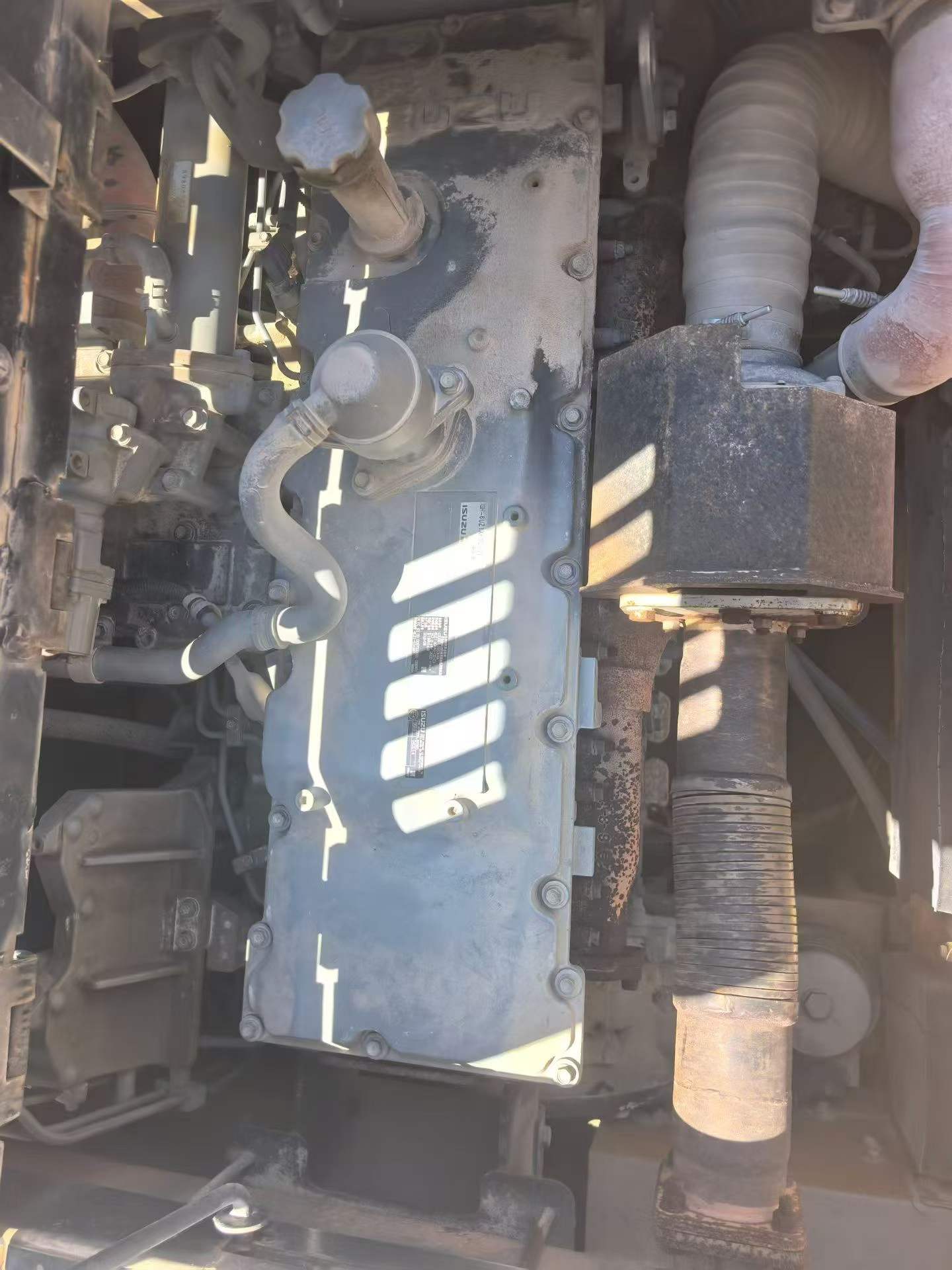

| Engine type | 6UZ1 |
| Rated power (kw/rpm) | 257/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1363/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.839 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 75.3 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 247 |
| Rod digging force (kN) | 218 |
| Travel speed (km/h) | 5.3/3.2 |
| Fuel Tank (L) | 690 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11700 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3740 |
| Full cab height (mm) | 3470 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4750 |
| Back end turning radius (mm) | 3740 |
| Onboard width (mm) | 3265 |
| Total track length (mm) | 5320 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4340 |
| Maximum height at minimum turning radius (mm) | 8785 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 7045 |
| Maximum excavation height (mm) | 9980 |
| Maximum unloading height (mm) | 6960 |
| Maximum vertical digging depth (mm) | 4710 |
