2019 Sany SY415H

1/5
Buy Sany SY415H Used Excavator / 1
Buy Sany SY415H Used Excavator / 2

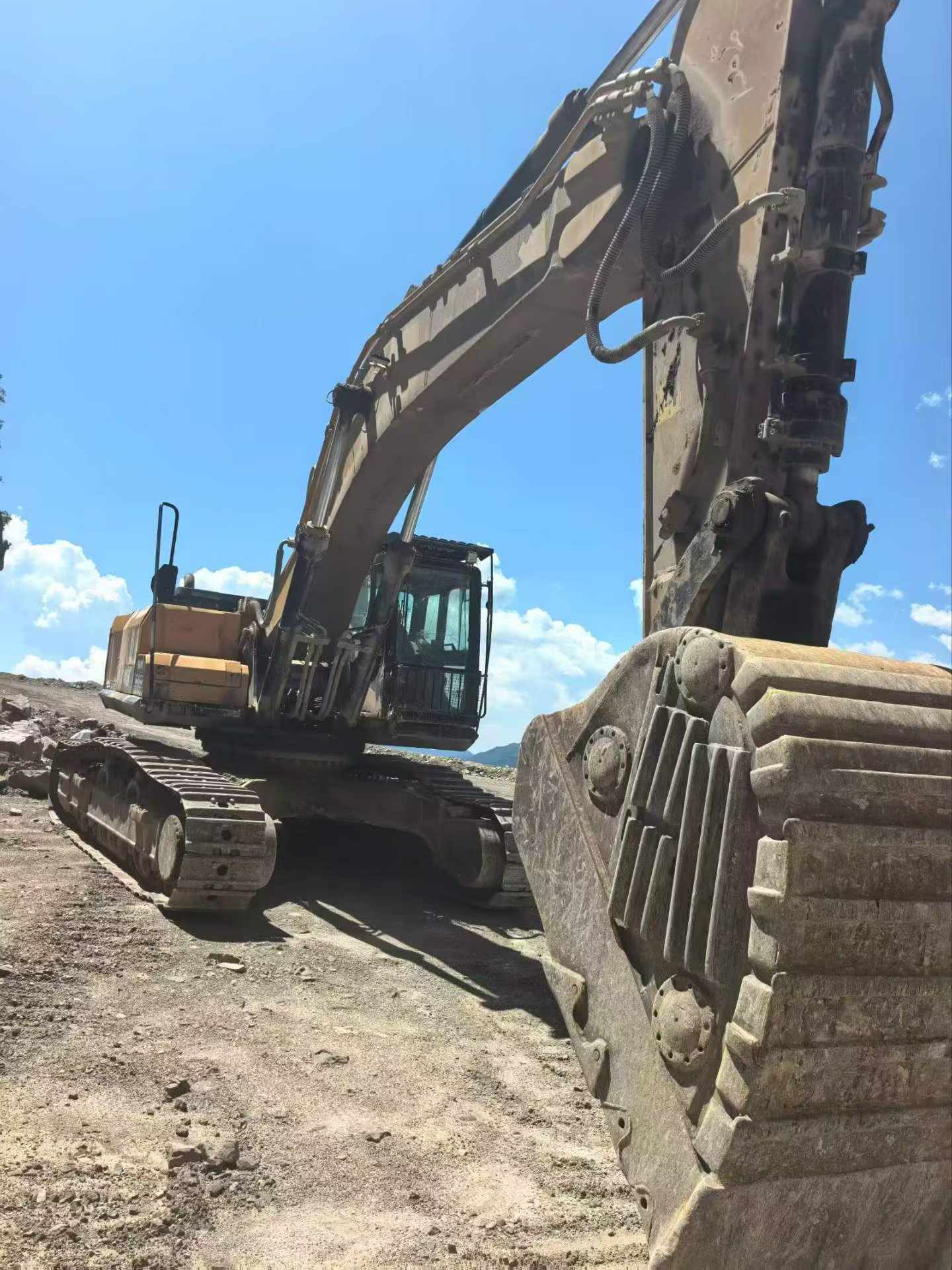

Buy Sany SY415H Used Excavator / 3
Buy Sany SY415H Used Excavator / 4
Buy Sany SY415H Used Excavator / 5

Product Description

Discover the robust performance and reliability of the 2019 Sany SY415H, available for purchase in Fujian, China. This used excavator is designed to meet the demanding needs of construction and mining operations, ensuring high productivity and efficiency on any job site. Built with a strong undercarriage and reinforced arm, it is equipped to handle tough terrains and heavy-duty tasks. The SY415H model is known for its fuel efficiency and low maintenance costs, making it an economical choice for your fleet.

  • Year: 2019
  • Brand: Sany
  • Model: SY415H
  • Location: Fujian, China
  • Designed for durability and efficiency
  • Ideal for construction and mining applications
SpecificationsValue
No.1120096
Tonnage (tons)41
Working weight (kg)41500
Bucket capacity (m³)1.9/2.2 (Rock)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type6UZ1
Rated power (kw/rpm)257/2000
Cooling modewater-cooling
Maximum torque (N.m)1363/1500
Number of cylinders (PCS)6
Displacement (L)9.839
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)75.3
Rotation speed (rpm)8.3
Climbing ability (%)70% (35°)
Bucket digging force (kN)247
Rod digging force (kN)218
Travel speed (km/h)5.3/3.2
Fuel Tank (L)690
Engine Oil changes (L)36
Total transport length (mm)11700
Total transport width (mm)3360
Total transport height (mm)3740
Full cab height (mm)3470
Minimum ground clearance (mm)505
Minimum turning radius of front working device (mm)4750
Back end turning radius (mm)3740
Onboard width (mm)3265
Total track length (mm)5320
Track gauge (mm)2740
Track plate width (mm)600
Track ground length (mm)4340
Maximum height at minimum turning radius (mm)8785
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)51
Maximum digging radius (mm)10920
Maximum digging depth (mm)7045
Maximum excavation height (mm)9980
Maximum unloading height (mm)6960
Maximum vertical digging depth (mm)4710
see more

Overview

No.1120096

Brand Name:

Sany

Model Number:

SY415H

Year:

2019

Location:

Fujian China

Pub Date
