2024 Sany SY415H

1/9
Buy Sany SY415H Used Excavator / 1

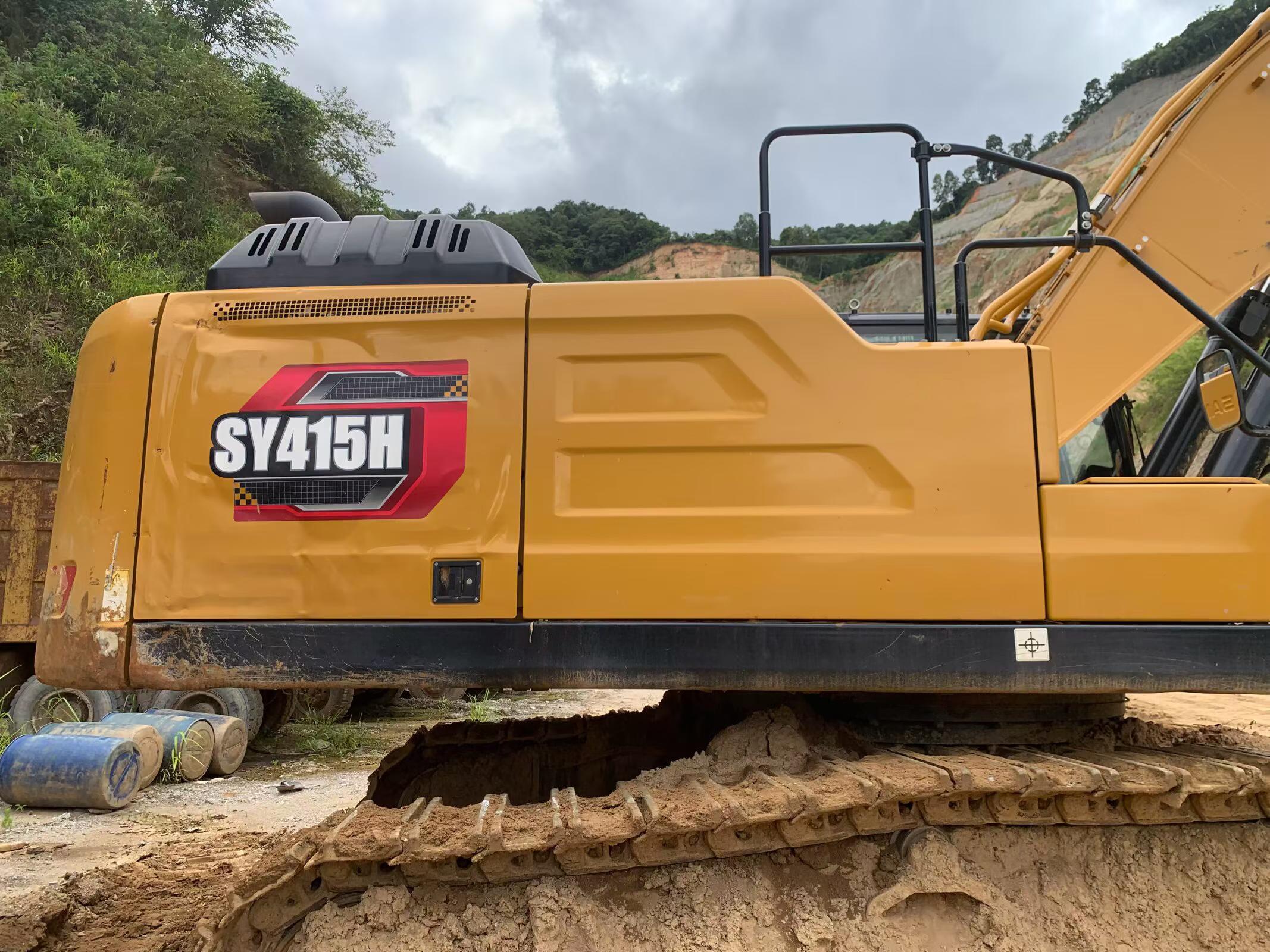

Buy Sany SY415H Used Excavator / 2

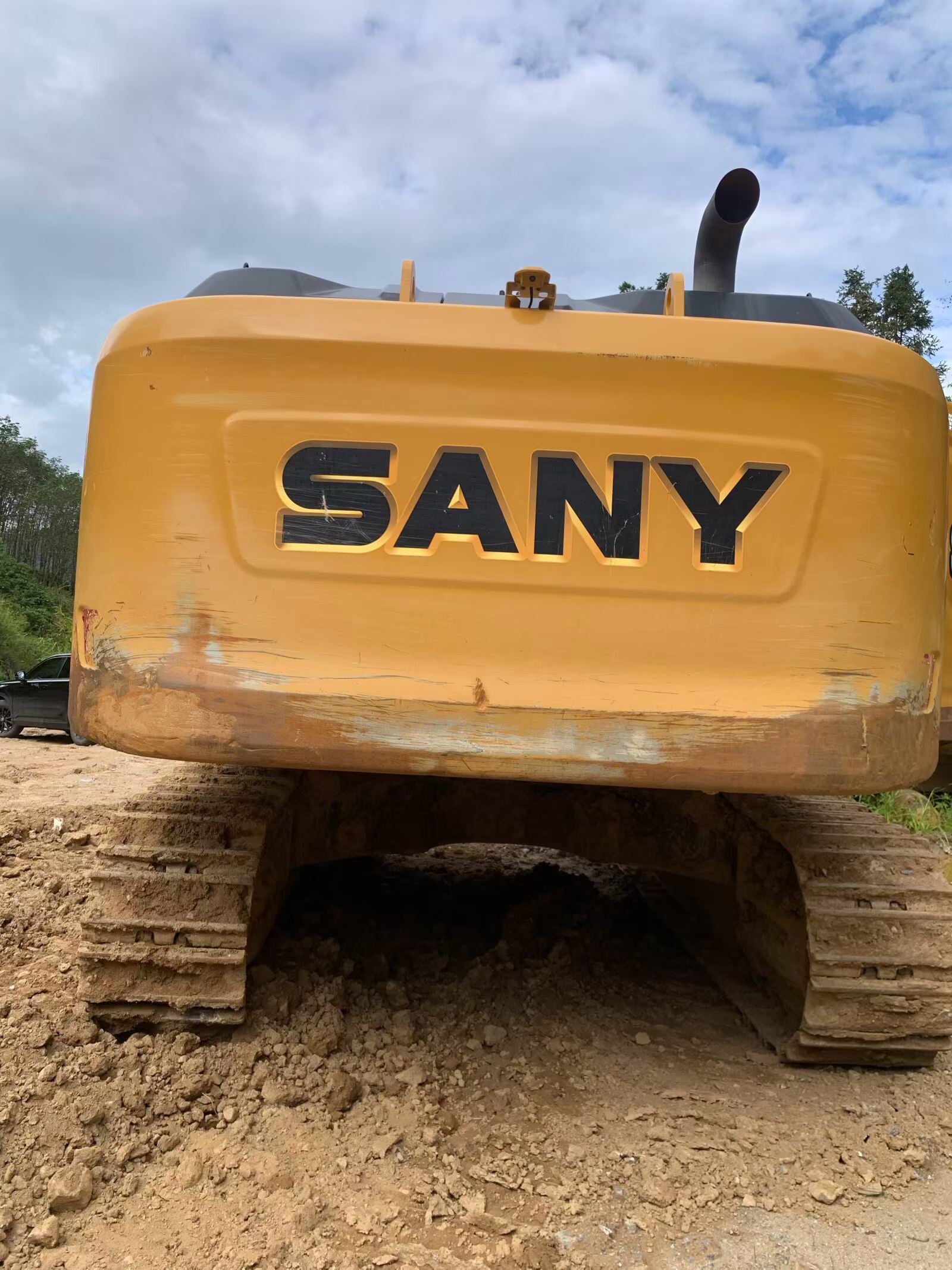

Buy Sany SY415H Used Excavator / 3

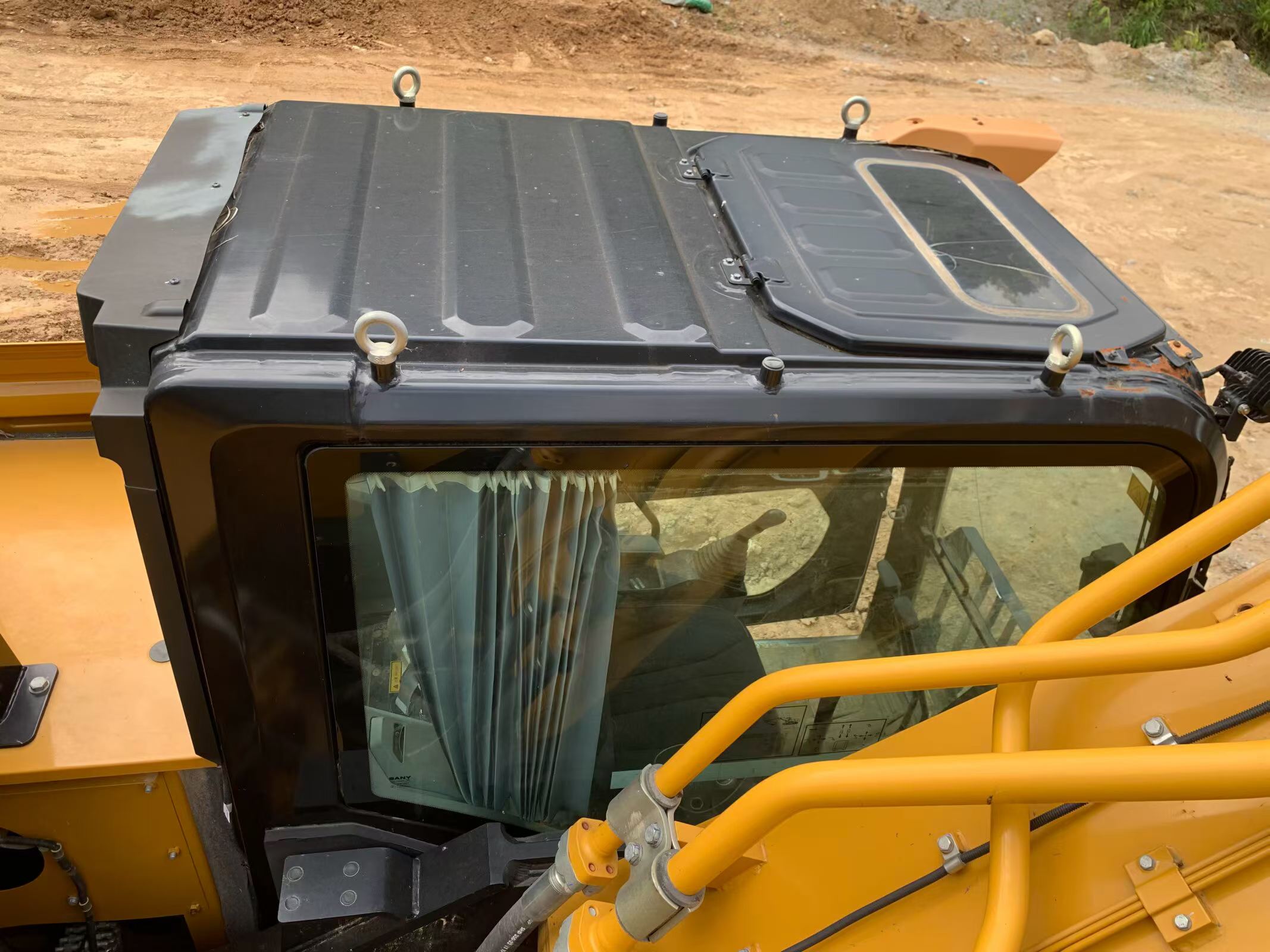

Buy Sany SY415H Used Excavator / 4

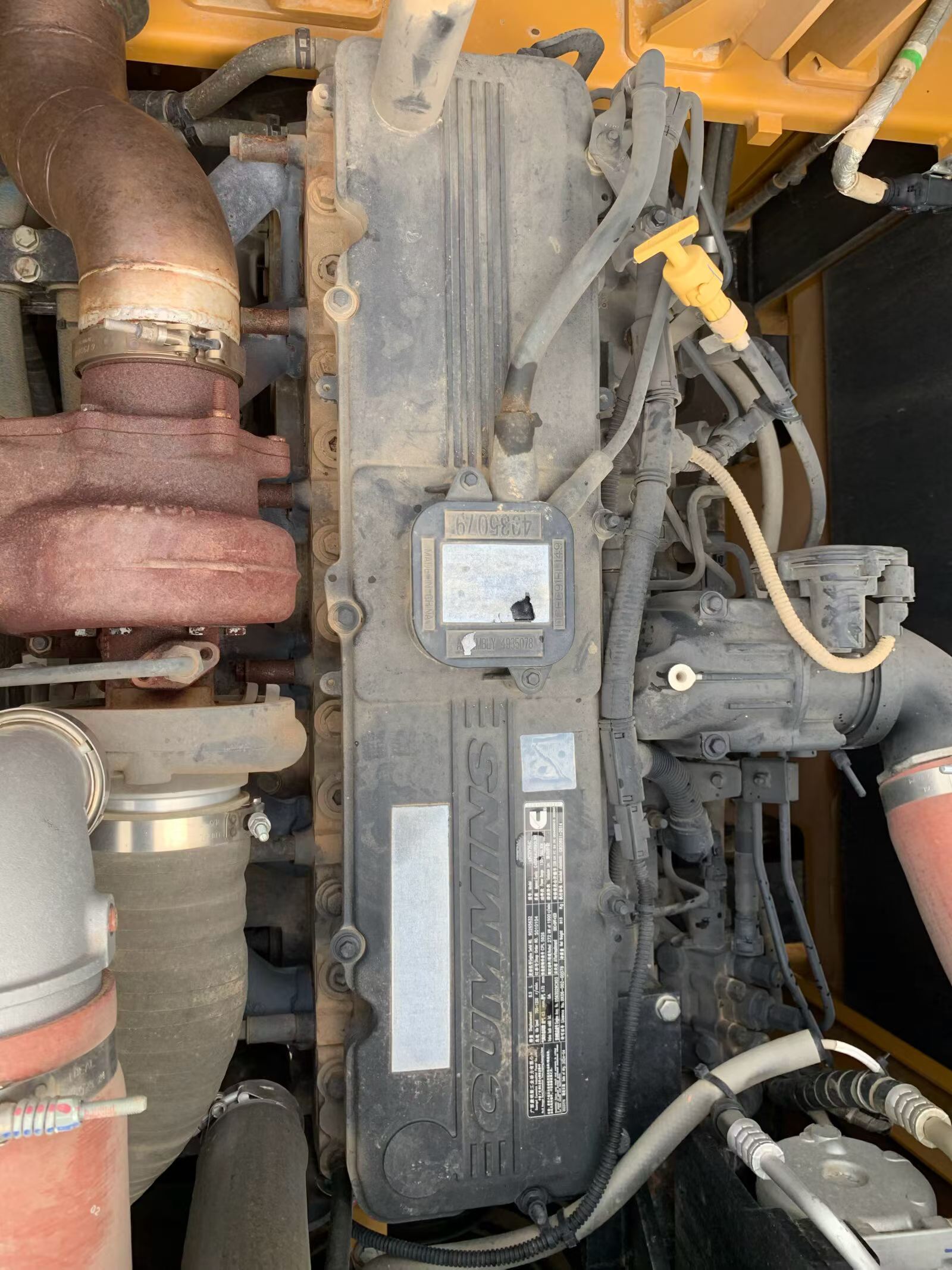

Buy Sany SY415H Used Excavator / 5

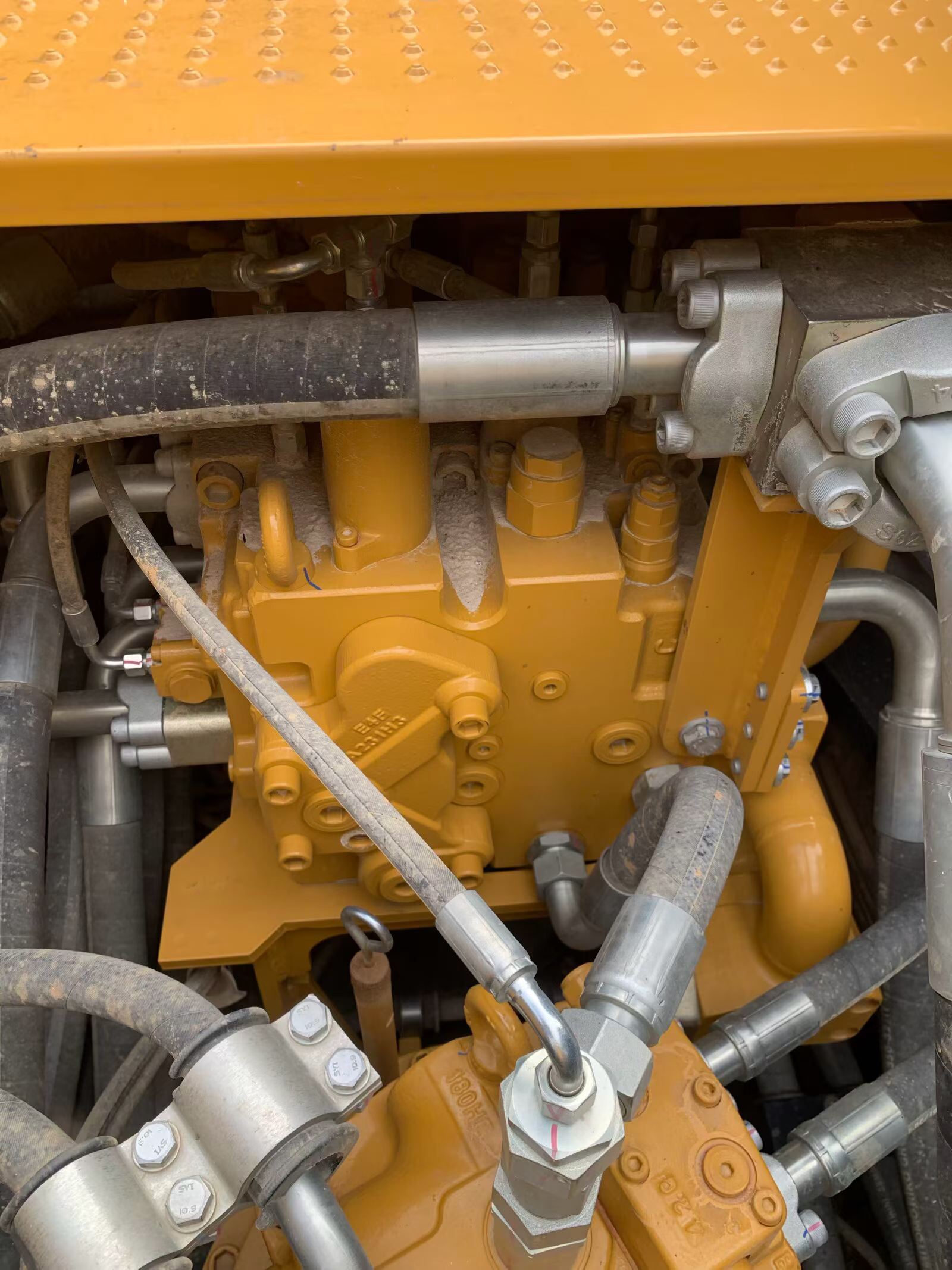

Buy Sany SY415H Used Excavator / 6

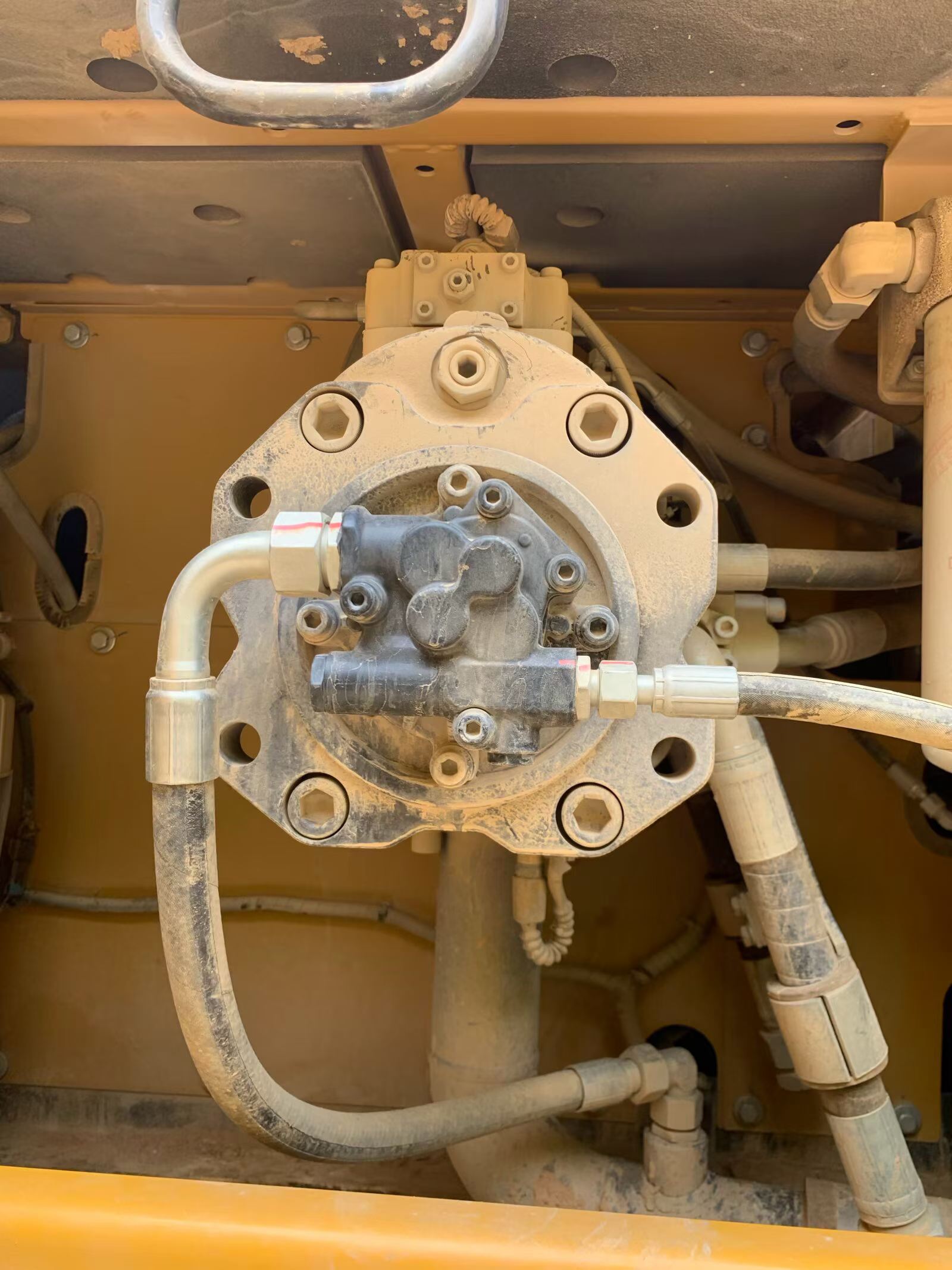

Buy Sany SY415H Used Excavator / 7

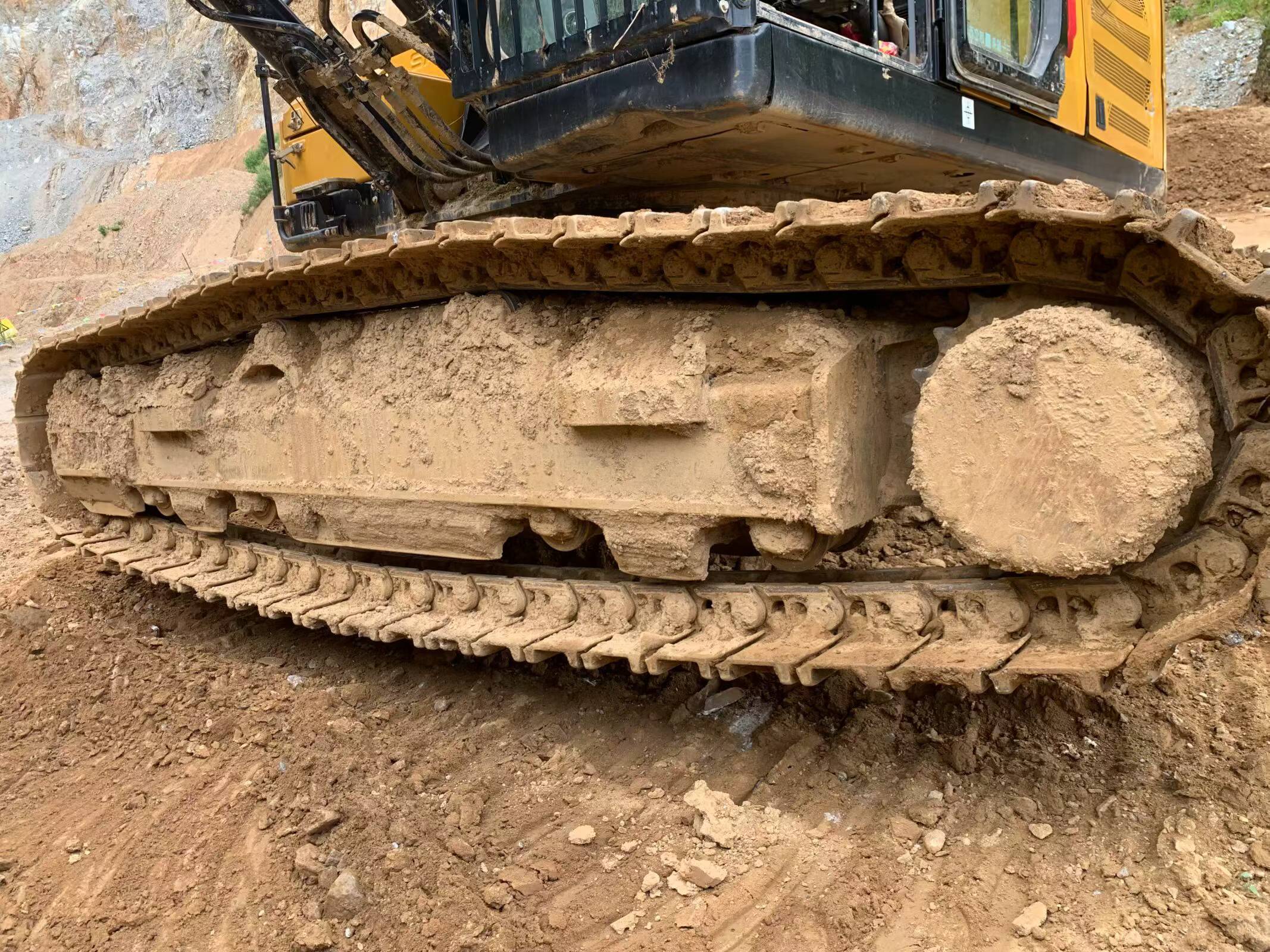

Buy Sany SY415H Used Excavator / 8

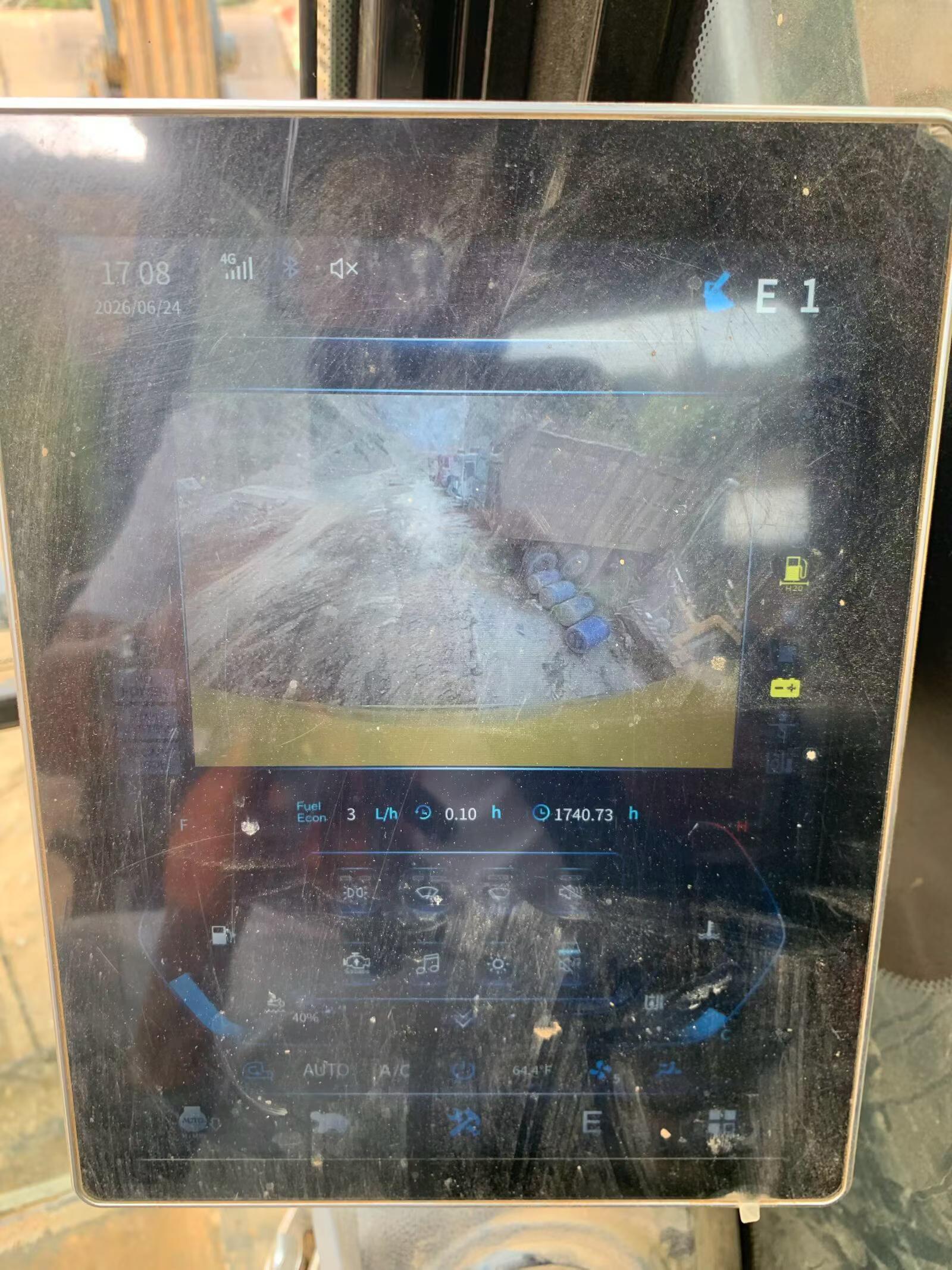

Buy Sany SY415H Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2024 Sany SY415H, a robust heavy machine available for purchase in Yunnan, China. This one-owner unit has been meticulously maintained, ensuring it remains in excellent condition. The SY415H is known for its powerful performance and durability, making it a top choice for demanding construction and excavation projects. With a competitive price, this machine offers an exceptional value for your investment.

  • Year: 2024
  • Brand: Sany
  • Model: SY415H
  • Location: Yunnan, China
  • Condition: One owner, well-maintained
SpecificationsValue
No.1092565
Tonnage (tons)41
Working weight (kg)41500
Bucket capacity (m³)1.9/2.2 (Rock)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type6UZ1
Rated power (kw/rpm)257/2000
Cooling modewater-cooling
Maximum torque (N.m)1363/1500
Number of cylinders (PCS)6
Displacement (L)9.839
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)75.3
Rotation speed (rpm)8.3
Climbing ability (%)70% (35°)
Bucket digging force (kN)247
Rod digging force (kN)218
Travel speed (km/h)5.3/3.2
Fuel Tank (L)690
Engine Oil changes (L)36
Total transport length (mm)11700
Total transport width (mm)3360
Total transport height (mm)3740
Full cab height (mm)3470
Minimum ground clearance (mm)505
Minimum turning radius of front working device (mm)4750
Back end turning radius (mm)3740
Onboard width (mm)3265
Total track length (mm)5320
Track gauge (mm)2740
Track plate width (mm)600
Track ground length (mm)4340
Maximum height at minimum turning radius (mm)8785
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)51
Maximum digging radius (mm)10920
Maximum digging depth (mm)7045
Maximum excavation height (mm)9980
Maximum unloading height (mm)6960
Maximum vertical digging depth (mm)4710
see more

Overview

No.1092565

Brand Name:

Sany

Model Number:

SY415H

Year:

2024

Location:

Yunnan China

Pub Date
