Product Description

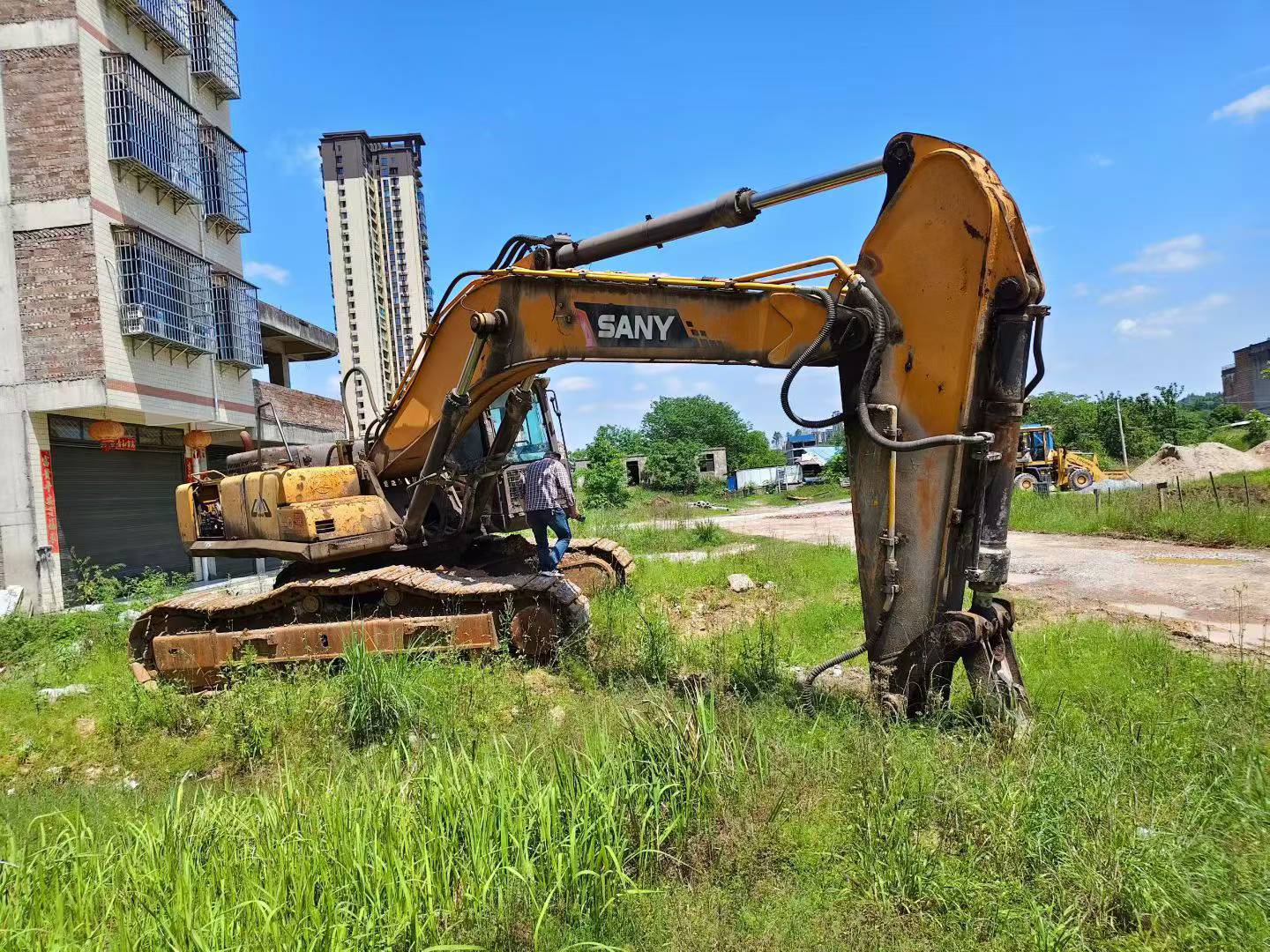

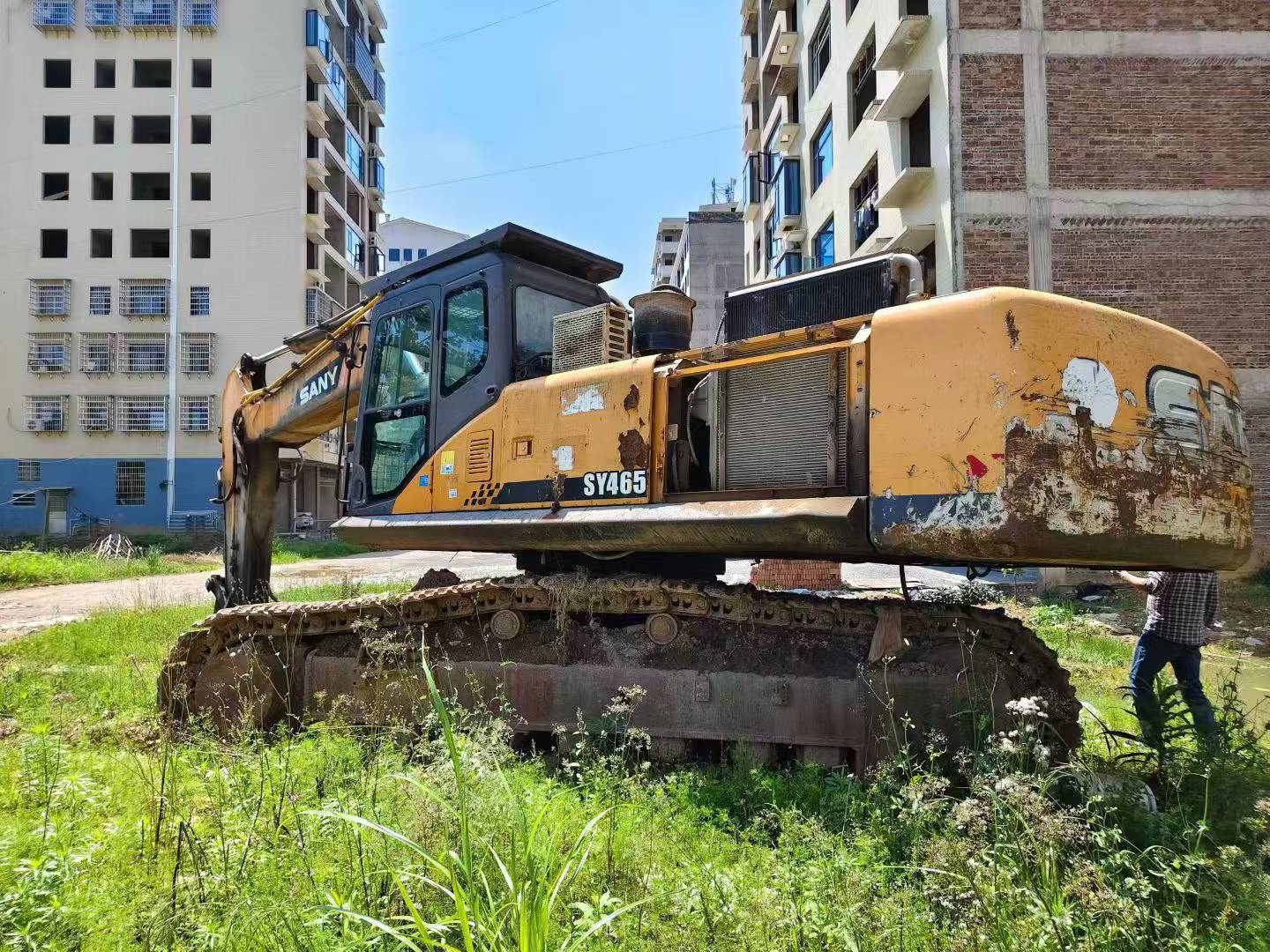

With a rated power of 250 kW at 2000 rpm, the Sany SY465C-9, manufactured in 2014, offers robust performance and reliability. In Hunan, China, this excavator stands out for its 46-ton capacity and 45,500 kg working weight, ensuring stability on any job site. The 2.2 m³ backhoe bucket, combined with a 267 kN bucket digging force, handles tough excavation tasks with ease.
- Experience superior handling and control with a travel speed of 5.2/3.2 km/h and a ground specific pressure of 77 Kpa.

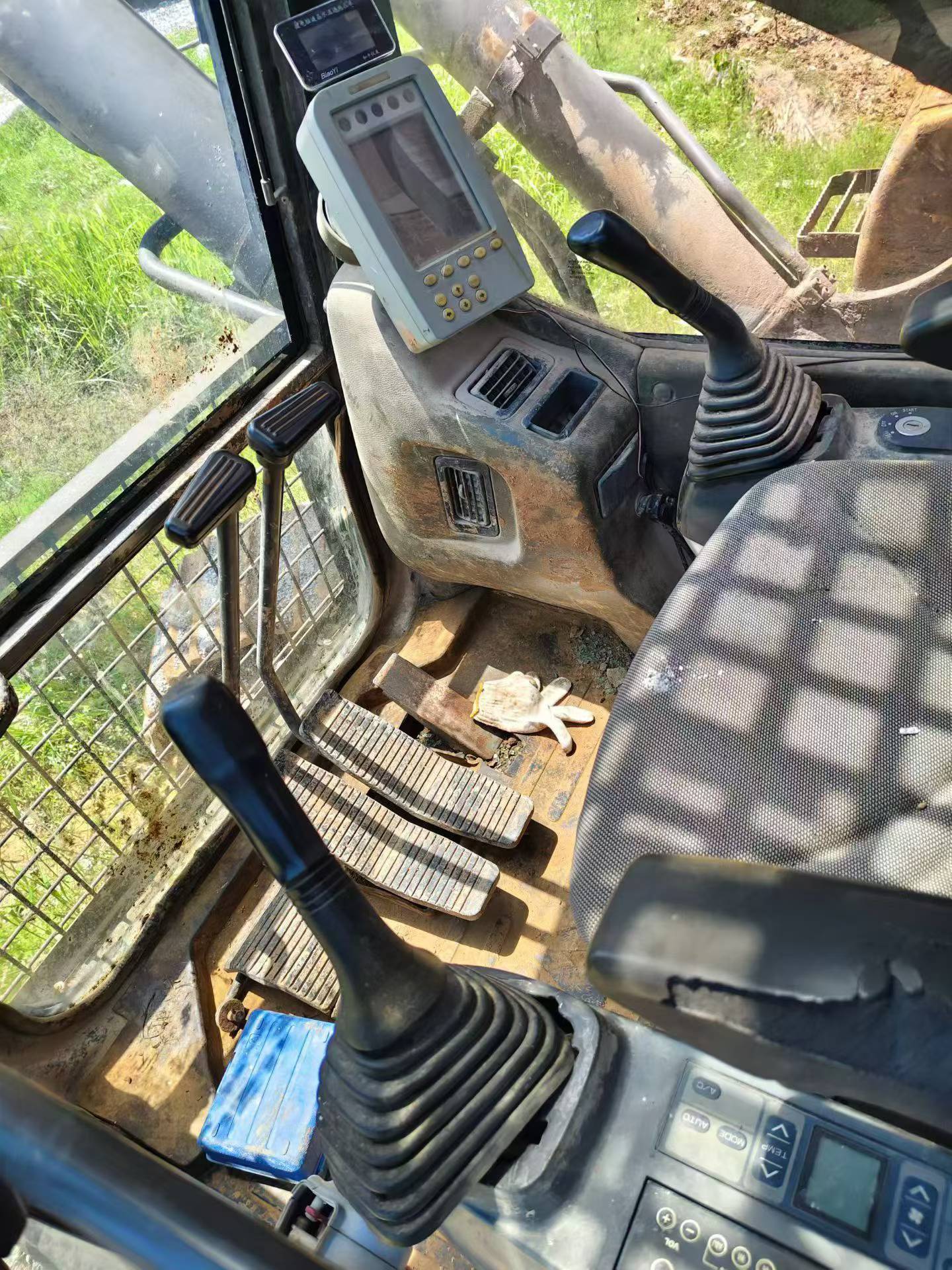

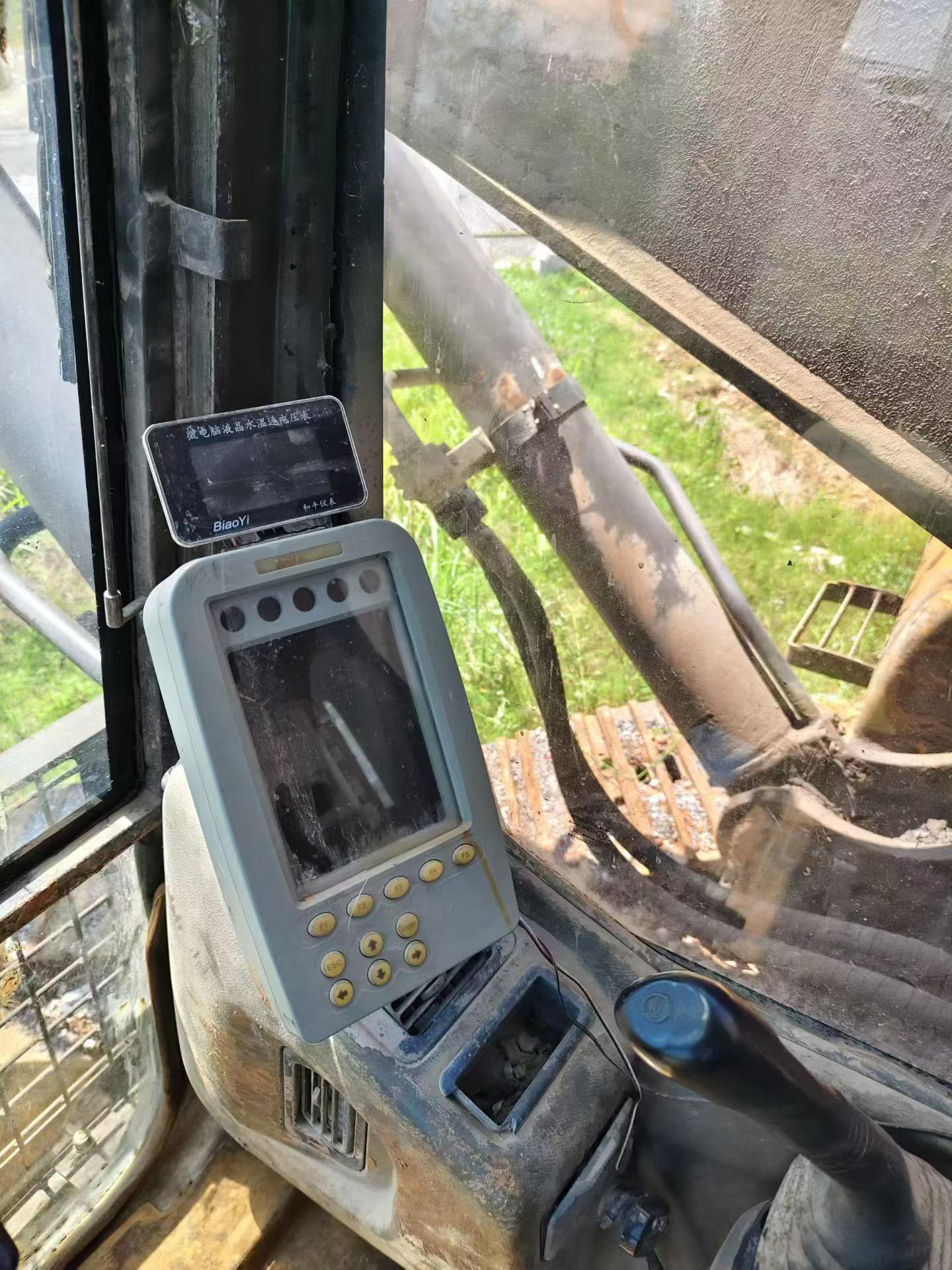

- Enjoy enhanced visibility and comfort in the full cab, designed to provide a clear view of the work area, crucial for precision and safety.
- Benefit from a minimum turning radius of 4940 mm for the front working device, allowing for efficient maneuvering in confined spaces.
| Specifications | Value |
|---|---|
| No. | 1058283 |
| Tonnage (tons) | 46 |
| Working weight (kg) | 45500 |
| Bucket capacity (m³) | 2.2 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 250/2000 |
| Ground specific pressure (Kpa) | 77 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 267 |
| Rod digging force (kN) | 241 |
| Travel speed (km/h) | 5.2/3.2 |
| Total transport length (mm) | 12090 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3230 |
| Minimum ground clearance (mm) | 560 |
| Minimum turning radius of front working device (mm) | 4940 |
| Back end turning radius (mm) | 3750 |
| Total track length (mm) | 5030 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4070 |
| Maximum digging radius (mm) | 11545 |
| Maximum digging depth (mm) | 7285 |
| Maximum excavation height (mm) | 10665 |
| Maximum unloading height (mm) | 7410 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
