Product Description

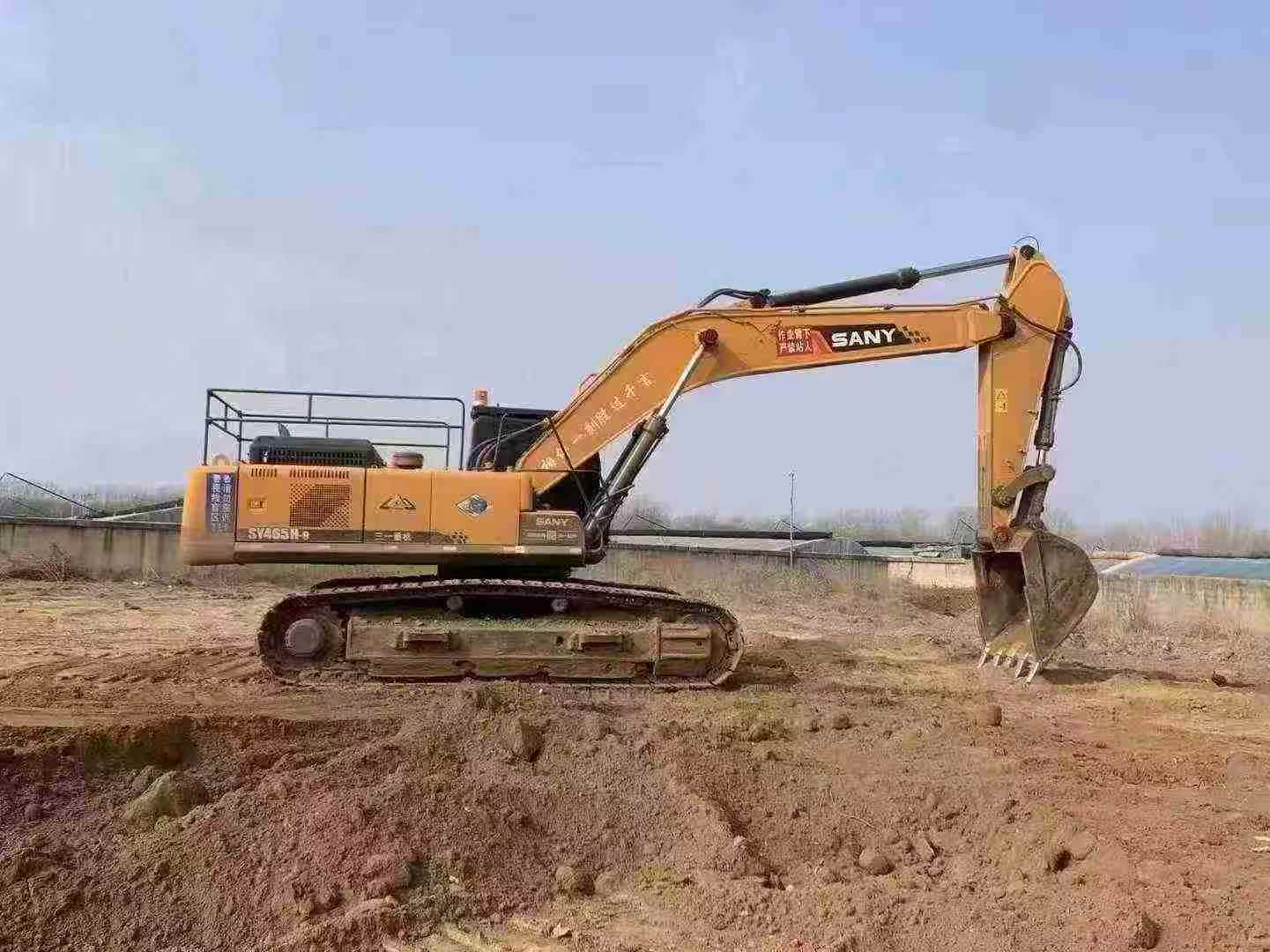

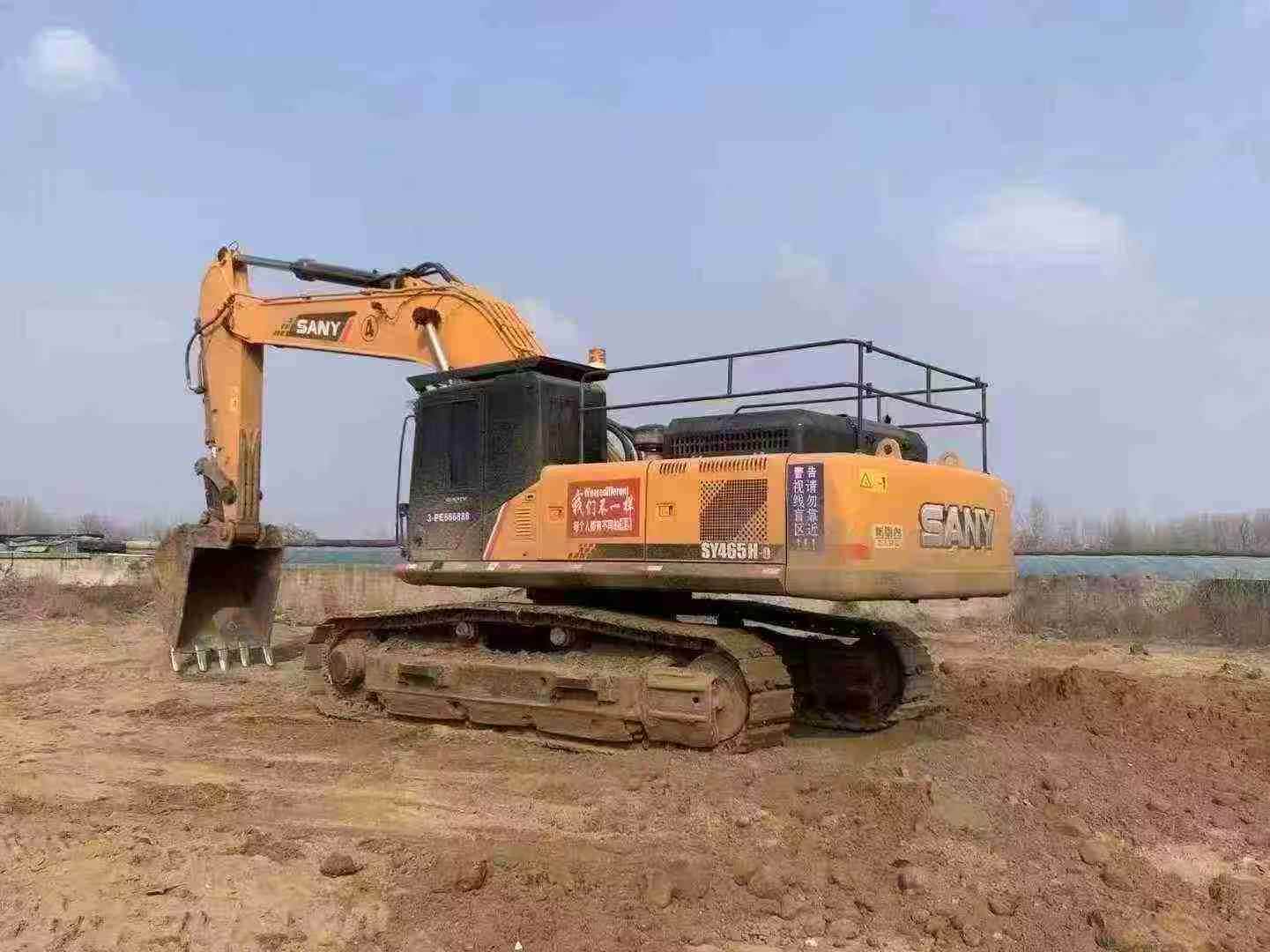

Maximize your excavation budget with this 2016 Sany SY465H-9, a 46-ton powerhouse delivering exceptional performance at a fraction of new equipment costs. Built in Shanghai with proven Chinese engineering, this heavy-duty excavator features a robust 250kW six-cylinder turbocharged engine and impressive digging capabilities—267kN bucket force and 241kN arm force—making it ideal for demanding construction and mining operations.
Currently located in Hebei, this machine offers outstanding operational specifications that rival current models:
- Working weight: 45,500kg with 2.0-2.2m³ bucket capacity
- Maximum digging reach: 11,560mm with 7,285mm depth capability
- Superior mobility: 70% climbing ability and 10rpm rotation speed
- Efficient transport dimensions: 12,200mm × 3,690mm × 3,880mm
- Reliable four-stroke turbocharged intercooled direct injection system
Invest strategically in proven 2016 technology that delivers professional-grade results without the premium price tag. This backhoe excavator represents smart capital allocation for contractors seeking maximum productivity per dollar invested.
| Specifications | Value |
|---|---|
| No. | 1009994 |
| Tonnage (tons) | 46 |
| Working weight (kg) | 45500 |
| Bucket capacity (m³) | 2.0(Rock bucket) 2.2(Earth bucket) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 250/2,000 |
| Number of cylinders (PCS) | 6-cylinder |
| Working form | Four stroke six cylinder turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 77 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 267 |
| Rod digging force (kN) | 241 |
| Travel speed (km/h) | 4.9/3.2 |
| Total transport length (mm) | 12200 |
| Total transport width (mm) | 3690 |
| Total transport height (mm) | 3880 |
| Full cab height (mm) | 3510 |
| Minimum ground clearance (mm) | 590 |
| Minimum turning radius of front working device (mm) | 5050 |
| Back end turning radius (mm) | 3780 |
| Onboard width (mm) | 3265 |
| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 (optional 800) |
| Track ground length (mm) | 4410 |
| Maximum height at minimum turning radius (mm) | 9330 |
| Maximum digging radius (mm) | 11560 |
| Maximum digging depth (mm) | 7285 |
| Maximum excavation height (mm) | 10705 |
| Maximum unloading height (mm) | 7445 |
| Maximum vertical digging depth (mm) | 5495 |
