Product Description

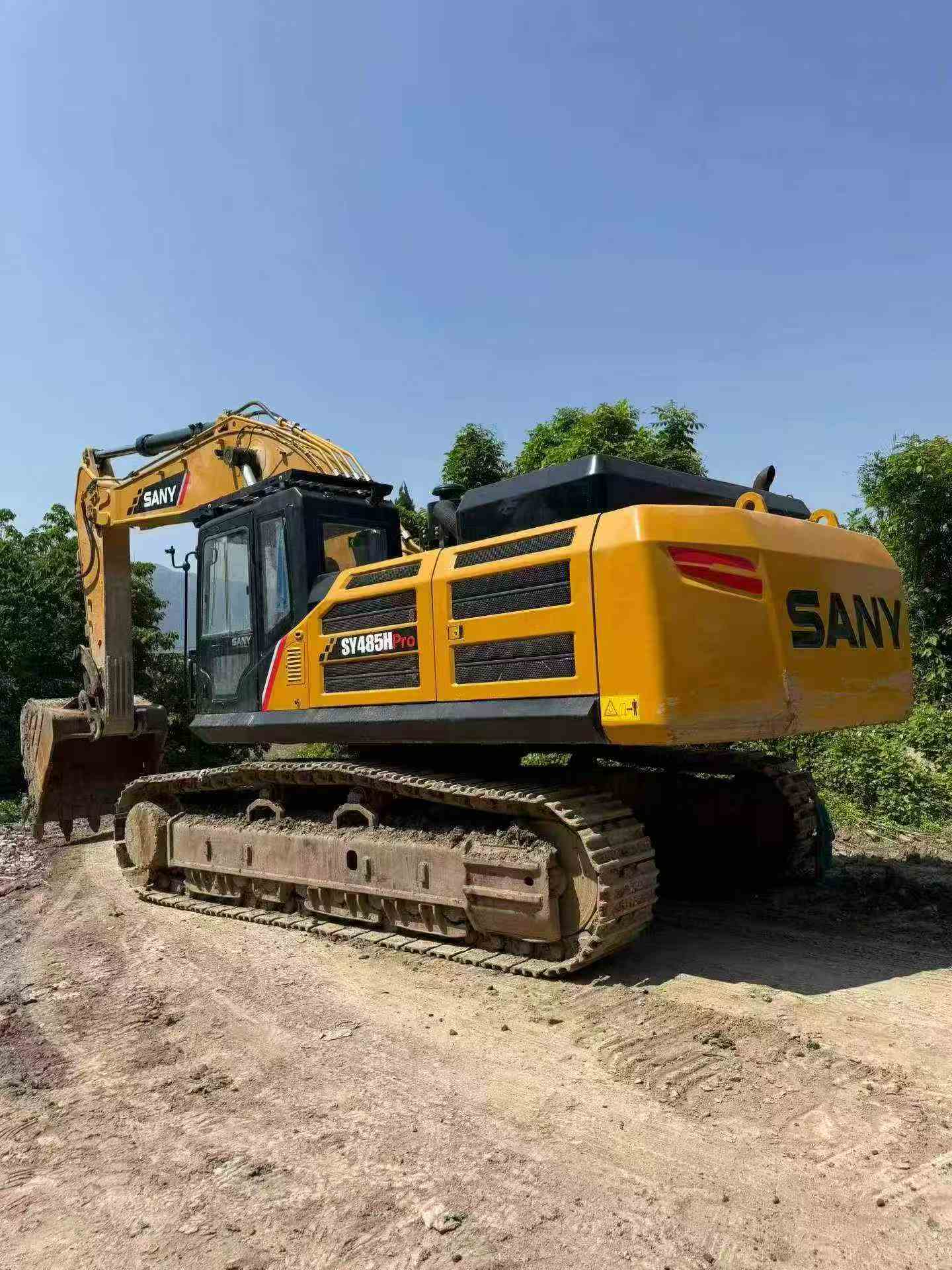

With a powerful 6WG1X engine delivering 300 kW at 1800 rpm, the Sany SY485H excavator is designed for demanding tasks. Equipped with a backhoe bucket offering a capacity of 2.2-3.1 m³, this machine excels in digging and grading operations. Capable of a maximum digging force of 287 kN and a rod digging force of 245 kN, it handles tough materials with ease. The 48-ton excavator features a travel speed of up to 5.4 km/h, ensuring efficient movement on site. Its robust design includes a 680-liter fuel tank and a 480-liter hydraulic tank, providing long operational hours without refueling. Ready to work immediately, the SY485H boasts a maximum digging depth of 7490 mm and a maximum excavation height of 10950 mm, making it ideal for large-scale projects. Located in Zhejiang, China, this 2020 model is site-ready for your next construction or demolition job.
| Specifications | Value |
|---|---|
| No. | 1057489 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 49500 |

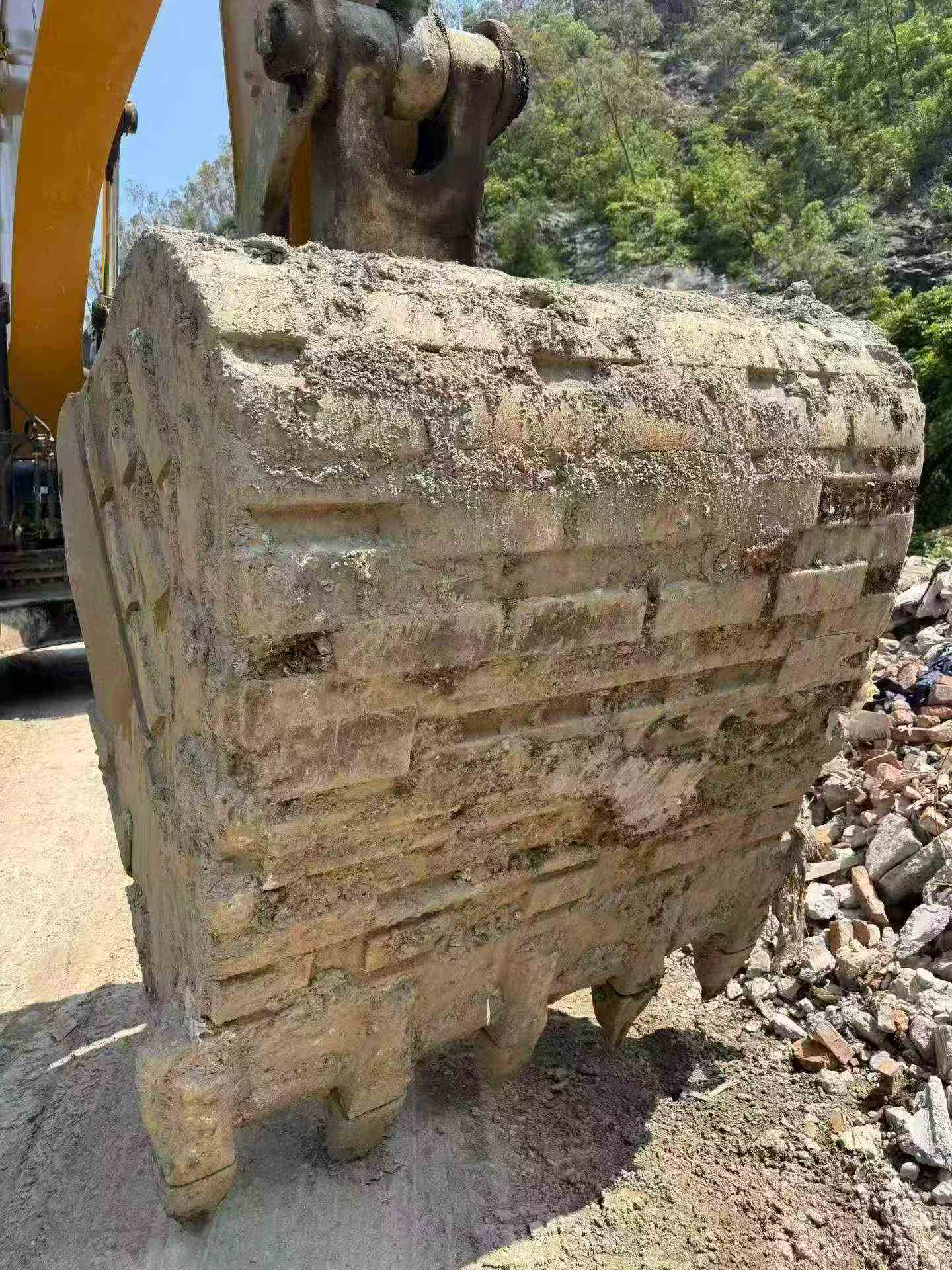

| Bucket capacity (m³) | 2.2-3.1 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 6WG1X |
| Rated power (kw/rpm) | 300/1800 |

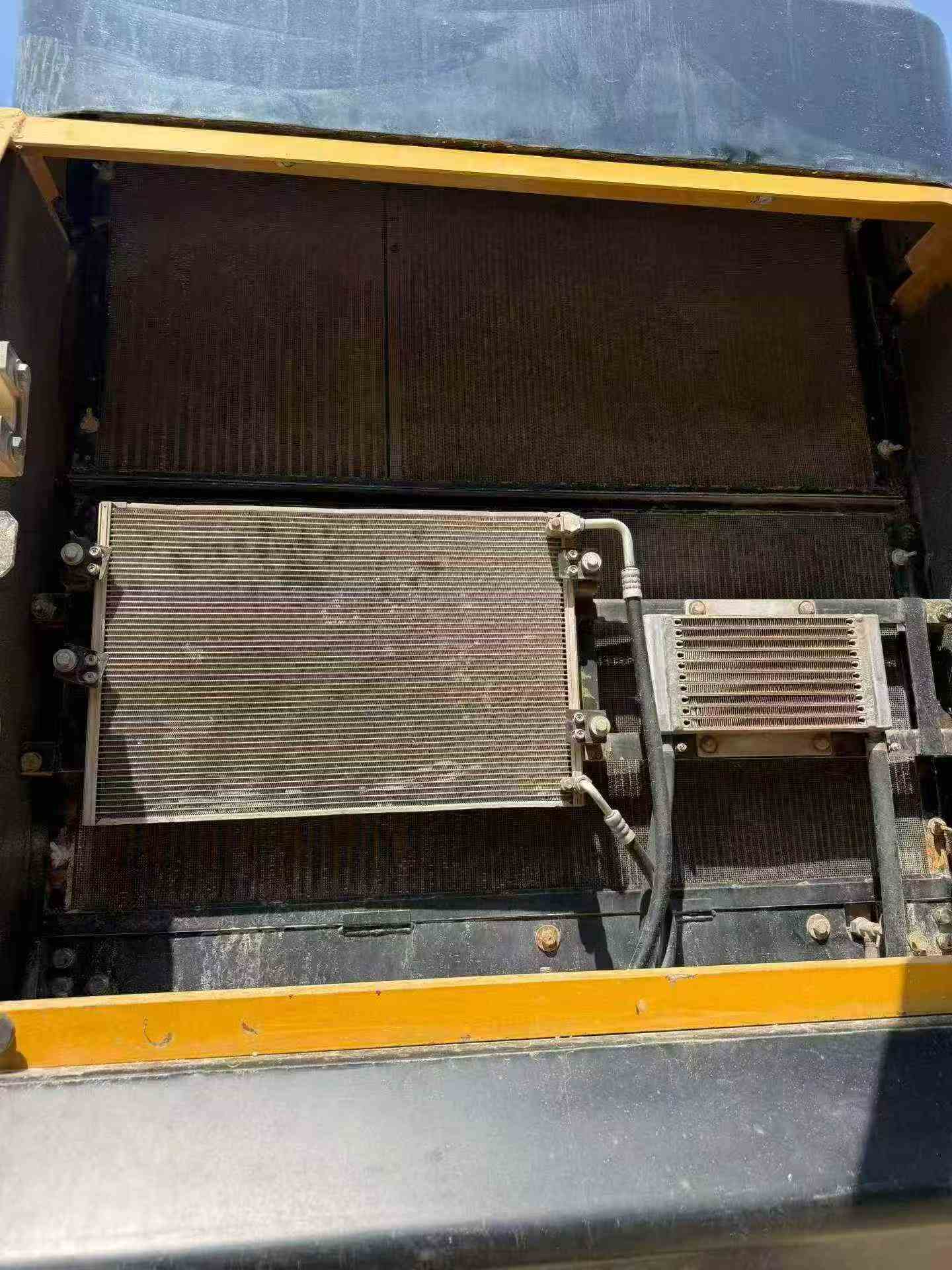

| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1950/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 287 |
| Rod digging force (kN) | 245 |
| Travel speed (km/h) | 5.4/3.1 |
| Fuel Tank (L) | 680 |
| Hydraulic Tank (L) | 480 |
| Engine Oil changes (L) | 50 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Counterweight ground clearance (mm) | 1355 |
| Minimum ground clearance (mm) | 560 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |

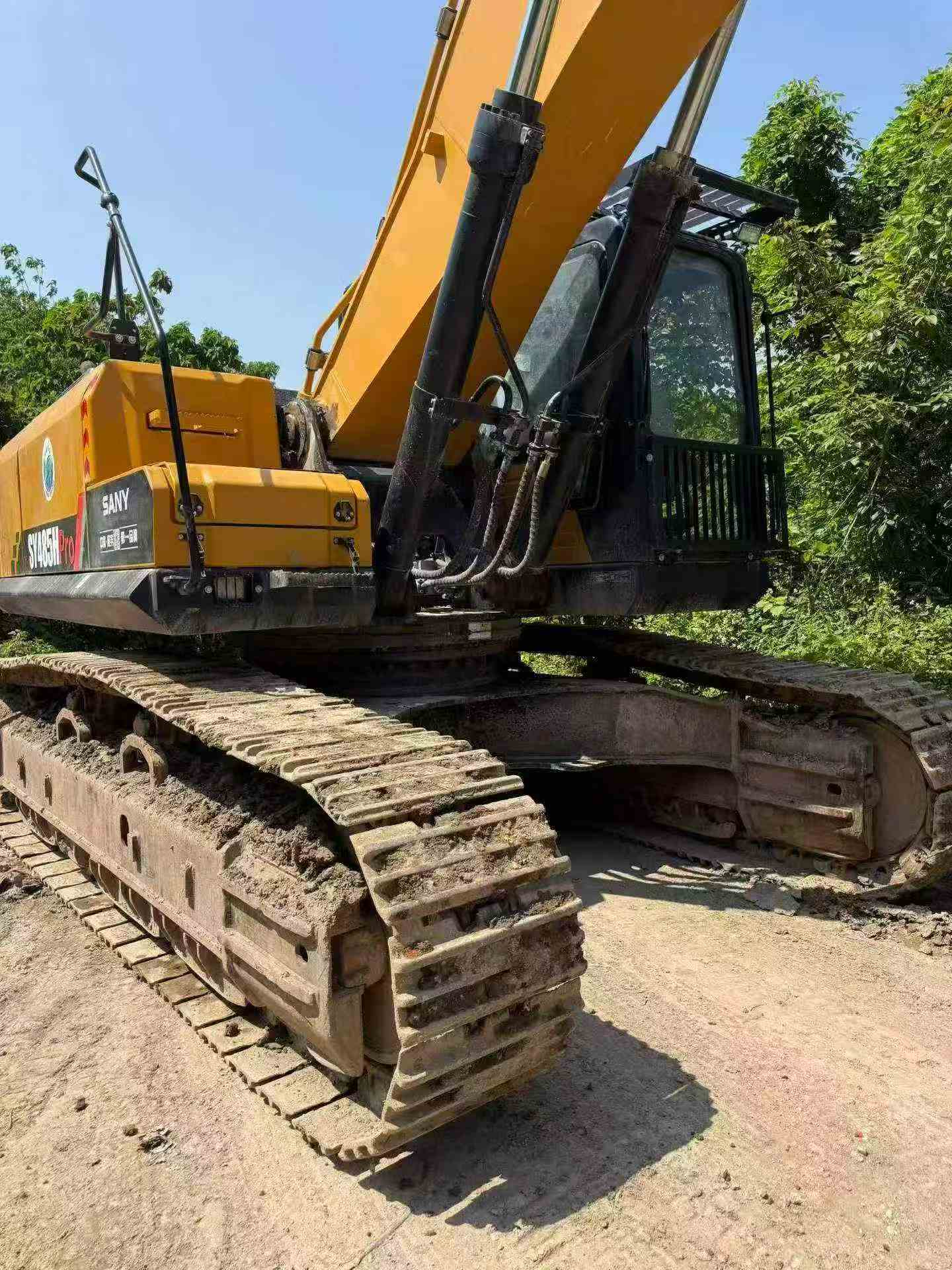

| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum height at minimum turning radius (mm) | 9100 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 11860 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10950 |
| Maximum unloading height (mm) | 7450 |
| Maximum vertical digging depth (mm) | 5660 |
