Product Description

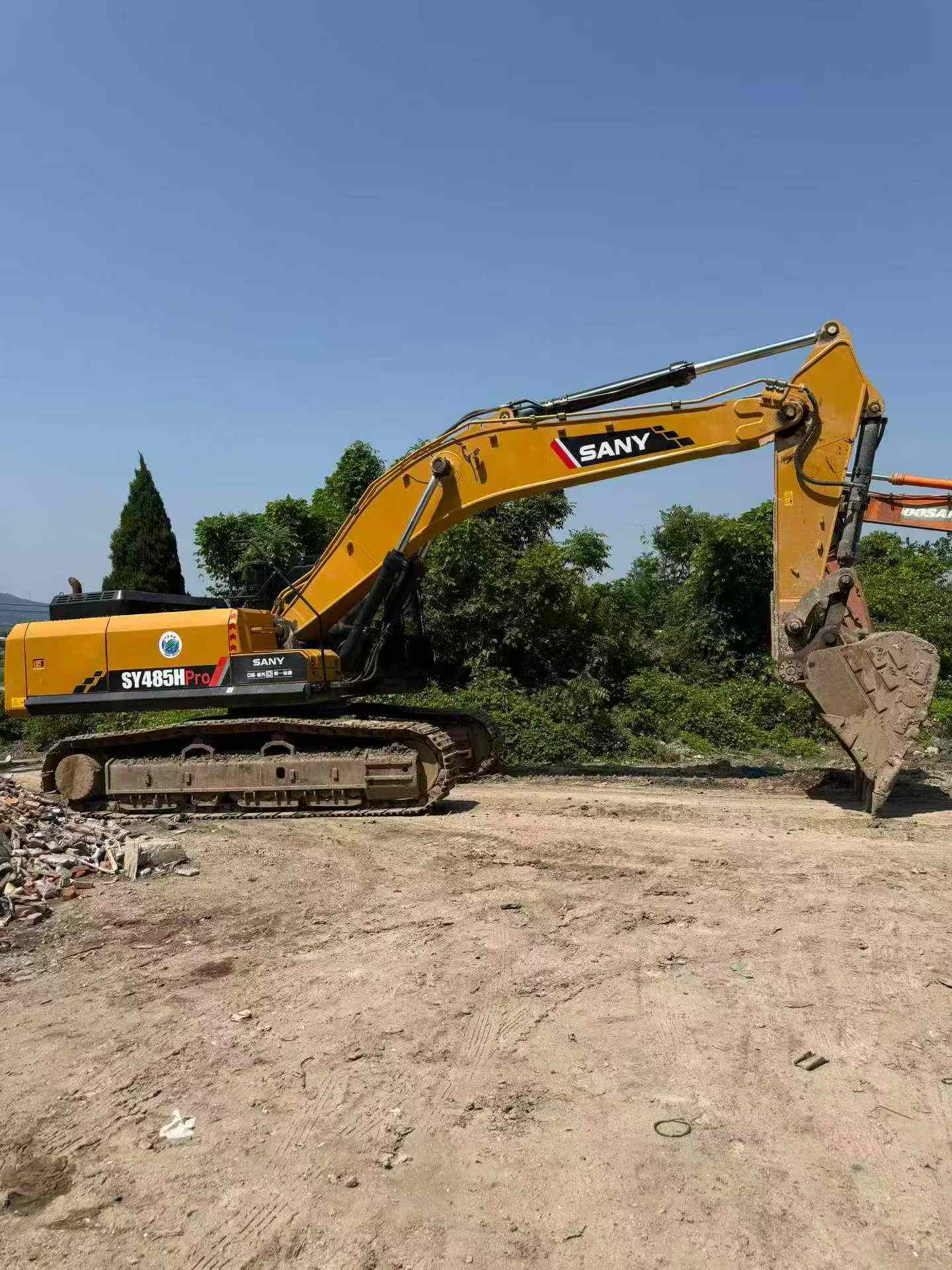

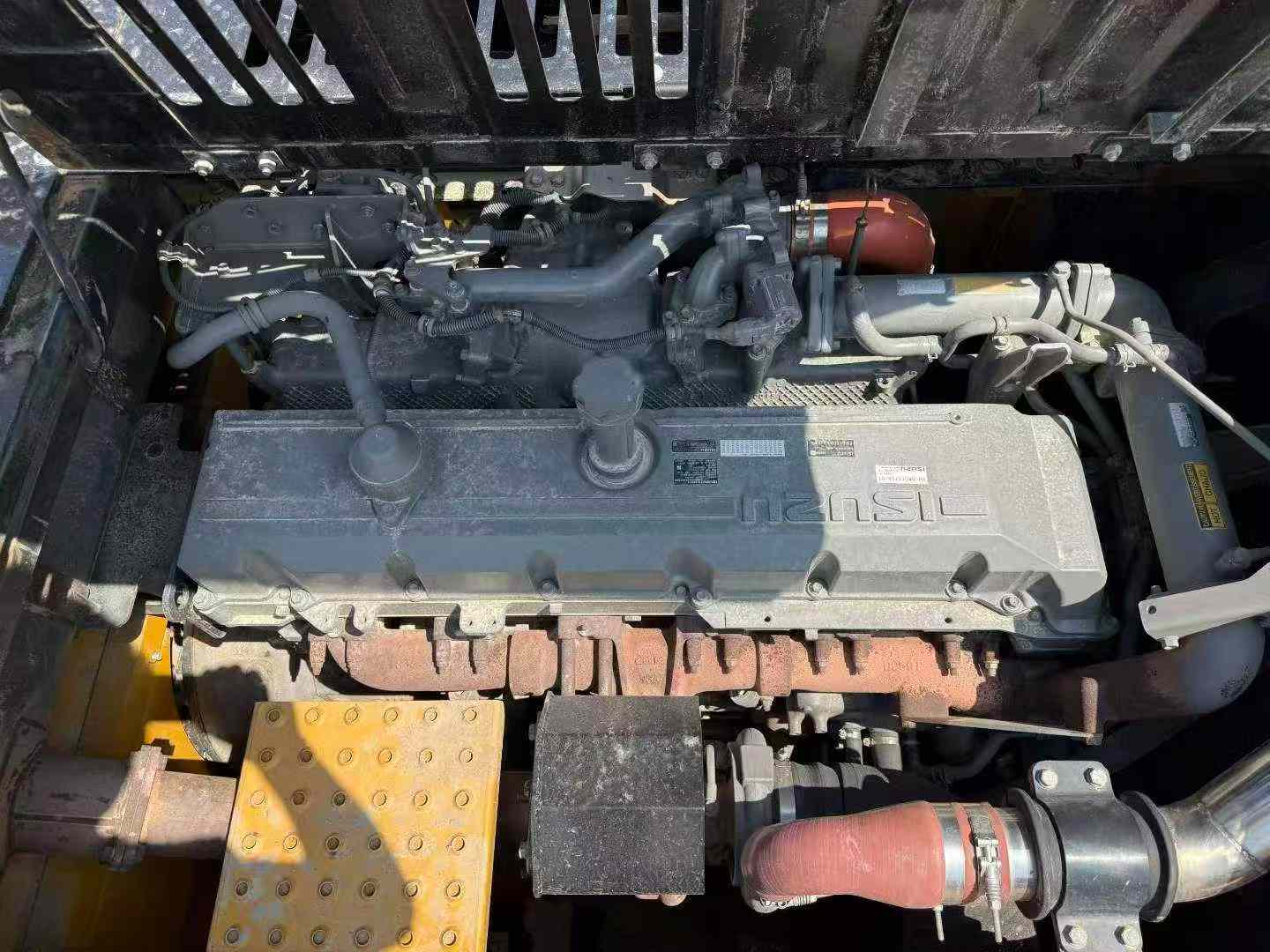

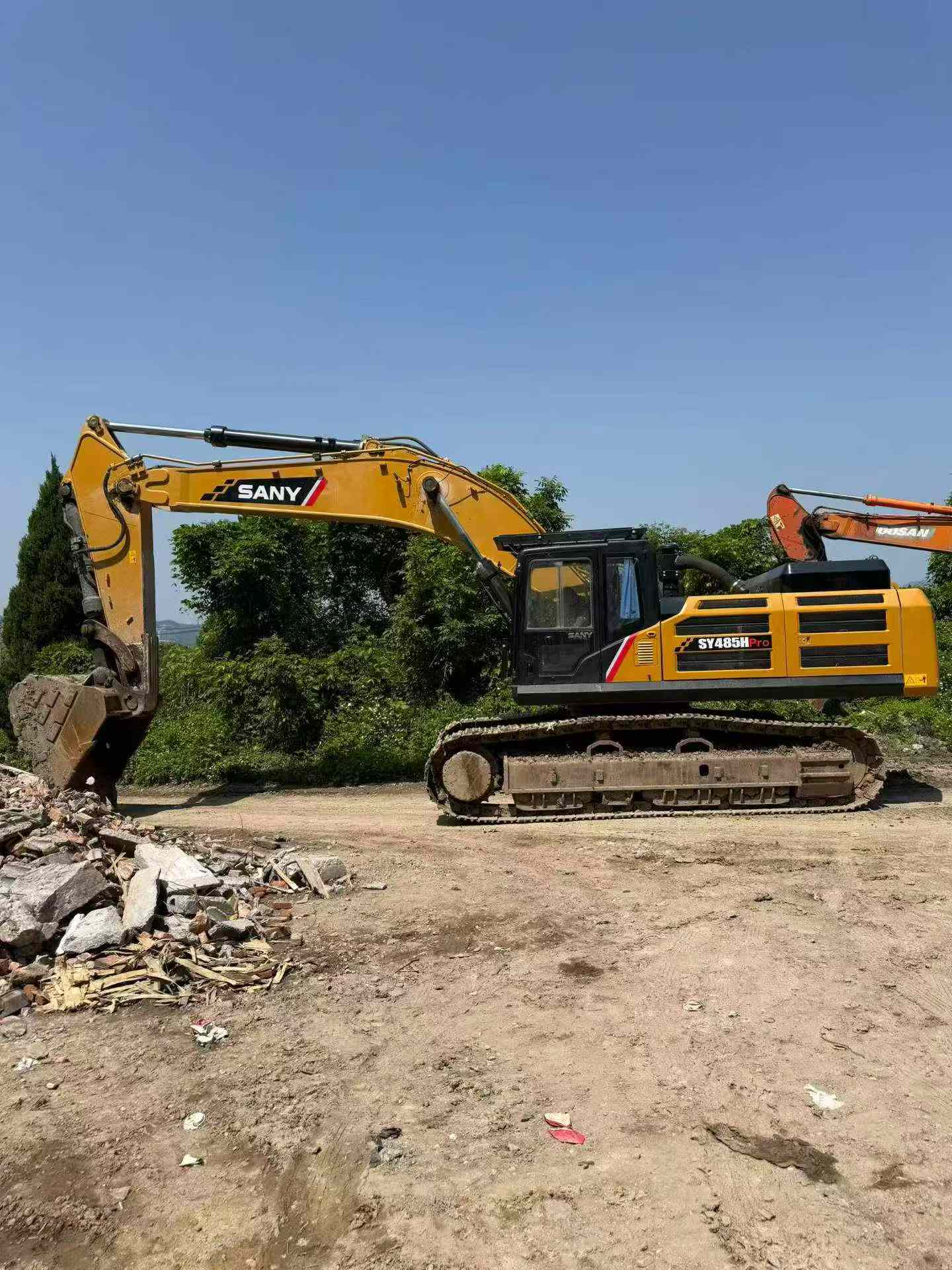

With a robust 48-ton working weight and a powerful 6WG1X engine, this Sany SY485H excavator, manufactured in 2020, is an ideal fleet addition for busy contractors. Offering a rated power of 300 kW at 1800 rpm, it ensures efficient performance on any job site. The machine's bucket capacity ranges from 2.2 to 3.1 m³, making it versatile for various excavation tasks. Equipped with a water-cooling system and a maximum torque of 1950 N.m at 1400 rpm, it handles demanding conditions with ease.
- Bucket digging force: 287 kN
- Rod digging force: 245 kN
- Travel speed: 5.4/3.1 km/h
- Fuel tank capacity: 680 L
- Hydraulic tank: 480 L
- Total transport length: 12095 mm
- Maximum digging depth: 7490 mm
Integrate this reliable Sany SY485H into your fleet to enhance productivity and reliability. Located in Zhejiang, China, it is ready to support your operations with its strong performance and durability.
| Specifications | Value |
|---|---|
| No. | 1057743 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 49500 |
| Bucket capacity (m³) | 2.2-3.1 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 6WG1X |
| Rated power (kw/rpm) | 300/1800 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1950/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 287 |
| Rod digging force (kN) | 245 |
| Travel speed (km/h) | 5.4/3.1 |
| Fuel Tank (L) | 680 |
| Hydraulic Tank (L) | 480 |
| Engine Oil changes (L) | 50 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Counterweight ground clearance (mm) | 1355 |
| Minimum ground clearance (mm) | 560 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |
| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum height at minimum turning radius (mm) | 9100 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 11860 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10950 |
| Maximum unloading height (mm) | 7450 |
| Maximum vertical digging depth (mm) | 5660 |
