Product Description
FairTradeMachinery presents a 2020 Sany SY485H hydraulic excavator, currently located in Shandong, China. This heavy-duty machine shows 6,000 genuine operating hours, reflecting excellent maintenance and careful use during its service life. The excavator comes equipped with a Beilite 195 hydraulic breaker attachment, significantly enhancing its versatility for demanding demolition and rock-breaking applications.
The Sany SY485H is recognized for its robust performance in large-scale earthmoving, mining, and construction projects. This unit represents a cost-effective solution for contractors seeking reliable hydraulic excavation equipment with professional-grade attachments.
- Year of Manufacture: 2020
- Actual Hours: 6,000
- Included: Beilite 195 Hydraulic Breaker
- Current Location: Shandong Province, China
- Condition: Used, Well-Maintained
Contact our sales team for detailed specifications, inspection reports, and international shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1078197 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 49500 |
| Bucket capacity (m³) | 2.2-3.1 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

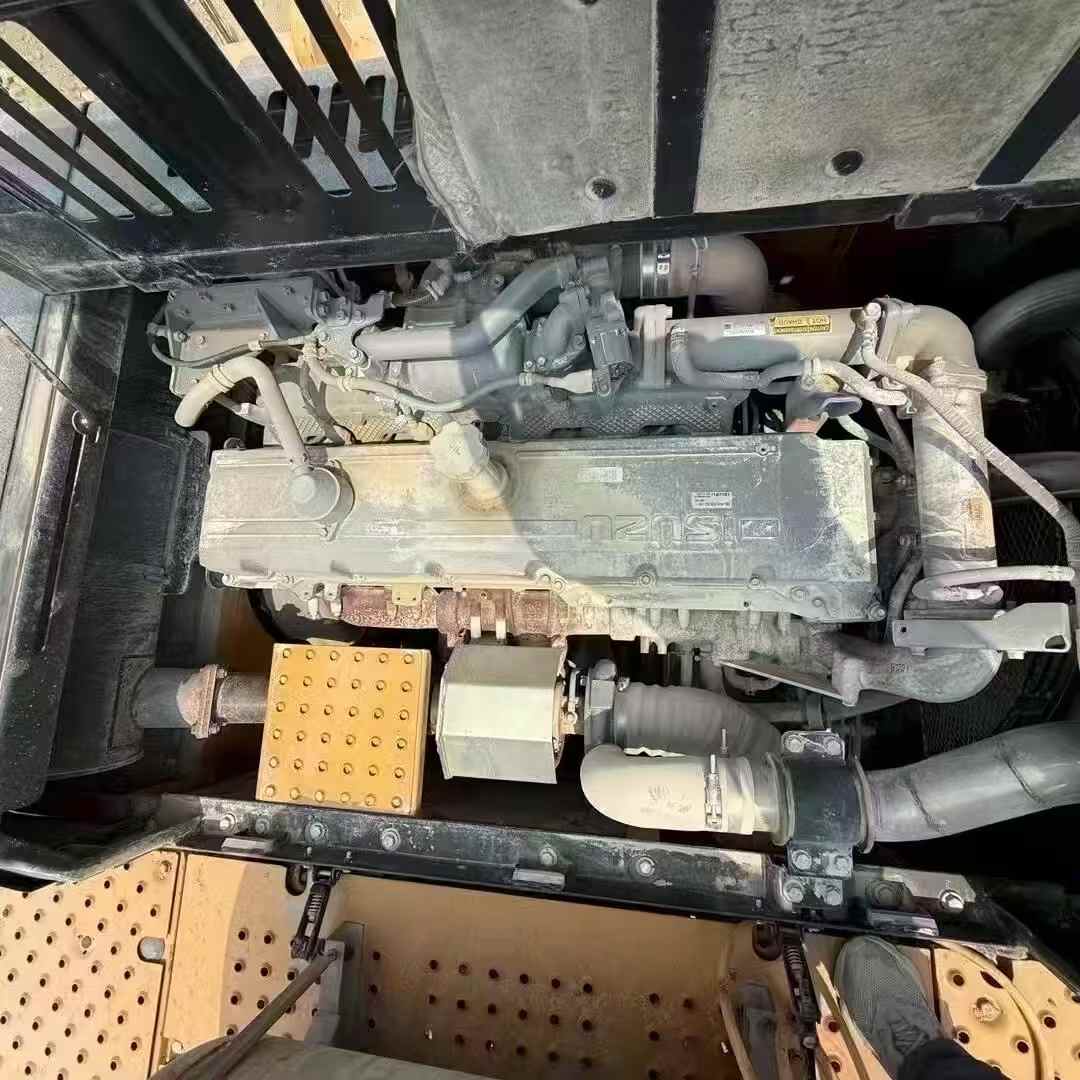

| Engine type | 6WG1X |
| Rated power (kw/rpm) | 300/1800 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1950/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 287 |
| Rod digging force (kN) | 245 |
| Travel speed (km/h) | 5.4/3.1 |
| Fuel Tank (L) | 680 |
| Hydraulic Tank (L) | 480 |
| Engine Oil changes (L) | 50 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Counterweight ground clearance (mm) | 1355 |
| Minimum ground clearance (mm) | 560 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |
| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum height at minimum turning radius (mm) | 9100 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 11860 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10950 |
| Maximum unloading height (mm) | 7450 |
| Maximum vertical digging depth (mm) | 5660 |
