Product Description

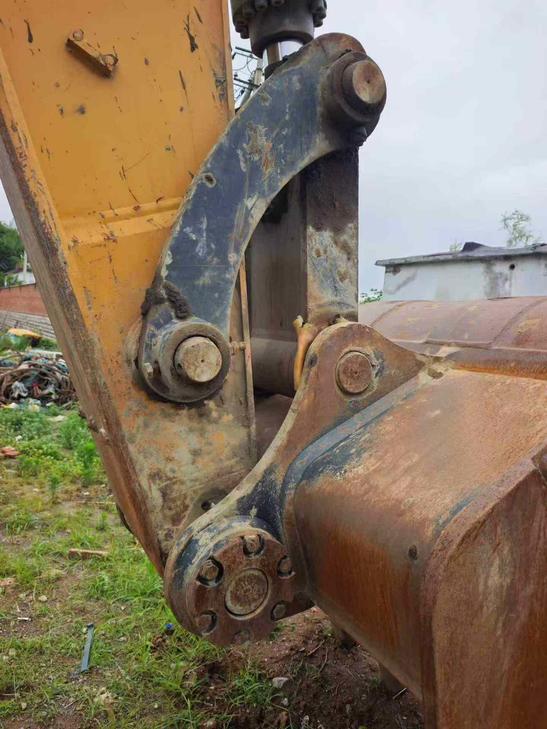

This 2020 Sany SY485H hydraulic excavator represents a compelling value proposition for operations requiring reliable heavy-duty performance. Manufactured in November 2020, this machine has accumulated just 3,660 operational hours, indicating minimal use and substantial remaining service life. Currently located in Fujian, China, this excavator is well-suited for demanding applications including earthmoving, site development, and infrastructure projects.
The SY485H is engineered to deliver consistent productivity in challenging work environments. As a mid-to-large class excavator from Sany's proven lineup, it combines robust construction with operational efficiency.
- Year of Manufacture: November 2020
- Operating Hours: 3,660
- Location: Fujian Province, China
- Condition: Low hours indicate excellent remaining lifecycle
- Availability: Ready for inspection and acquisition
This unit offers international buyers an opportunity to acquire quality Chinese-manufactured construction equipment at competitive pricing. Contact us for detailed specifications and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1084056 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 49500 |
| Bucket capacity (m³) | 2.2-3.1 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 6WG1X |
| Rated power (kw/rpm) | 300/1800 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1950/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 287 |
| Rod digging force (kN) | 245 |
| Travel speed (km/h) | 5.4/3.1 |
| Fuel Tank (L) | 680 |
| Hydraulic Tank (L) | 480 |
| Engine Oil changes (L) | 50 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Counterweight ground clearance (mm) | 1355 |
| Minimum ground clearance (mm) | 560 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |
| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum height at minimum turning radius (mm) | 9100 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 11860 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10950 |
| Maximum unloading height (mm) | 7450 |
| Maximum vertical digging depth (mm) | 5660 |
