Product Description

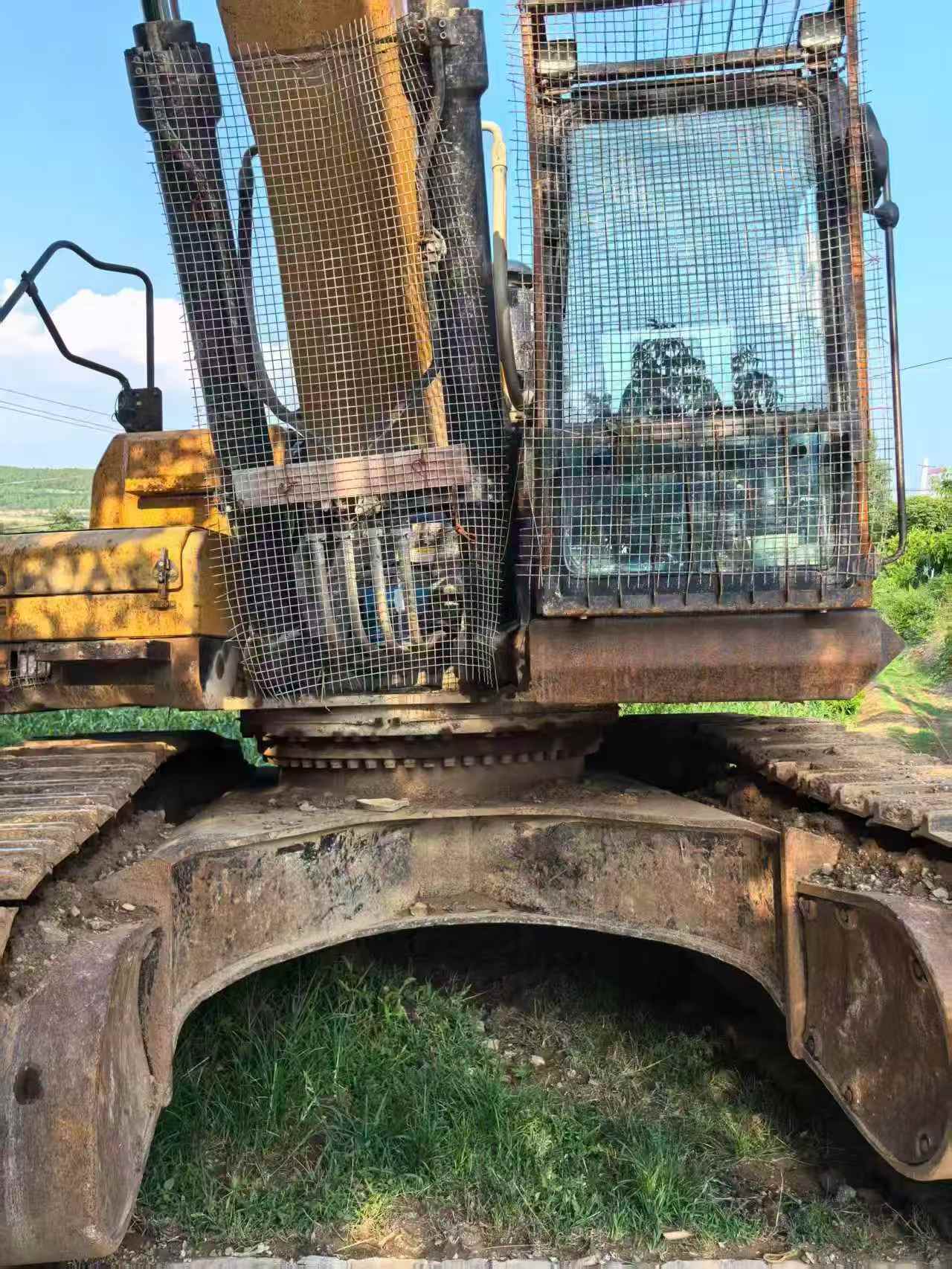

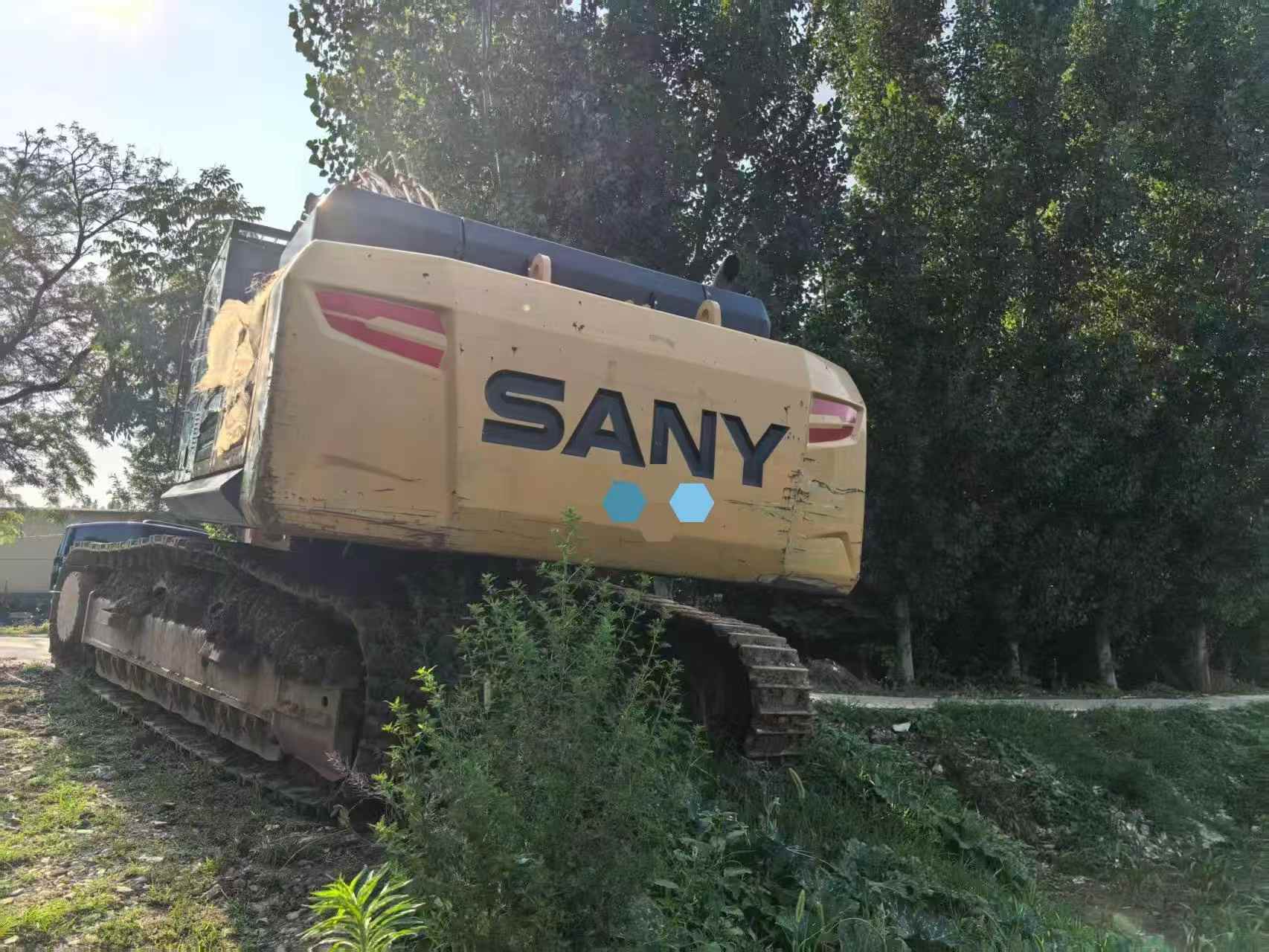

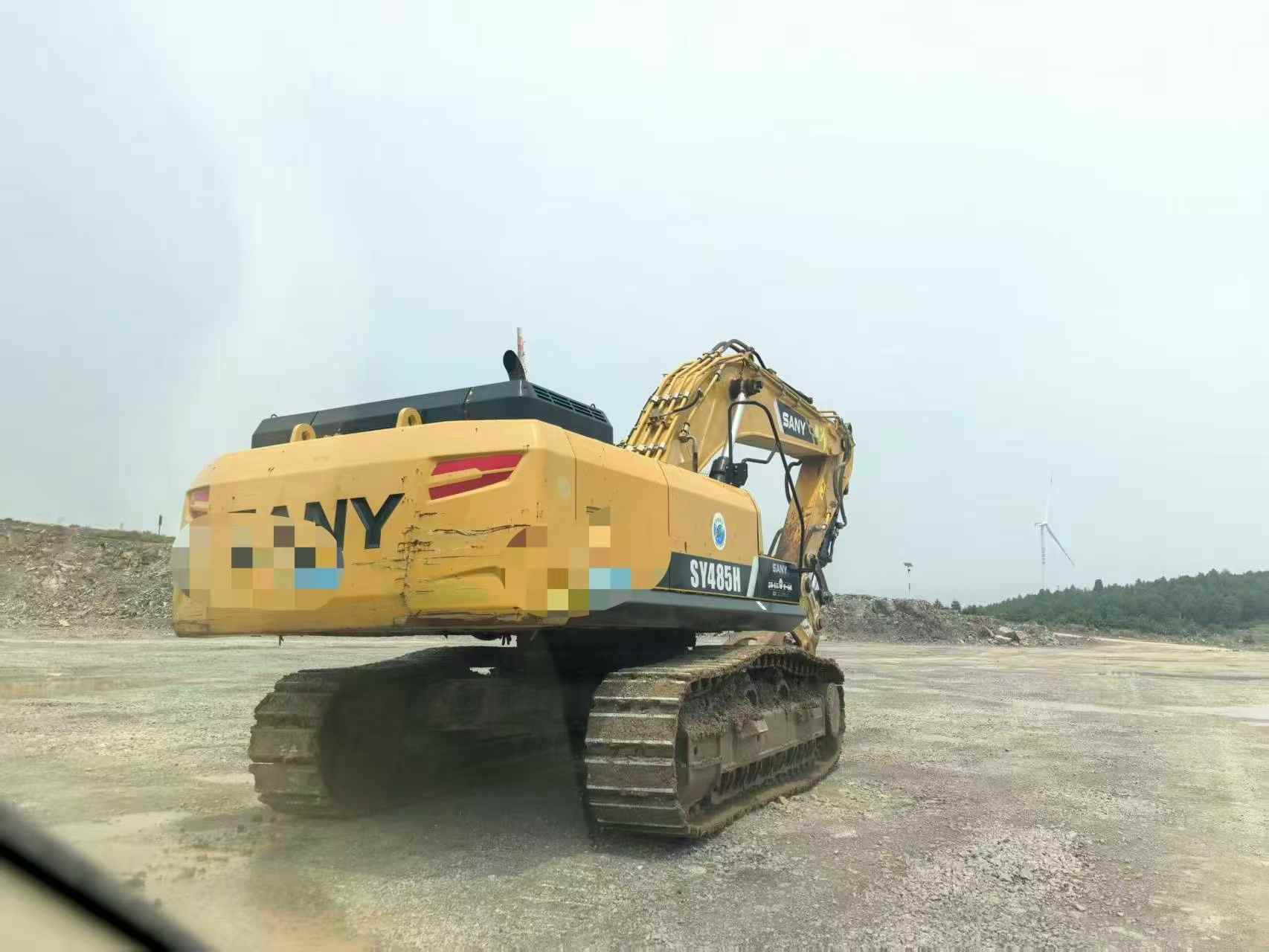

Discover the exceptional 2020 Sany SY485H excavator, currently available in Shandong, China. This robust machine has been meticulously maintained and is equipped with an Eddy 195 breaker, making it a versatile choice for demanding construction and demolition projects. With a total of 6,000 operational hours, this excavator remains in prime condition, ready to tackle your most challenging tasks. The Sany SY485H is known for its reliability and efficiency, ensuring that you can meet project deadlines with ease. Ideal for B2B clients seeking a high-performance, used heavy machine, this model is a cost-effective solution for your fleet.
- Year: 2020
- Brand: Sany
- Model: SY485H
- Location: Shandong, China
- Hours: 6,000
- Equipped with Eddy 195 breaker
| Specifications | Value |
|---|---|
| No. | 1097004 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 49500 |
| Bucket capacity (m³) | 2.2-3.1 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

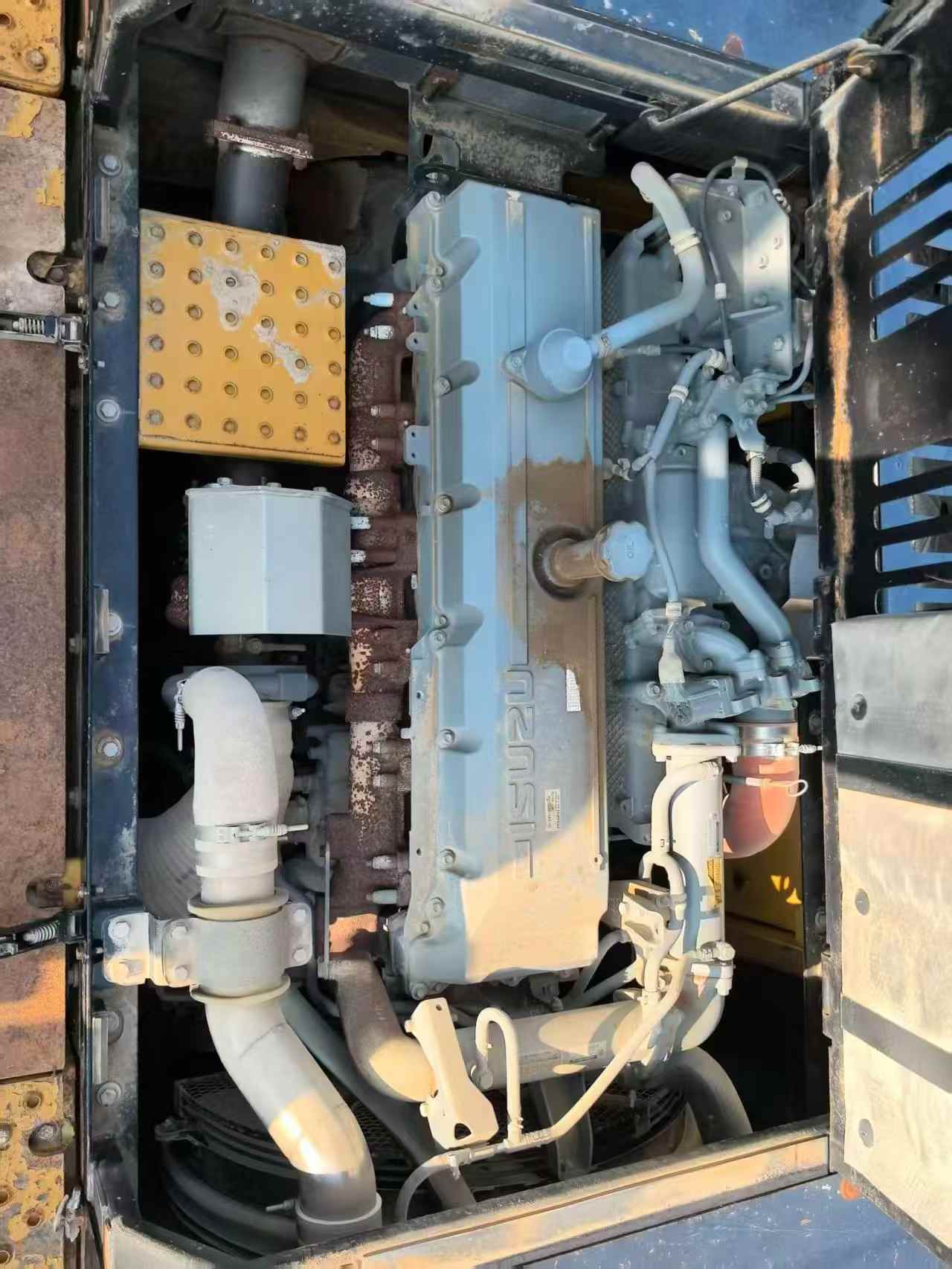

| Engine type | 6WG1X |
| Rated power (kw/rpm) | 300/1800 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1950/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 287 |
| Rod digging force (kN) | 245 |
| Travel speed (km/h) | 5.4/3.1 |
| Fuel Tank (L) | 680 |
| Hydraulic Tank (L) | 480 |
| Engine Oil changes (L) | 50 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Counterweight ground clearance (mm) | 1355 |
| Minimum ground clearance (mm) | 560 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |
| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum height at minimum turning radius (mm) | 9100 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 11860 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10950 |
| Maximum unloading height (mm) | 7450 |
| Maximum vertical digging depth (mm) | 5660 |
