Product Description

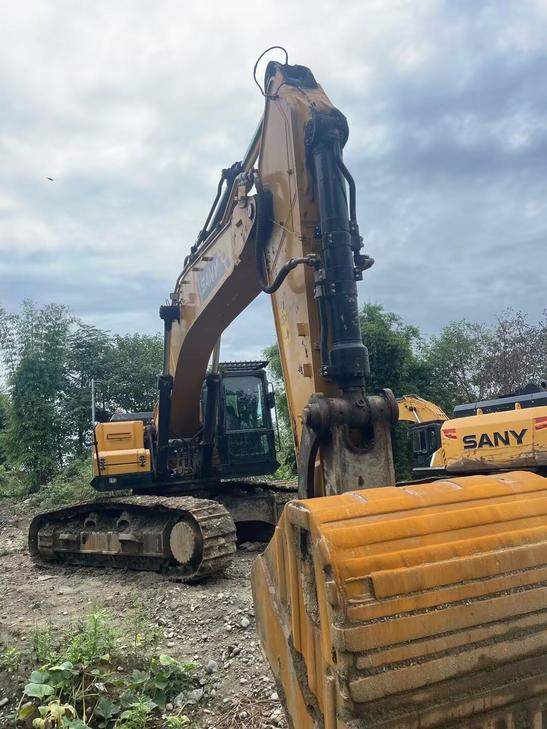

Discover the 2020 Sany SY485H, a robust and reliable excavator, now available in Sichuan, China. This machine, known for its exceptional performance and durability, is offered at a competitive price point, making it an excellent choice for any industrial project. The SY485H model is designed to handle tough jobs with ease, thanks to its powerful engine and advanced hydraulic system, ensuring efficiency and productivity on your worksite.
- Year: 2020
- Brand: Sany
- Model: SY485H
- Location: Sichuan, China
- Condition: Used, in excellent condition
| Specifications | Value |
|---|---|
| No. | 1108616 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 49500 |
| Bucket capacity (m³) | 2.2-3.1 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 6WG1X |
| Rated power (kw/rpm) | 300/1800 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1950/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 287 |
| Rod digging force (kN) | 245 |
| Travel speed (km/h) | 5.4/3.1 |
| Fuel Tank (L) | 680 |
| Hydraulic Tank (L) | 480 |
| Engine Oil changes (L) | 50 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Counterweight ground clearance (mm) | 1355 |
| Minimum ground clearance (mm) | 560 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |
| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum height at minimum turning radius (mm) | 9100 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 11860 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10950 |
| Maximum unloading height (mm) | 7450 |
| Maximum vertical digging depth (mm) | 5660 |
