Product Description

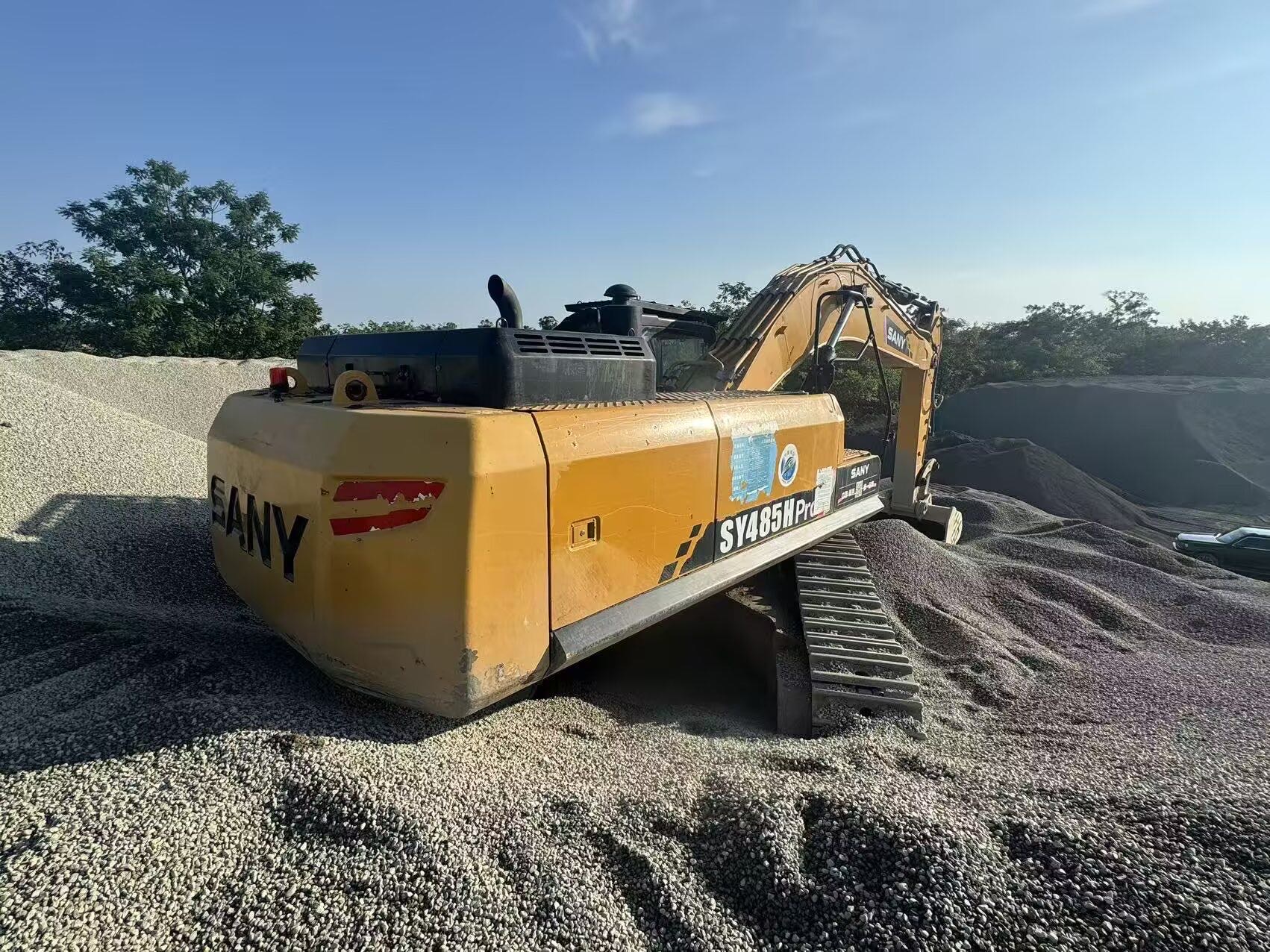

This 2020 Sany SY485H excavator is a proven worksite machine currently located in Sichuan, China. With approximately four years of field operation, this crawler excavator demonstrates the robust engineering Sany is known for in the heavy construction sector. The SY485H is designed for demanding earthmoving, trenching, and material handling applications across infrastructure and mining projects.
Key features include:
- Reliable hydraulic system for consistent performance
- Operator cabin designed for extended shifts
- Durable undercarriage built for varied terrain
- Competitive pricing for international buyers
- Field-tested on active construction sites
This unit represents solid value for contractors seeking dependable excavation equipment. Available for inspection in Sichuan Province. Contact us for detailed specifications, service records, and export logistics.
| Specifications | Value |
|---|---|
| No. | 1109998 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 49500 |
| Bucket capacity (m³) | 2.2-3.1 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

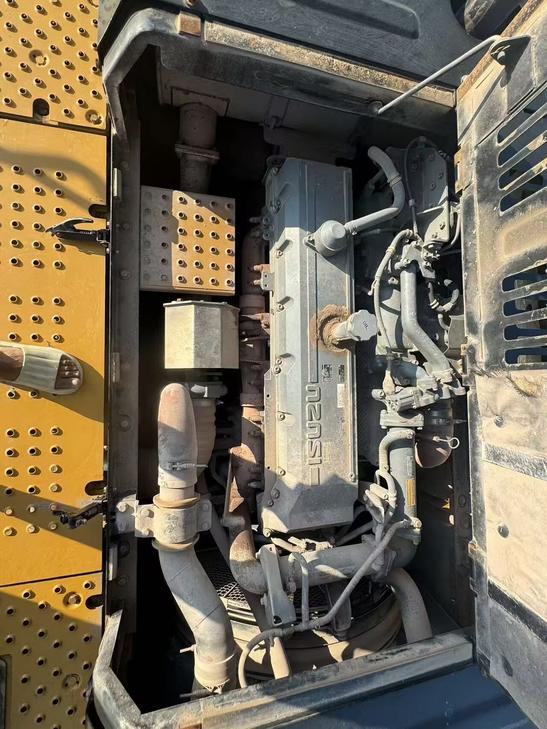

| Engine type | 6WG1X |
| Rated power (kw/rpm) | 300/1800 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1950/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 287 |
| Rod digging force (kN) | 245 |
| Travel speed (km/h) | 5.4/3.1 |
| Fuel Tank (L) | 680 |
| Hydraulic Tank (L) | 480 |
| Engine Oil changes (L) | 50 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Counterweight ground clearance (mm) | 1355 |
| Minimum ground clearance (mm) | 560 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |
| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum height at minimum turning radius (mm) | 9100 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 11860 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10950 |
| Maximum unloading height (mm) | 7450 |
| Maximum vertical digging depth (mm) | 5660 |
