Product Description

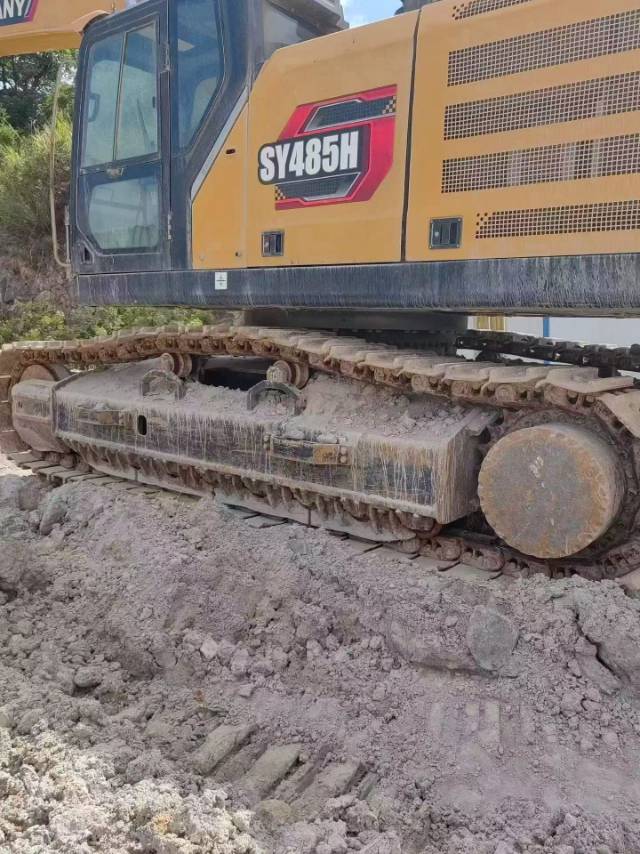

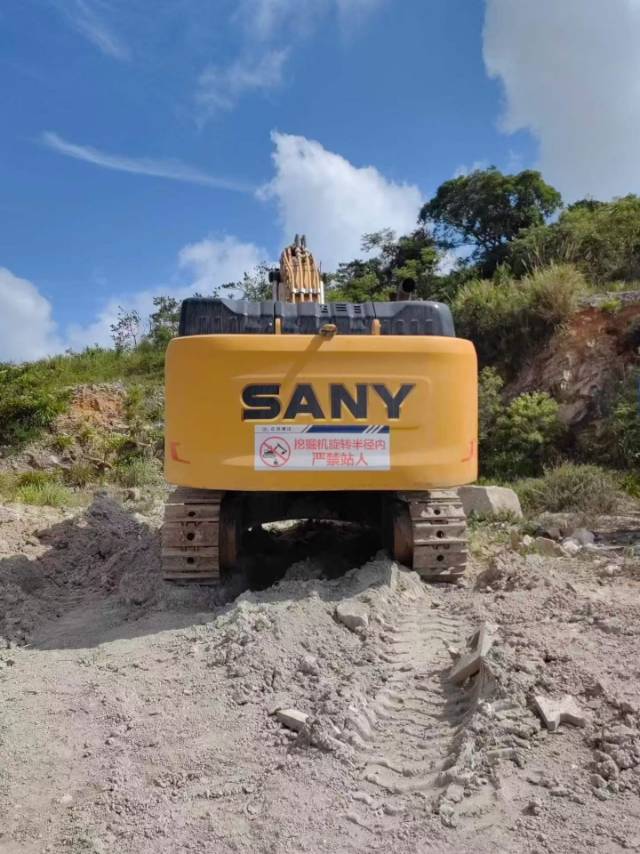

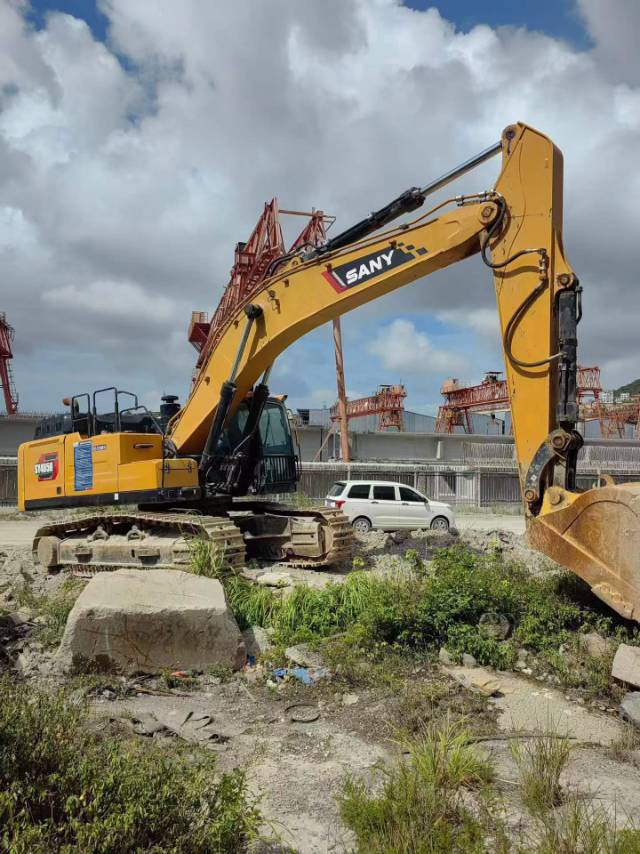

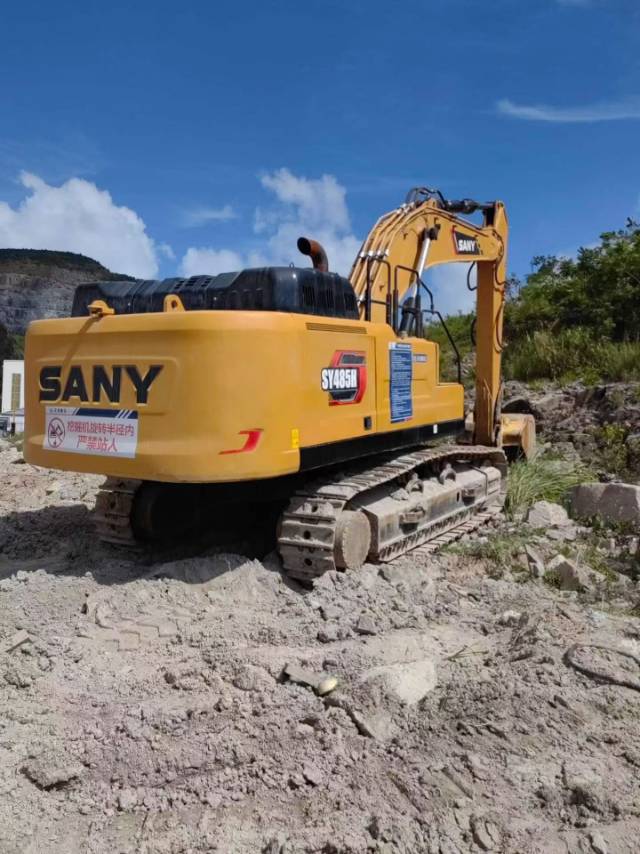

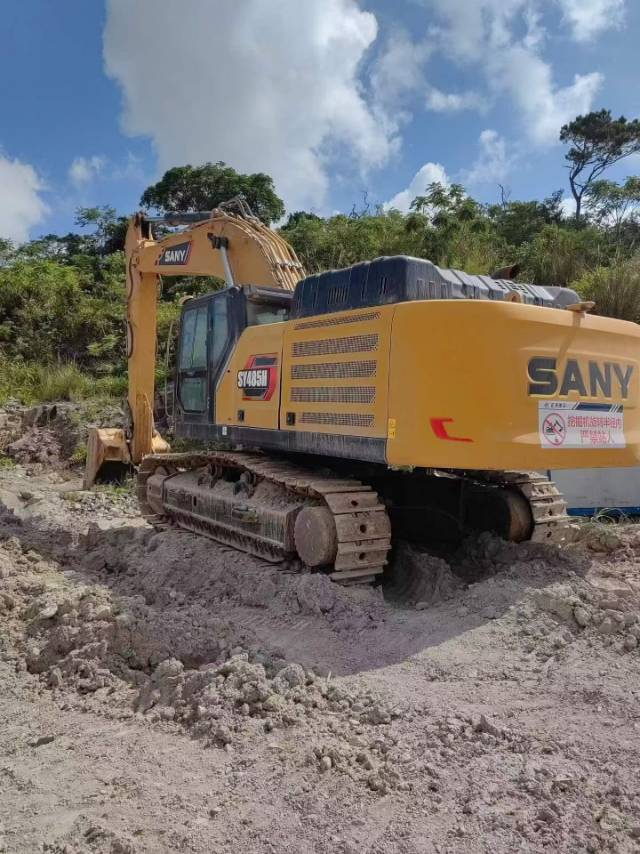

Available for immediate inspection and operation testing, this 2023 Sany SY485H excavator represents a premium opportunity in the heavy equipment market. With minimal operational hours since manufacture, this machine maintains excellent working condition and demonstrates the robust engineering Sany is known for in the hydraulic excavator segment.
Currently located in Zhejiang, China, this unit offers:
- Recent 2023 model year with low utilization
- Full functionality verification available on-site
- Comprehensive pre-purchase inspection welcomed
- Flexible pricing structure for qualified buyers
- Immediate availability for transfer
The SY485H delivers reliable performance for demanding excavation, earthmoving, and construction applications. Ideal for contractors seeking dependable equipment with substantial remaining service life. Contact us to schedule an on-site demonstration and discuss acquisition terms tailored to your operational requirements.
| Specifications | Value |
|---|---|
| No. | 1136597 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 49500 |
| Bucket capacity (m³) | 2.2-3.1 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

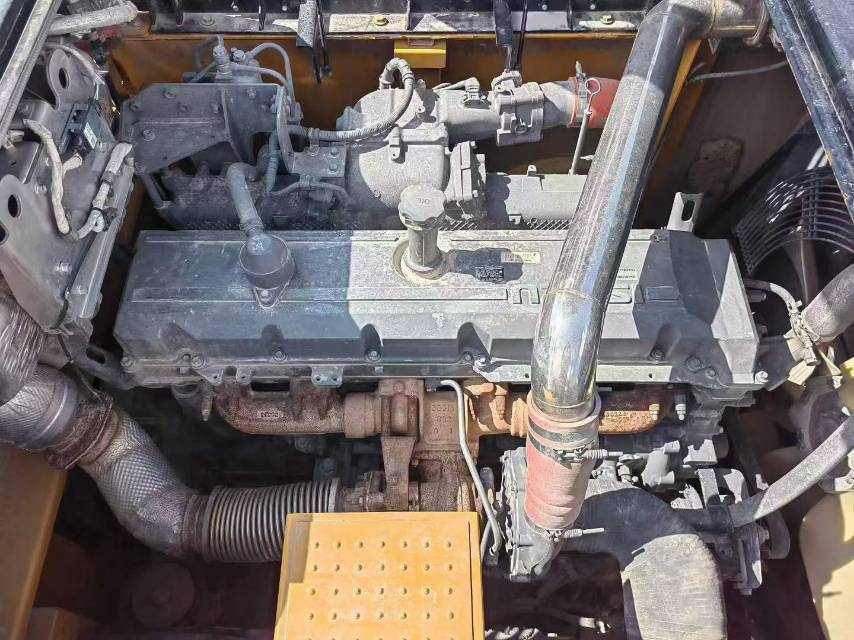

| Engine type | 6WG1X |
| Rated power (kw/rpm) | 300/1800 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1950/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 287 |
| Rod digging force (kN) | 245 |
| Travel speed (km/h) | 5.4/3.1 |
| Fuel Tank (L) | 680 |
| Hydraulic Tank (L) | 480 |
| Engine Oil changes (L) | 50 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Counterweight ground clearance (mm) | 1355 |
| Minimum ground clearance (mm) | 560 |
| Minimum turning radius of front working device (mm) | 5240 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |

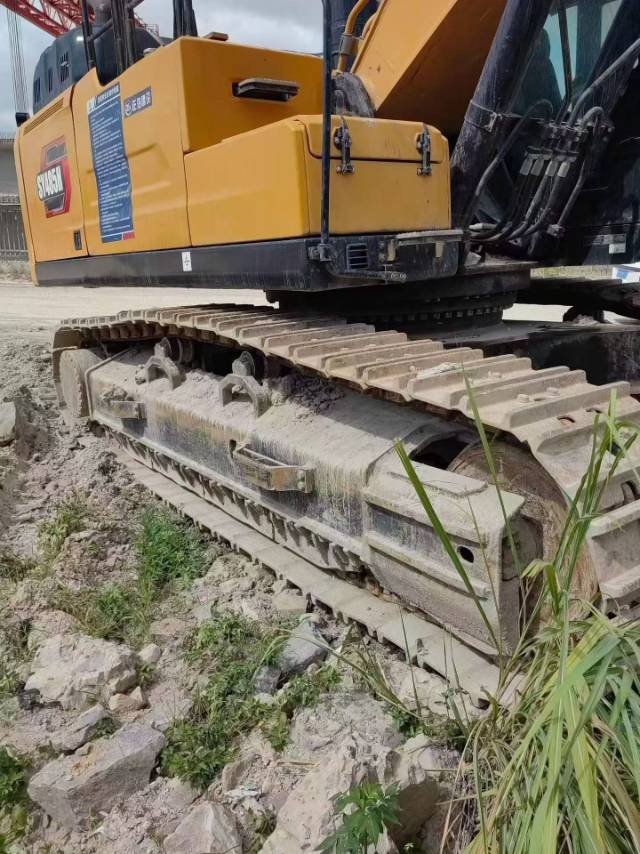

| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum height at minimum turning radius (mm) | 9100 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 11860 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10950 |
| Maximum unloading height (mm) | 7450 |
| Maximum vertical digging depth (mm) | 5660 |
