HOME>>Sany>>Sany SY550H

2020 Sany SY550H

1/8

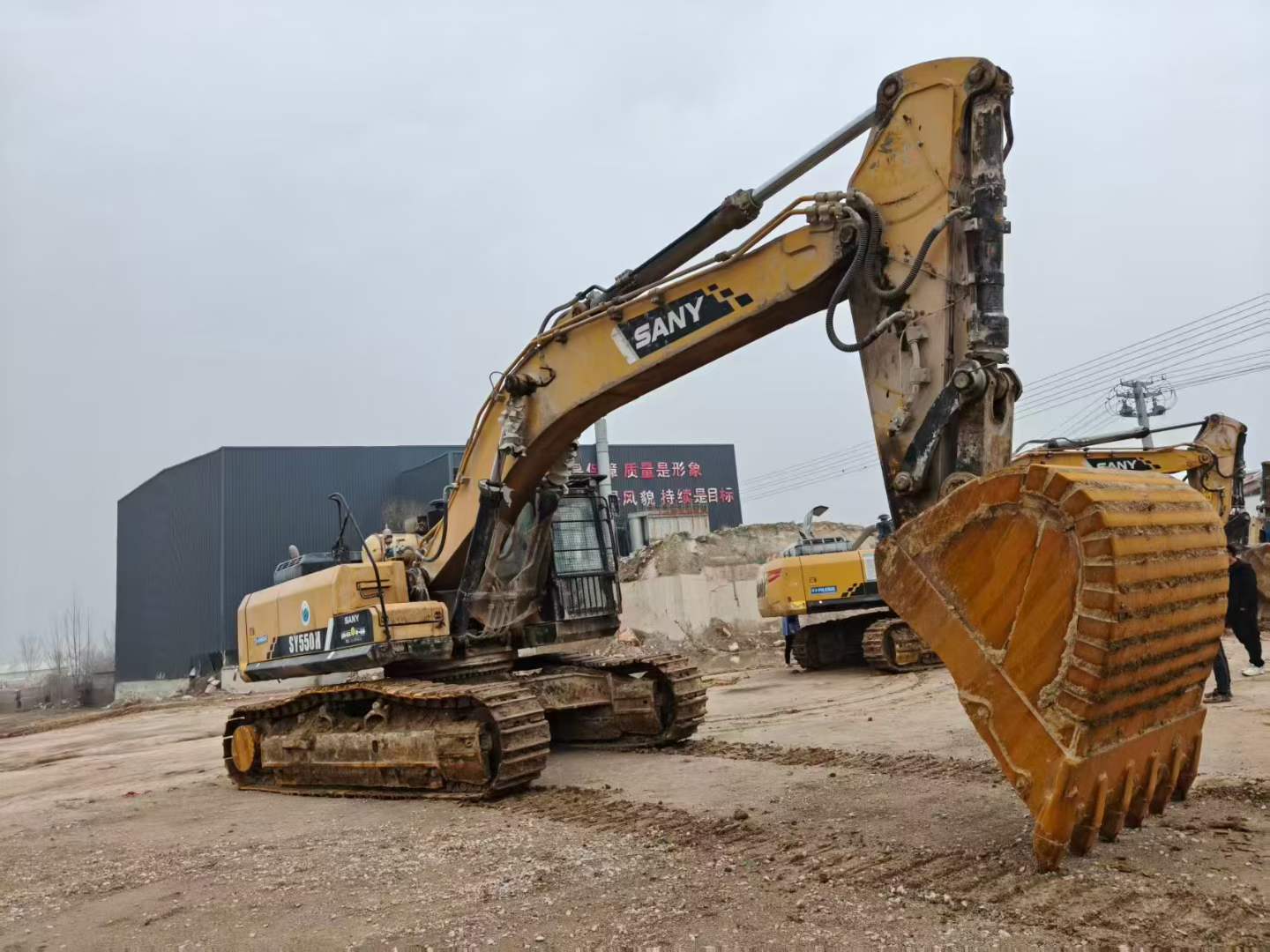

Buy Sany SY550H Used Excavator / 1

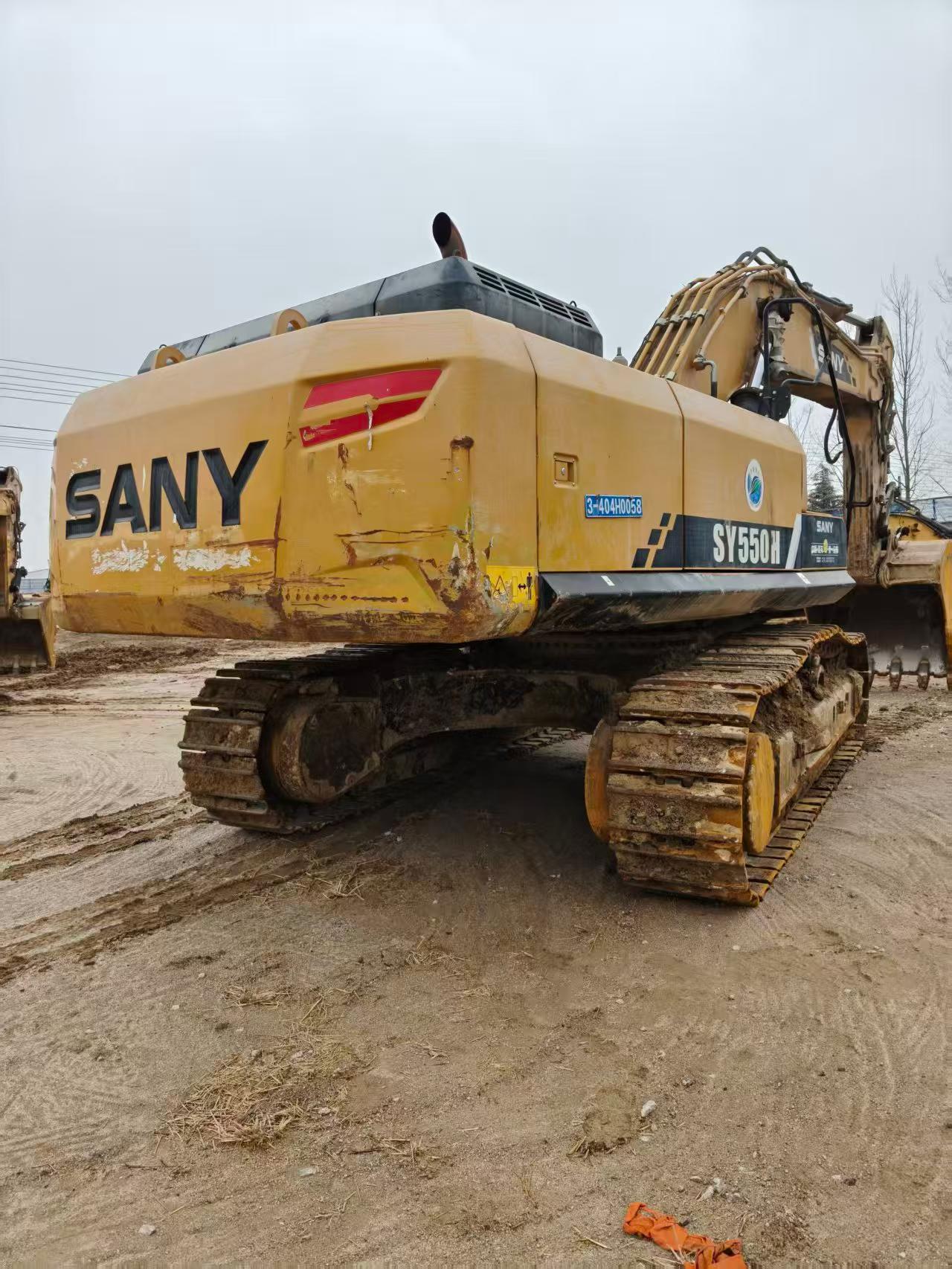

Buy Sany SY550H Used Excavator / 2

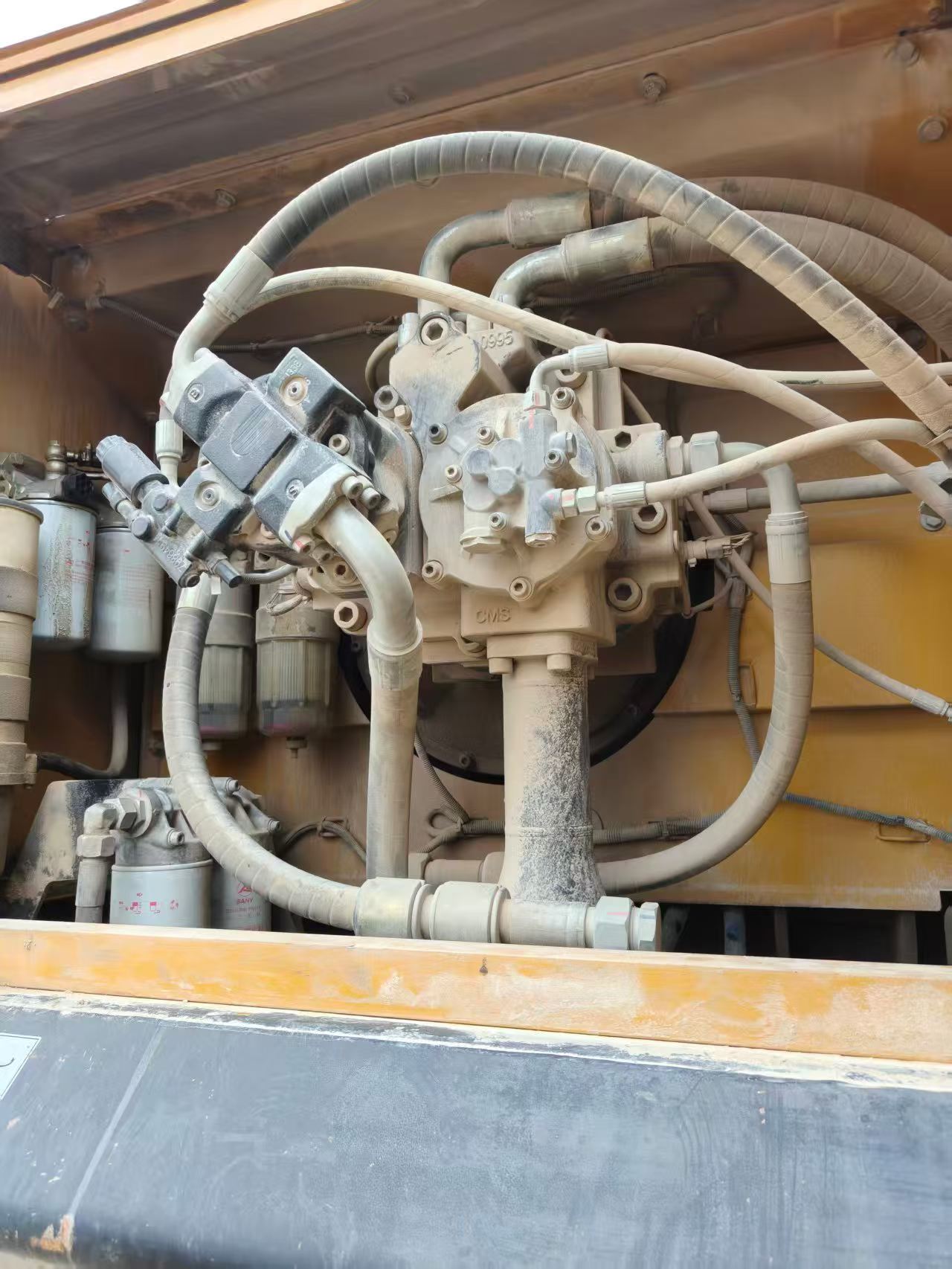

Buy Sany SY550H Used Excavator / 3

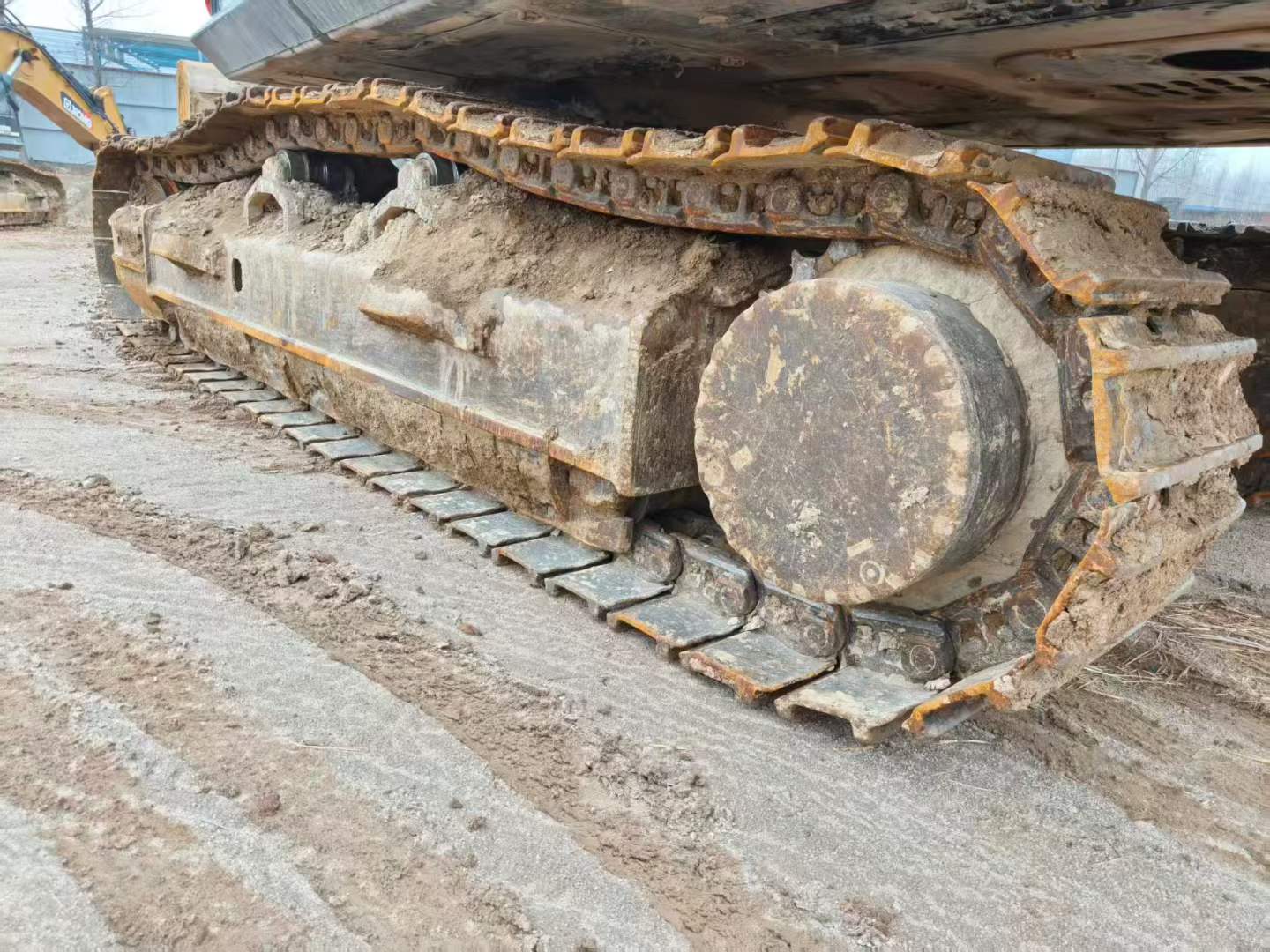

Buy Sany SY550H Used Excavator / 4

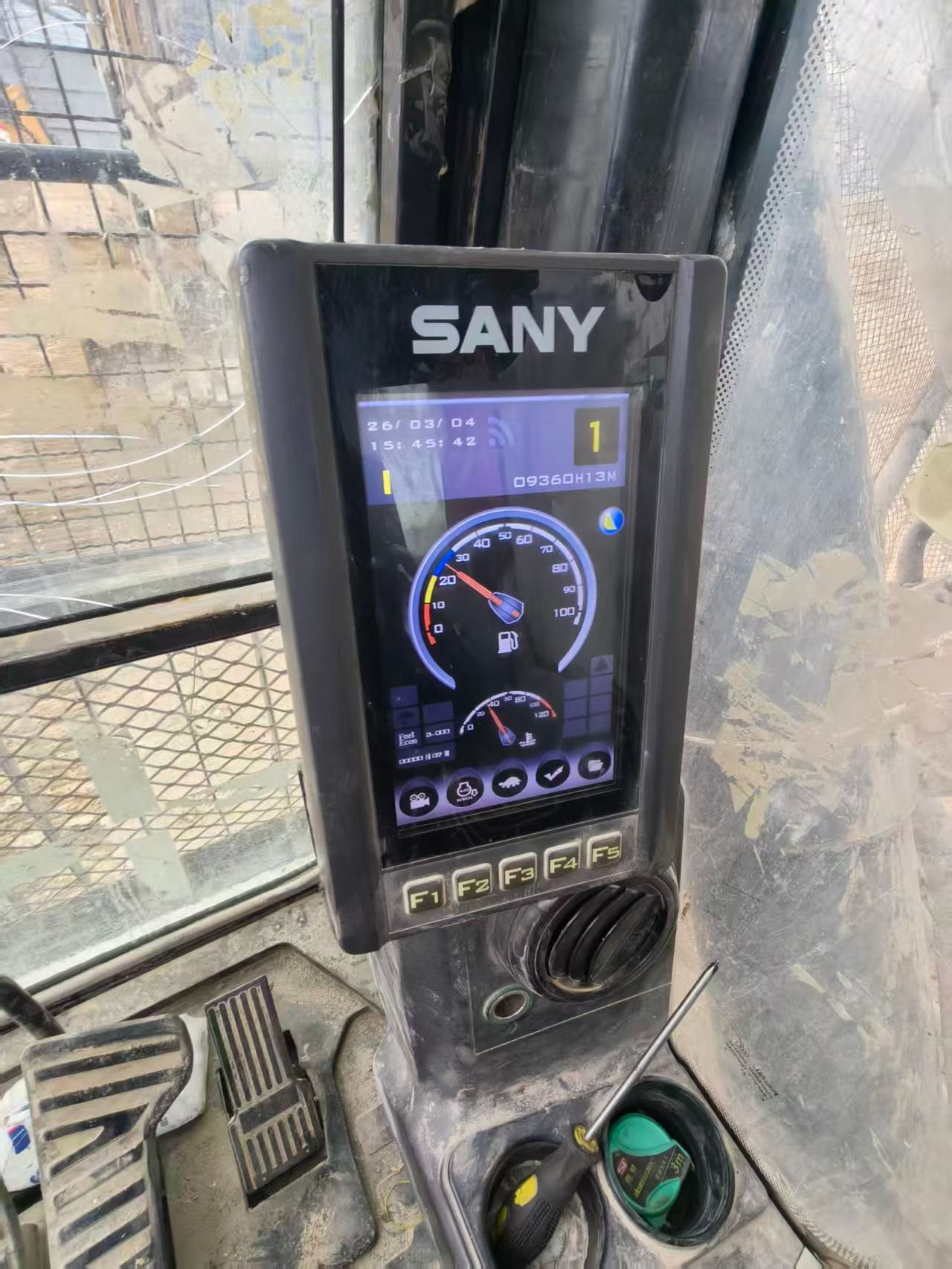

Buy Sany SY550H Used Excavator / 5
Buy Sany SY550H Used Excavator / 6

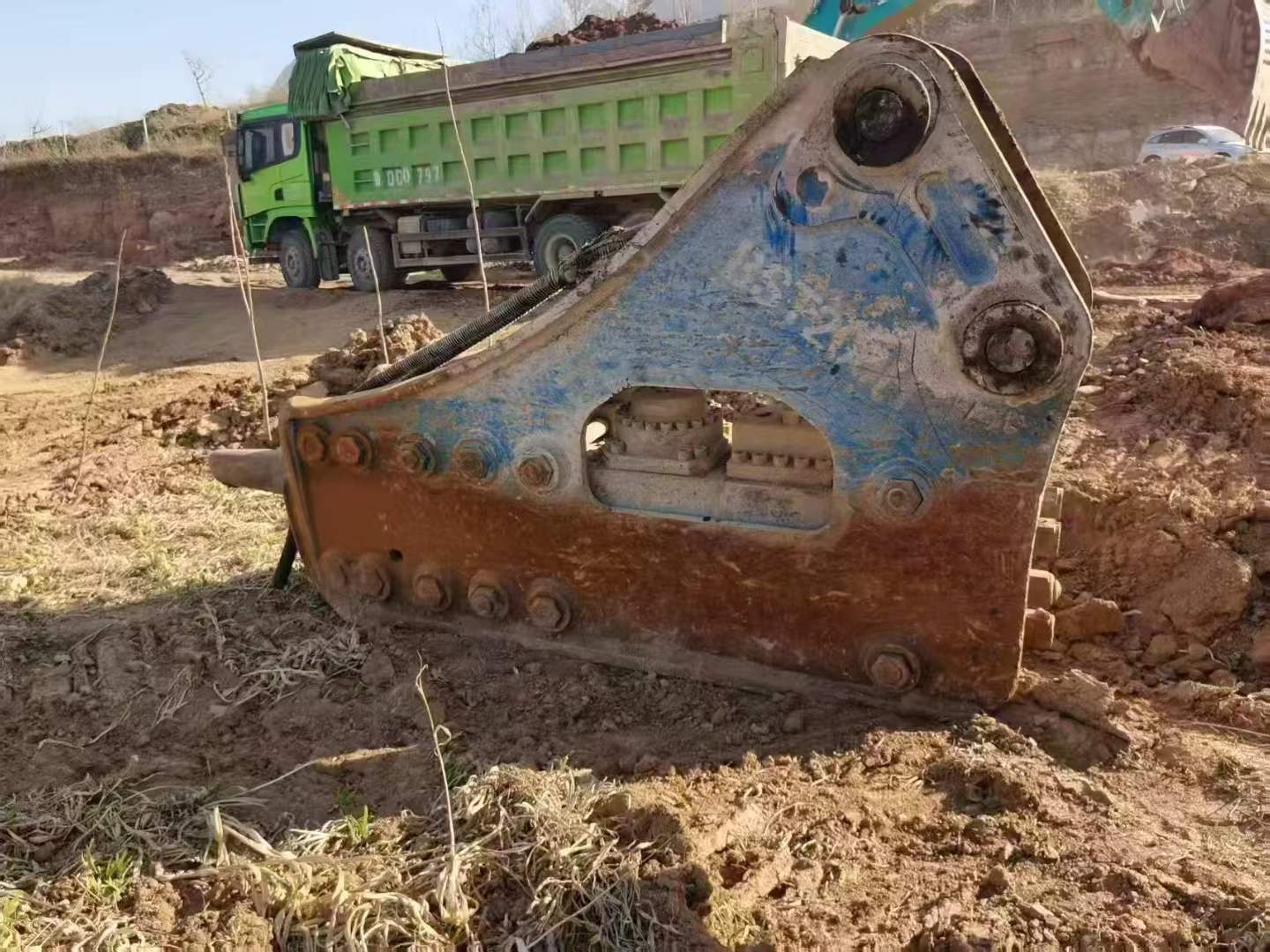

Buy Sany SY550H Used Excavator / 7

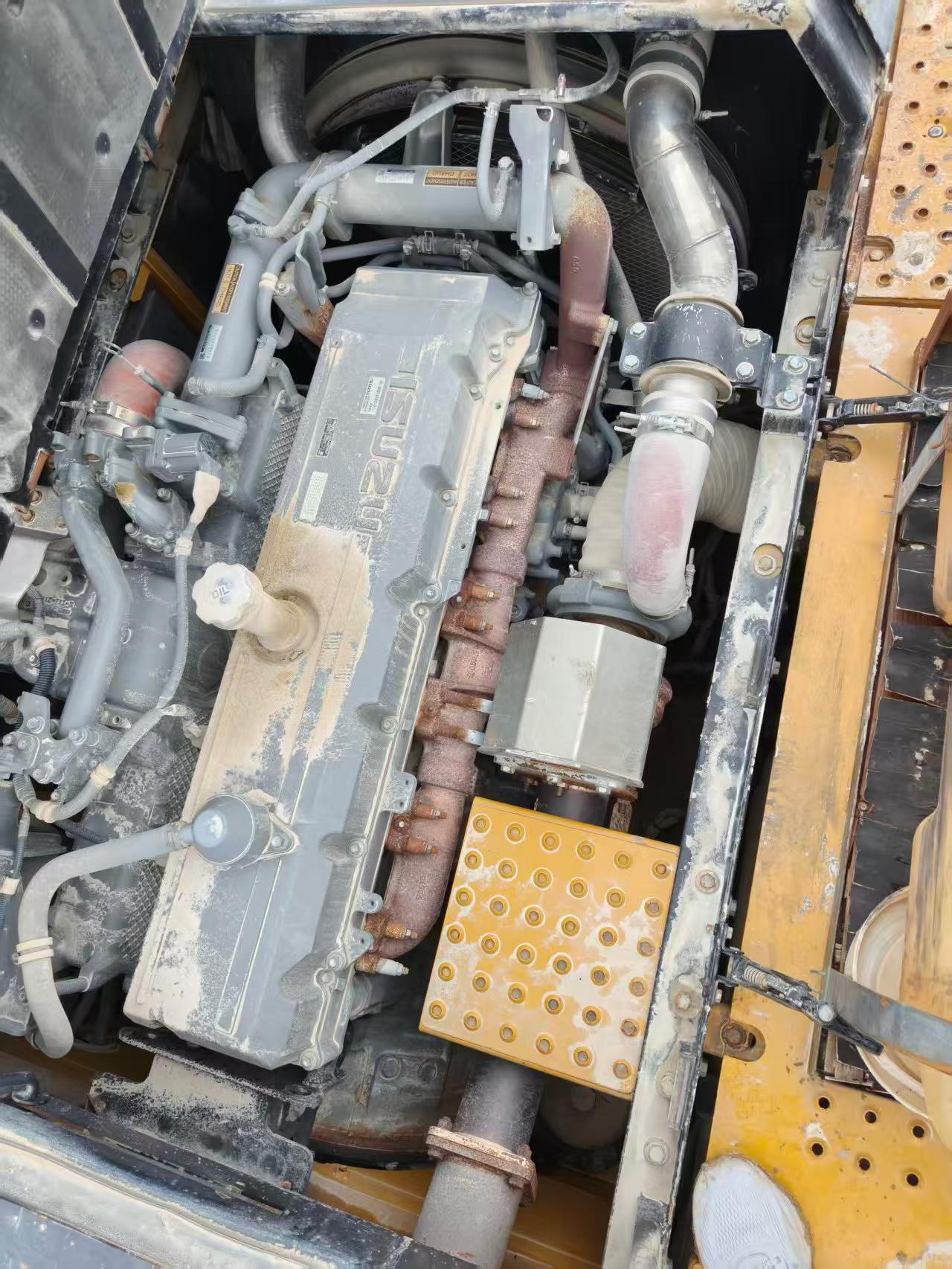

Buy Sany SY550H Used Excavator / 8

Product Description

Engineered with a robust 300kW rated power output at 1800 rpm, this 2020 Sany SY550H excavator delivers exceptional performance for high-demand earthmoving operations. Operating at 55 tons working weight with a 3.1-3.5m³ bucket capacity, this machine combines substantial digging force with precise hydraulic control. Its maximum digging reach extends to 12,841mm with a depth capability of 8,077mm, providing versatile coverage across large-scale excavation projects.

Built on proven Chinese manufacturing standards, this model features a ground-specific pressure of just 87.1 kPa, minimizing surface impact while maintaining stability. Travel speeds of 5.4/3.1 km/h and an impressive 70% climbing ability ensure productivity across challenging terrain. The 600mm track plates and 4,415mm ground contact length deliver superior traction and weight distribution.

Currently located in Heze, Shandong, this backhoe-configured excavator represents Sany's commitment to engineering excellence in the heavy equipment sector. With compact transport dimensions (12,095mm length) and an 8 rpm rotation speed, it offers operational efficiency for contractors requiring reliable, high-capacity excavation capability.

SpecificationsValue
No.1036567
Tonnage (tons)55
Working weight (kg)51000
Bucket capacity (m³)3.1-3.5
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)300/1800
Ground specific pressure (Kpa)87.1
Rotation speed (rpm)8
Climbing ability (%)70
Travel speed (km/h)5.4/3.1
Total transport length (mm)12095
Total transport width (mm)3360
Total transport height (mm)3790
Full cab height (mm)3470
Minimum ground clearance (mm)560
Back end turning radius (mm)3765
Onboard width (mm)3290
Total track length (mm)5440
Track gauge (mm)2740
Track plate width (mm)600
Track ground length (mm)4415
Maximum digging radius (mm)12841 (broken)
Maximum digging depth (mm)8077 (broken)
Maximum excavation height (mm)12279 (broken)
Maximum excavation radius of stop surface (mm)10655 (broken)
see more

Overview

No.1036567

Brand Name:

Sany

Model Number:

SY550H

Year:

2020

Location:

Shandong China

Pub Date
