Product Description

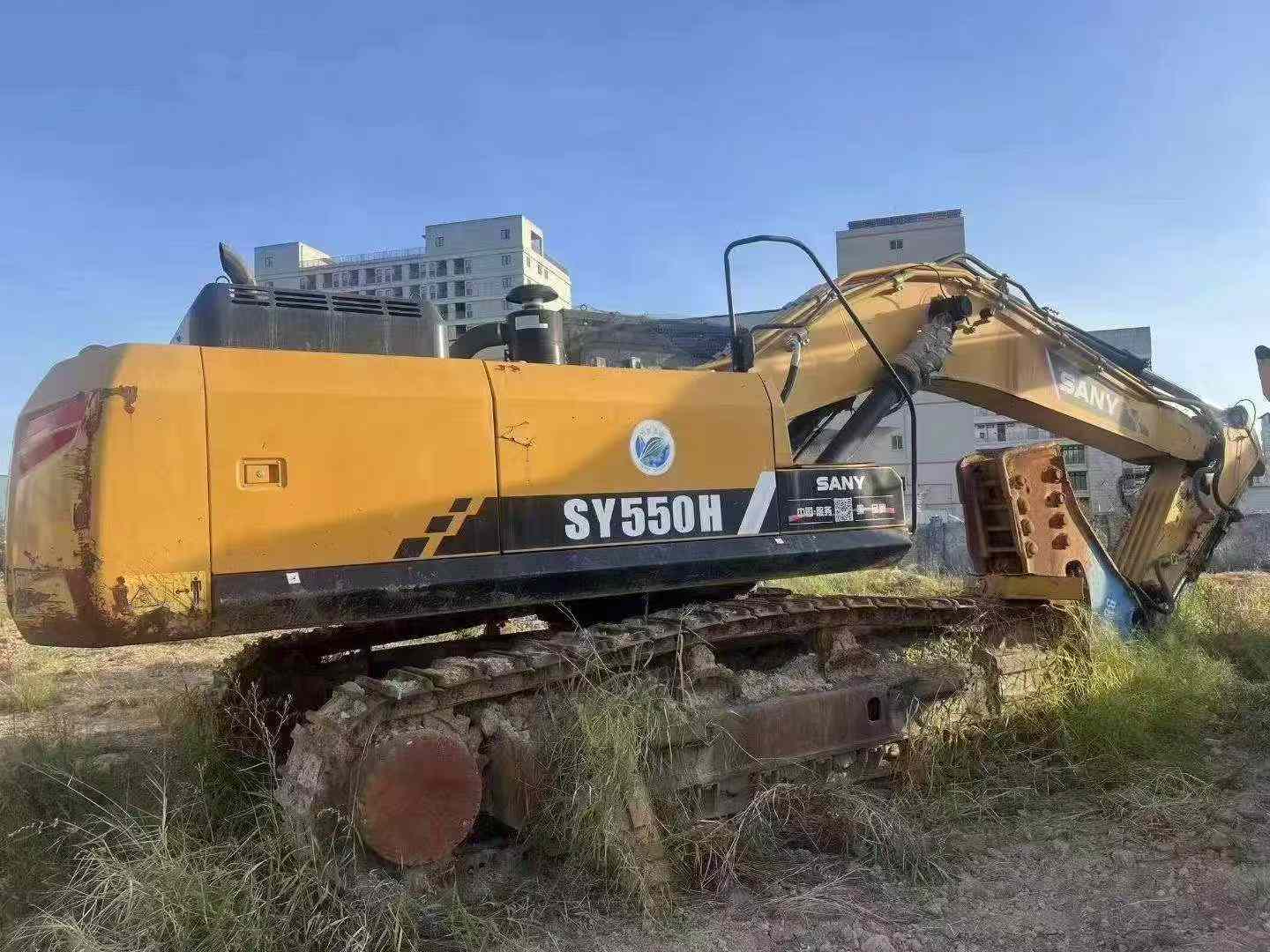

With a robust working weight of 51,000 kg and a powerful 300 kW engine, the Sany SY550H is an ideal addition to any contractor's fleet. Built in China, this 2021 model offers a bucket capacity ranging from 3.1 to 3.5 m³, making it versatile for various excavation tasks. Its ground specific pressure of 87.1 Kpa ensures stability on diverse terrains, while a travel speed of up to 5.4 km/h enhances mobility. The SY550H boasts a maximum digging depth of 8,077 mm and a maximum digging radius of 12,841 mm, providing extensive reach and depth capabilities. This excavator is designed to integrate seamlessly into busy construction sites, offering reliable performance and durability as a backup or primary unit.
- Working weight: 51,000 kg
- Rated power: 300 kW at 1800 rpm
- Bucket capacity: 3.1-3.5 m³
- Travel speed: 5.4/3.1 km/h
- Maximum digging depth: 8,077 mm
- Location: 浙江绍兴
| Specifications | Value |
|---|---|
| No. | 1020360 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51000 |
| Bucket capacity (m³) | 3.1-3.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 300/1800 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.4/3.1 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Minimum ground clearance (mm) | 560 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |
| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum digging radius (mm) | 12841 (broken) |
| Maximum digging depth (mm) | 8077 (broken) |
| Maximum excavation height (mm) | 12279 (broken) |
| Maximum excavation radius of stop surface (mm) | 10655 (broken) |
