Product Description

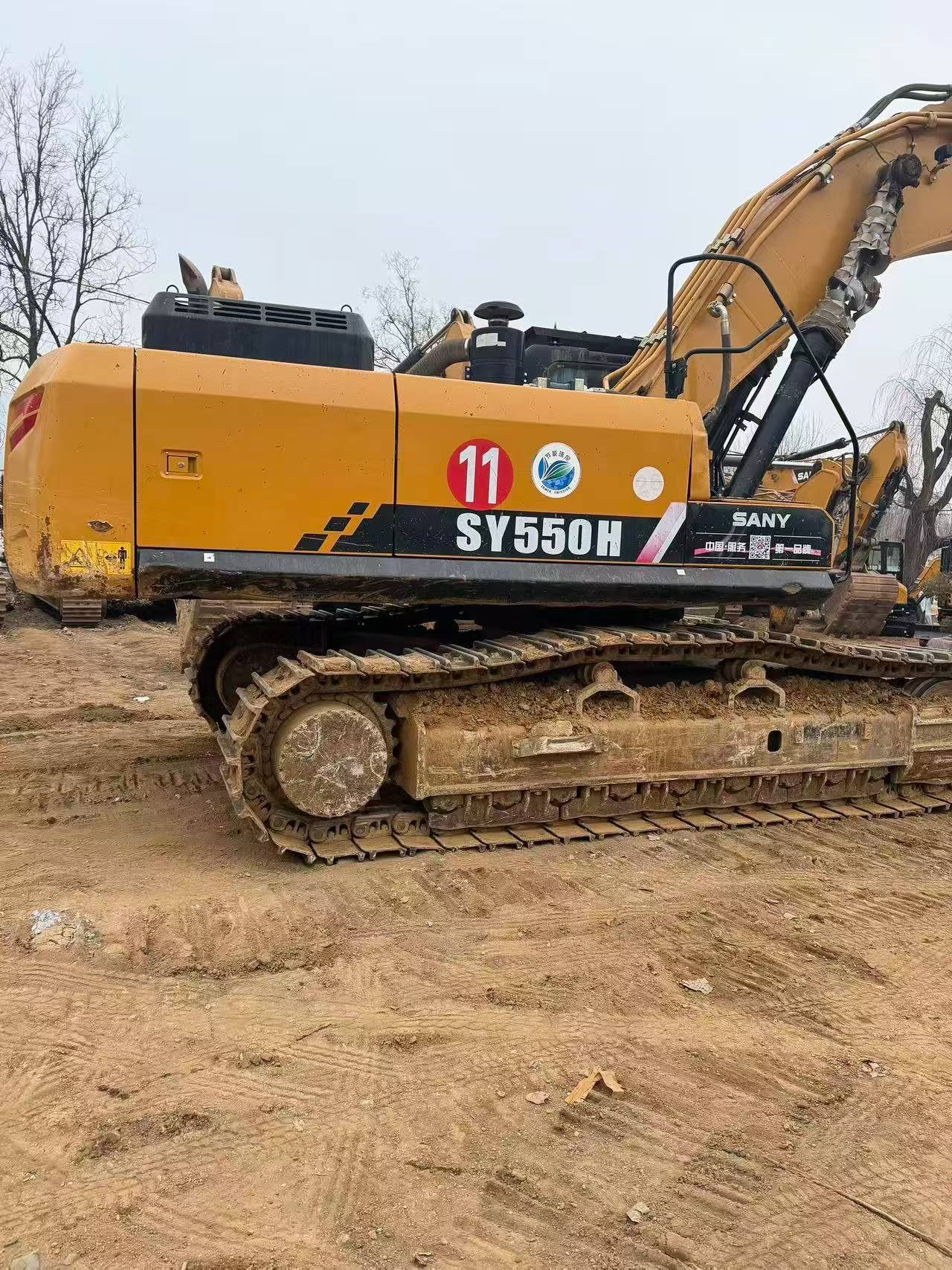

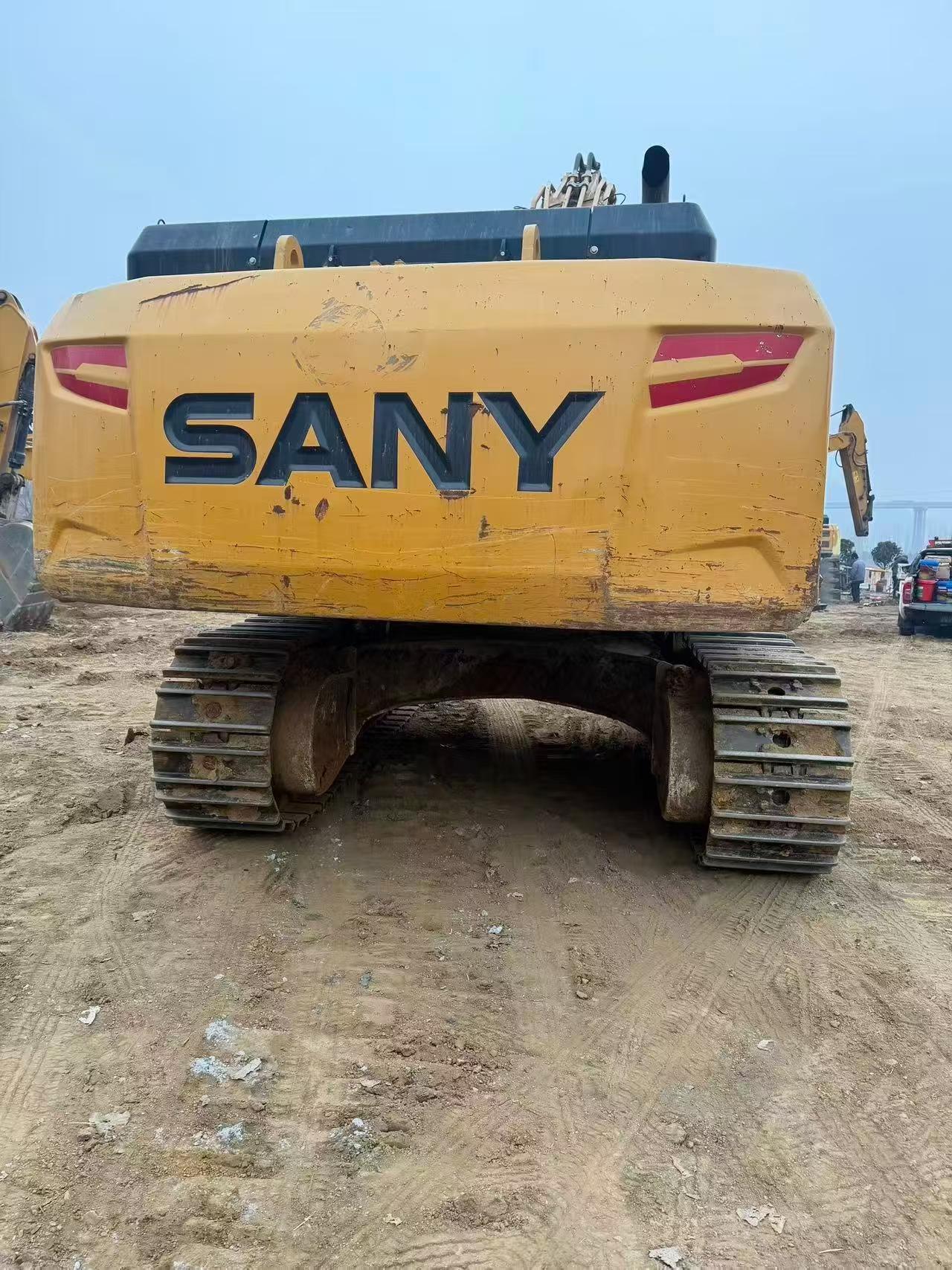

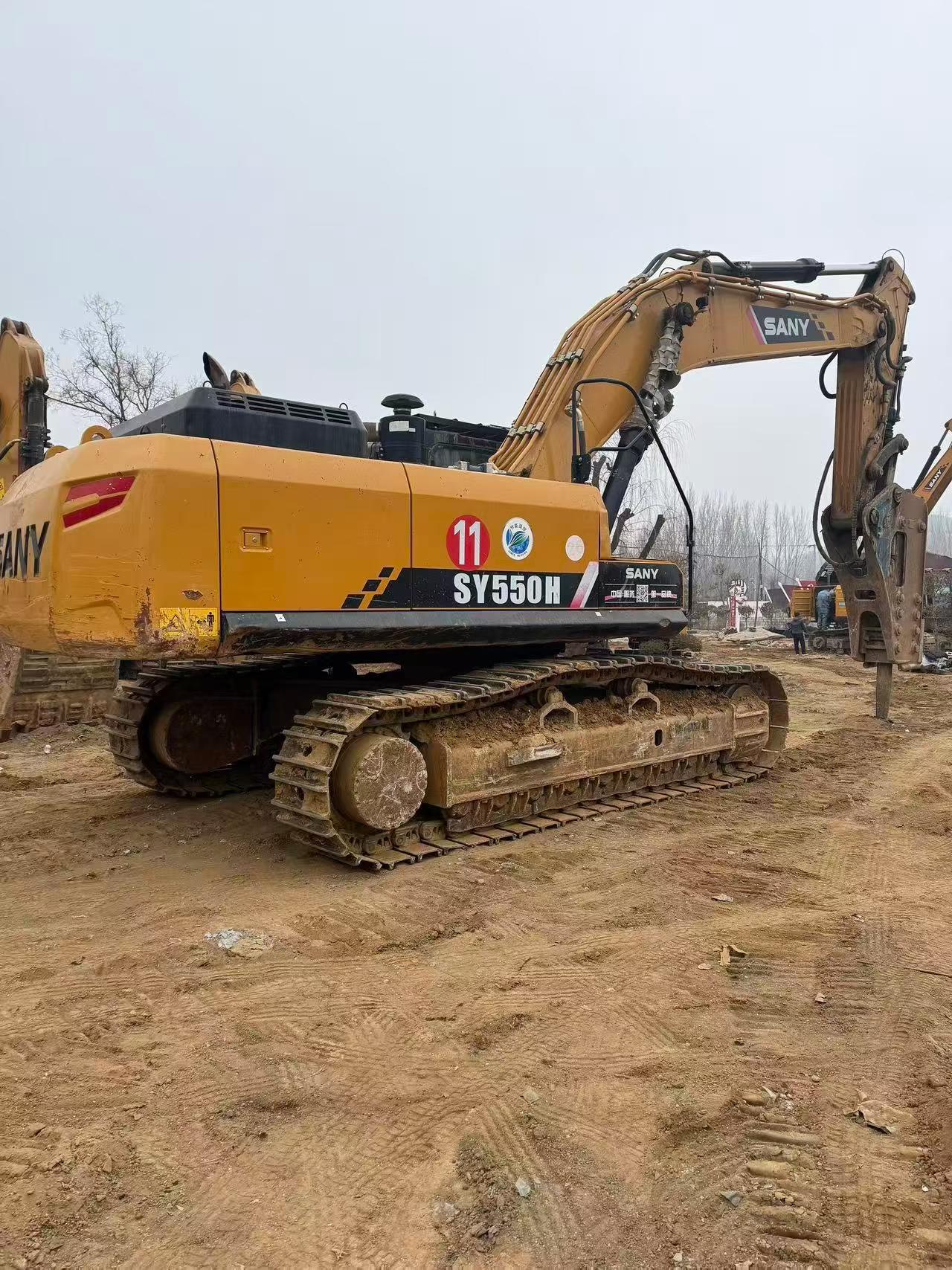

Engineered with a robust 300kW power plant delivering peak torque at 1800 rpm, this 2021 Sany SY550H excavator represents advanced heavy-duty performance for large-scale earthmoving operations. Operating at 55 tons with a 51,000 kg working weight, the machine combines substantial digging force with precise hydraulic control across a 12,841 mm maximum reach and 8,077 mm digging depth. The 3.1-3.5 m³ backhoe bucket capacity ensures high-volume material handling in mining, quarrying, and major construction projects.
Built on Sany's proven SY-H series platform, this model features:
- 8 rpm rotation speed with 3,765 mm rear turning radius for confined site maneuverability
- 87.1 kPa ground pressure distribution minimizing surface impact on sensitive terrain
- 70% gradeability and dual travel speeds (5.4/3.1 km/h) for versatile jobsite mobility
- 4,415 mm track ground contact length ensuring stability during maximum 12,279 mm reach operations
- 600 mm track plates across 2,740 mm gauge providing optimal weight distribution
Currently located in Linyi, Shandong, this China-manufactured excavator offers proven hydraulic architecture and structural integrity for demanding productio
| Specifications | Value |
|---|---|
| No. | 1034006 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51000 |
| Bucket capacity (m³) | 3.1-3.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 300/1800 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.4/3.1 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Minimum ground clearance (mm) | 560 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |
| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum digging radius (mm) | 12841 (broken) |
| Maximum digging depth (mm) | 8077 (broken) |
| Maximum excavation height (mm) | 12279 (broken) |
| Maximum excavation radius of stop surface (mm) | 10655 (broken) |
