Product Description

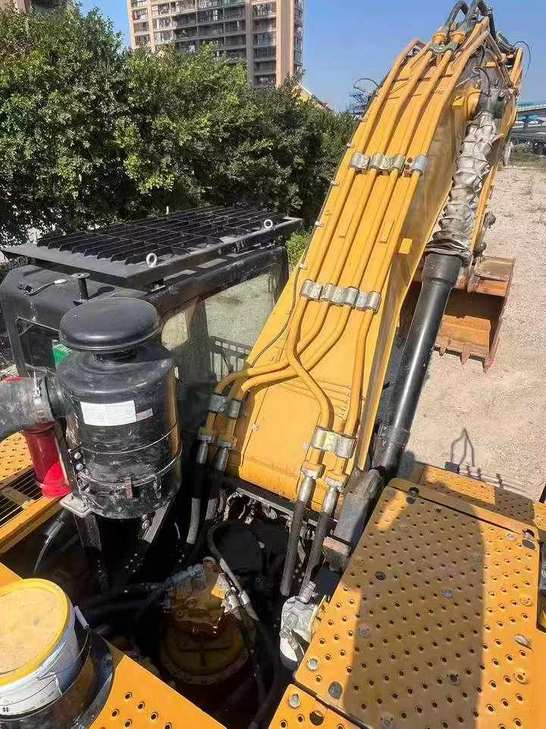

Built to endure the demands of large-scale earthmoving, this 2021 Sany SY550H stands as proof that Chinese engineering has matured into a global standard. Three years of field-proven performance back every weld, seal, and hydraulic line on this 55-ton workhorse — a machine designed not just to work, but to keep working.
Powered by a 300 kW engine at 1,800 rpm and carrying a 3.1–3.5 m³ backhoe bucket, the SY550H delivers the digging force and reach that heavy civil, mining, and infrastructure contractors depend on. A maximum digging depth of 8,077 mm and digging radius of 12,841 mm give operators the range to tackle deep foundations and wide excavation faces without repositioning.
- Operating weight: 51,000 kg (55 tons)
- Rated power: 300 kW / 1,800 rpm
- Bucket capacity: 3.1–3.5 m³ (backhoe)
- Max digging depth: 8,077 mm
- Max digging radius: 12,841 mm
- Travel speed: 5.4 / 3.1 km/h
- Climbing ability: 70%
- Ground pressure: 87.1 kPa
- Track plate width: 600 mm
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1071184 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51000 |
| Bucket capacity (m³) | 3.1-3.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 300/1800 |
| Ground specific pressure (Kpa) | 87.1 |
| Rotation speed (rpm) | 8 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.4/3.1 |
| Total transport length (mm) | 12095 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3790 |
| Full cab height (mm) | 3470 |
| Minimum ground clearance (mm) | 560 |
| Back end turning radius (mm) | 3765 |
| Onboard width (mm) | 3290 |
| Total track length (mm) | 5440 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4415 |
| Maximum digging radius (mm) | 12841 (broken) |
| Maximum digging depth (mm) | 8077 (broken) |
| Maximum excavation height (mm) | 12279 (broken) |
| Maximum excavation radius of stop surface (mm) | 10655 (broken) |
