2019 Sany SY60C

1/9
Buy Sany SY60C Used Excavator / 1
Buy Sany SY60C Used Excavator / 2
Buy Sany SY60C Used Excavator / 3
Buy Sany SY60C Used Excavator / 4
Buy Sany SY60C Used Excavator / 5
Buy Sany SY60C Used Excavator / 6
Buy Sany SY60C Used Excavator / 7
Buy Sany SY60C Used Excavator / 8
Buy Sany SY60C Used Excavator / 9

Product Description

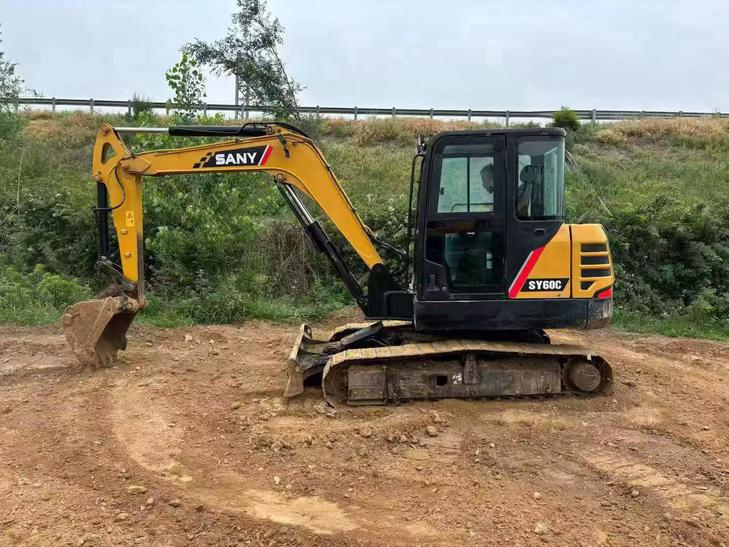

Built for precision work on tight job sites, this 2019 Sany SY60C mini excavator is fueled, serviced, and ready to dig. At 6 tonnes operating weight, it delivers 45 kN bucket digging force and a 3,770 mm maximum digging depth — capable output for trenching, grading, foundation work, and light demolition. Powered by a Kubota V2607 water-cooled 4-cylinder engine producing 36 kW at 2,100 rpm, it runs reliably across demanding conditions. Currently located in Beijing, China.

  • Operating weight: 6,000 kg | Bucket capacity: 0.10–0.28 m³ (standard 0.23 m³)
  • Engine: Kubota V2607, 36 kW / 2,100 rpm, 206.9 N.m peak torque
  • Max digging depth: 3,770 mm | Max digging radius: 6,090 mm
  • Bucket digging force: 45 kN | Arm digging force: 33 kN
  • Travel speed: 4.22 / 2.25 km/h | Climbing ability: 70% (35°)
  • Ground pressure: 30.7 kPa | Track width: 400 mm
  • Fuel tank: 130 L | Hydraulic tank: 85 L
  • Transport dimensions: 5,925 × 2,005 × 2,630 mm
  • Bulldozer blade: lift 300 mm / depth 405 mm
SpecificationsValue
No.1071827
Tonnage (tons)6
Working weight (kg)6000
Bucket capacity (m³)0.10-0.28(0.23)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeV2607
Rated power (kw/rpm)36/2100
Cooling modewater-cooling
Maximum torque (N.m)206.9/1100~1500
Number of cylinders (PCS)4
Displacement (L)2.615
Ground specific pressure (Kpa)30.7
Rotation speed (rpm)9.6
Climbing ability (%)70% (35°)
Bucket digging force (kN)45
Rod digging force (kN)33
Travel speed (km/h)4.22/2.25
Fuel Tank (L)130
Hydraulic Tank (L)85
Engine Oil changes (L)9.6
Total transport length (mm)5925
Total transport width (mm)2005
Total transport height (mm)2630
Minimum ground clearance (mm)370
Back end turning radius (mm)1640
Total track length (mm)2700
Track gauge (mm)1600
Track plate width (mm)400
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum digging radius (mm)6090
Maximum digging depth (mm)3770
Maximum excavation height (mm)5735
Maximum unloading height (mm)3975
Maximum vertical digging depth (mm)3025
Bulldozer lift or depth (mm)300/405
