Product Description

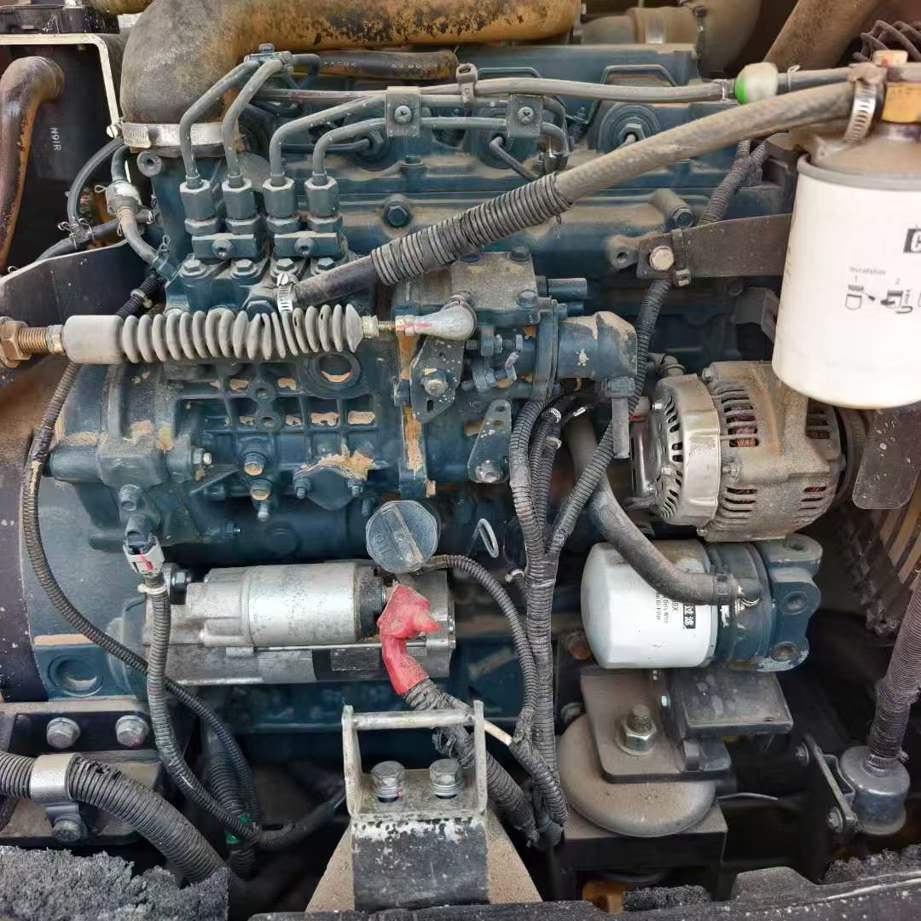

Designed for precision work in confined spaces, this 6-ton excavator delivers exceptional operator control and jobsite maneuverability. The SY60C features a compact 2005mm transport width and 1640mm rear turning radius, enabling efficient operation in urban environments like Beijing where space is at a premium. Powered by a reliable V2607 water-cooled engine producing 36kW at 2100rpm, operators benefit from consistent hydraulic response and smooth bucket control throughout the workday.
Visibility and stability define the operator experience. The cabin design provides clear sightlines to the 6090mm maximum digging radius, while the 30.7kPa ground pressure and 1600mm track gauge ensure stable performance on varied terrain. With 45kN bucket digging force and 33kN arm digging force, operators can tackle demanding excavation tasks with confidence. The 9.6rpm rotation speed allows precise positioning without sacrificing productivity.
- Operating weight: 6000kg with 0.23m³ standard bucket capacity
- Maximum digging depth: 3770mm for utility and foundation work
- Dual travel speeds: 4.22/2.25 km/h for transport and precision movement
- 130L fuel tank and 85L hydraulic reservoir for extended operation
| Specifications | Value |
|---|---|
| No. | 999073 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6000 |
| Bucket capacity (m³) | 0.10-0.28(0.23) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607 |
| Rated power (kw/rpm) | 36/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 206.9/1100~1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 45 |
| Rod digging force (kN) | 33 |
| Travel speed (km/h) | 4.22/2.25 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 9.6 |
| Total transport length (mm) | 5925 |
| Total transport width (mm) | 2005 |
| Total transport height (mm) | 2630 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 1640 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum digging radius (mm) | 6090 |
| Maximum digging depth (mm) | 3770 |
| Maximum excavation height (mm) | 5735 |
| Maximum unloading height (mm) | 3975 |
| Maximum vertical digging depth (mm) | 3025 |
| Bulldozer lift or depth (mm) | 300/405 |
