2020 Sany SY60C

1/9

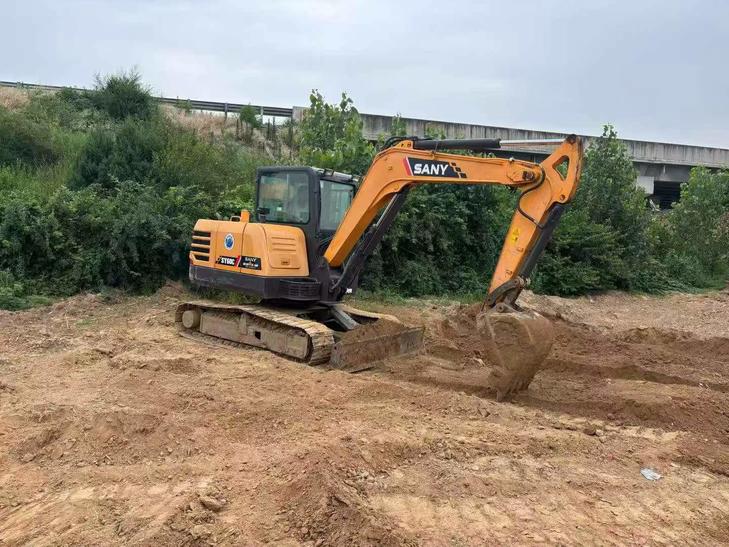

Buy Sany SY60C Used Excavator / 1
Buy Sany SY60C Used Excavator / 2
Buy Sany SY60C Used Excavator / 3
Buy Sany SY60C Used Excavator / 4
Buy Sany SY60C Used Excavator / 5
Buy Sany SY60C Used Excavator / 6
Buy Sany SY60C Used Excavator / 7

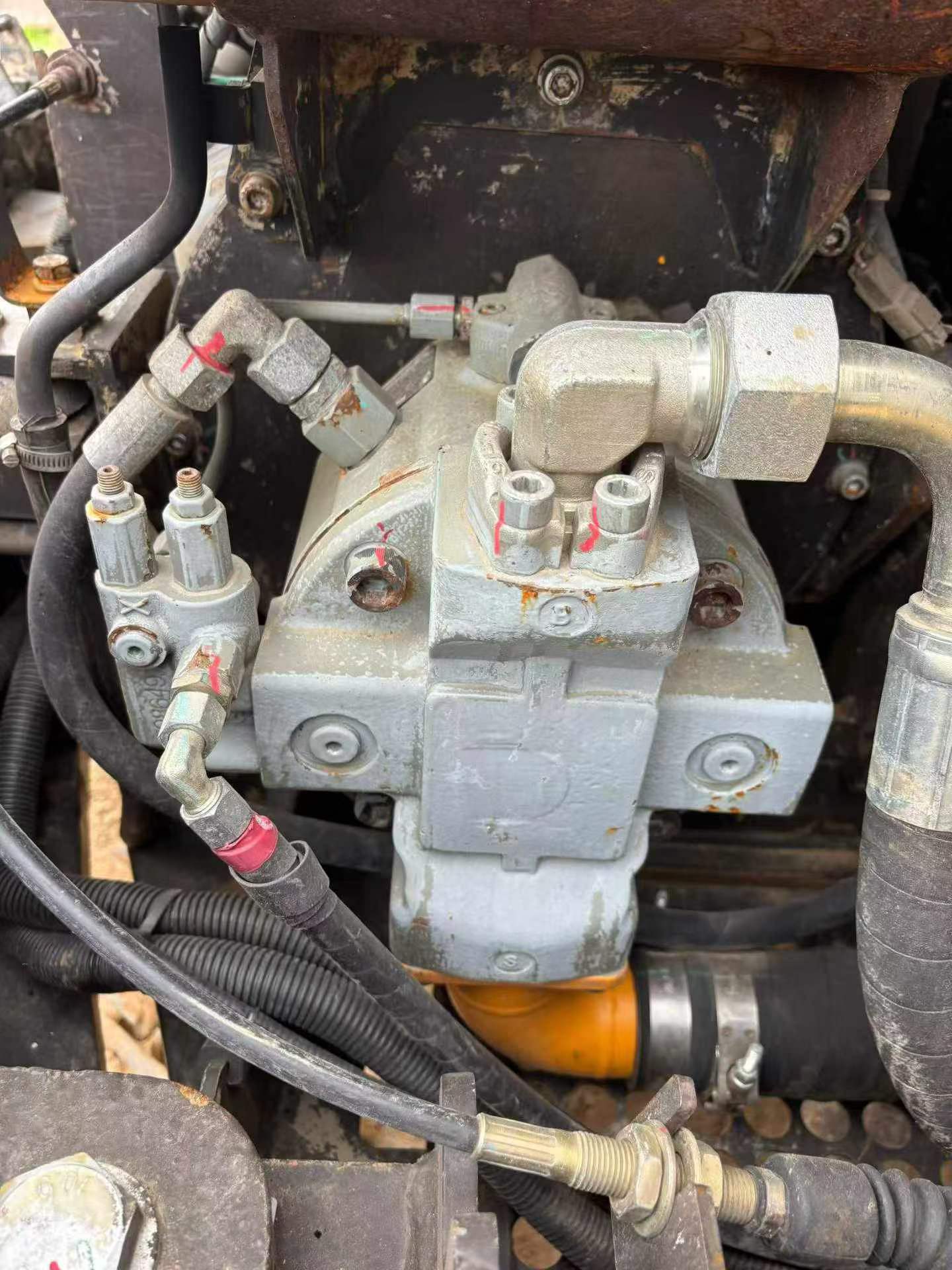

Buy Sany SY60C Used Excavator / 8
Buy Sany SY60C Used Excavator / 9

Product Description

Ready to ship from Hebei, China, this 2020 Sany SY60C mini excavator puts 6-ton performance in your hands without the factory wait. Skip lengthy lead times and get this machine deployed to your site fast — available now for immediate purchase and export.

Powered by a water-cooled Kubota V2607 4-cylinder engine producing 36 kW at 2,100 RPM and 206.9 N·m of peak torque, this compact excavator delivers serious digging muscle. With a bucket digging force of 45 kN, a maximum digging depth of 3,770 mm, and a bucket capacity ranging up to 0.28 m³, it handles demanding excavation work on tight job sites efficiently.

  • Working Weight: 6,000 kg
  • Max Digging Radius: 6,090 mm
  • Max Digging Depth: 3,770 mm
  • Travel Speed: 4.22 / 2.25 km/h
  • Climbing Ability: 70% (35°)
  • Fuel Tank: 130 L | Hydraulic Tank: 85 L
  • Transport Dimensions: 5,925 × 2,005 × 2,630 mm
  • Location: Hebei, China — ready for fast domestic or international logistics
SpecificationsValue
No.1089532
Tonnage (tons)6
Working weight (kg)6000
Bucket capacity (m³)0.10-0.28(0.23)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeV2607
Rated power (kw/rpm)36/2100
Cooling modewater-cooling
Maximum torque (N.m)206.9/1100~1500
Number of cylinders (PCS)4
Displacement (L)2.615
Ground specific pressure (Kpa)30.7
Rotation speed (rpm)9.6
Climbing ability (%)70% (35°)
Bucket digging force (kN)45
Rod digging force (kN)33
Travel speed (km/h)4.22/2.25
Fuel Tank (L)130
Hydraulic Tank (L)85
Engine Oil changes (L)9.6
Total transport length (mm)5925
Total transport width (mm)2005
Total transport height (mm)2630
Minimum ground clearance (mm)370
Back end turning radius (mm)1640
Total track length (mm)2700
Track gauge (mm)1600
Track plate width (mm)400
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum digging radius (mm)6090
Maximum digging depth (mm)3770
Maximum excavation height (mm)5735
Maximum unloading height (mm)3975
Maximum vertical digging depth (mm)3025
Bulldozer lift or depth (mm)300/405
see more

Overview

No.1089532

Brand Name:

Sany

Model Number:

SY60C

Year:

2020

Location:

Hebei China
