2015 Sany SY65C

1/9

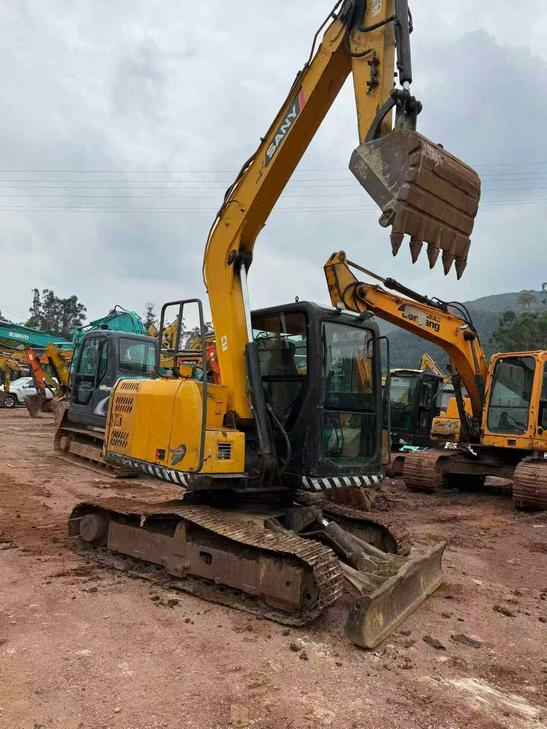

Buy Sany SY65C Used Excavator / 1
Buy Sany SY65C Used Excavator / 2
Buy Sany SY65C Used Excavator / 3
Buy Sany SY65C Used Excavator / 4
Buy Sany SY65C Used Excavator / 5
Buy Sany SY65C Used Excavator / 6
Buy Sany SY65C Used Excavator / 7
Buy Sany SY65C Used Excavator / 8
Buy Sany SY65C Used Excavator / 9

Product Description

This 2015 Sany SY65C crawler excavator is available for direct inspection in Kunming, Yunnan Province, China. With approximately a decade of operational service, this 6-tonne class machine has been assessed as mechanically sound and ready for continued deployment on site.

The SY65C is a compact excavator well-suited for urban construction, municipal utility work, and confined-site earthmoving. Sany's mid-tier build quality and broad parts availability across mainland China make this unit a practical acquisition for regional contractors.

  • Year: 2015
  • Brand: Sany
  • Model: SY65C
  • Operating weight class: ~6 tonnes
  • Location: Kunming, Yunnan Province, China
  • Condition: Mechanically operational; available for on-site inspection prior to purchase

Serious buyers are encouraged to arrange an in-person evaluation in Kunming. Contact us directly to schedule a viewing or request additional documentation.

SpecificationsValue
No.1141452
Tonnage (tons)6
Working weight (kg)6700
Bucket capacity (m³)0.12-0.32
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeSANY D03S3
Rated power (kw/rpm)42/2100
Cooling modewater-cooling
Maximum torque (N.m)1900/1600~2000
Number of cylinders (PCS)4
Displacement (L)2.77
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)56
Rod digging force (kN)35.6
Travel speed (km/h)2.4/4.8
Main overflow set pressure (Mpa)26
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Main pump typeVariable swashplate plunger pump
Bucket cylinders - Number × diameter × stroke (mm)80 x 730
Bucket rod cylinders - Number × diameter × stroke (mm)90 x 900
Boom cylinders - Number × diameter × stroke (mm)110 x 885
Fuel Tank (L)145
Hydraulic Tank (L)120
Engine Oil changes (L)9
Coolant (L)12
Total transport length (mm)6000
Total transport width (mm)2160
Total transport height (mm)2560
Full cab height (mm)2560
Minimum ground clearance (mm)375
Back end turning radius (mm)1720
Total track length (mm)2710
Track gauge (mm)1680
Track plate width (mm)400
Total track width (mm)2160
Track ground length (mm)2180
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum digging radius (mm)6160
Maximum digging depth (mm)3985
Maximum excavation height (mm)6930
Maximum unloading height (mm)5145
Maximum vertical digging depth (mm)3470
Bulldozer lift or depth (mm)200/480
Dodging plate width × height (mm)460(dodging plate height)
see more

Overview

No.1141452

Brand Name:

Sany

Model Number:

SY65C

Year:

2015

Location:

Yunnan China

Pub Date
