Product Description

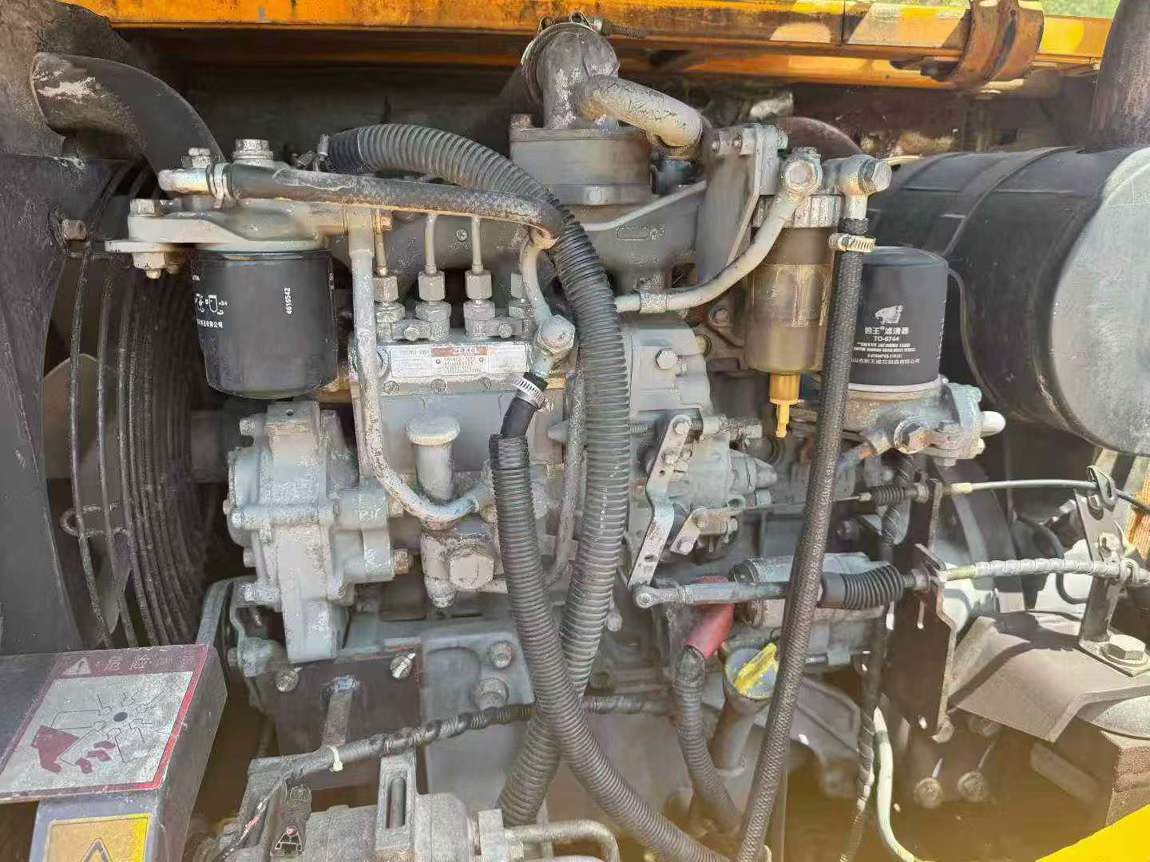

Built in 2016 and currently located in Huizhou, Guangdong, this Sany SY65C mini excavator delivers reliable 6-ton performance for contractors managing multiple job sites. Powered by a SANY D03S3 engine producing 42 kW at 2100 rpm, this compact workhorse combines a 6,700 kg operating weight with impressive versatility—ideal for fleet expansion without operational complexity.

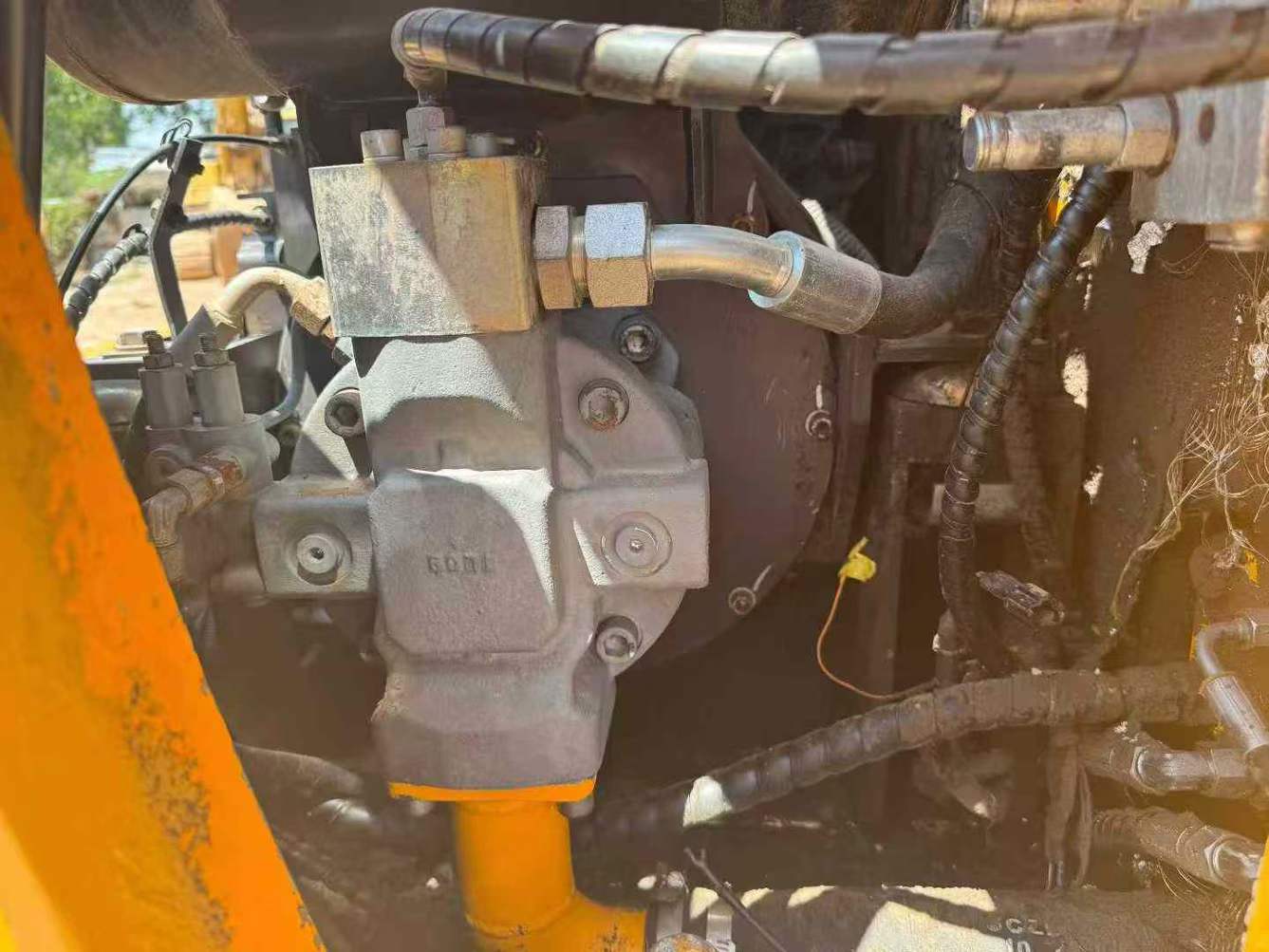

Equipped with a variable swashplate plunger pump and water-cooled system, this machine handles demanding tasks with 56 kN bucket digging force and 35.6 kN arm force. The 0.12-0.32 m³ bucket capacity adapts to varied applications, while dual travel speeds (2.4/4.8 km/h) ensure efficient site mobility. With a maximum digging reach of 6,160 mm and digging depth of 3,985 mm, it tackles trenching, grading, and utility work across residential and commercial projects.
- Compact dimensions: 6,000 mm length × 2,160 mm width for tight-access sites
- 145 L fuel tank and 120 L hydraulic reservoir minimize downtime
- 70% grading ability and 33 kPa ground pressure for all-terrain capability
- Proven Chinese manufacturing from Kunshan, Jiangsu Province
Ready to supplement your existing fleet with minimal training required
| Specifications | Value |
|---|---|
| No. | 1030291 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.12-0.32 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | SANY D03S3 |
| Rated power (kw/rpm) | 42/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1900/1600~2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.77 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 35.6 |
| Travel speed (km/h) | 2.4/4.8 |
| Main overflow set pressure (Mpa) | 26 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable swashplate plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 80 x 730 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 900 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 885 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 12 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2160 |
| Total transport height (mm) | 2560 |
| Full cab height (mm) | 2560 |
| Minimum ground clearance (mm) | 375 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1680 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2160 |
| Track ground length (mm) | 2180 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum digging radius (mm) | 6160 |
| Maximum digging depth (mm) | 3985 |
| Maximum excavation height (mm) | 6930 |
| Maximum unloading height (mm) | 5145 |
| Maximum vertical digging depth (mm) | 3470 |
| Bulldozer lift or depth (mm) | 200/480 |
| Dodging plate width × height (mm) | 460(dodging plate height) |
