Product Description

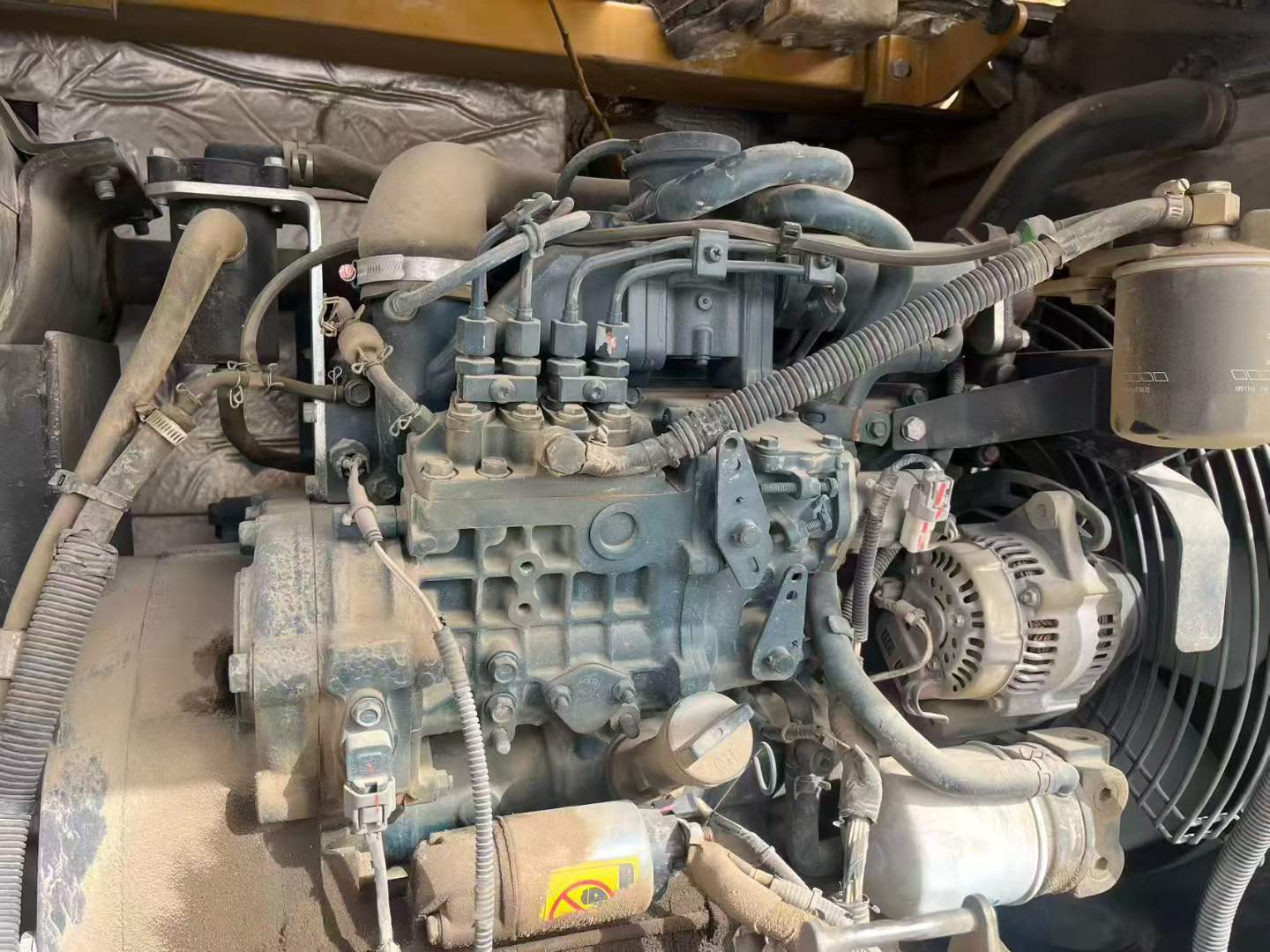

Engineered in Kunshan with precision hydraulics and a robust SANY D03S3 engine, this 2018 SY65C mini excavator delivers 42kW at 2100rpm with 1900N·m maximum torque. The variable swashplate plunger pump system operates at 149L/min main flow, driving 56kN bucket digging force and 35.6kN arm digging force through optimized hydraulic circuits set at 26MPa main overflow pressure. Water-cooled 4-cylinder architecture with 2.77L displacement ensures sustained performance across demanding jobsites.
Operating at 6700kg working weight, this compact 6-ton machine maintains 33kPa ground pressure while achieving 70% climbing capability and 11.5rpm rotation speed. The 0.12-0.32m³ backhoe bucket reaches 6160mm maximum digging radius and 3985mm maximum depth, supported by purpose-built cylinders: 110×885mm boom, 90×900mm arm, and 80×730mm bucket configurations. Twin-speed travel at 2.4/4.8km/h combines with 1720mm rear swing radius for confined space versatility.
Currently located in Qinhuangdao, Hebei, this unit features 145L fuel capacity, 120L hydraulic tank, and 2160mm transport width. Proven SANY engineering meets operational efficiency in this well-maintained excavator.
| Specifications | Value |
|---|---|
| No. | 1024171 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.12-0.32 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | SANY D03S3 |
| Rated power (kw/rpm) | 42/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1900/1600~2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.77 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 35.6 |
| Travel speed (km/h) | 2.4/4.8 |
| Main overflow set pressure (Mpa) | 26 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable swashplate plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 80 x 730 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 900 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 885 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 12 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2160 |
| Total transport height (mm) | 2560 |
| Full cab height (mm) | 2560 |
| Minimum ground clearance (mm) | 375 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1680 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2160 |
| Track ground length (mm) | 2180 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum digging radius (mm) | 6160 |
| Maximum digging depth (mm) | 3985 |
| Maximum excavation height (mm) | 6930 |
| Maximum unloading height (mm) | 5145 |
| Maximum vertical digging depth (mm) | 3470 |
| Bulldozer lift or depth (mm) | 200/480 |
| Dodging plate width × height (mm) | 460(dodging plate height) |
