HOME>>Sany>>Sany SY65C

2019 Sany SY65C

1/9

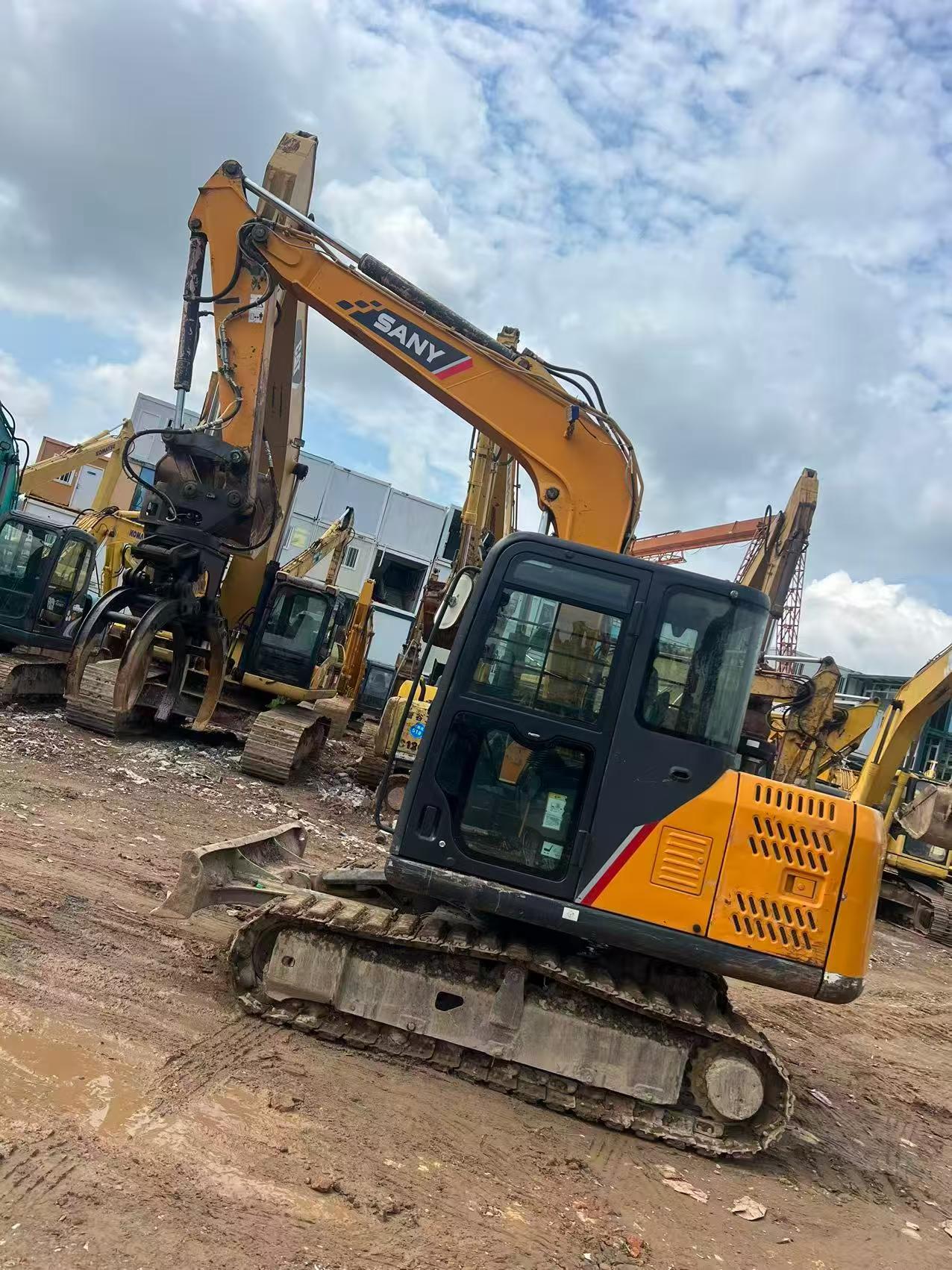

Buy Sany SY65C Used Excavator / 1

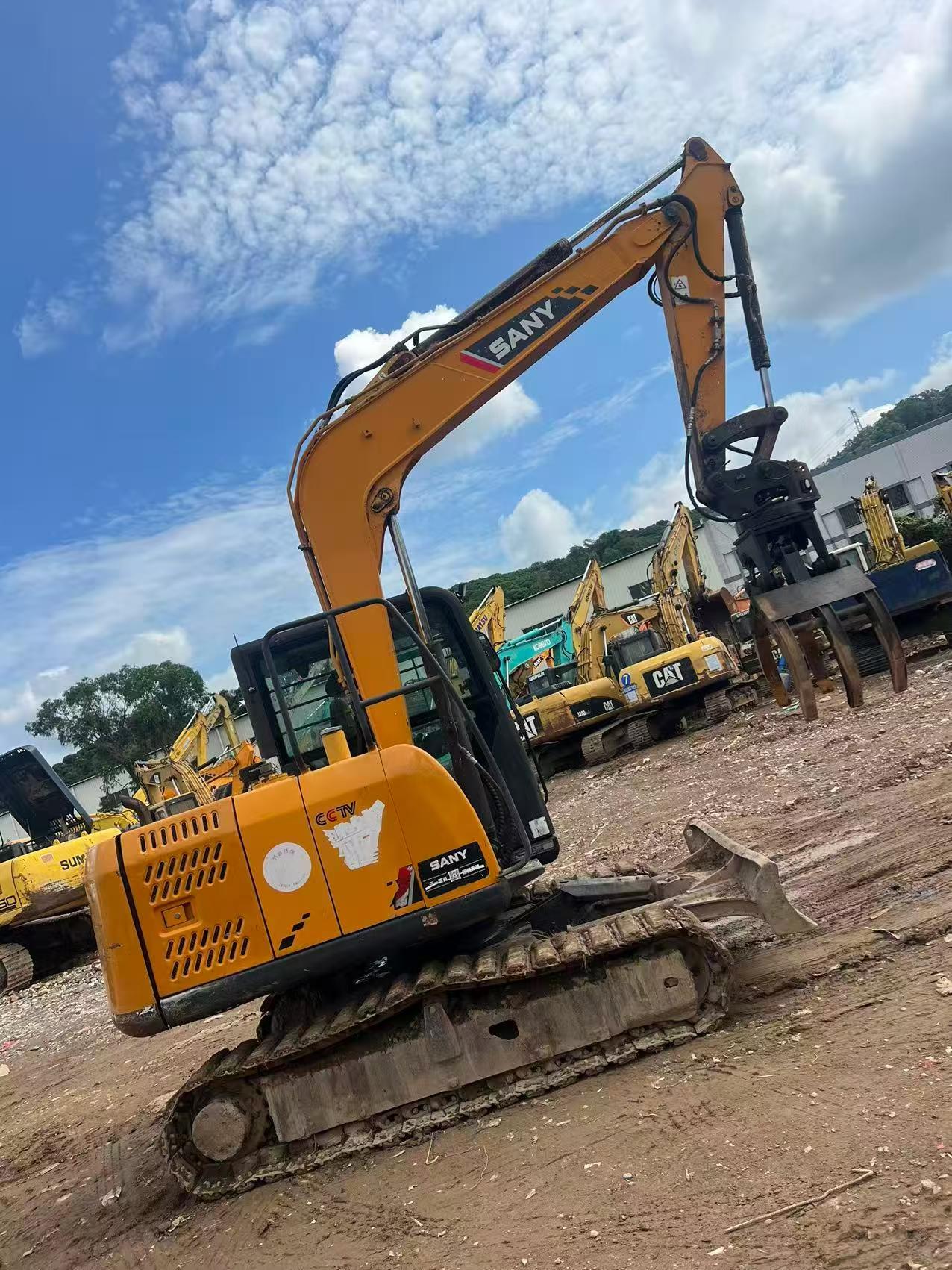

Buy Sany SY65C Used Excavator / 2
Buy Sany SY65C Used Excavator / 3
Buy Sany SY65C Used Excavator / 4
Buy Sany SY65C Used Excavator / 5
Buy Sany SY65C Used Excavator / 6
Buy Sany SY65C Used Excavator / 7
Buy Sany SY65C Used Excavator / 8

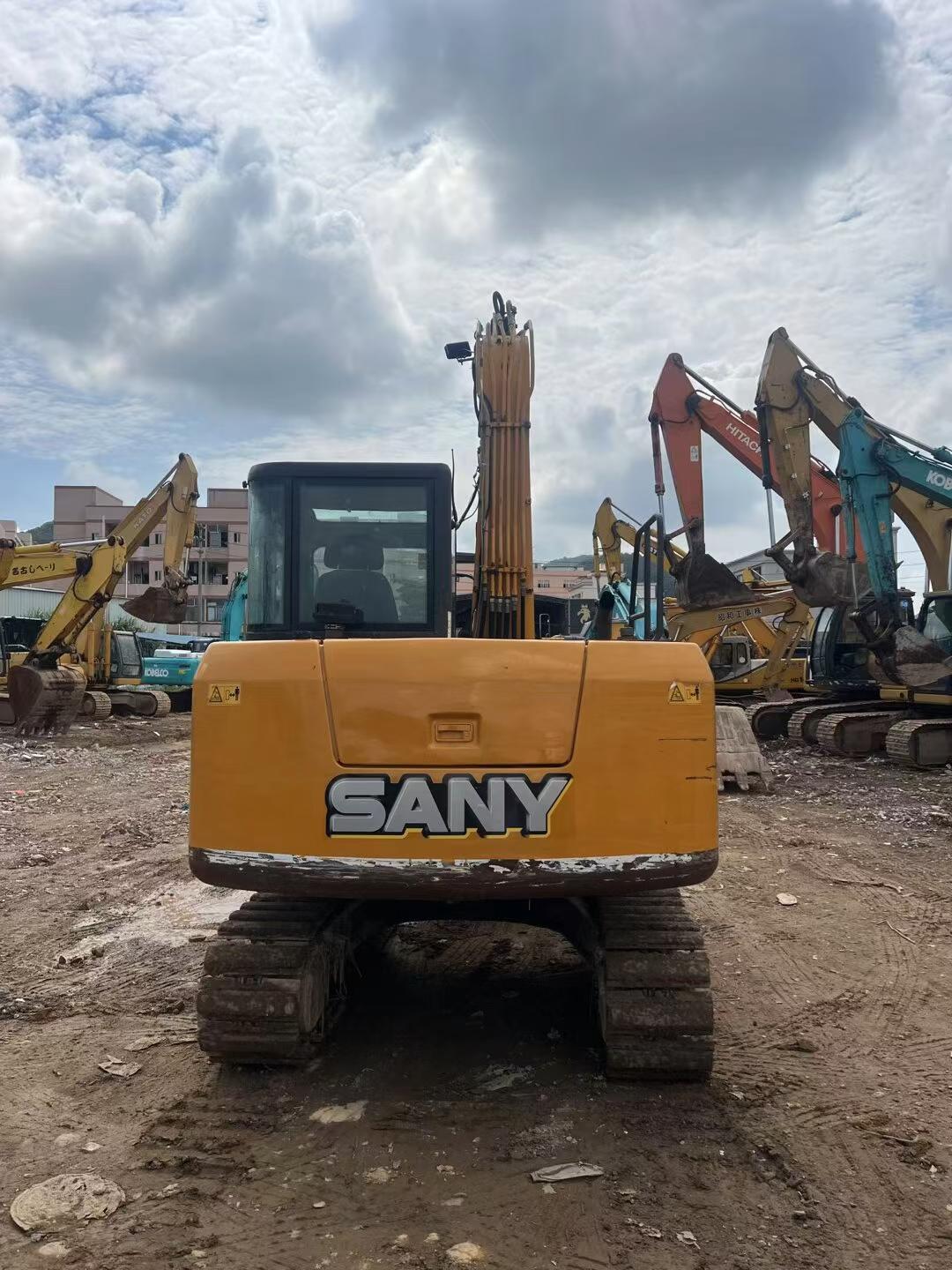

Buy Sany SY65C Used Excavator / 9

Product Description

This 2019 Sany SY65C mini excavator is available from Guangdong, China. The machine features original factory wiring and comes equipped with a grapple attachment for versatile material handling applications. A rear-view camera enhances operator visibility and job site safety during operation.

Recent upgrades include a new low-profile seat with rubber mat for improved operator comfort during extended shifts. The SY65C is known for its compact footprint and reliable performance in confined work areas, making it suitable for urban construction, landscaping, and utility installation projects.

  • Year: 2019
  • Model: Sany SY65C
  • Included: Grapple attachment
  • Features: Rear camera, original electrical system
  • Recent updates: New operator seat with rubber mat
  • Location: Guangdong, China

This used excavator represents a cost-effective solution for contractors seeking dependable compact equipment with practical attachments already included.

SpecificationsValue
No.1075516
Tonnage (tons)6
Working weight (kg)6700
Bucket capacity (m³)0.12-0.32
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeSANY D03S3
Rated power (kw/rpm)42/2100
Cooling modewater-cooling
Maximum torque (N.m)1900/1600~2000
Number of cylinders (PCS)4
Displacement (L)2.77
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)56
Rod digging force (kN)35.6
Travel speed (km/h)2.4/4.8
Main overflow set pressure (Mpa)26
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Main pump typeVariable swashplate plunger pump
Bucket cylinders - Number × diameter × stroke (mm)80 x 730
Bucket rod cylinders - Number × diameter × stroke (mm)90 x 900
Boom cylinders - Number × diameter × stroke (mm)110 x 885
Fuel Tank (L)145
Hydraulic Tank (L)120
Engine Oil changes (L)9
Coolant (L)12
Total transport length (mm)6000
Total transport width (mm)2160
Total transport height (mm)2560
Full cab height (mm)2560
Minimum ground clearance (mm)375
Back end turning radius (mm)1720
Total track length (mm)2710
Track gauge (mm)1680
Track plate width (mm)400
Total track width (mm)2160
Track ground length (mm)2180
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum digging radius (mm)6160
Maximum digging depth (mm)3985
Maximum excavation height (mm)6930
Maximum unloading height (mm)5145
Maximum vertical digging depth (mm)3470
Bulldozer lift or depth (mm)200/480
Dodging plate width × height (mm)460(dodging plate height)
see more

Overview

No.1075516

Brand Name:

Sany

Model Number:

SY65C

Year:

2019

Location:

Guangdong China

Pub Date

Are you interested in this machine?

Please contact us
