Product Description

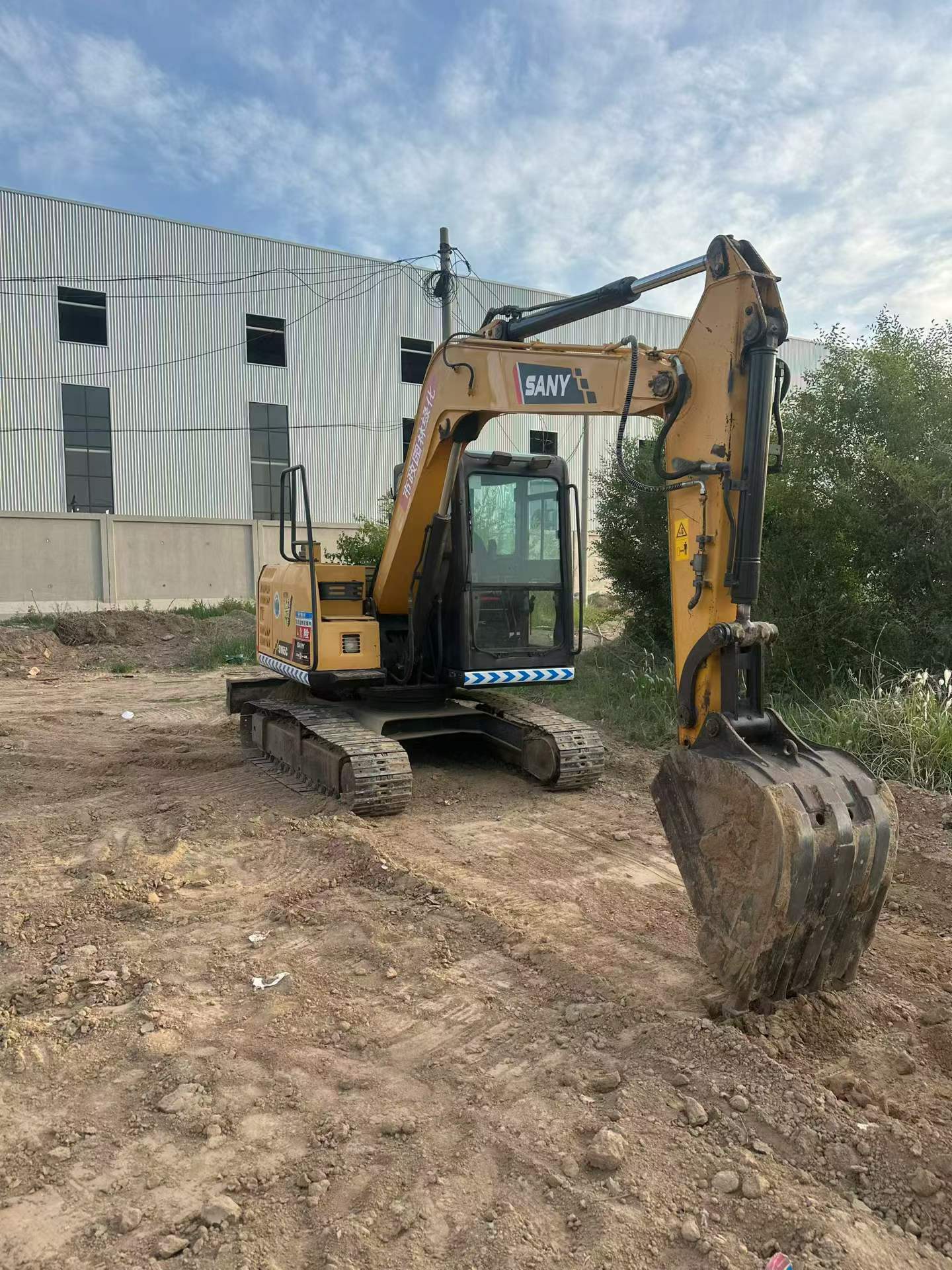

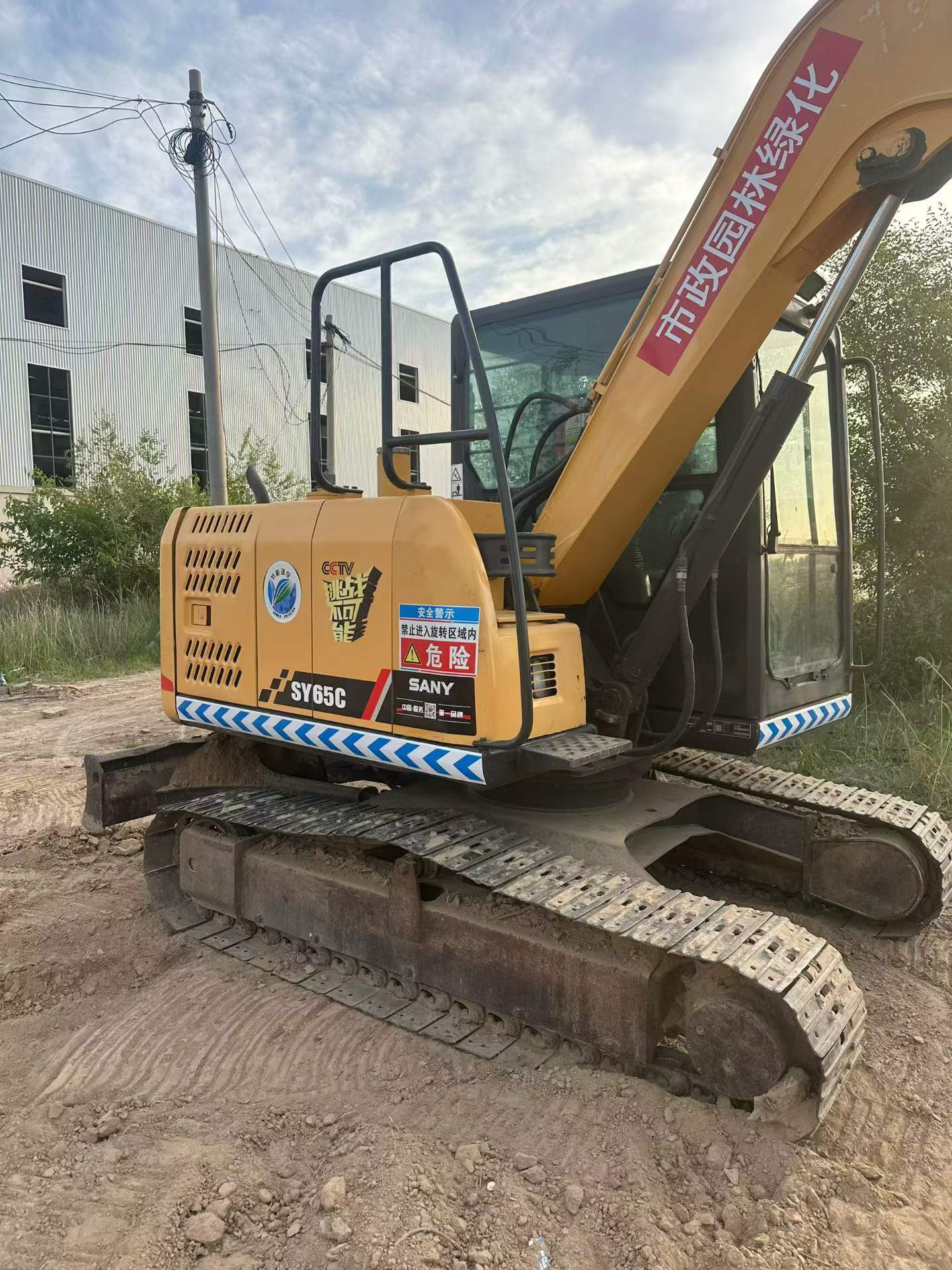

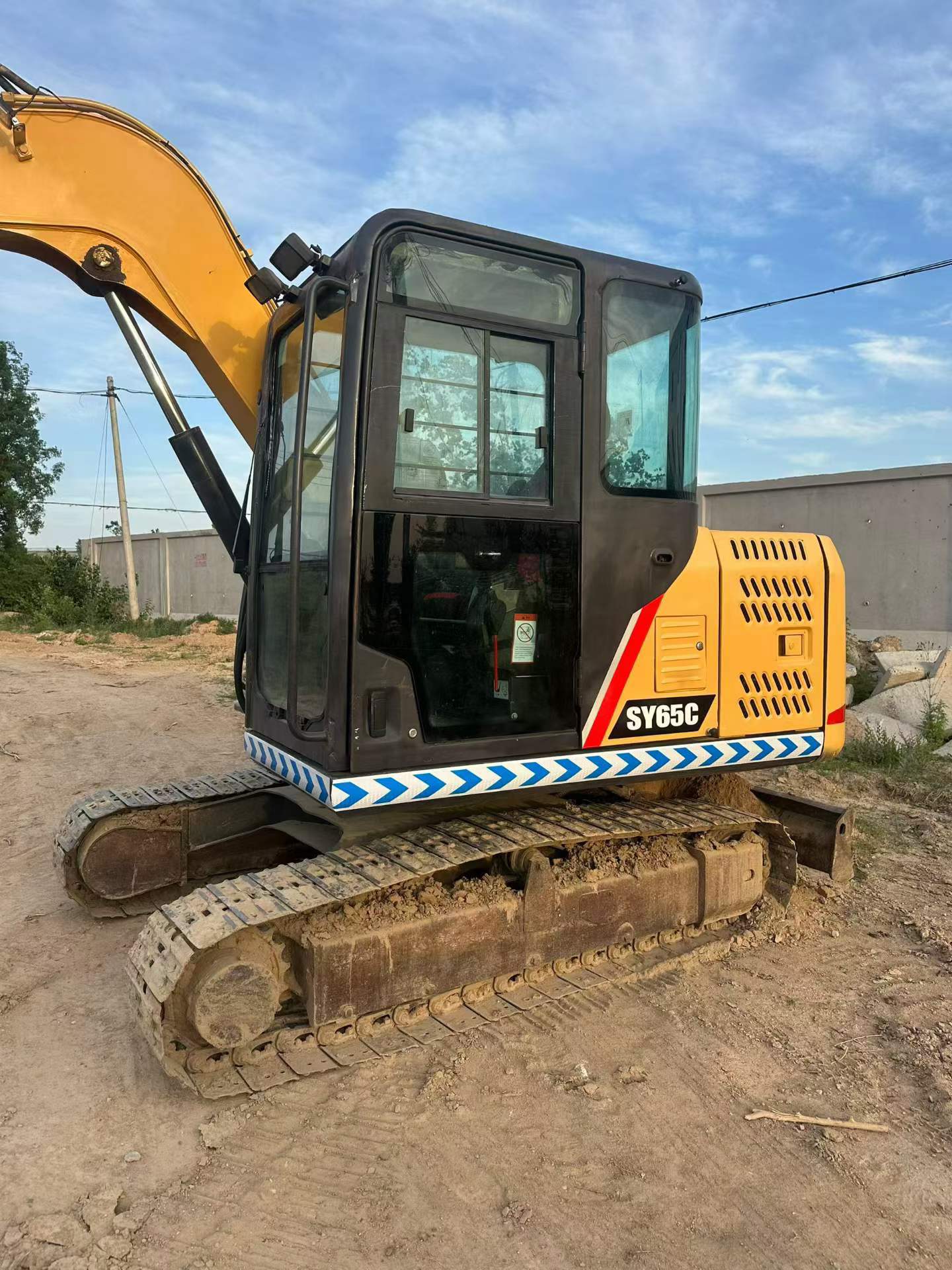

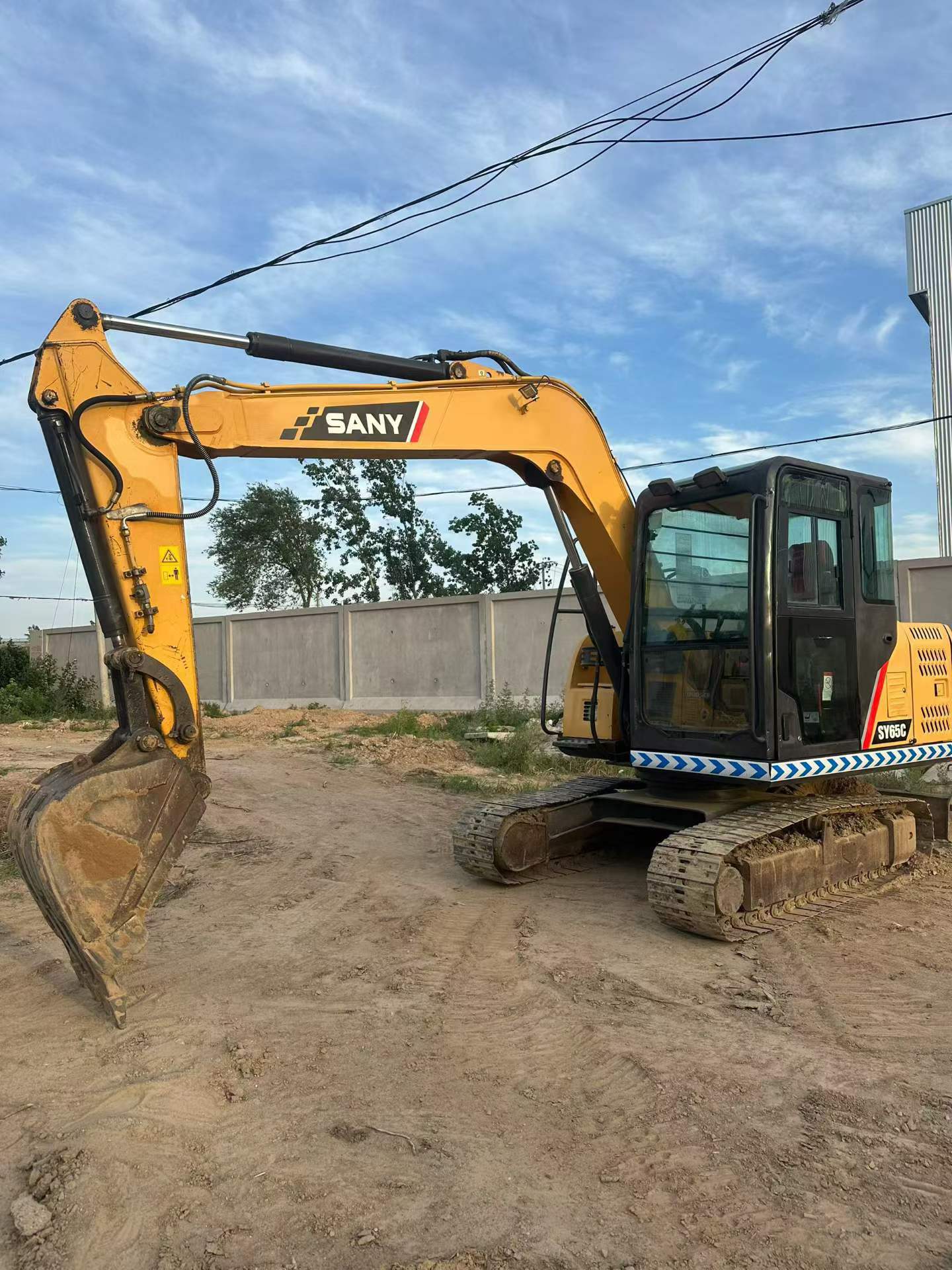

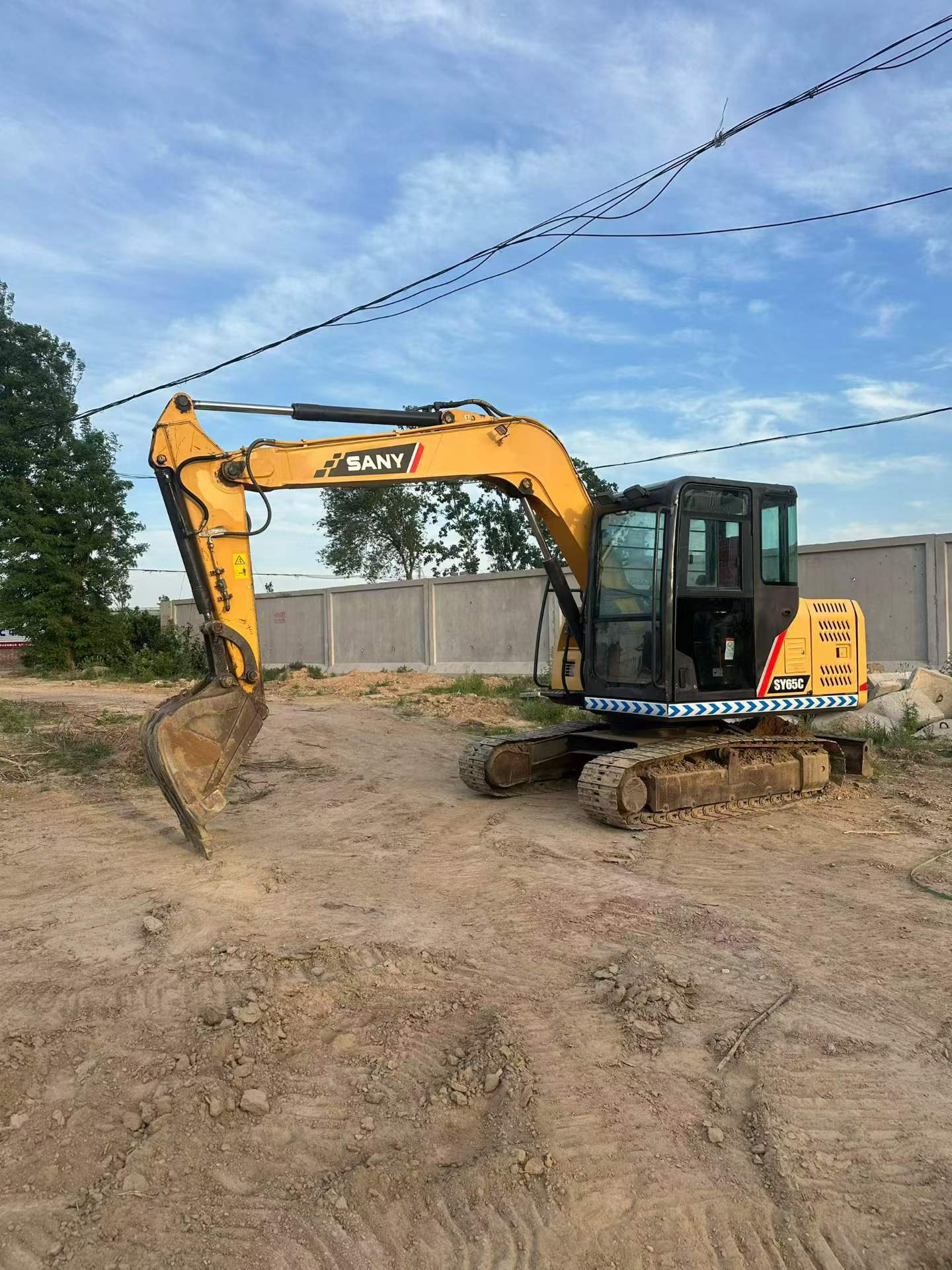

With a robust 6-ton working weight and powered by the SANY D03S3 engine, this 2020 Sany SY65C excavator delivers reliable performance. Originating from Kunshan in Jiangsu Province, China, it is designed for durability and efficiency, featuring a maximum torque of 1900 N.m at 1600-2000 rpm and a rated power of 42 kW. The excavator's hydraulic system, equipped with a variable swashplate plunger pump, ensures smooth and precise operation, providing a main overflow set pressure of 26 Mpa and a maximum flow of 149 l/min.
- Bucket capacity ranges from 0.12 to 0.32 m³, ideal for various excavation tasks.
- Ground specific pressure of 33 Kpa minimizes soil disturbance.
- Travel speed options of 2.4/4.8 km/h enhance job site mobility.
Choosing Sany ensures access to a wide network of parts and service centers, maintaining high resale value and reliability. This model, located in Peking, China, is a solid investment for any construction fleet.
| Specifications | Value |
|---|---|
| No. | 1056934 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.12-0.32 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

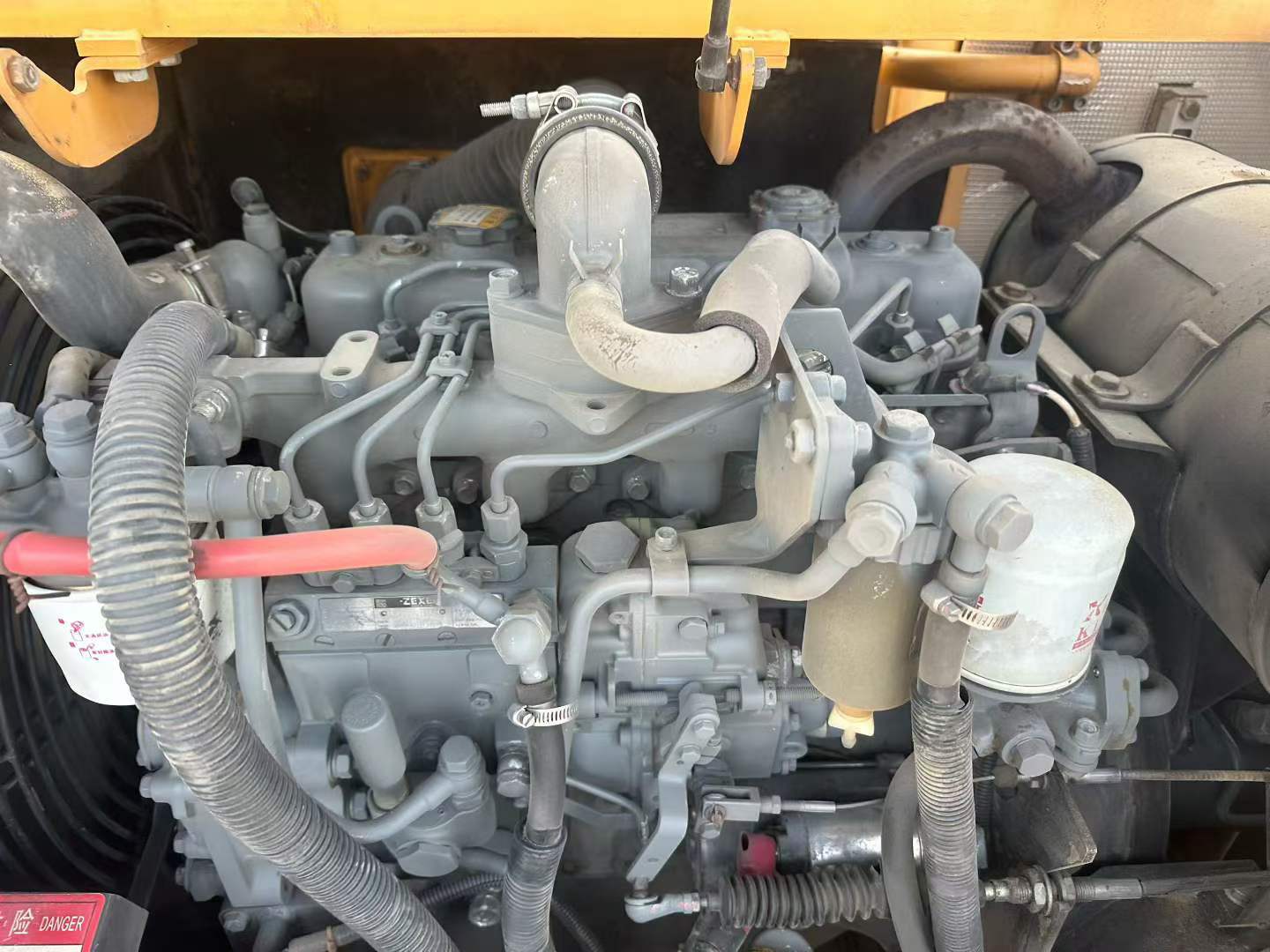

| Engine type | SANY D03S3 |
| Rated power (kw/rpm) | 42/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1900/1600~2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.77 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 35.6 |
| Travel speed (km/h) | 2.4/4.8 |
| Main overflow set pressure (Mpa) | 26 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |

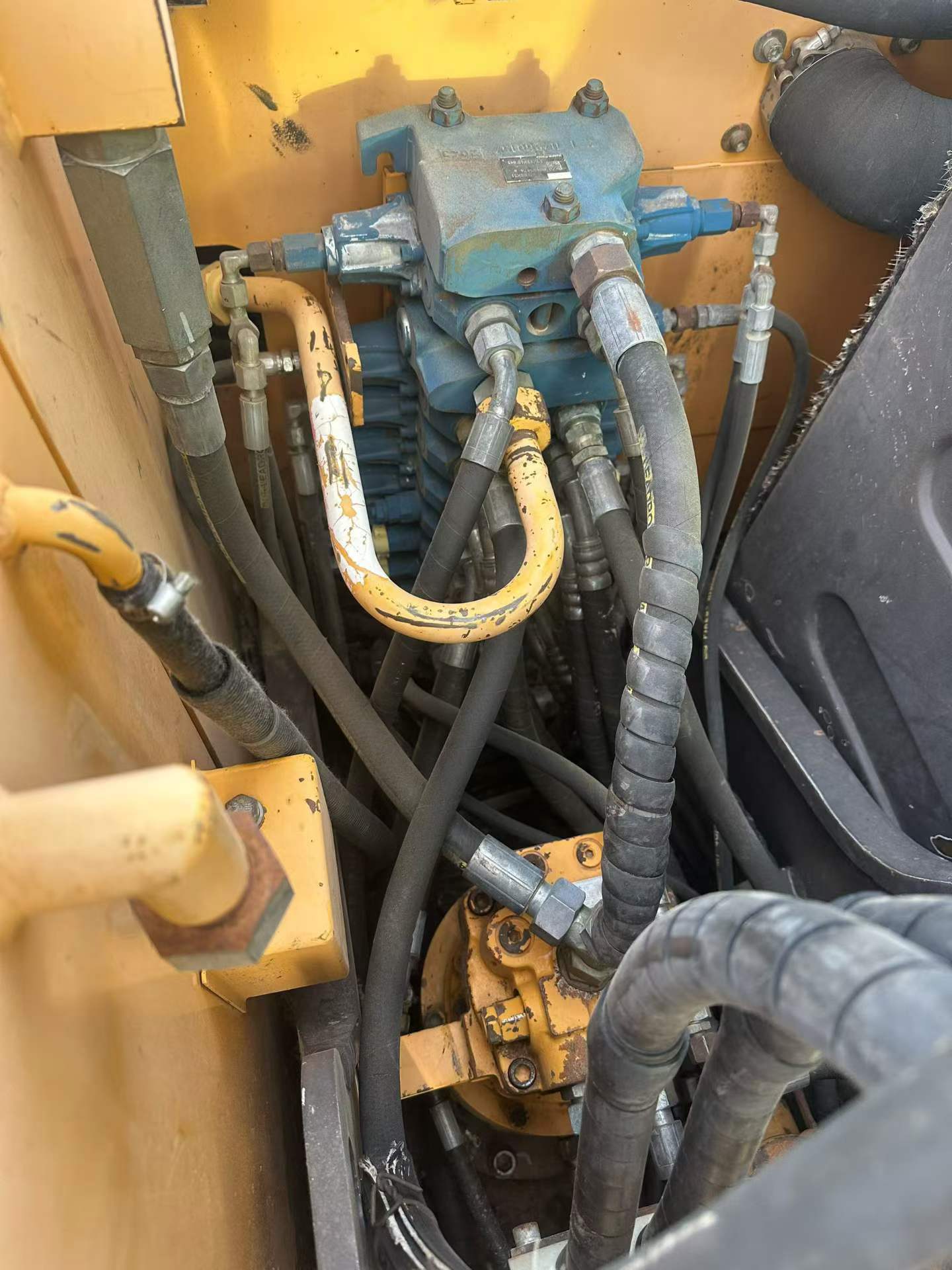

| Main pump type | Variable swashplate plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 80 x 730 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 900 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 885 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 12 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2160 |
| Total transport height (mm) | 2560 |
| Full cab height (mm) | 2560 |
| Minimum ground clearance (mm) | 375 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1680 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2160 |
| Track ground length (mm) | 2180 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum digging radius (mm) | 6160 |
| Maximum digging depth (mm) | 3985 |
| Maximum excavation height (mm) | 6930 |
| Maximum unloading height (mm) | 5145 |
| Maximum vertical digging depth (mm) | 3470 |
| Bulldozer lift or depth (mm) | 200/480 |
| Dodging plate width × height (mm) | 460(dodging plate height) |
