2020 Sany SY65C

1/9

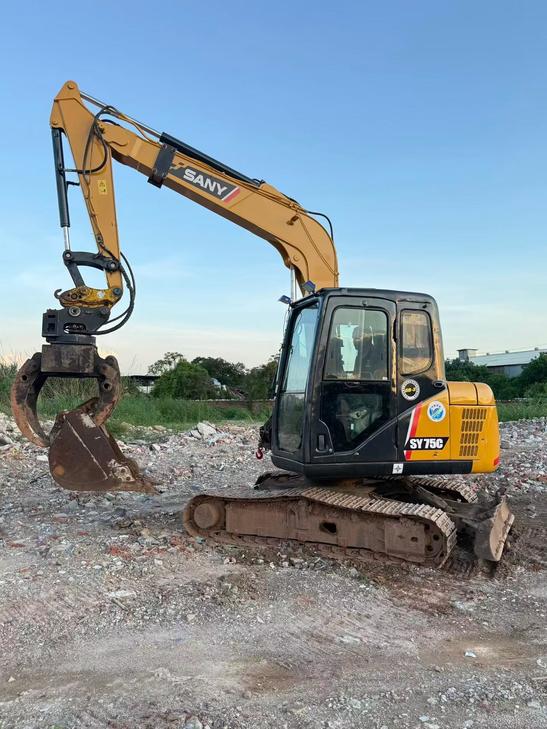

Buy Sany SY65C Used Excavator / 1
Buy Sany SY65C Used Excavator / 2
Buy Sany SY65C Used Excavator / 3
Buy Sany SY65C Used Excavator / 4
Buy Sany SY65C Used Excavator / 5
Buy Sany SY65C Used Excavator / 6
Buy Sany SY65C Used Excavator / 7
Buy Sany SY65C Used Excavator / 8

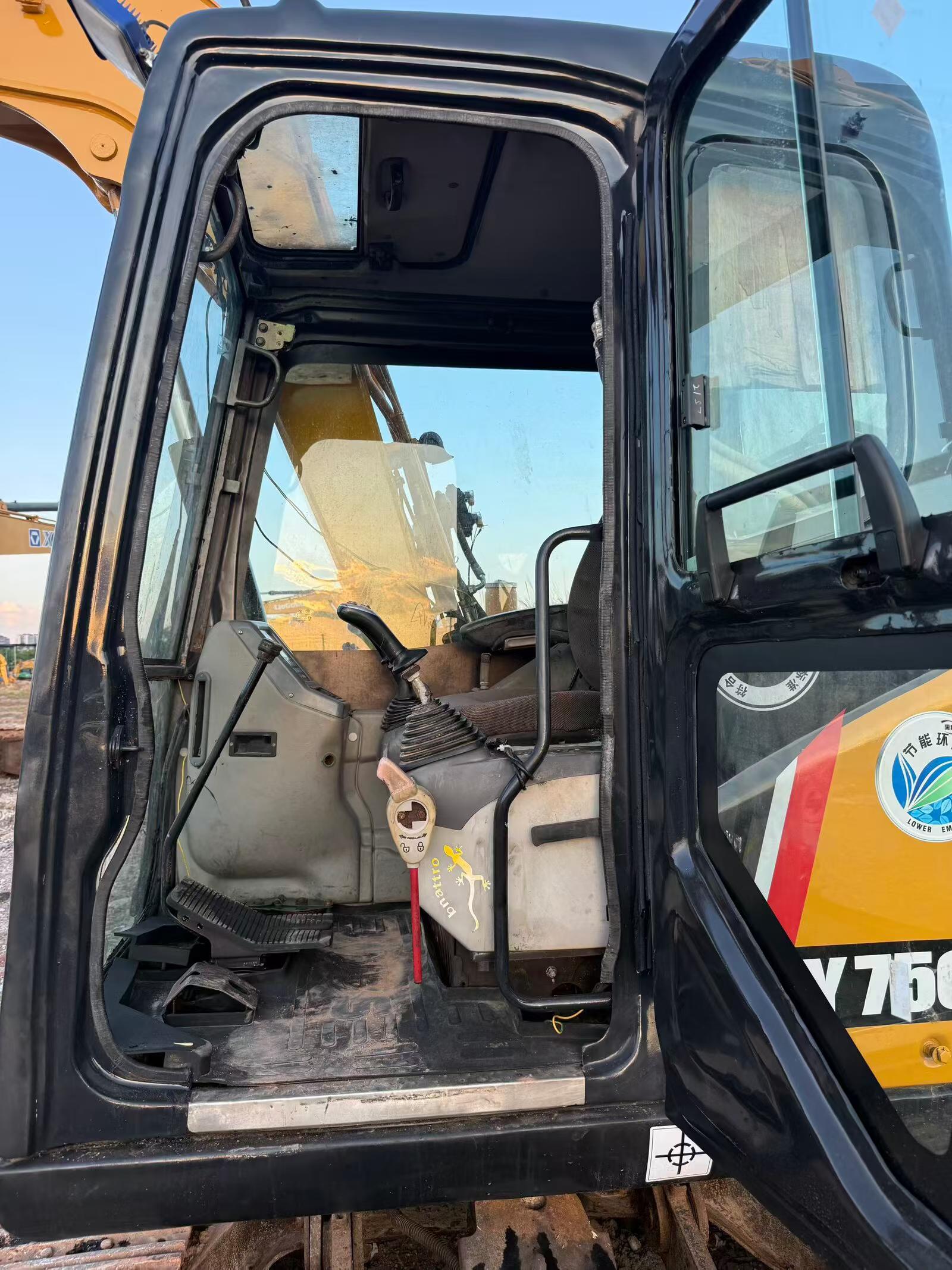

Buy Sany SY65C Used Excavator / 9

Product Description

Discover the 2020 Sany SY65C, a robust and versatile mini excavator, now available in Guangxi, China. This machine is equipped with a powerful hydraulic system, ensuring efficient performance for a variety of construction tasks. The included clamp enhances its functionality, making it ideal for handling materials and debris with precision. The operator's comfort is prioritized with a well-functioning air conditioning system, providing a cool and comfortable working environment even in the hottest conditions. Priced at 68,000 RMB, this used Sany SY65C offers excellent value for money. Documentation and a video showcasing the machine's condition are available upon request.

  • Year: 2020
  • Brand: Sany
  • Model: SY65C
  • Location: Guangxi, China
  • Price: 68,000 RMB
  • Features: Clamp, Air Conditioning
SpecificationsValue
No.1073308
Tonnage (tons)6
Working weight (kg)6700
Bucket capacity (m³)0.12-0.32
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeSANY D03S3
Rated power (kw/rpm)42/2100
Cooling modewater-cooling
Maximum torque (N.m)1900/1600~2000
Number of cylinders (PCS)4
Displacement (L)2.77
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)56
Rod digging force (kN)35.6
Travel speed (km/h)2.4/4.8
Main overflow set pressure (Mpa)26
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Main pump typeVariable swashplate plunger pump
Bucket cylinders - Number × diameter × stroke (mm)80 x 730
Bucket rod cylinders - Number × diameter × stroke (mm)90 x 900
Boom cylinders - Number × diameter × stroke (mm)110 x 885
Fuel Tank (L)145
Hydraulic Tank (L)120
Engine Oil changes (L)9
Coolant (L)12
Total transport length (mm)6000
Total transport width (mm)2160
Total transport height (mm)2560
Full cab height (mm)2560
Minimum ground clearance (mm)375
Back end turning radius (mm)1720
Total track length (mm)2710
Track gauge (mm)1680
Track plate width (mm)400
Total track width (mm)2160
Track ground length (mm)2180
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum digging radius (mm)6160
Maximum digging depth (mm)3985
Maximum excavation height (mm)6930
Maximum unloading height (mm)5145
Maximum vertical digging depth (mm)3470
Bulldozer lift or depth (mm)200/480
Dodging plate width × height (mm)460(dodging plate height)
see more

Overview

No.1073308

Brand Name:

Sany

Model Number:

SY65C

Year:

2020

Location:

Guangxi China

Pub Date
