Product Description

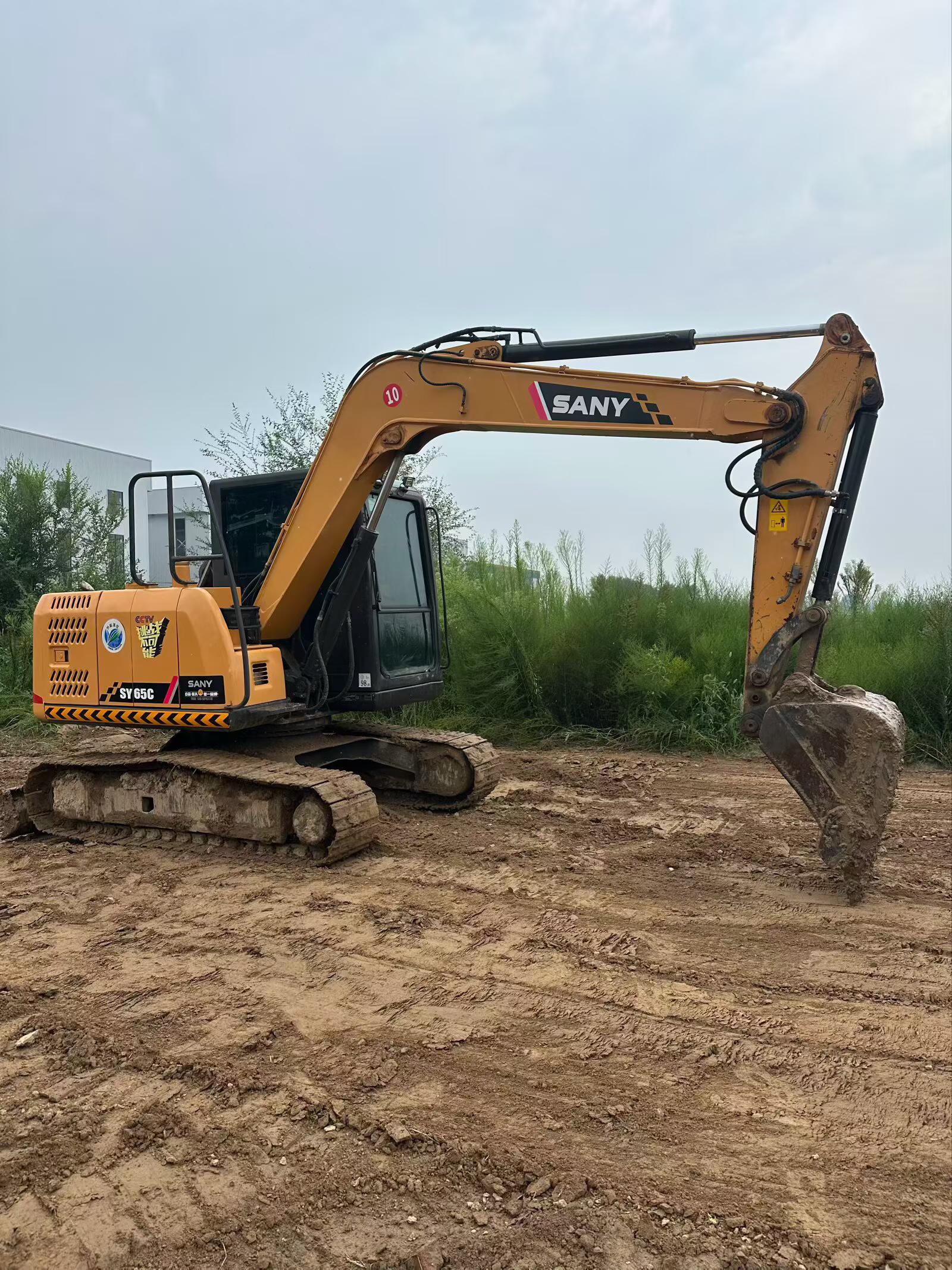

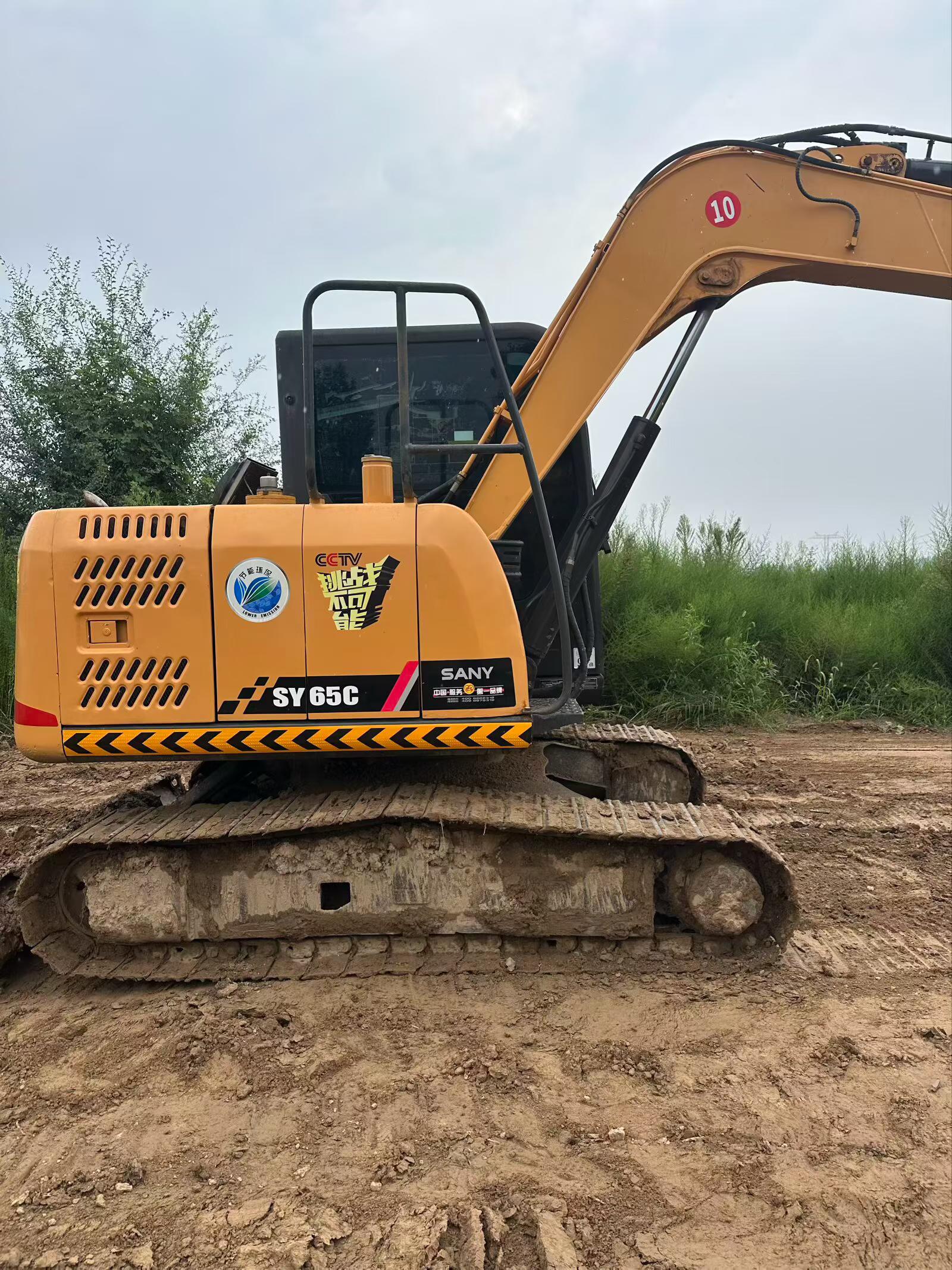

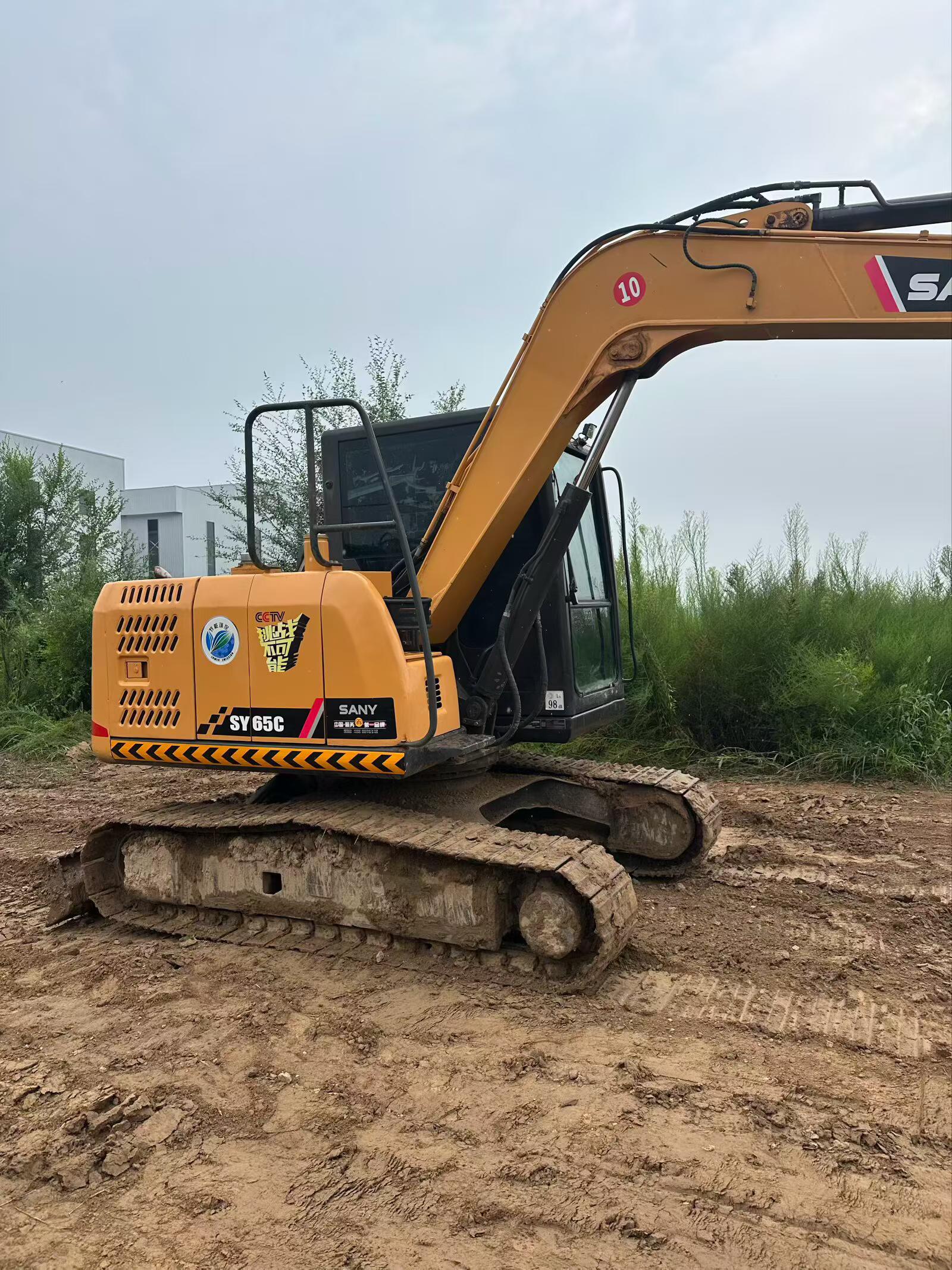

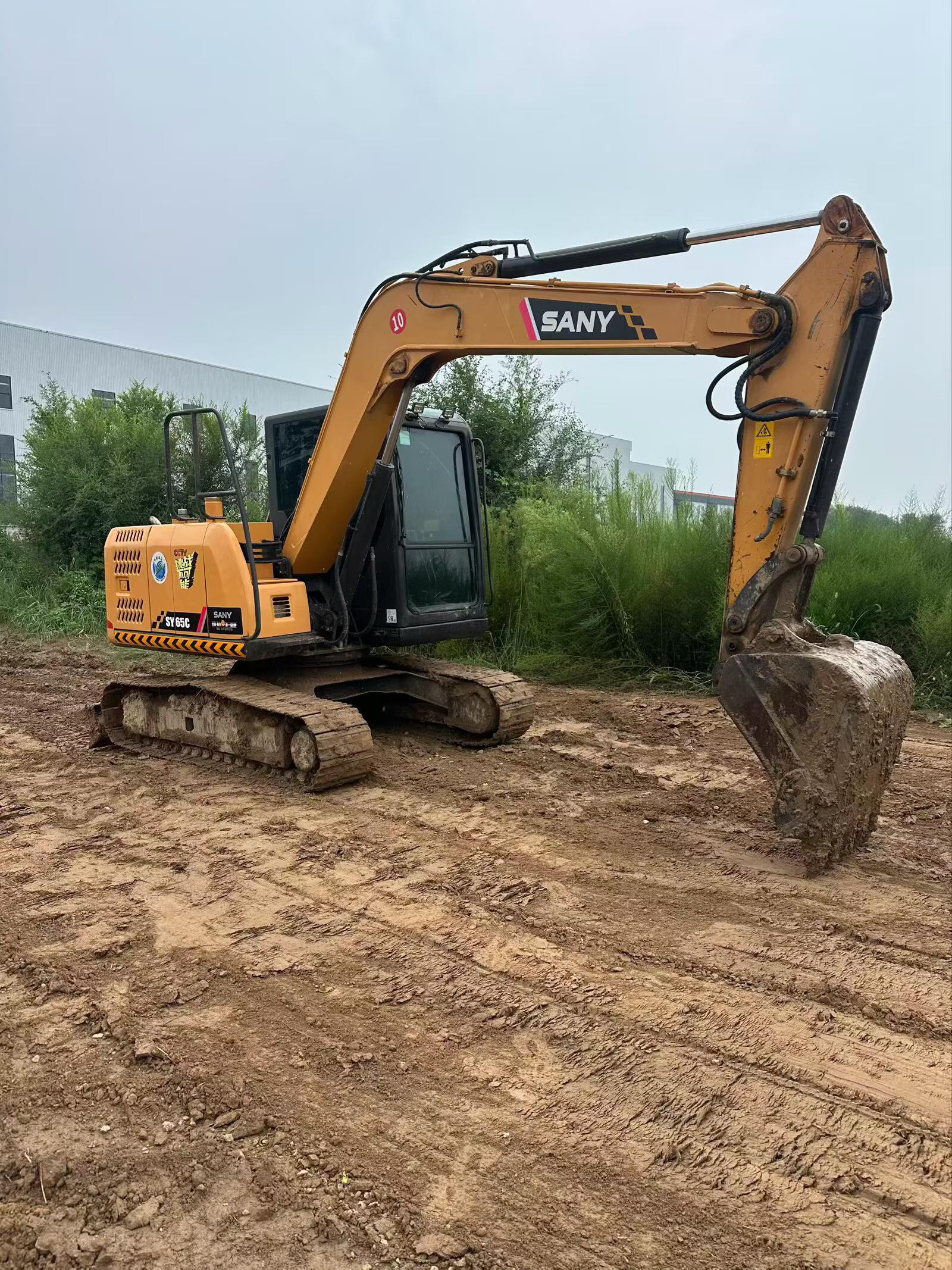

Discover the reliability and efficiency of the 2020 Sany SY65C, a compact excavator designed for versatility and performance. Located in Peking, China, this machine is ideal for construction, landscaping, and utility applications where space is limited. Built with durability in mind, the SY65C features robust construction and easy maintenance, making it a valuable addition to any fleet.
- Year: 2020
- Brand: Sany
- Model: SY65C
- Location: Peking, China
- Compact design for enhanced maneuverability in tight spaces
- Suitable for a variety of tasks including digging, lifting, and grading
- Engineered for long-term reliability and low operating costs
| Specifications | Value |
|---|---|
| No. | 1131007 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.12-0.32 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | SANY D03S3 |
| Rated power (kw/rpm) | 42/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1900/1600~2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.77 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 35.6 |
| Travel speed (km/h) | 2.4/4.8 |
| Main overflow set pressure (Mpa) | 26 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable swashplate plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 80 x 730 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 900 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 885 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 12 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2160 |
| Total transport height (mm) | 2560 |
| Full cab height (mm) | 2560 |
| Minimum ground clearance (mm) | 375 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1680 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2160 |
| Track ground length (mm) | 2180 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum digging radius (mm) | 6160 |
| Maximum digging depth (mm) | 3985 |
| Maximum excavation height (mm) | 6930 |
| Maximum unloading height (mm) | 5145 |
| Maximum vertical digging depth (mm) | 3470 |
| Bulldozer lift or depth (mm) | 200/480 |
| Dodging plate width × height (mm) | 460(dodging plate height) |
