2020 Sany SY65C

1/9
Buy Sany SY65C Used Excavator / 1
Buy Sany SY65C Used Excavator / 2

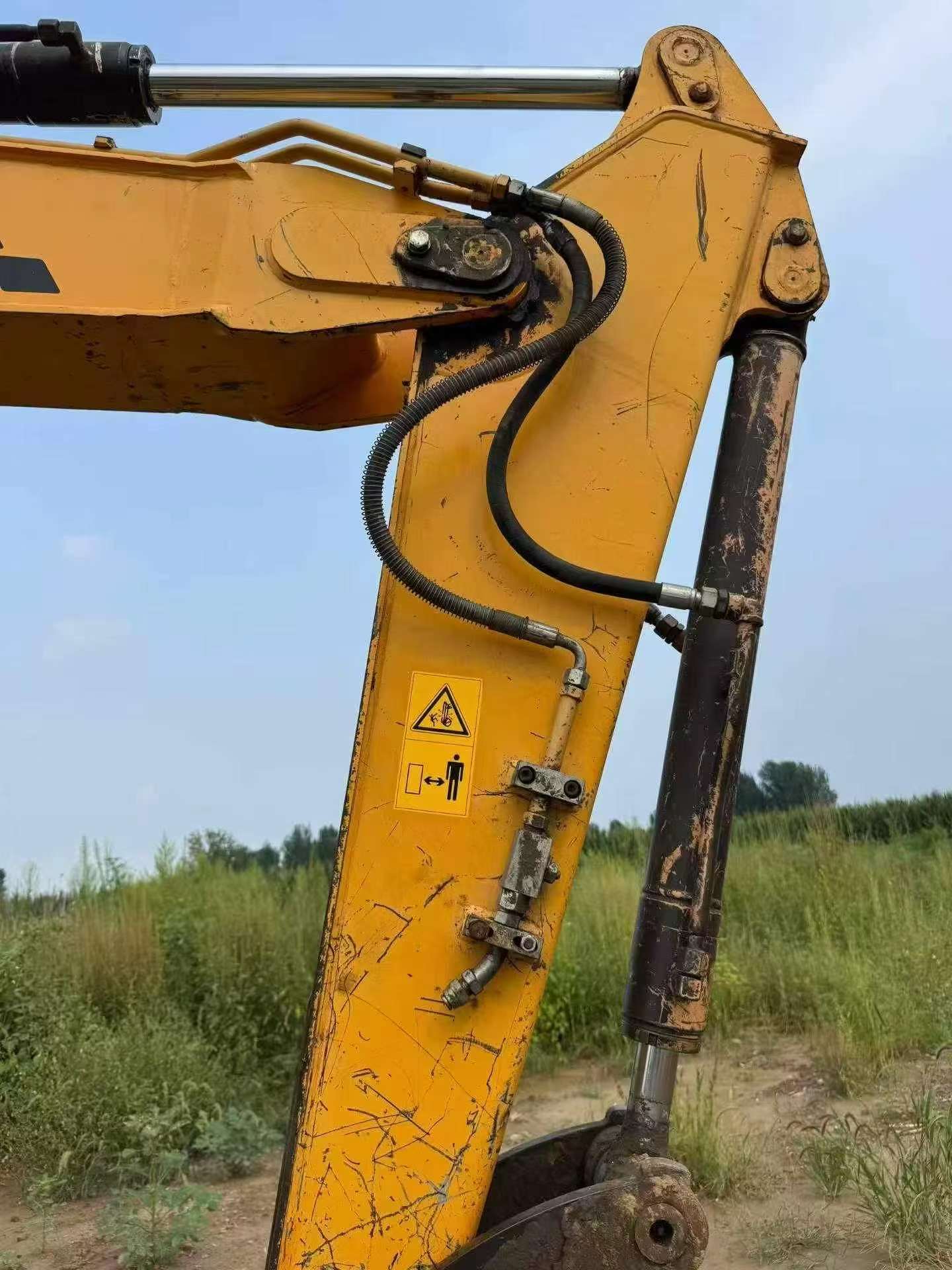

Buy Sany SY65C Used Excavator / 3
Buy Sany SY65C Used Excavator / 4
Buy Sany SY65C Used Excavator / 5
Buy Sany SY65C Used Excavator / 6
Buy Sany SY65C Used Excavator / 7
Buy Sany SY65C Used Excavator / 8
Buy Sany SY65C Used Excavator / 9

Product Description

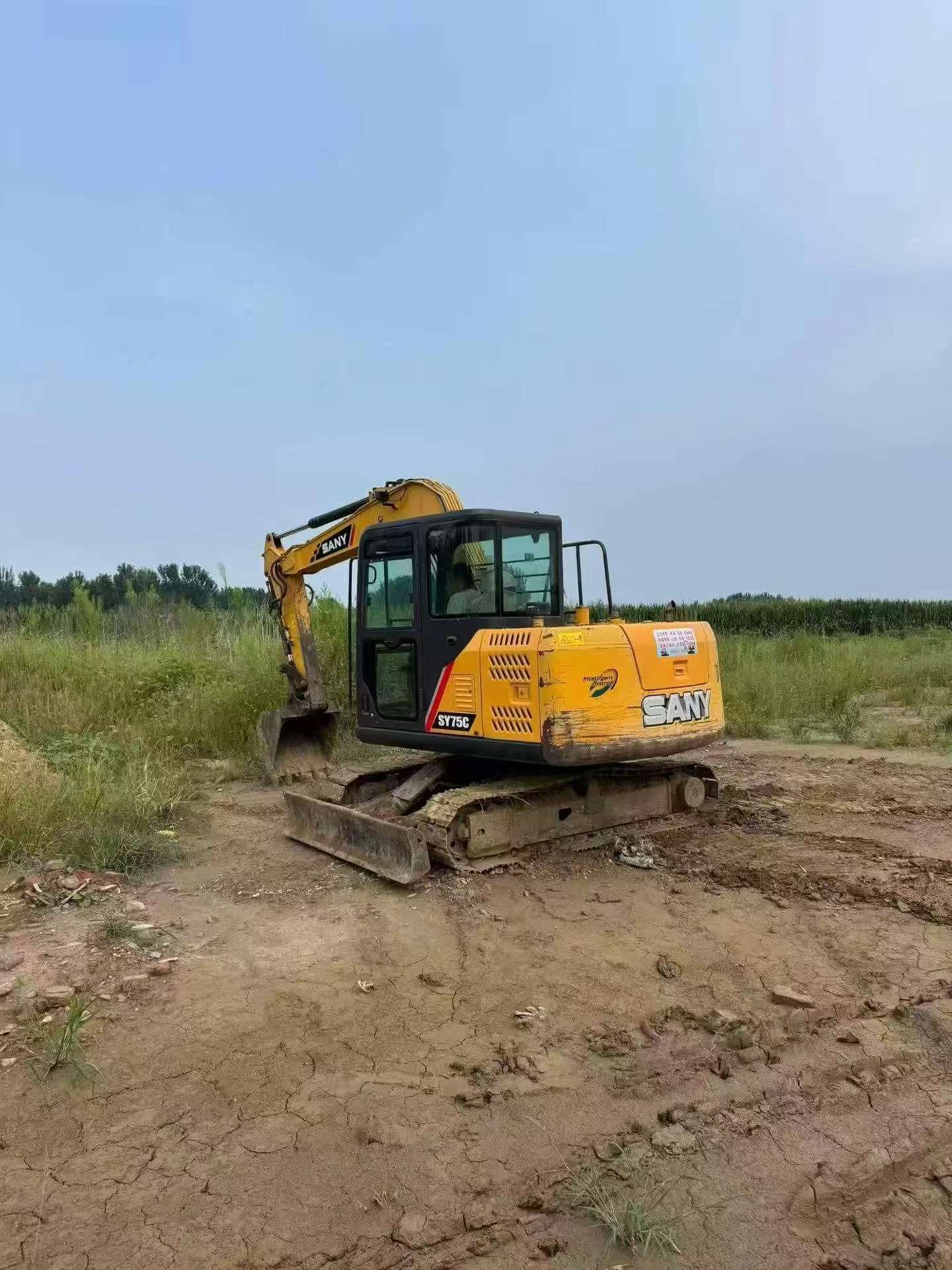

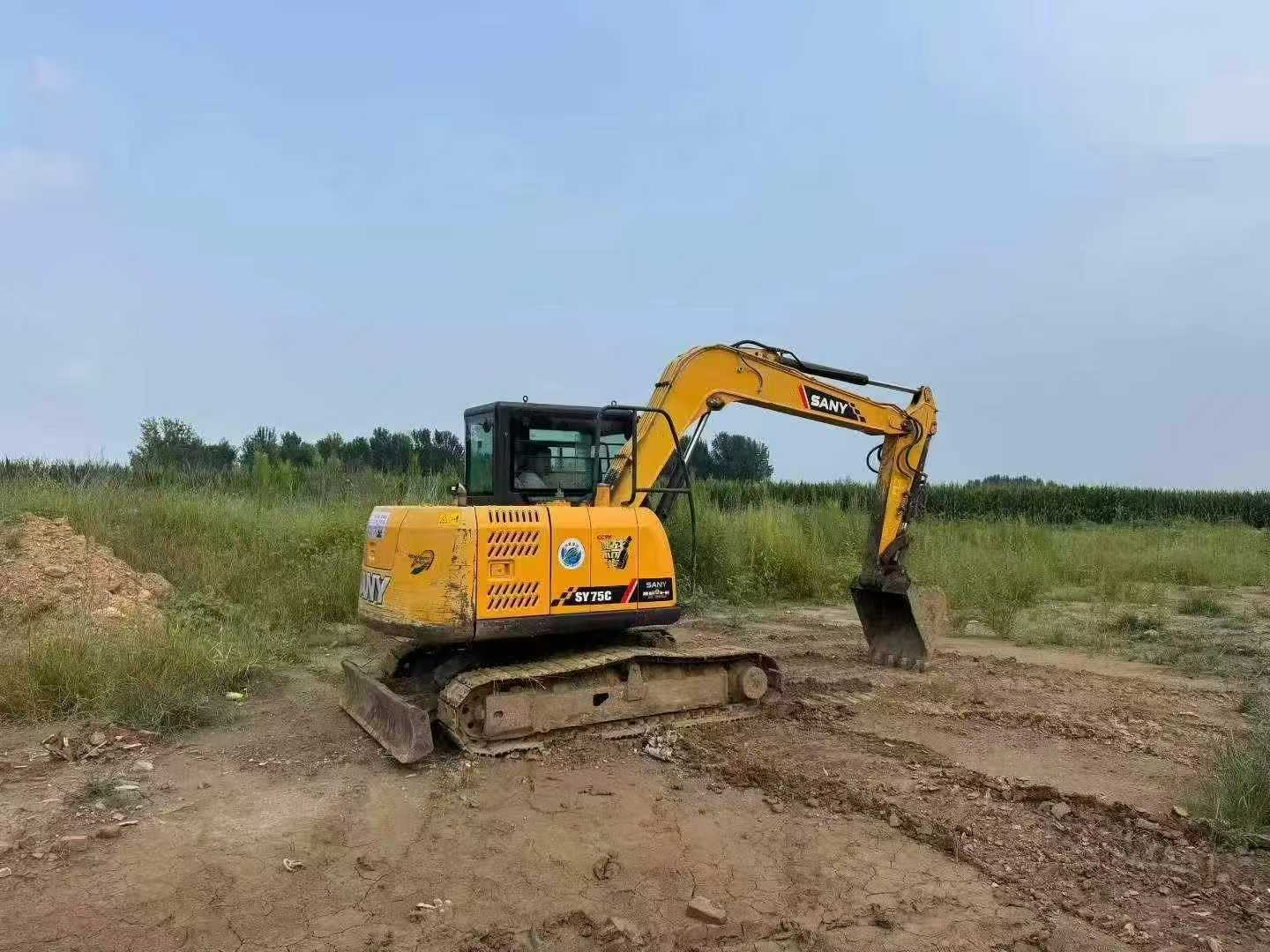

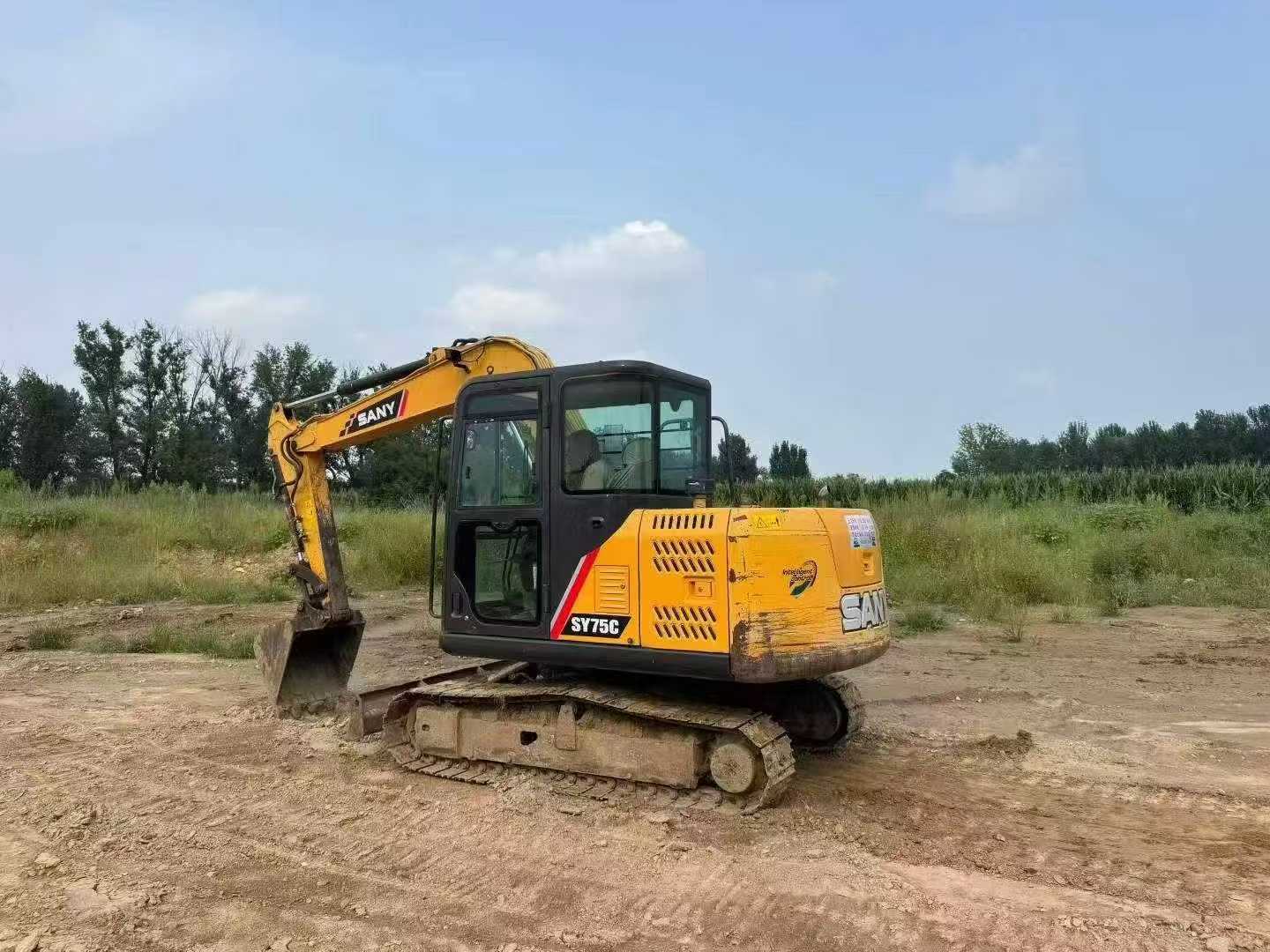

This 2020 Sany SY65C mini excavator presents an exceptional opportunity for operators seeking reliable performance in a compact package. Recently released from an active construction site in Hebei, China, this machine demonstrates the quality and durability Sany is known for in the 6-ton class.

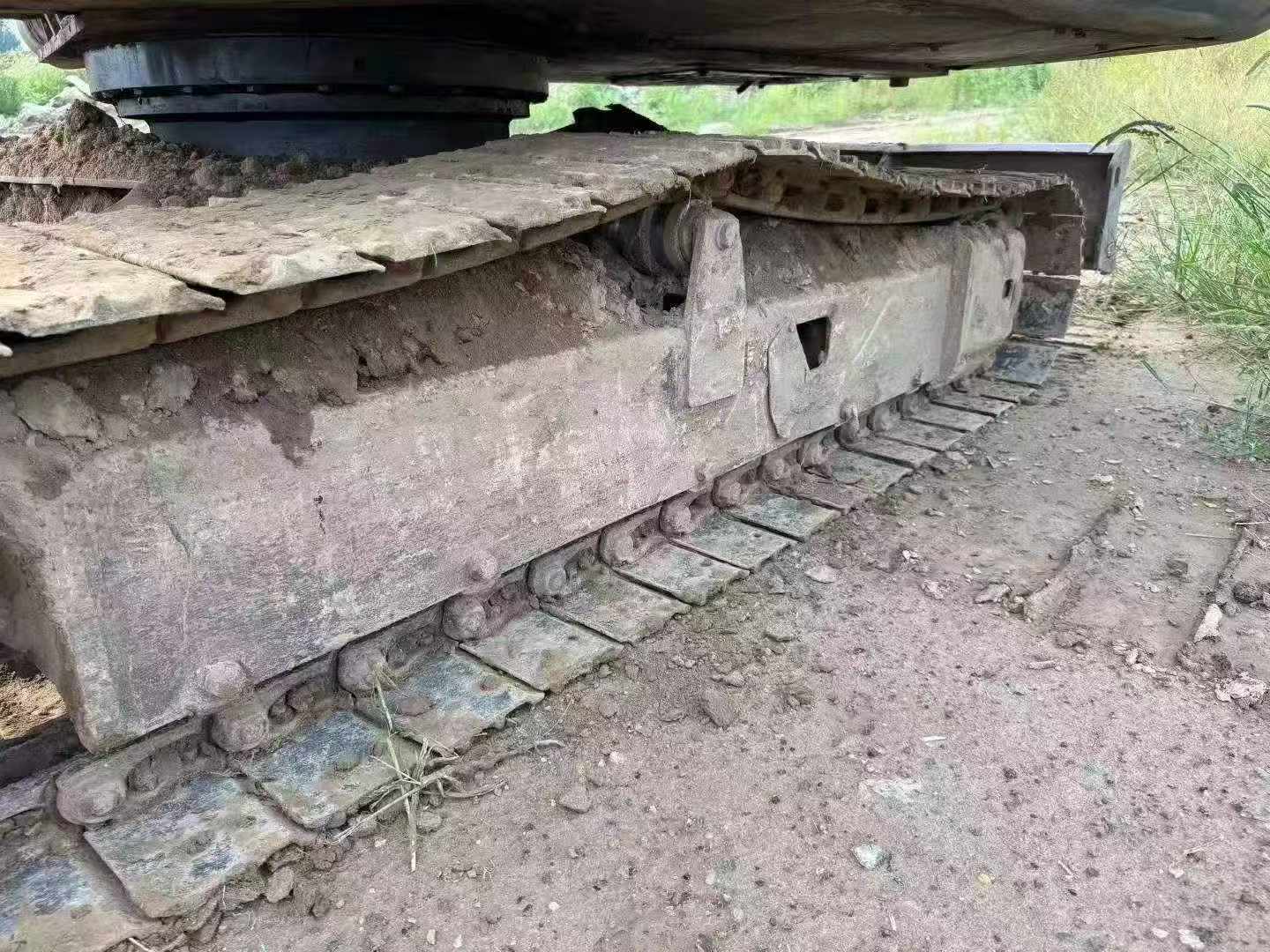

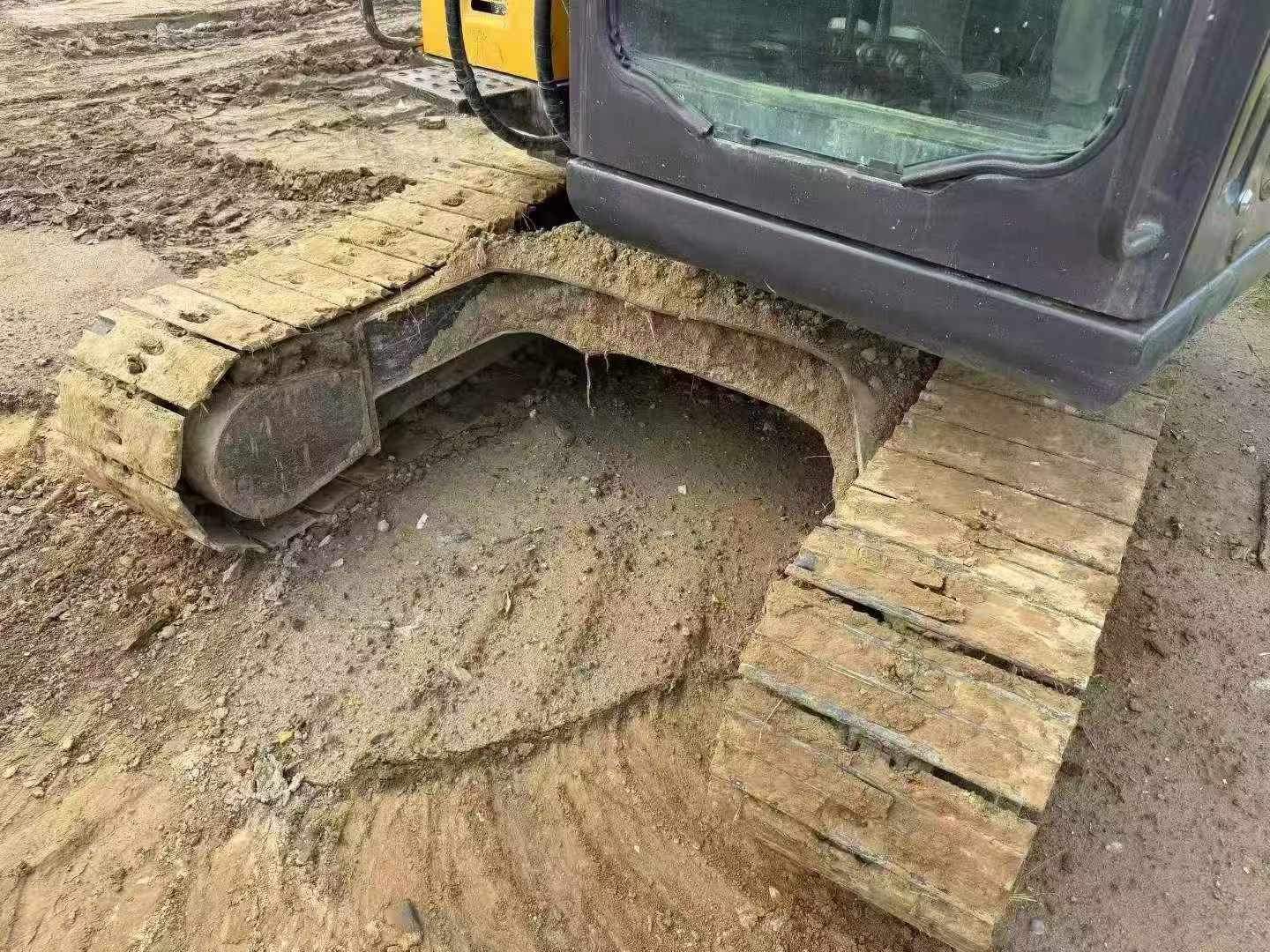

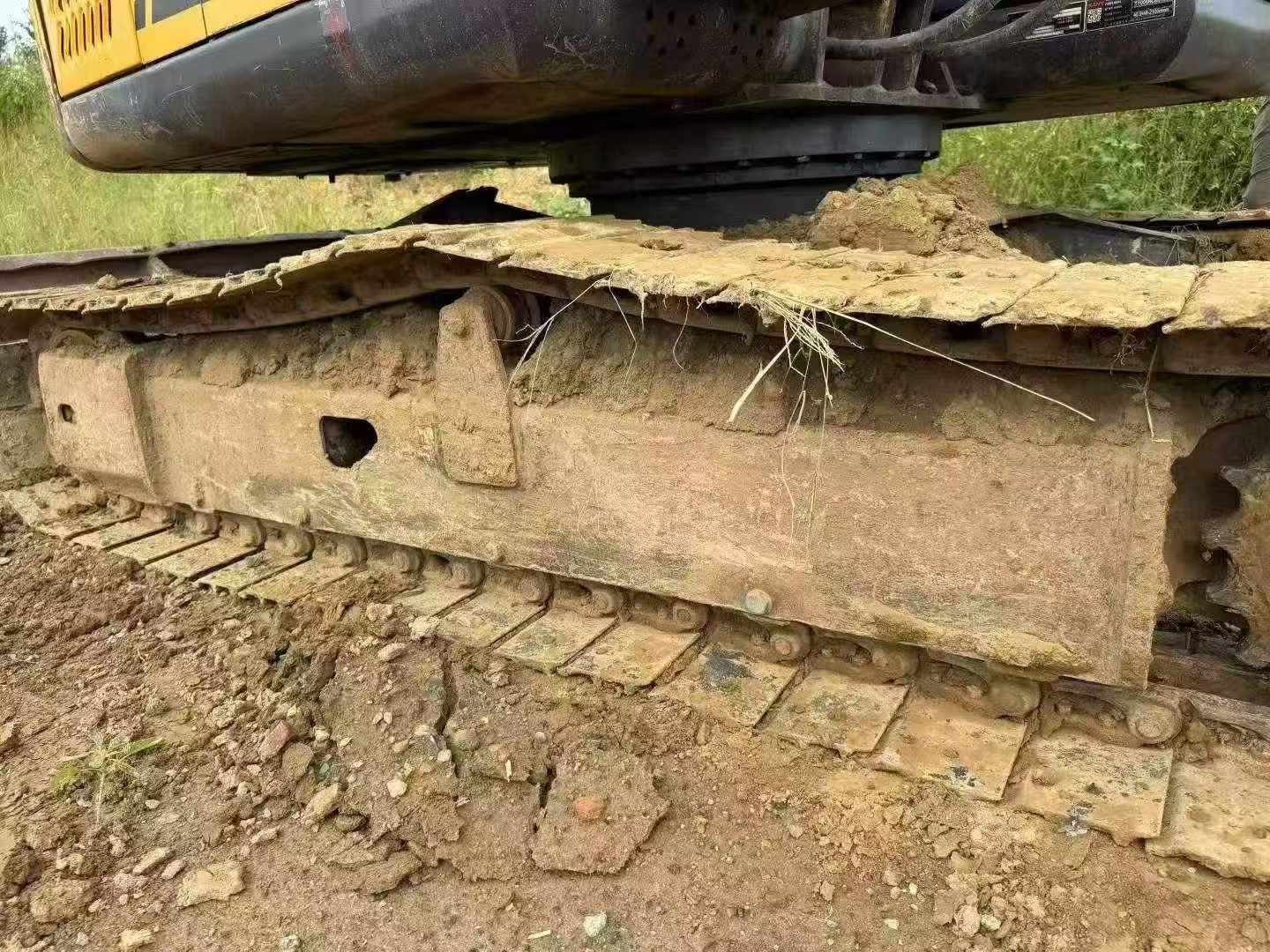

The unit exhibits excellent mechanical condition with clean major components and no oil leaks throughout the system. Original factory paint remains intact, and undercarriage components show proper maintenance history with attractive track plates indicating careful operation.

  • Year: 2020
  • Model: Sany SY65C
  • Location: Hebei, China
  • Condition: Work-ready upon delivery
  • Maintenance: Well-maintained with no fluid leaks
  • Exterior: Original paint, clean presentation

This excavator is ready for immediate deployment to your jobsite without requiring refurbishment or downtime. Ideal for contractors requiring a dependable compact excavator for urban construction, landscaping, or utility work.

SpecificationsValue
No.1139607
Tonnage (tons)6
Working weight (kg)6700
Bucket capacity (m³)0.12-0.32
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeSANY D03S3
Rated power (kw/rpm)42/2100
Cooling modewater-cooling
Maximum torque (N.m)1900/1600~2000
Number of cylinders (PCS)4
Displacement (L)2.77
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)56
Rod digging force (kN)35.6
Travel speed (km/h)2.4/4.8
Main overflow set pressure (Mpa)26
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Main pump typeVariable swashplate plunger pump
Bucket cylinders - Number × diameter × stroke (mm)80 x 730
Bucket rod cylinders - Number × diameter × stroke (mm)90 x 900
Boom cylinders - Number × diameter × stroke (mm)110 x 885
Fuel Tank (L)145
Hydraulic Tank (L)120
Engine Oil changes (L)9
Coolant (L)12
Total transport length (mm)6000
Total transport width (mm)2160
Total transport height (mm)2560
Full cab height (mm)2560
Minimum ground clearance (mm)375
Back end turning radius (mm)1720
Total track length (mm)2710
Track gauge (mm)1680
Track plate width (mm)400
Total track width (mm)2160
Track ground length (mm)2180
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum digging radius (mm)6160
Maximum digging depth (mm)3985
Maximum excavation height (mm)6930
Maximum unloading height (mm)5145
Maximum vertical digging depth (mm)3470
Bulldozer lift or depth (mm)200/480
Dodging plate width × height (mm)460(dodging plate height)
see more

Overview

No.1139607

Brand Name:

Sany

Model Number:

SY65C

Year:

2020

Location:

Hebei China

Pub Date
