2012 Sany SY65C-9

1/6

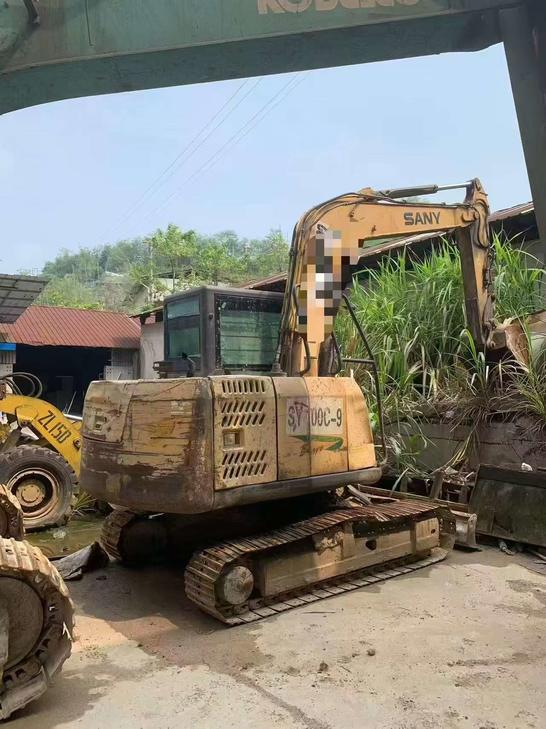

Buy Sany SY65C-9 Used Excavator / 1

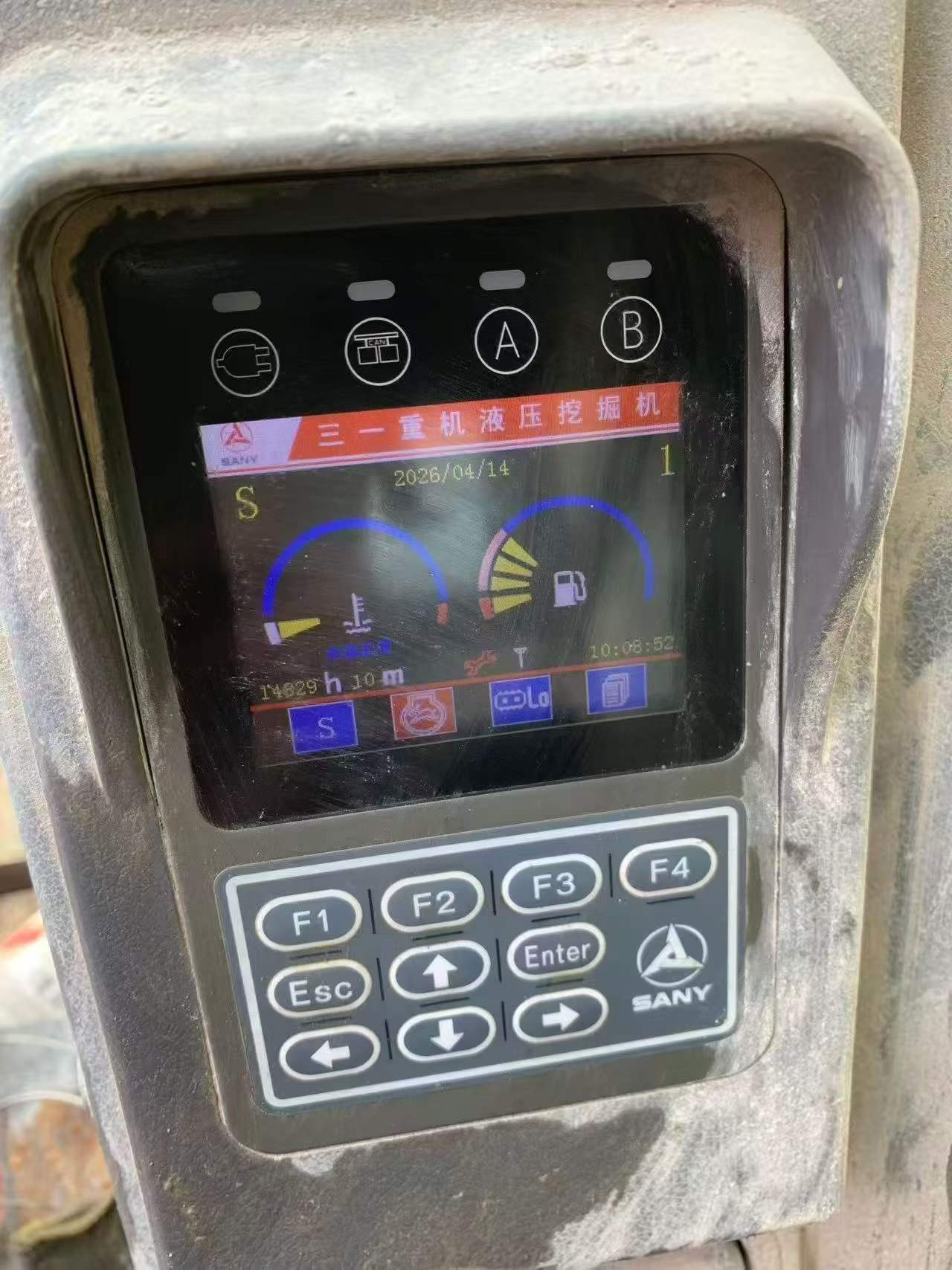

Buy Sany SY65C-9 Used Excavator / 2
Buy Sany SY65C-9 Used Excavator / 3
Buy Sany SY65C-9 Used Excavator / 4
Buy Sany SY65C-9 Used Excavator / 5
Buy Sany SY65C-9 Used Excavator / 6

Product Description

Discover the reliability and efficiency of the 2012 Sany SY65C-9, a robust and versatile excavator designed for a wide range of construction and excavation tasks. This used machine, located in Zhejiang, China, is well-maintained and ready to take on your next project. The SY65C-9 is known for its durable build, ease of operation, and cost-effective performance, making it an excellent choice for businesses looking to enhance their fleet with a dependable piece of equipment.

  • Year: 2012
  • Brand: Sany
  • Model: SY65C-9
  • Location: Zhejiang, China
SpecificationsValue
No.1082430
Tonnage (tons)6
Working weight (kg)6700
Bucket capacity (m³)0.25 (optional 0.16 ~ 0.32)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu AJ-4JG1
Rated power (kw/rpm)40.9/2100
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.059
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)51
Rod digging force (kN)35.6
Travel speed (km/h)4.2/2.4
Main overflow set pressure (Mpa)26
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Main pump typeVariable swashplate plunger pump
Bucket cylinders - Number × diameter × stroke (mm)80 x 730
Bucket rod cylinders - Number × diameter × stroke (mm)90 x 900
Boom cylinders - Number × diameter × stroke (mm)110 x 885
Fuel Tank (L)130
Hydraulic Tank (L)100
Engine Oil changes (L)10
Coolant (L)12
Total transport length (mm)6120
Total transport width (mm)2140
Total transport height (mm)2645
Minimum ground clearance (mm)370
Back end turning radius (mm)1800
Onboard width (mm)2040
Total track length (mm)2700
Track gauge (mm)1600
Track plate width (mm)400
Total track width (mm)2160
Track ground length (mm)2180
Maximum digging radius (mm)6235
Maximum digging depth (mm)4065
Maximum excavation height (mm)7010
Maximum unloading height (mm)5110
Maximum vertical digging depth (mm)3335
Bulldozer lift or depth (mm)Lift 300/ push 405
Dodging plate width × height (mm)Altitude 405
see more

Overview

No.1082430

Brand Name:

Sany

Model Number:

SY65C-9

Year:

2012

Location:

Zhejiang China

Pub Date
