Product Description

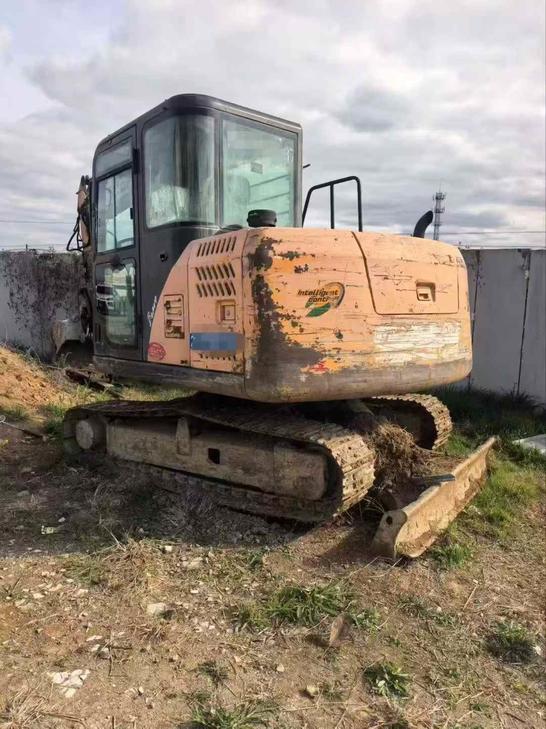

Built in 2013 and sourced from Fujian, this Sany SY65C-9 compact excavator delivers reliable performance for medium-duty excavation and utility work. Powered by an Isuzu AJ-4JG1 water-cooled engine producing 40.9 kW at 2100 rpm, this 6-ton machine combines robust hydraulics with operator-centered design for demanding jobsites.
- Operator-Focused Design: Smooth control response via variable swashplate plunger pump with 149 l/min flow ensures precise bucket and boom movements during complex digging tasks
- Proven Stability: 1600 mm track gauge and 33 kPa ground pressure provide secure footing on uneven terrain, while 70% (35°) climbing ability tackles steep grades confidently
- Compact Maneuverability: 1800 mm rear swing radius and 2040 mm working width enable tight-space operation without sacrificing 6235 mm maximum reach or 4065 mm digging depth
- Hydraulic Power: 51 kN bucket digging force and 35.6 kN arm force handle tough soil and loading applications efficiently
- Extended Operation: 130-liter fuel capacity and accessible service points reduce downtime between refueling cycles
Idea
| Specifications | Value |
|---|---|
| No. | 1021679 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.25 (optional 0.16 ~ 0.32) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu AJ-4JG1 |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 35.6 |
| Travel speed (km/h) | 4.2/2.4 |
| Main overflow set pressure (Mpa) | 26 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable swashplate plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 80 x 730 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 900 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 885 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 12 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2040 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2160 |
| Track ground length (mm) | 2180 |
| Maximum digging radius (mm) | 6235 |
| Maximum digging depth (mm) | 4065 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Bulldozer lift or depth (mm) | Lift 300/ push 405 |
| Dodging plate width × height (mm) | Altitude 405 |
