Product Description
Built for precision and power, this 2016 Sany SY65C-9 mini excavator delivers reliable performance across digging, grading, and site preparation tasks. Operating at 6 tons with a 6,700 kg working weight, this compact machine combines maneuverability with serious capability. Its Isuzu AJ-4JG1 engine generates 40.9 kW at 2100 rpm, driving a variable swashplate plunger pump that delivers 149 l/min maximum flow for responsive hydraulic performance.
Equipped with a 0.25 m³ bucket (expandable from 0.16 to 0.32 m³), this excavator reaches a maximum digging depth of 4,065 mm and digging radius of 6,235 mm—ideal for trenching, foundation work, and material handling. Bucket digging force hits 51 kN while rod digging force reaches 35.6 kN, tackling compacted soil and challenging ground conditions. The 2,140 mm transport width and 370 mm ground clearance enable access to confined spaces while maintaining stability.

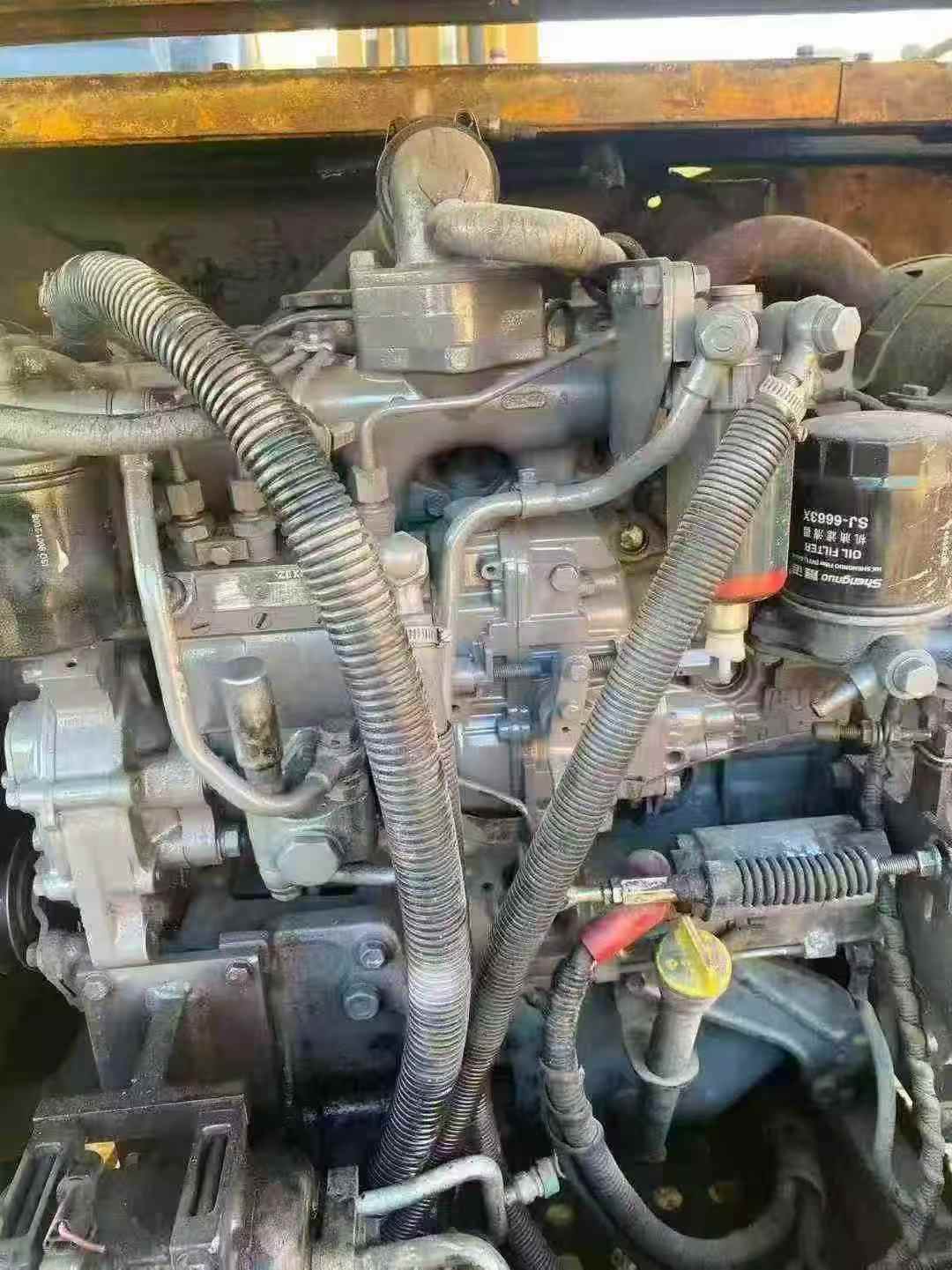

- Isuzu 4-cylinder water-cooled diesel engine
- Maximum digging height: 7,010 mm
- Travel speed: 4.2/2.4 km/h
- 70% climbing ability (35° grade)
- 130 L fuel capacity for extended operation
- Currently located in Jiangsu, China
| Specifications | Value |
|---|---|
| No. | 1030105 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.25 (optional 0.16 ~ 0.32) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu AJ-4JG1 |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 35.6 |
| Travel speed (km/h) | 4.2/2.4 |
| Main overflow set pressure (Mpa) | 26 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable swashplate plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 80 x 730 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 900 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 885 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 12 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2040 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2160 |
| Track ground length (mm) | 2180 |
| Maximum digging radius (mm) | 6235 |
| Maximum digging depth (mm) | 4065 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Bulldozer lift or depth (mm) | Lift 300/ push 405 |
| Dodging plate width × height (mm) | Altitude 405 |
