Product Description

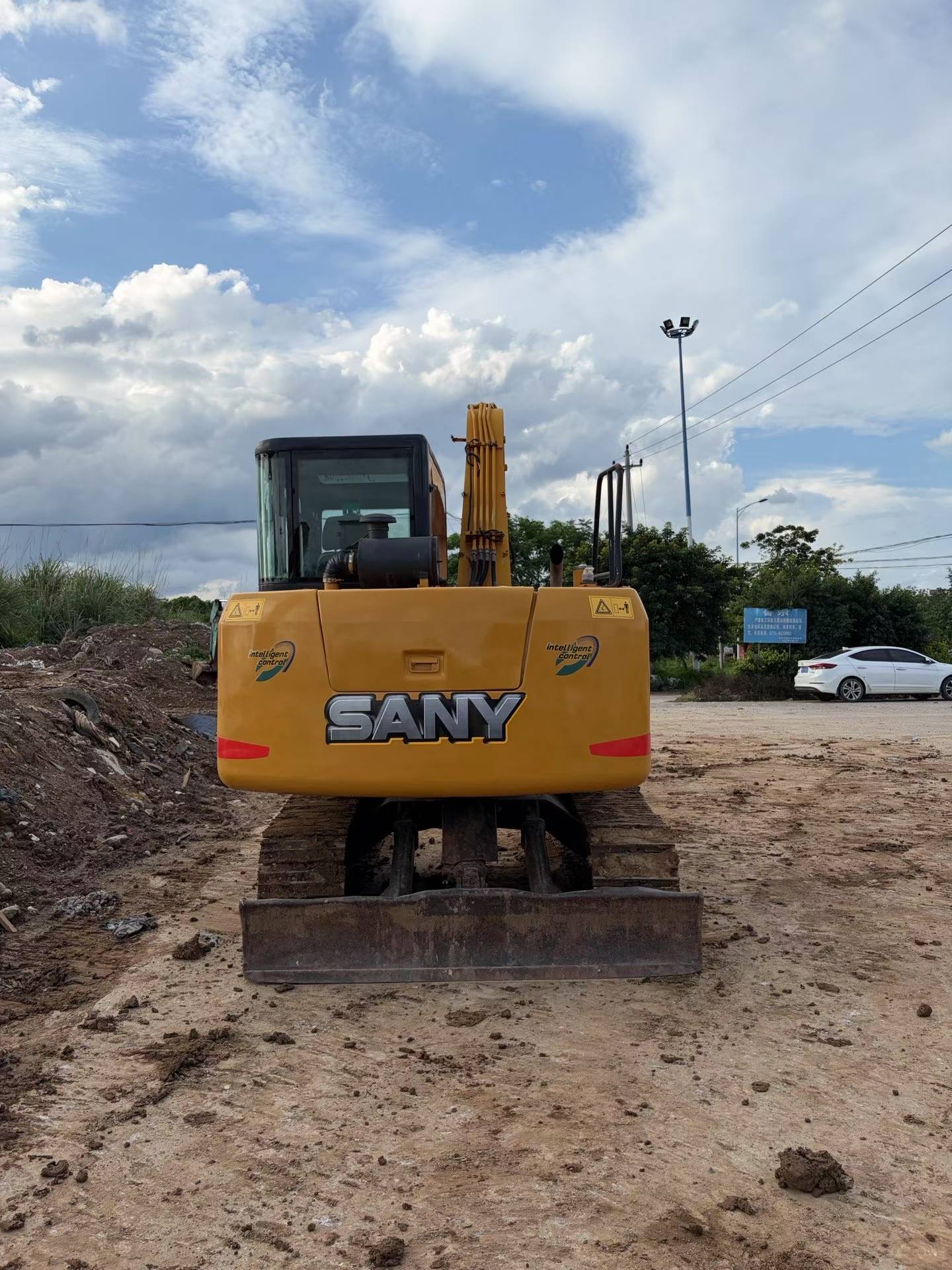

Ready to ship from Guangdong, China — this 2020 Sany SY65C-9 6-ton mini excavator skips the factory queue and goes straight to your site. Powered by an Isuzu AJ-4JG1 4-cylinder water-cooled engine (40.9 kW), it delivers 51 kN bucket digging force and a 4,065 mm dig depth, handling tight urban and civil construction work with precision.
- Operating weight: 6,700 kg | Bucket capacity: 0.25 m³ (0.16–0.32 m³ optional)
- Max digging radius: 6,235 mm | Max excavation height: 7,010 mm
- Travel speed: 4.2 / 2.4 km/h | Climbing ability: 70% (35°)
- Main pump: Variable swashplate plunger pump | Max flow: 149 l/min
- Transport dimensions: 6,120 × 2,140 × 2,645 mm — container-friendly
- Fuel tank: 130 L | Ground pressure: 33 kPa — suitable for soft terrain
- Available now in Guangdong — fast loading, competitive export logistics
For contractors who need equipment on-site fast, this unit is inspected, located, and ready to move. Contact us today to confirm availability and arrange shipping.
| Specifications | Value |
|---|---|
| No. | 1081765 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.25 (optional 0.16 ~ 0.32) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

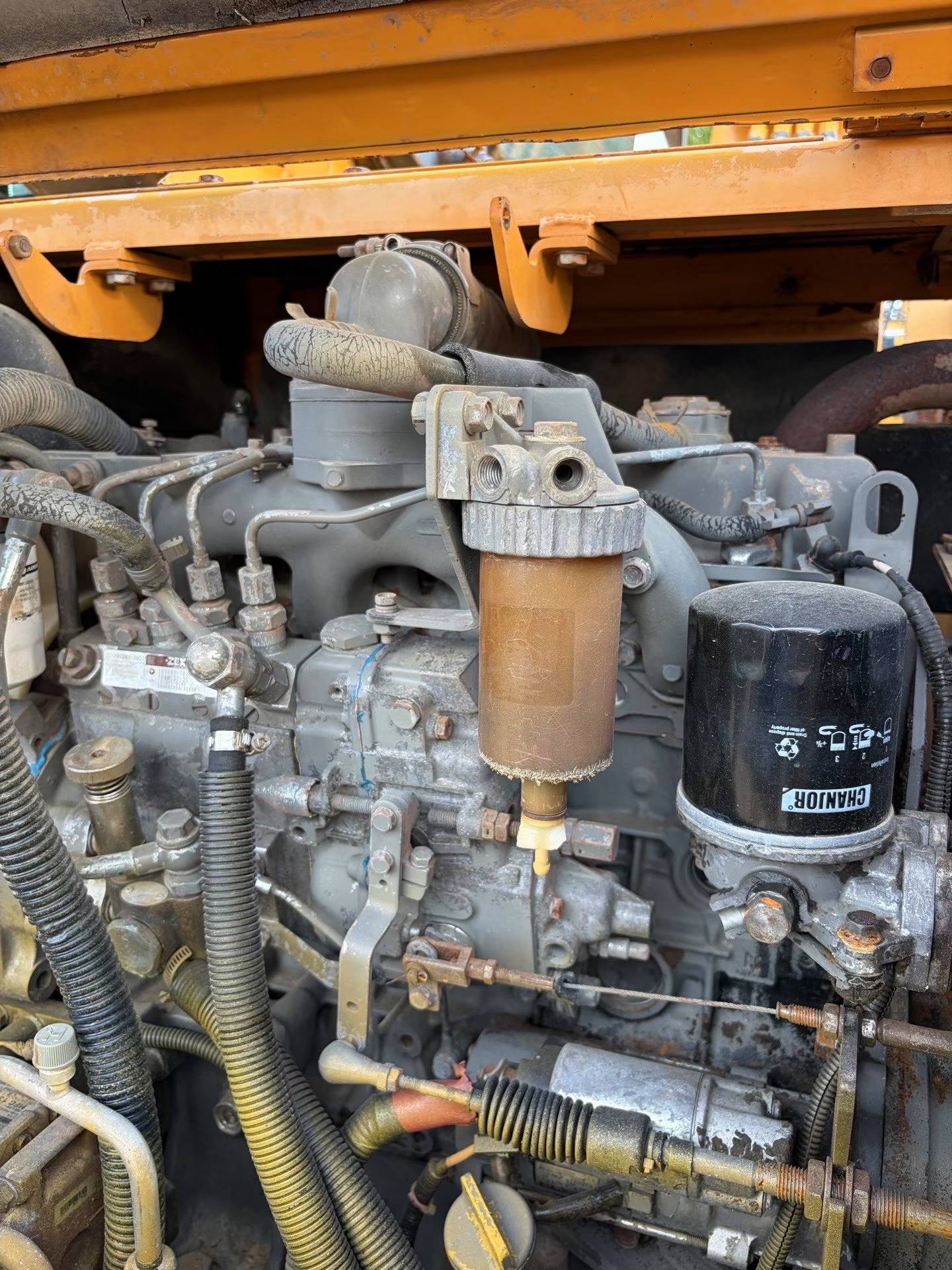

| Engine type | Isuzu AJ-4JG1 |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 35.6 |
| Travel speed (km/h) | 4.2/2.4 |
| Main overflow set pressure (Mpa) | 26 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |

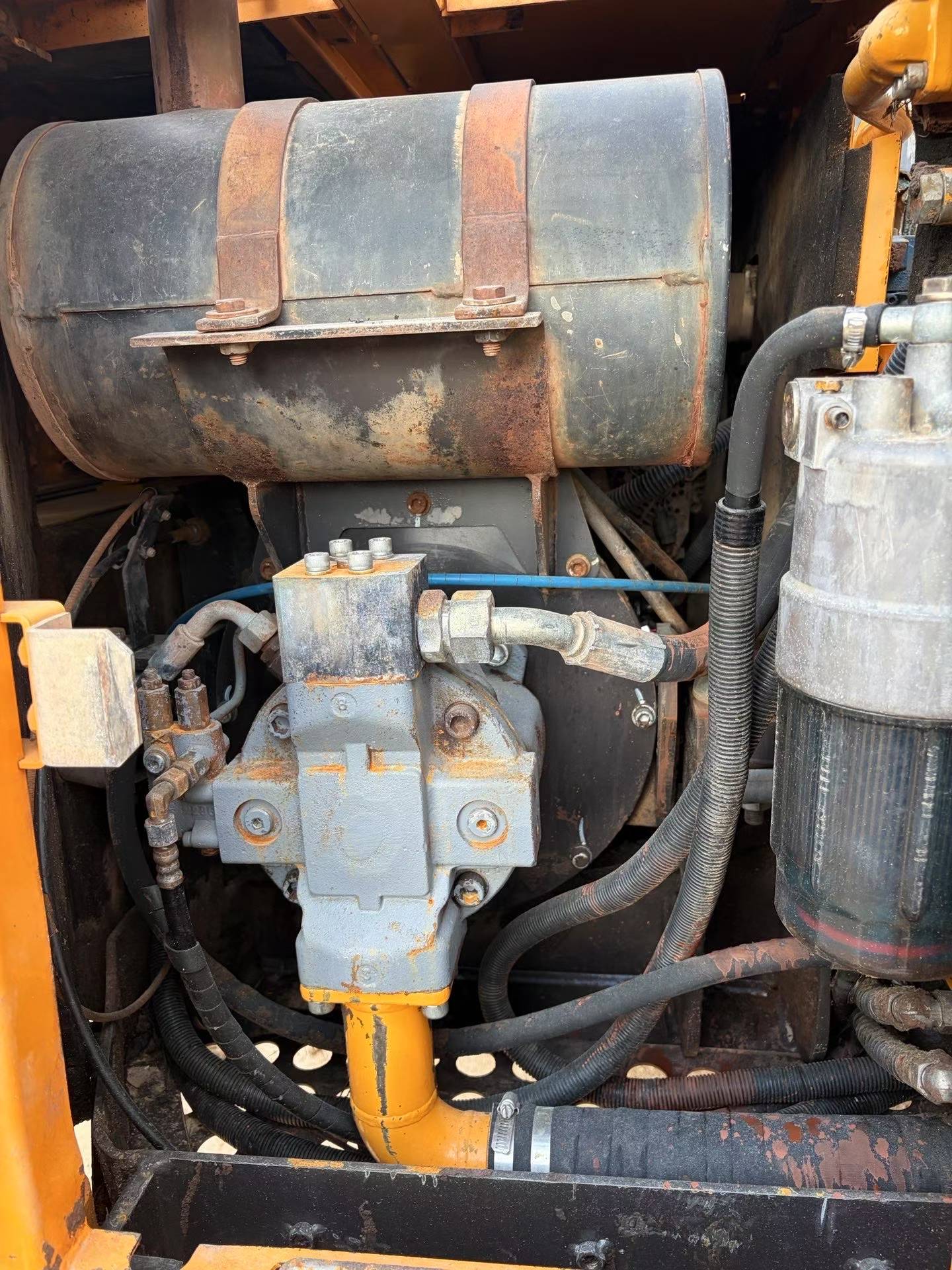

| Main pump type | Variable swashplate plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 80 x 730 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 900 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 885 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 12 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2040 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2160 |
| Track ground length (mm) | 2180 |
| Maximum digging radius (mm) | 6235 |
| Maximum digging depth (mm) | 4065 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Bulldozer lift or depth (mm) | Lift 300/ push 405 |
| Dodging plate width × height (mm) | Altitude 405 |
