Product Description
Discover the robust Sany SY65C-9 excavator, a reliable choice for your construction needs. Manufactured in 2020, this used heavy machine is available directly from the source in Sichuan, China. Priced at 48,000 RMB, it offers an excellent balance of performance and value, making it a smart investment for any project.
- Year: 2020
- Brand: Sany
- Model: SY65C-9
- Location: Sichuan, China
- Price: 48,000 RMB
| Specifications | Value |
|---|---|
| No. | 1097186 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 6700 |
| Bucket capacity (m³) | 0.25 (optional 0.16 ~ 0.32) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

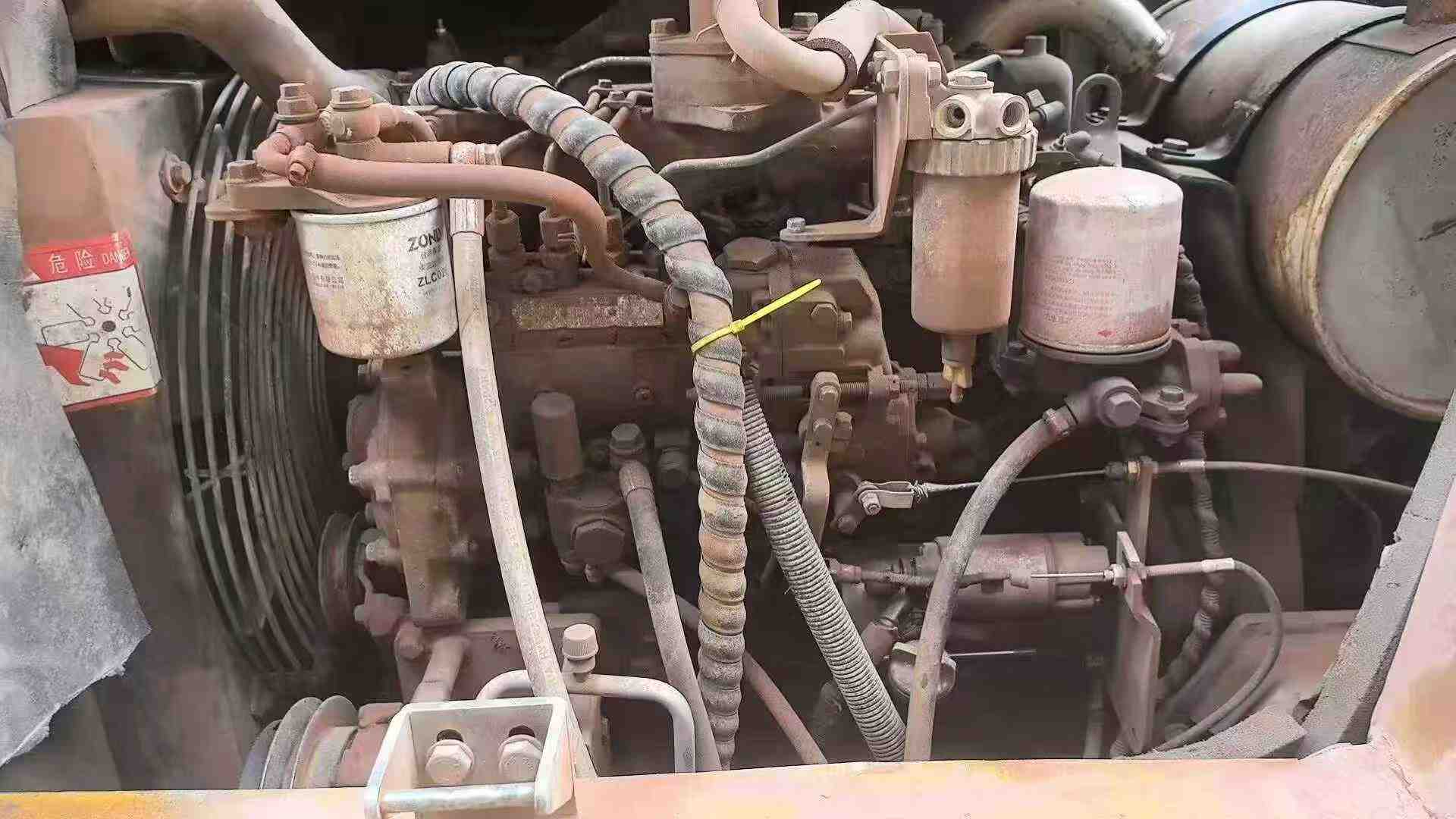

| Engine type | Isuzu AJ-4JG1 |
| Rated power (kw/rpm) | 40.9/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.059 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 35.6 |
| Travel speed (km/h) | 4.2/2.4 |
| Main overflow set pressure (Mpa) | 26 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable swashplate plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 80 x 730 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 90 x 900 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 885 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 12 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2040 |
| Total track length (mm) | 2700 |
| Track gauge (mm) | 1600 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2160 |
| Track ground length (mm) | 2180 |
| Maximum digging radius (mm) | 6235 |
| Maximum digging depth (mm) | 4065 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Bulldozer lift or depth (mm) | Lift 300/ push 405 |
| Dodging plate width × height (mm) | Altitude 405 |
