Product Description

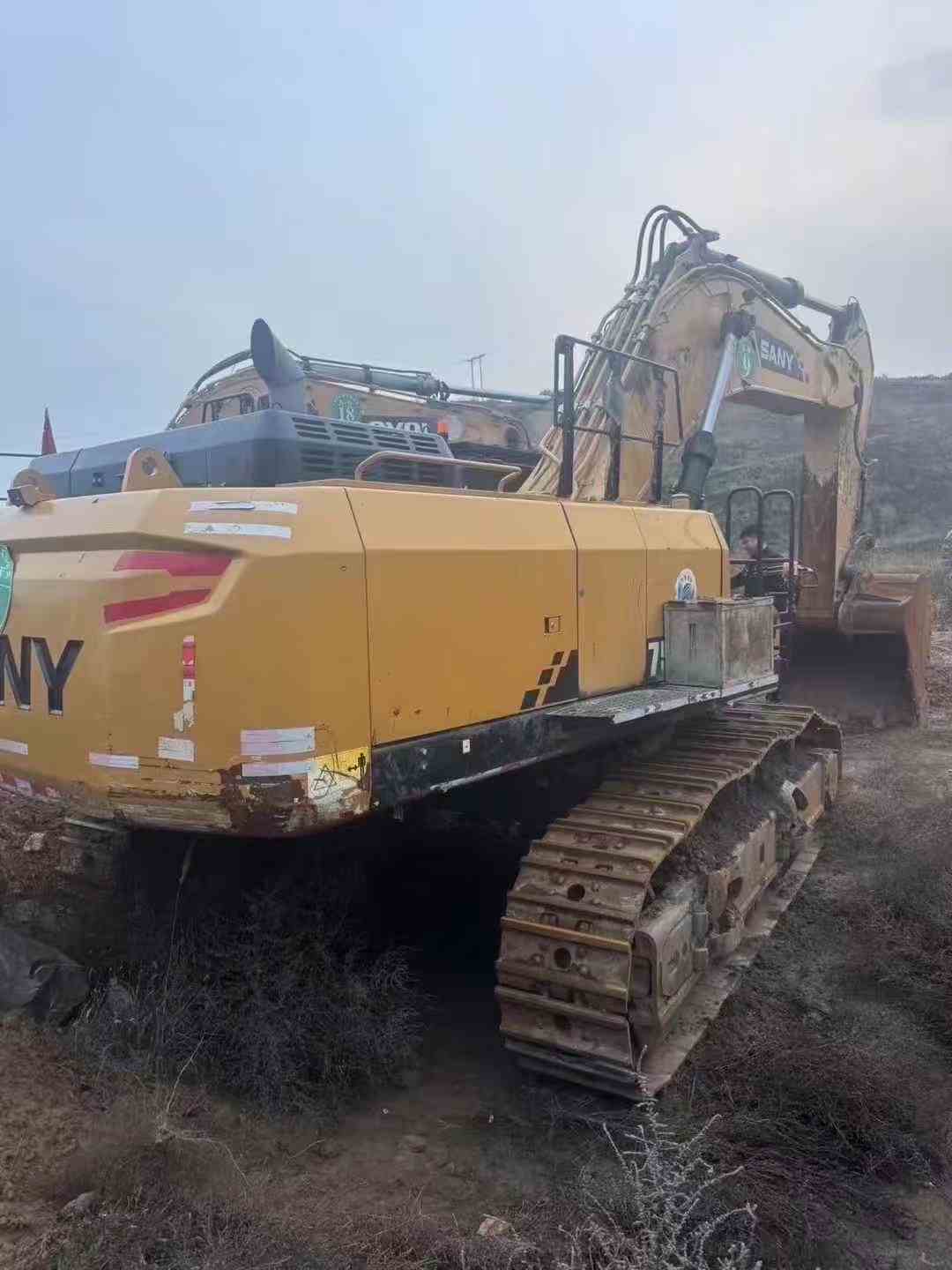

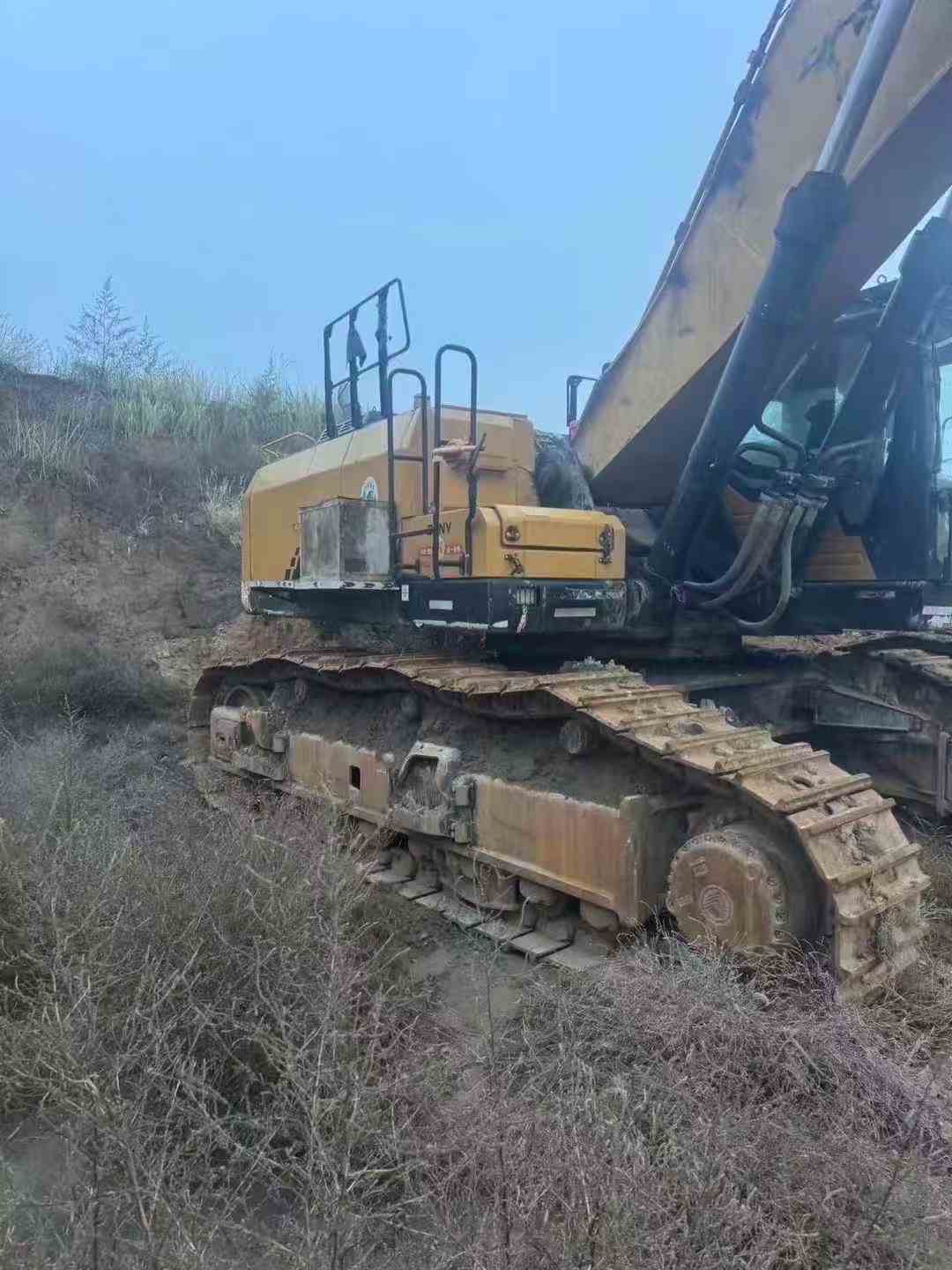

With a robust 70-ton working weight and a powerful 310 kW engine, this 2020 Sany SY700H-9 excavator is designed for heavy-duty tasks. In 江苏省徐州市, it stands ready to tackle your most demanding projects, from digging and grading to demolition. Equipped with a versatile 3.5-4.5 m³ backhoe bucket, it delivers an impressive 358 kN of bucket digging force, ensuring efficient and precise excavation. The machine's 6.7 rpm rotation speed and 70% climbing ability (35°) make it agile on challenging terrains. Traveling at up to 4.5 km/h, it ensures quick repositioning on the job site. With a maximum digging depth of 7150 mm and a maximum unloading height of 7335 mm, this excavator is ideal for deep and high-reach operations. Built in China, it combines reliability and performance, making it a formidable tool for any construction or demolition task.
- Working weight: 72,000 kg
- Bucket capacity: 3.5-4.5 m³
- Rated power: 310 kW/1800 rpm
- Travel speed: 4.5/3.1 km/h
- Maximum digging depth: 7150 mm
- Maximum unloading height: 7335 mm
| Specifications | Value |
|---|---|
| No. | 993045 |
| Tonnage (tons) | 70 |
| Working weight (kg) | 72000 |
| Bucket capacity (m³) | 3.5-4.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 310/1800 |
| Ground specific pressure (Kpa) | 100 |
| Rotation speed (rpm) | 6.7 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 358 |
| Rod digging force (kN) | 274 |
| Travel speed (km/h) | 4.5/3.1 |
| Total transport length (mm) | 11905 |
| Total transport width (mm) | 3440 |
| Total transport height (mm) | 3580 |
| Full cab height (mm) | 3740 |
| Minimum ground clearance (mm) | 875 |
| Back end turning radius (mm) | 3980 |
| Onboard width (mm) | 3360 |
| Total track length (mm) | 5870 |
| Track gauge (mm) | 2690 |
| Track plate width (mm) | 750 |
| Track ground length (mm) | 4660 |
| Maximum digging radius (mm) | 11595 |
| Maximum digging depth (mm) | 7150 |
| Maximum excavation height (mm) | 11350 |
| Maximum unloading height (mm) | 7335 |
