2017 Sany SY70C

1/5
Used Sany SY70C Excavator 2017 Model / 1

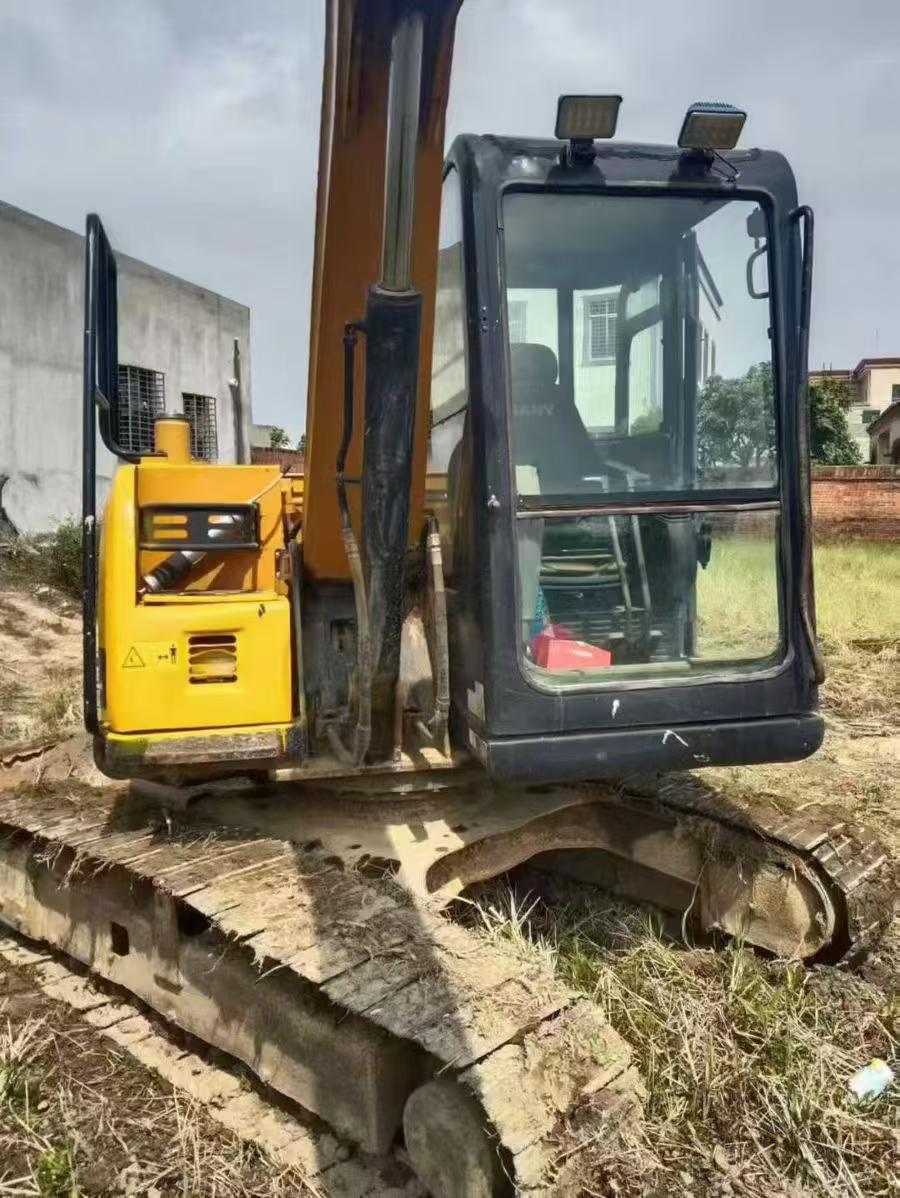

Used Sany SY70C Excavator 2017 Model / 2
Used Sany SY70C Excavator 2017 Model / 3

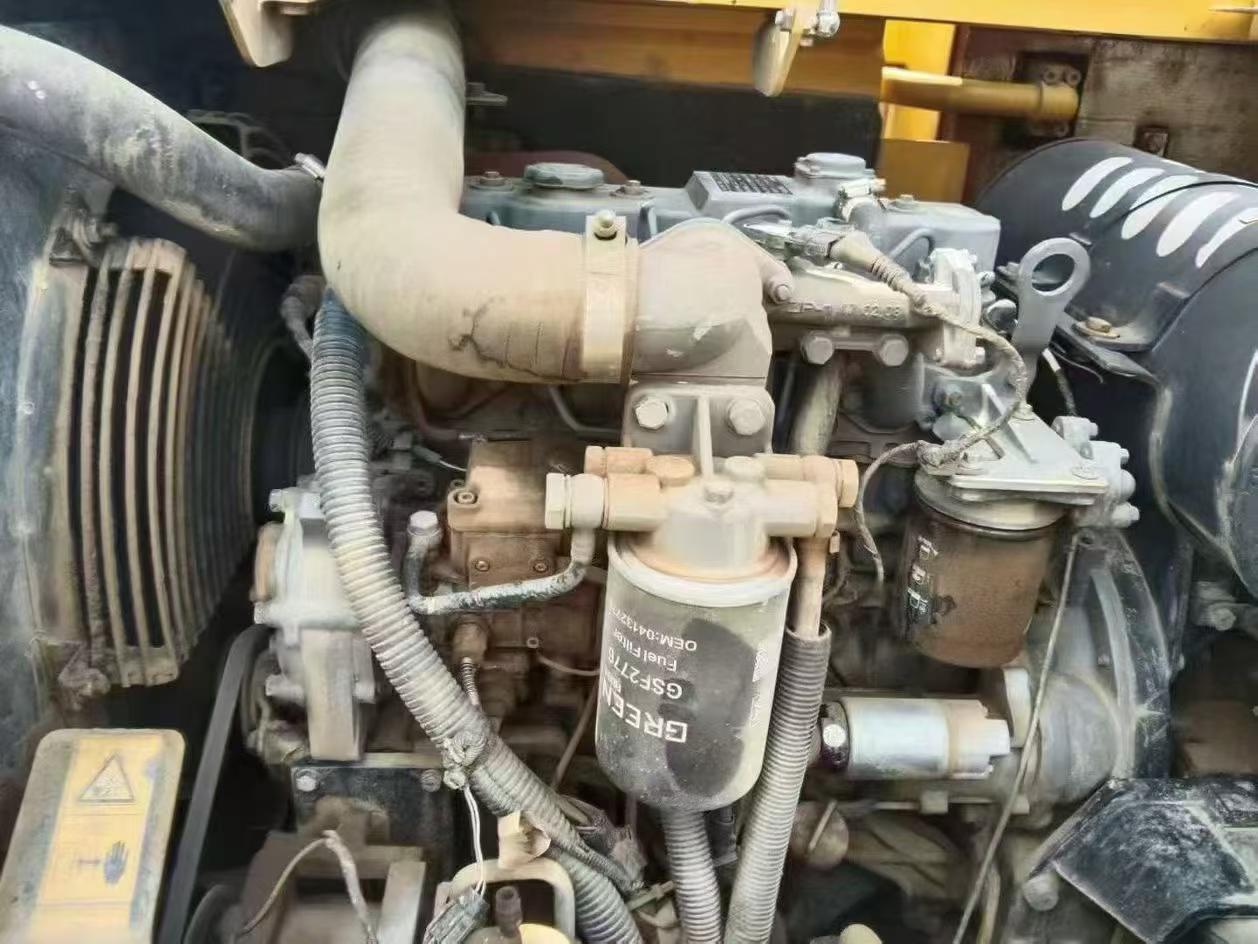

Used Sany SY70C Excavator 2017 Model / 4

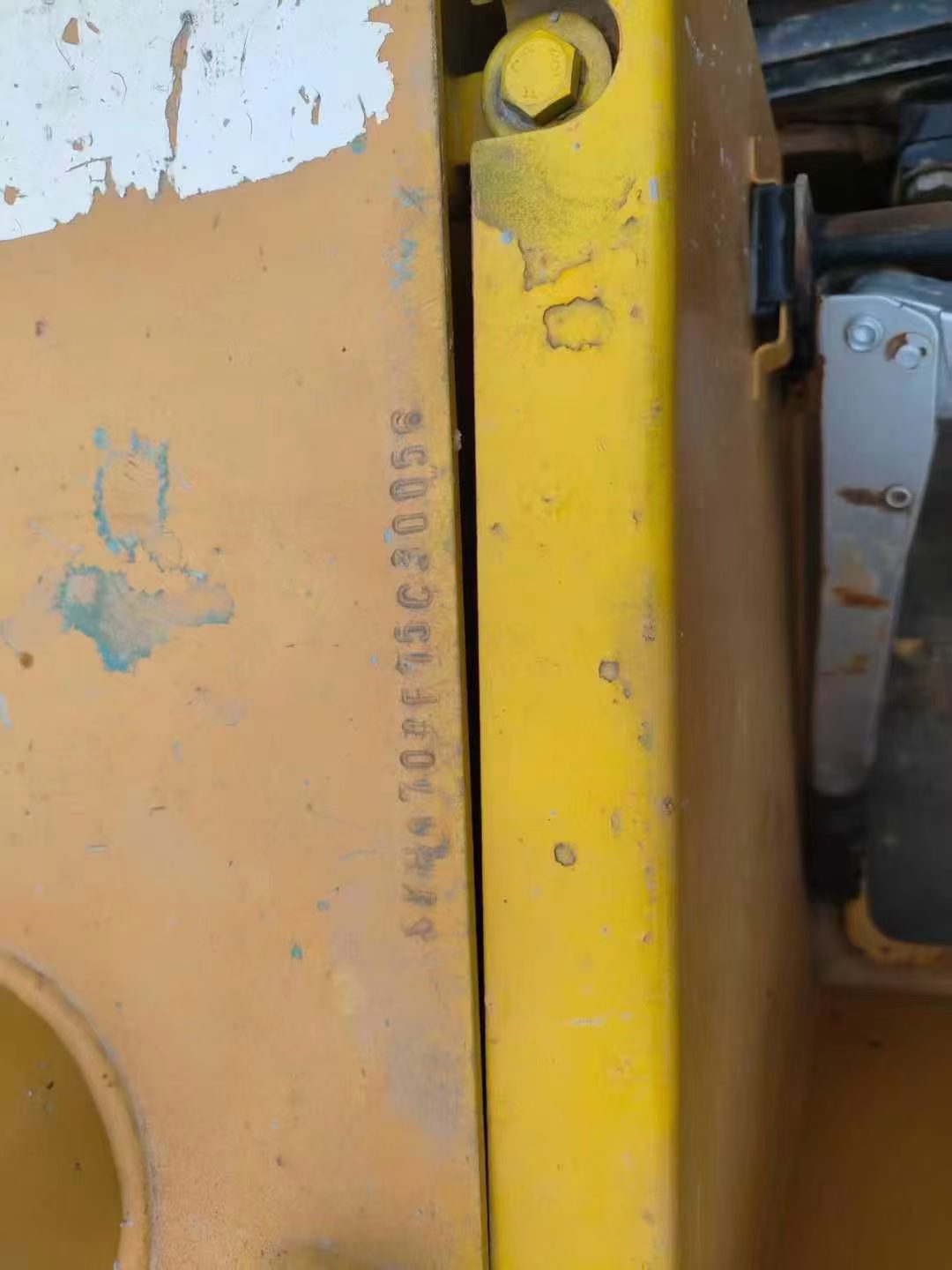

Used Sany SY70C Excavator 2017 Model / 5

Product Description

With a working weight of 6800 kg and a bucket capacity ranging from 0.12 to 0.32 m³, the Sany SY70C excavator is designed for immediate deployment on any job site. Equipped with a V2607-DI-T-ET06e engine, this machine delivers 45.4 kW at 2400 rpm, ensuring reliable performance in digging, grading, and demolition tasks. Its robust construction, including a 2.615 L displacement and water-cooled system, supports continuous operation under demanding conditions. For enhanced maneuverability, it features a 70% climbing ability and a travel speed of up to 4.2 km/h. The SY70C is also equipped with a 150 L fuel tank and a 120 L hydraulic tank, minimizing downtime and maximizing productivity. Ready to handle tough jobs, this excavator offers a maximum digging force of 51 kN and a vertical digging depth of 3335 mm, making it an indispensable asset for your project.

SpecificationsValue
No.1028260
Tonnage (tons)7
Working weight (kg)6800
Bucket capacity (m³)0.12~0.32 (0.28)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeV2607-DI-T-ET06e
Rated power (kw/rpm)45.4/2400
Cooling modewater-cooling
Maximum torque (N.m)217/1600
Displacement (L)2.615
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)51
Rod digging force (kN)36
Travel speed (km/h)4.2/2.4
Fuel Tank (L)150
Hydraulic Tank (L)120
Engine Oil changes (L)10
Total transport length (mm)6120
Total transport width (mm)2140
Total transport height (mm)2645
Track plate width (mm)400
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum excavation height (mm)7010
Maximum unloading height (mm)5110
Maximum vertical digging depth (mm)3335
Maximum effective digging depth (mm)4065
see more

Overview

No.1028260

Brand Name:

Sany

Model Number:

SY70C

Year:

2017

Location:

Hunan China

Pub Date:
