Product Description
Built for precision work in tight spaces, this 2019 Sany SY70C mini excavator delivers reliable performance with operator-first engineering. Powered by a V2607-DI-T-ET06e engine producing 45.4 kW at 2400 rpm, this 6,800 kg machine combines compact dimensions (6120 mm length, 2140 mm width) with serious digging capability—51 kN bucket force and 4,065 mm maximum effective depth.
Operators benefit from stable ground contact through 400 mm track plates and optimal weight distribution, maintaining just 33 kPa ground pressure for minimal site disturbance. The 11.5 rpm rotation speed enables smooth, controlled movements during material handling, while dual travel speeds (4.2/2.4 km/h) provide flexibility between job sites and precision positioning.
- Maximum digging height: 7,010 mm with 5,110 mm unloading reach
- Generous fuel capacity: 150 L tank for extended operation
- Versatile bucket range: 0.12–0.32 m³ capacity
- 70% climbing ability for challenging terrain
- Currently located in Kunming, Yunnan, China
This water-cooled machine offers dependable hydraulics backed by a 120 L tank, ensuring consistent performance throughout demanding shifts.
| Specifications | Value |
|---|---|
| No. | 1038216 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.12~0.32 (0.28) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

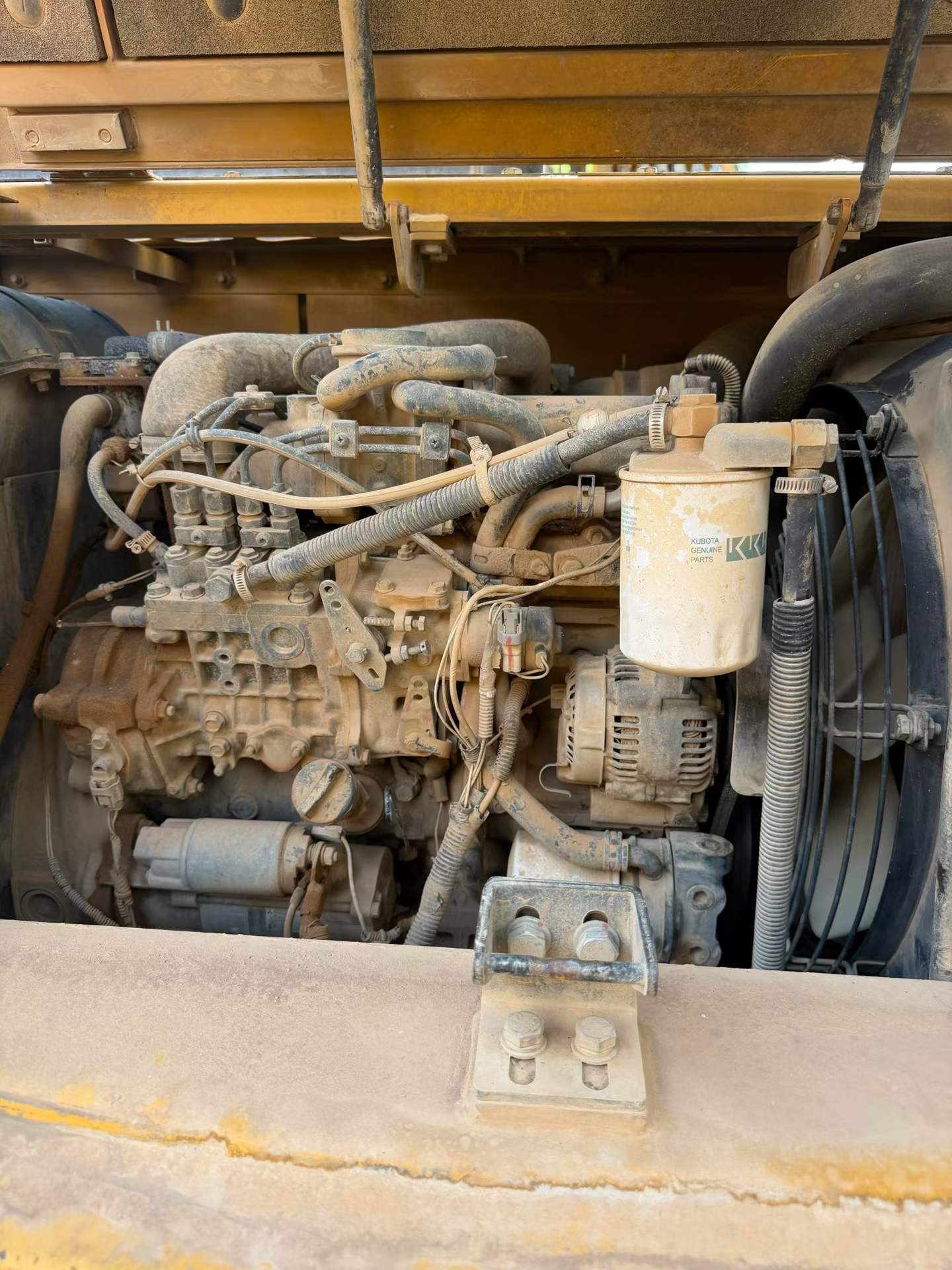

| Engine type | V2607-DI-T-ET06e |
| Rated power (kw/rpm) | 45.4/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 217/1600 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 36 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |

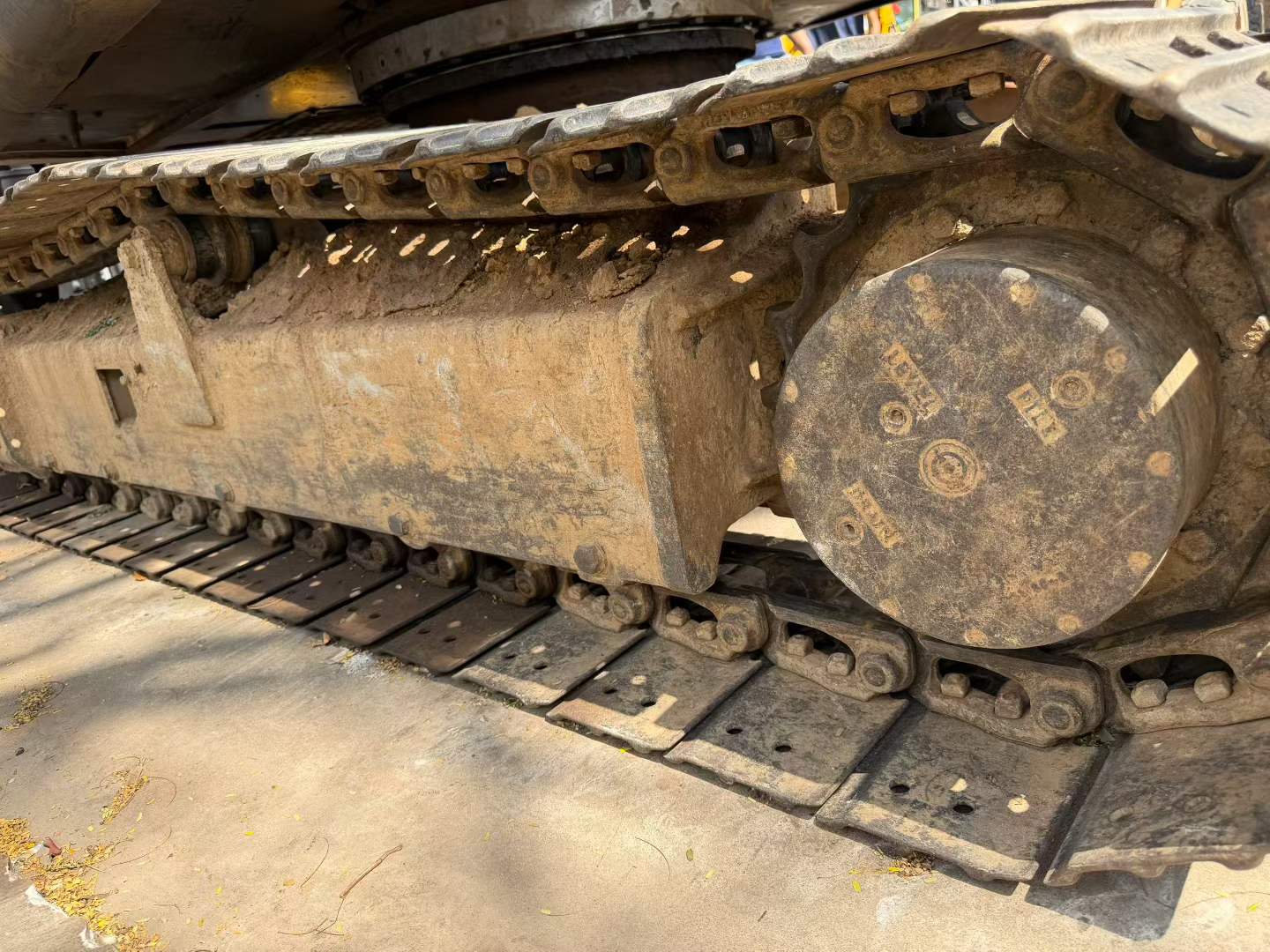

| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Maximum effective digging depth (mm) | 4065 |
