Product Description

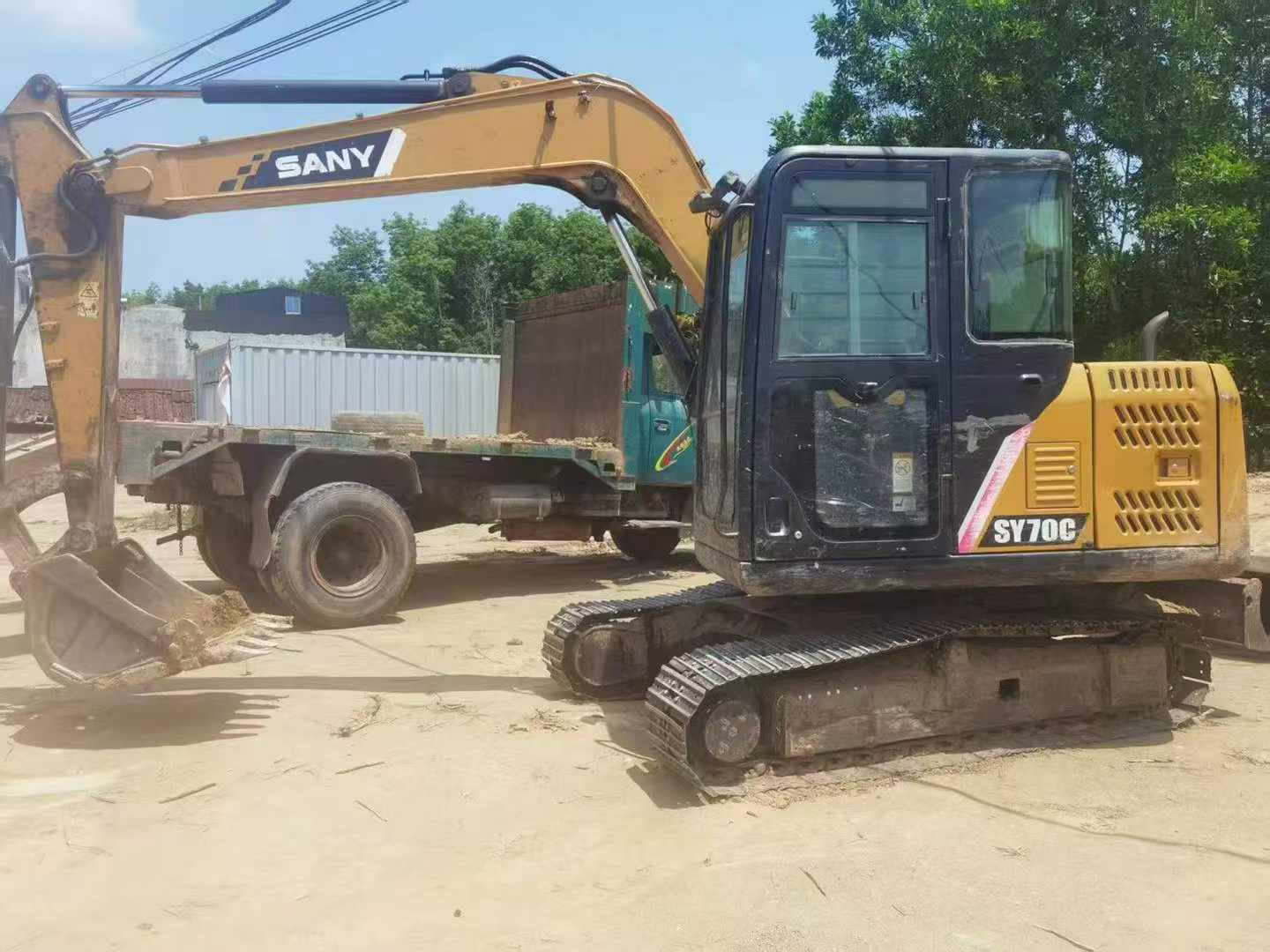

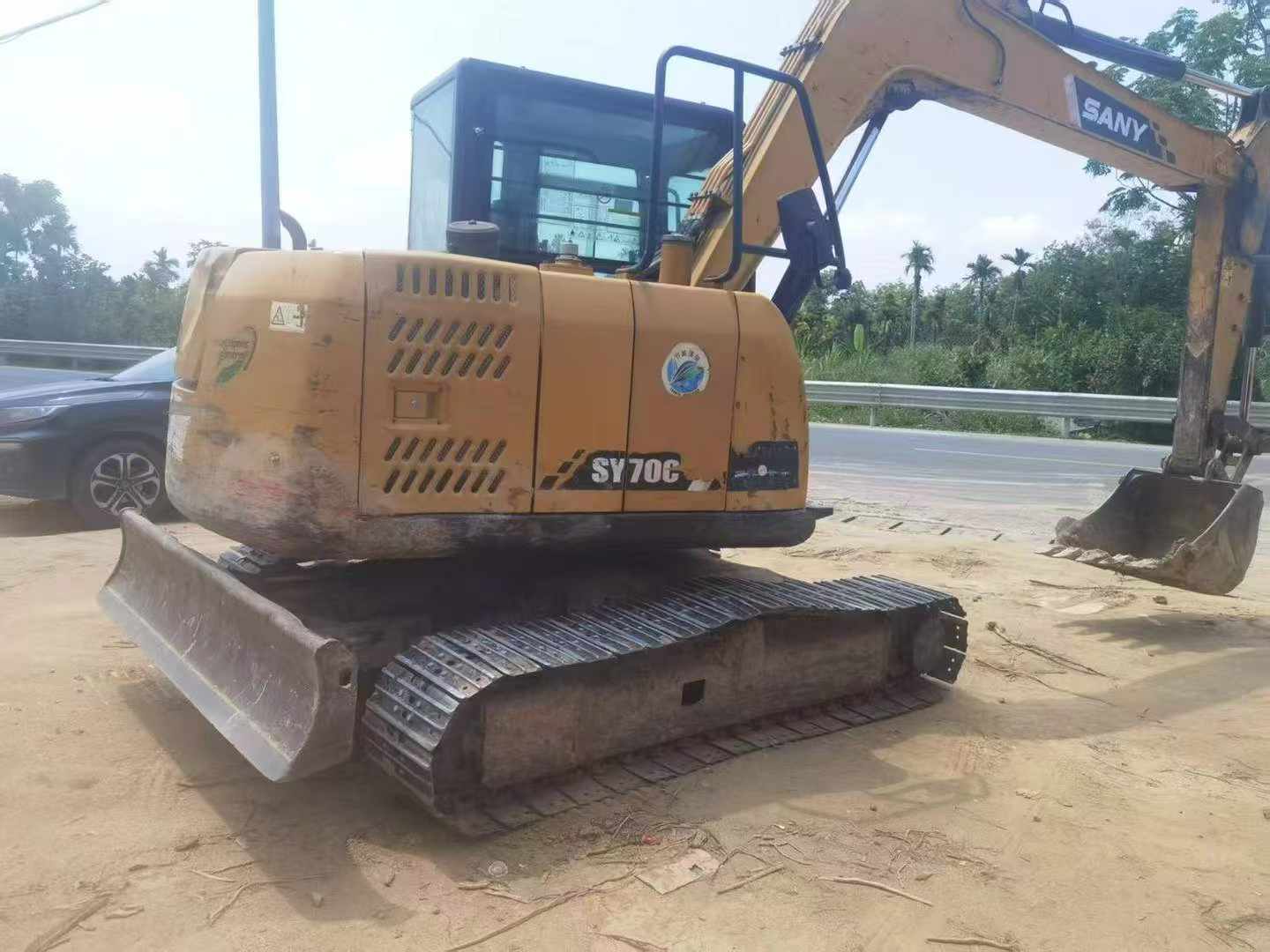

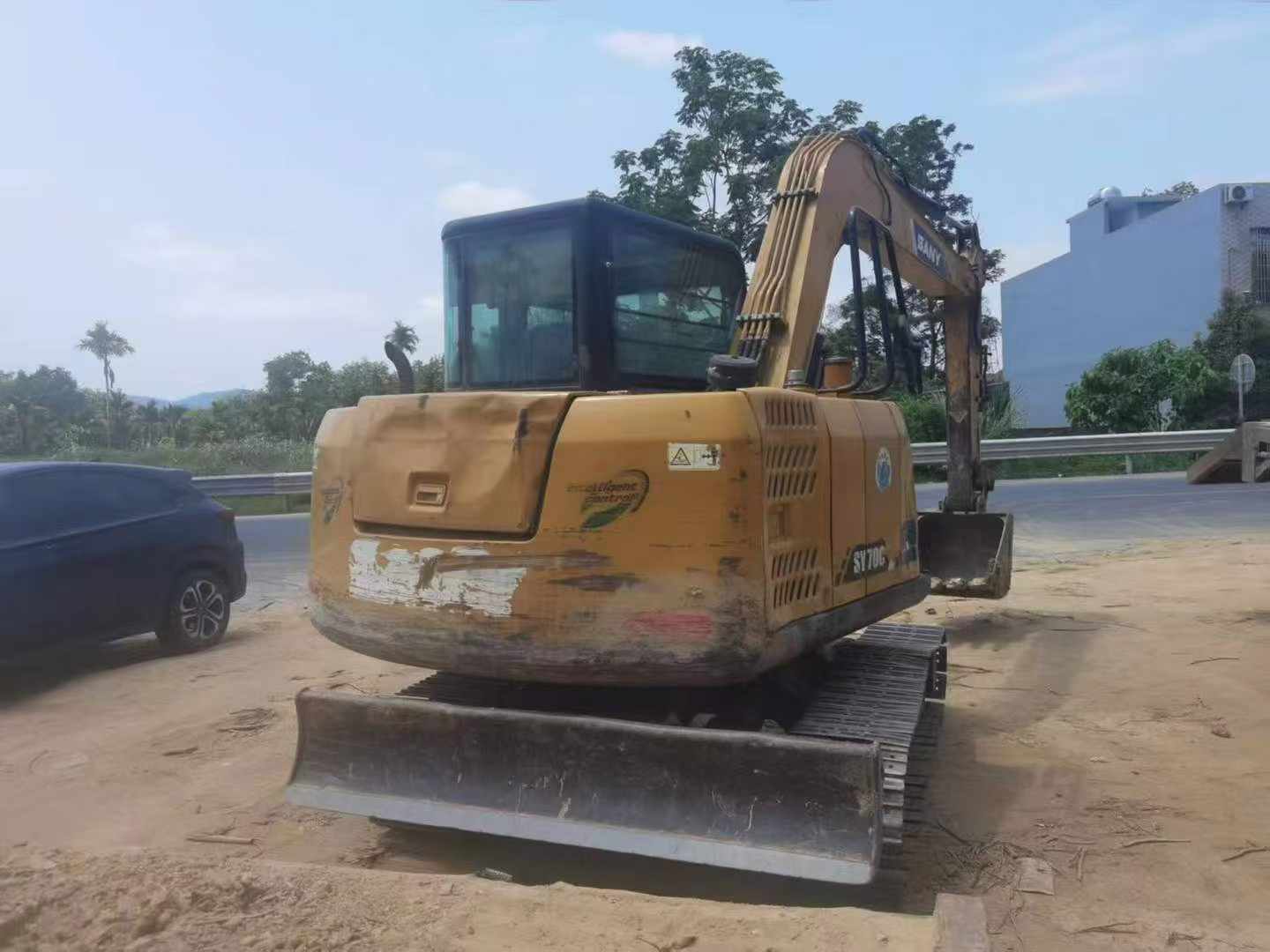

Built for productivity, this 2019 Sany SY70C mini excavator delivers reliable performance across digging, grading, and demolition tasks. Operating at 6,800 kg working weight with a 45.4 kW V2607-DI-T-ET06e engine, this 7-ton machine combines compact dimensions with serious capability. Currently located in Hangzhou, Zhejiang, it arrives site-ready with proven Chinese manufacturing quality.
- Digging Power: 51 kN bucket force and 4,065 mm maximum digging depth handle trenching and foundation work efficiently
- Reach & Height: 7,010 mm maximum excavation height and 5,110 mm unloading height for loading trucks and material placement
- Versatile Bucket System: 0.12~0.32 m³ capacity range adapts to varied jobsite requirements
- All-Day Operation: 150 L fuel tank and 120 L hydraulic reservoir support extended shifts without frequent refueling
- Maneuverability: 2,140 mm transport width and 11.5 rpm rotation speed enable tight-space navigation
- Terrain Performance: 70% climbing ability and 400 mm track width provide stability on slopes and soft ground
Water-cooled reliability me
| Specifications | Value |
|---|---|
| No. | 1040205 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.12~0.32 (0.28) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607-DI-T-ET06e |
| Rated power (kw/rpm) | 45.4/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 217/1600 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 36 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Maximum effective digging depth (mm) | 4065 |
