HOME>>Sany>>Sany SY70C

2021 Sany SY70C

1/9
Buy Sany SY70C Used Excavator / 1

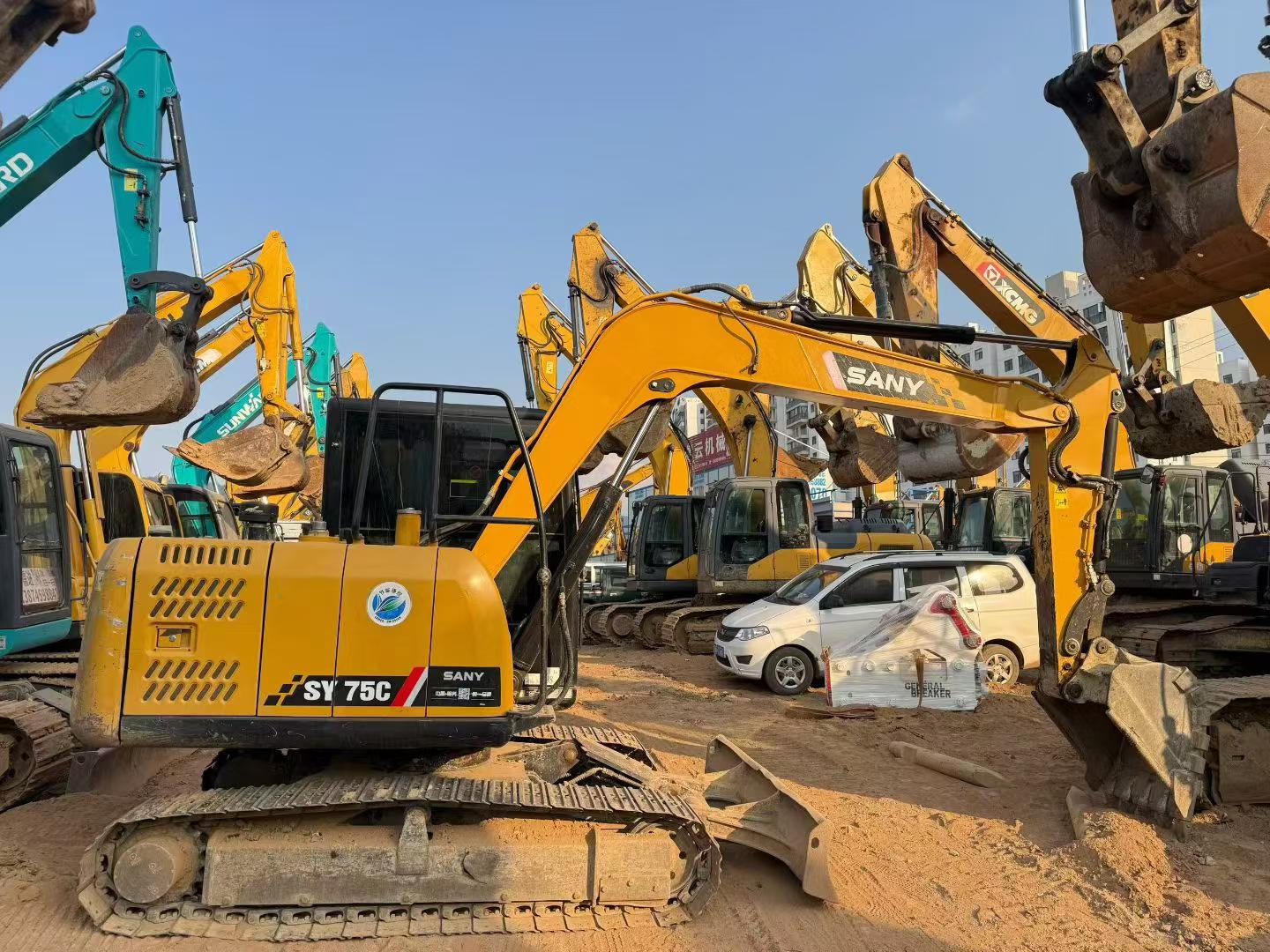

Buy Sany SY70C Used Excavator / 2

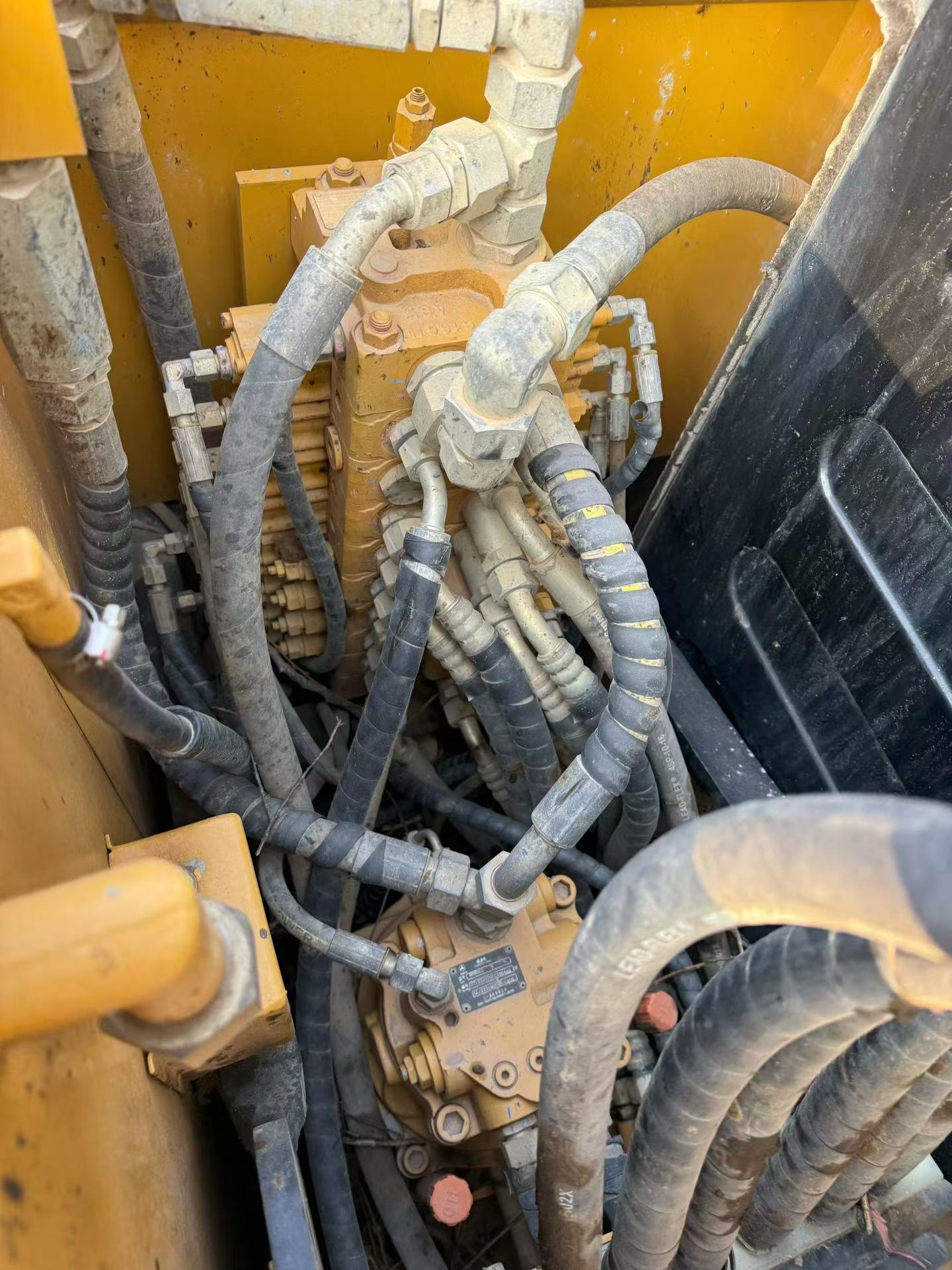

Buy Sany SY70C Used Excavator / 3

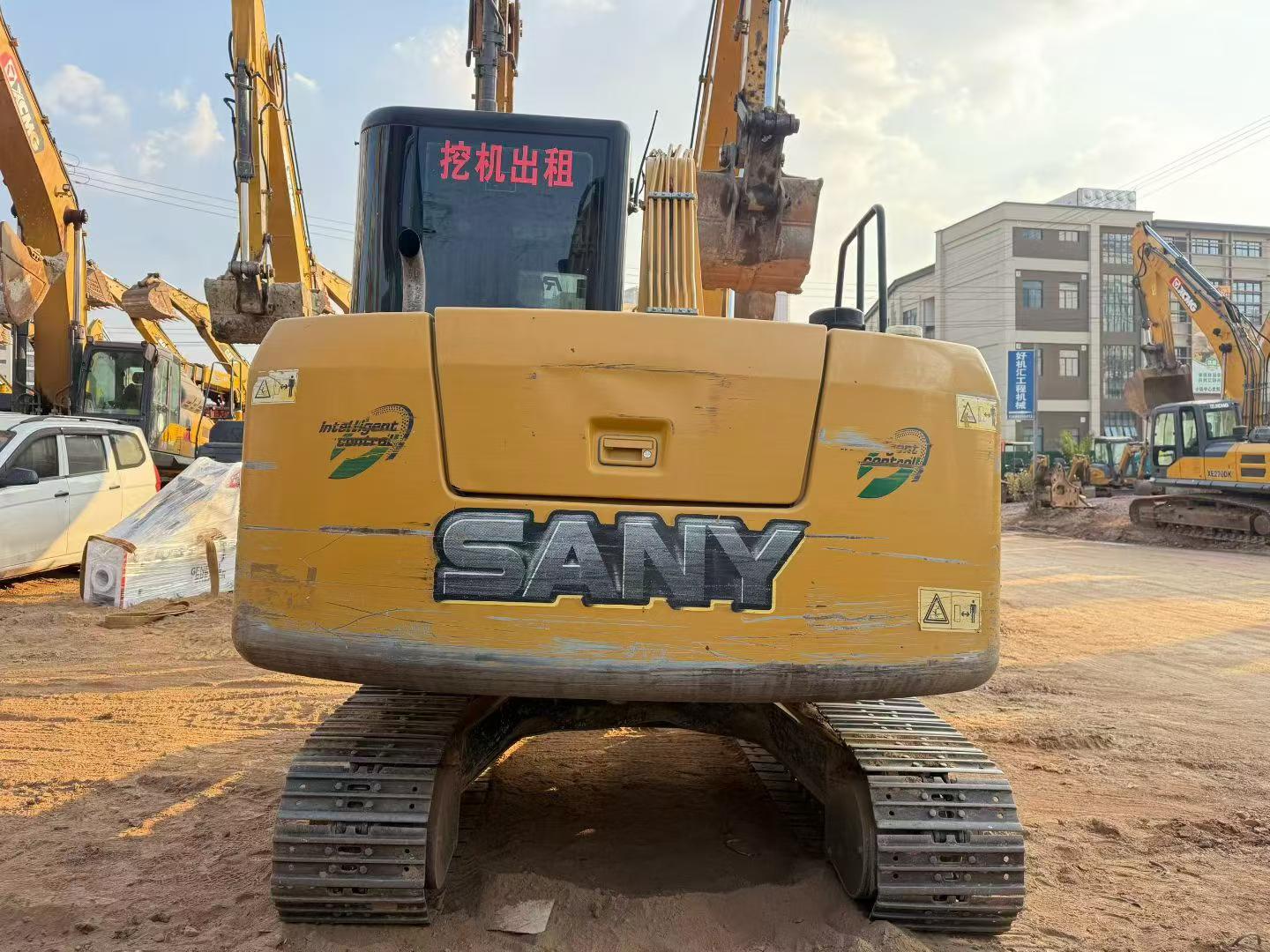

Buy Sany SY70C Used Excavator / 4

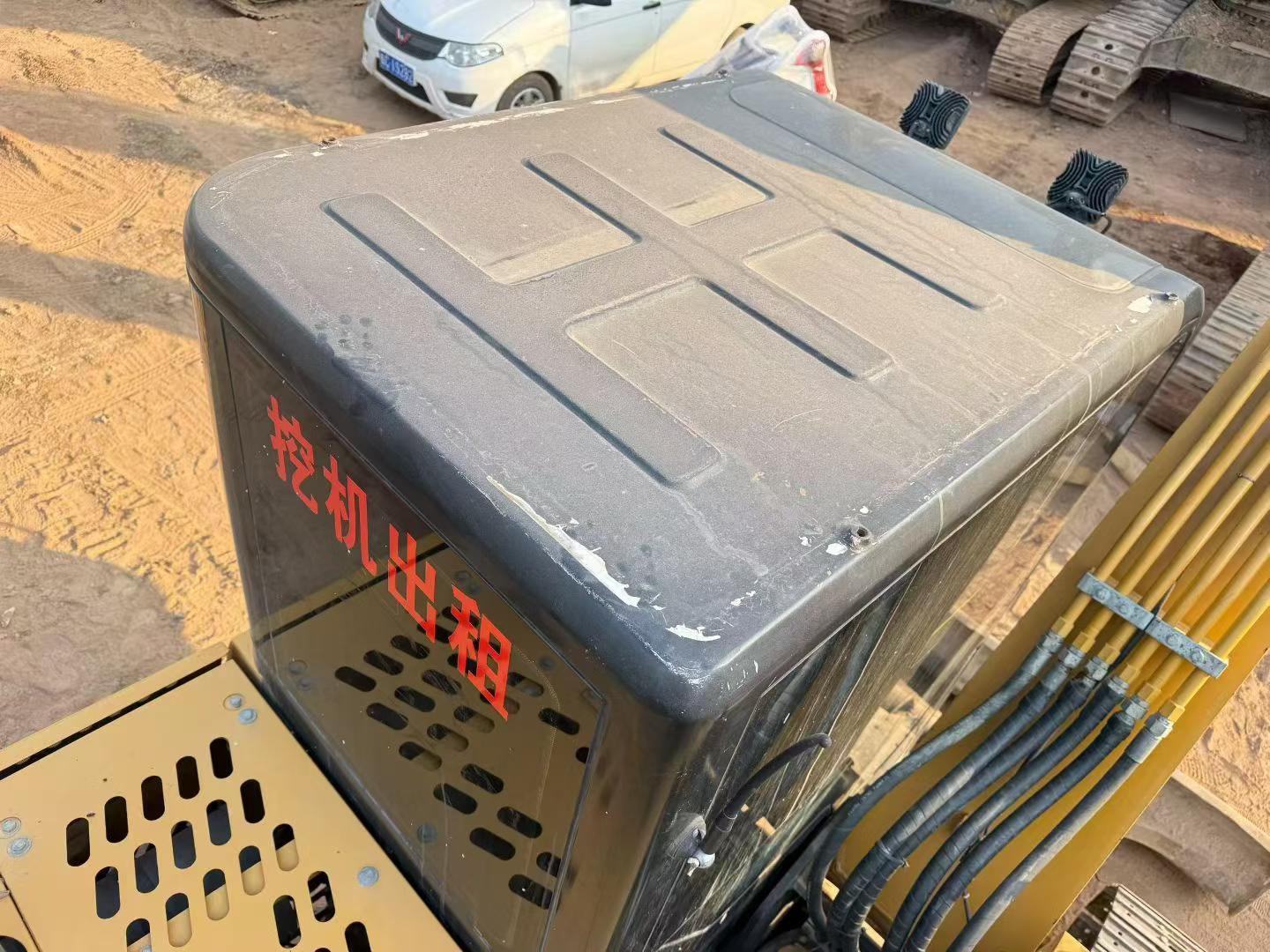

Buy Sany SY70C Used Excavator / 5

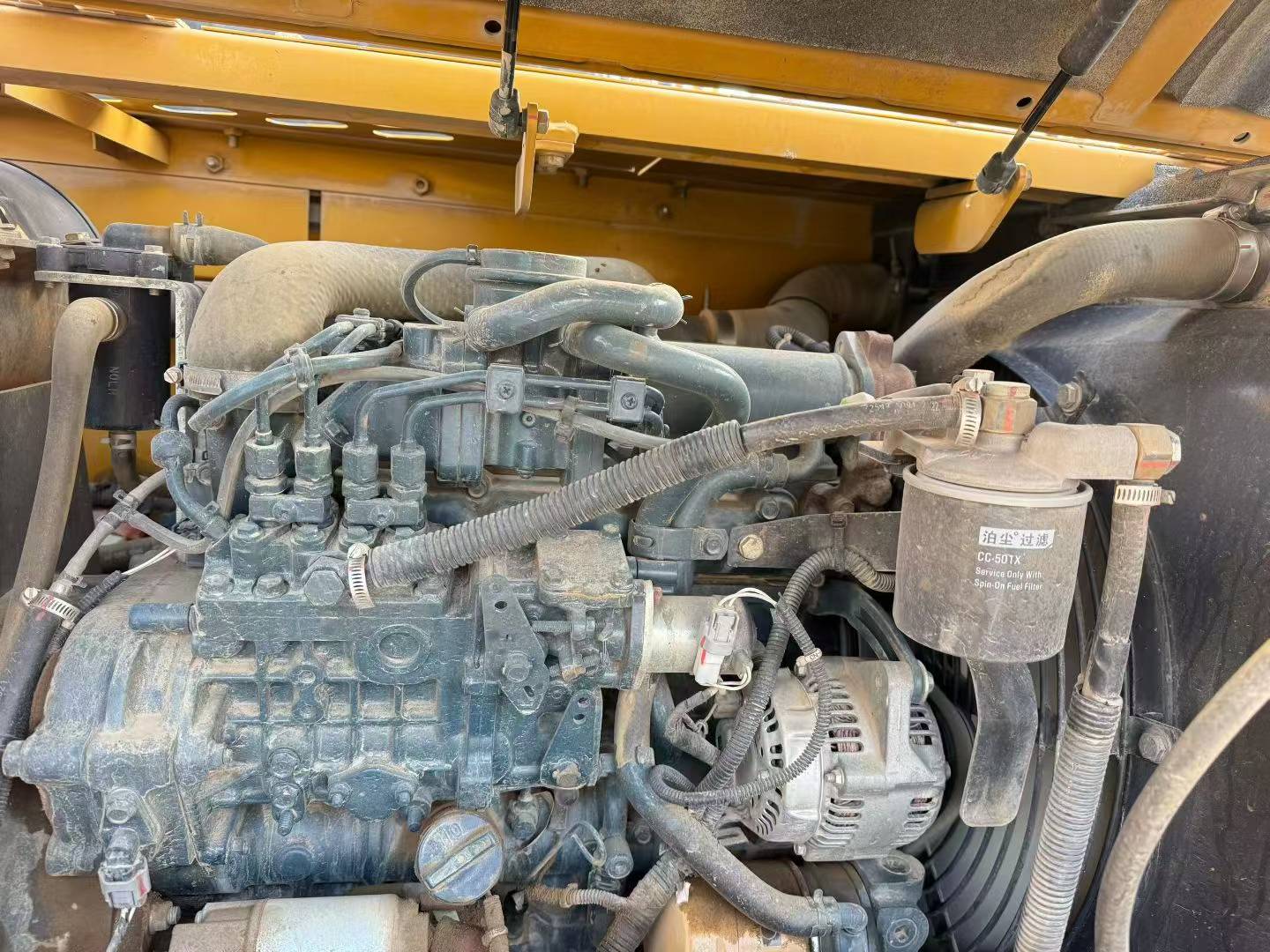

Buy Sany SY70C Used Excavator / 6

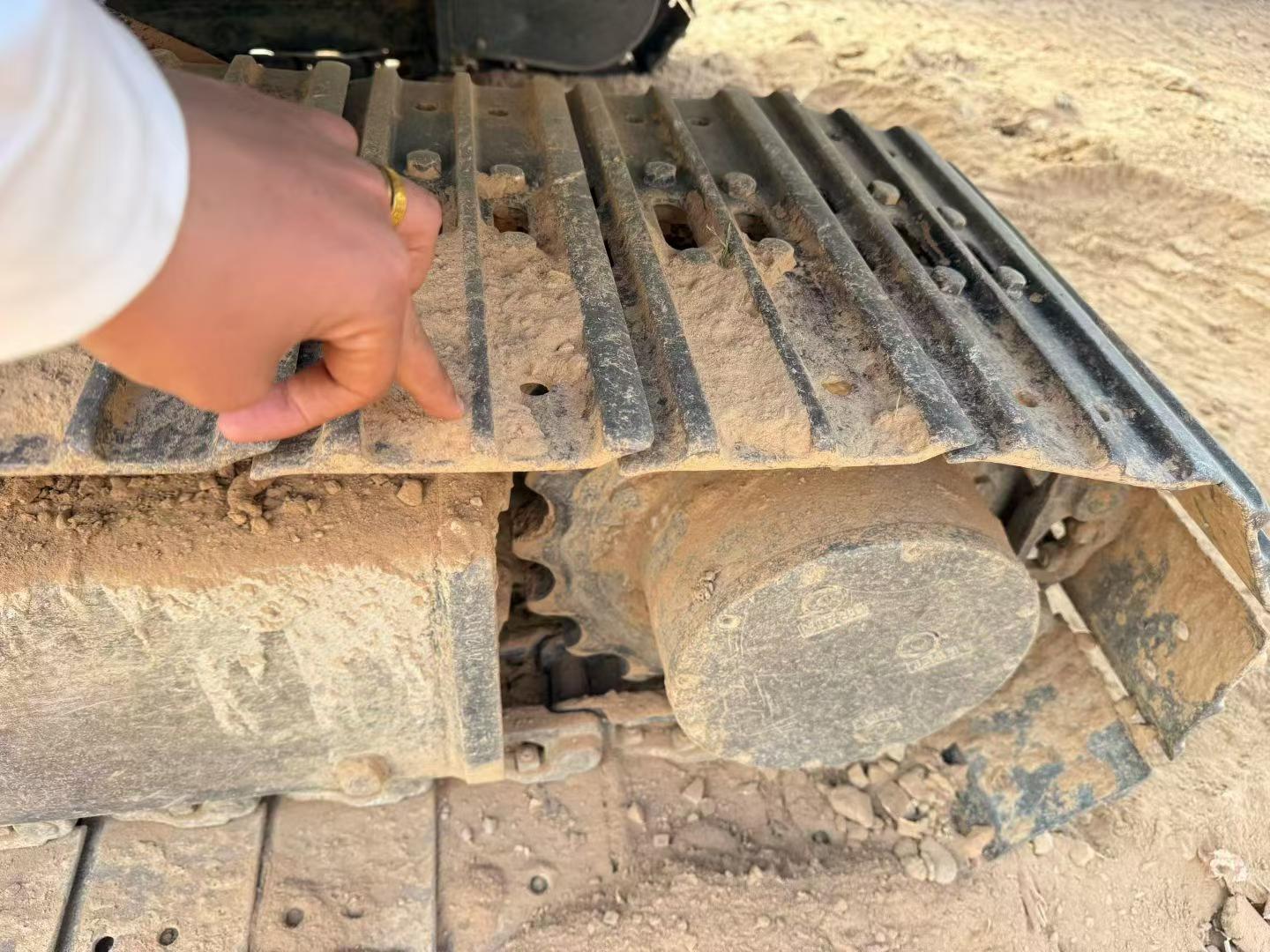

Buy Sany SY70C Used Excavator / 7

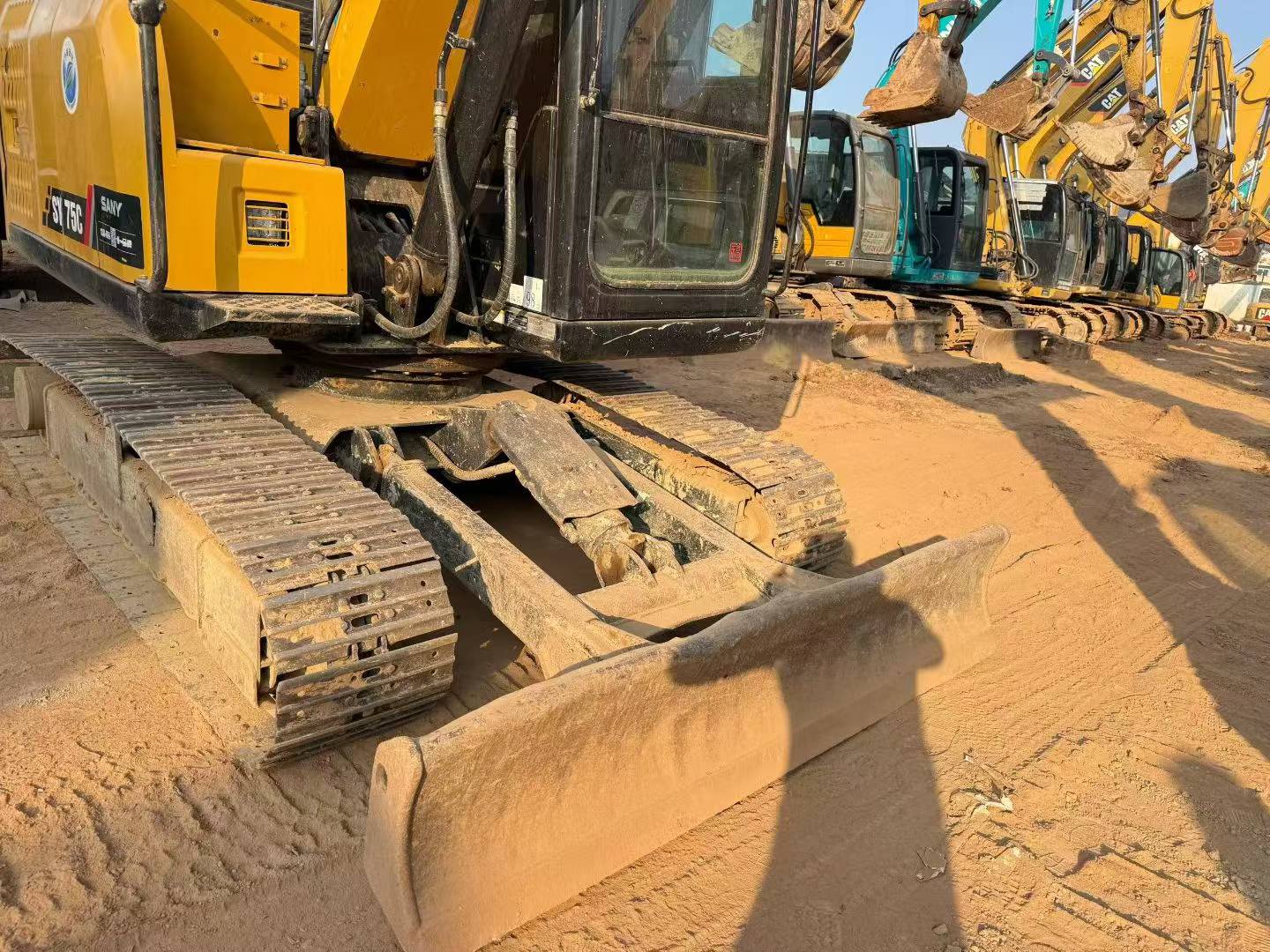

Buy Sany SY70C Used Excavator / 8
Buy Sany SY70C Used Excavator / 9

Product Description

Engineered with a robust V2607-DI-T-ET06e water-cooled engine delivering 45.4 kW at 2400 rpm, this 2021 Sany SY70C compact excavator combines precision hydraulics with reliable performance for demanding jobsites. Operating at 6,800 kg working weight, the machine generates an impressive 51 kN bucket digging force and 36 kN arm digging force, ensuring efficient material handling across excavation, trenching, and grading applications.

Built on proven Sany engineering standards, this 7-ton excavator features a 0.28 m³ backhoe bucket capacity and reaches a maximum digging depth of 4,065 mm with a maximum digging height of 7,010 mm. The 400 mm track width distributes ground pressure to just 33 kPa, minimizing surface disturbance while maintaining a 70% climbing ability on challenging terrain. Dual travel speeds of 4.2/2.4 km/h provide operational flexibility, while the 150L fuel tank and 120L hydraulic reservoir support extended work cycles. Currently located in Hunan, China, this unit represents quality Chinese manufacturing with comprehensive technical capabilities for contractors requiring dependable compact excavation equipment.

SpecificationsValue
No.1041308
Tonnage (tons)7
Working weight (kg)6800
Bucket capacity (m³)0.12~0.32 (0.28)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeV2607-DI-T-ET06e
Rated power (kw/rpm)45.4/2400
Cooling modewater-cooling
Maximum torque (N.m)217/1600
Displacement (L)2.615
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)51
Rod digging force (kN)36
Travel speed (km/h)4.2/2.4
Fuel Tank (L)150
Hydraulic Tank (L)120
Engine Oil changes (L)10
Total transport length (mm)6120
Total transport width (mm)2140
Total transport height (mm)2645
Track plate width (mm)400
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum excavation height (mm)7010
Maximum unloading height (mm)5110
Maximum vertical digging depth (mm)3335
Maximum effective digging depth (mm)4065
see more

Overview

No.1041308

Brand Name:

Sany

Model Number:

SY70C

Year:

2021

Location:

Hunan China
