Product Description

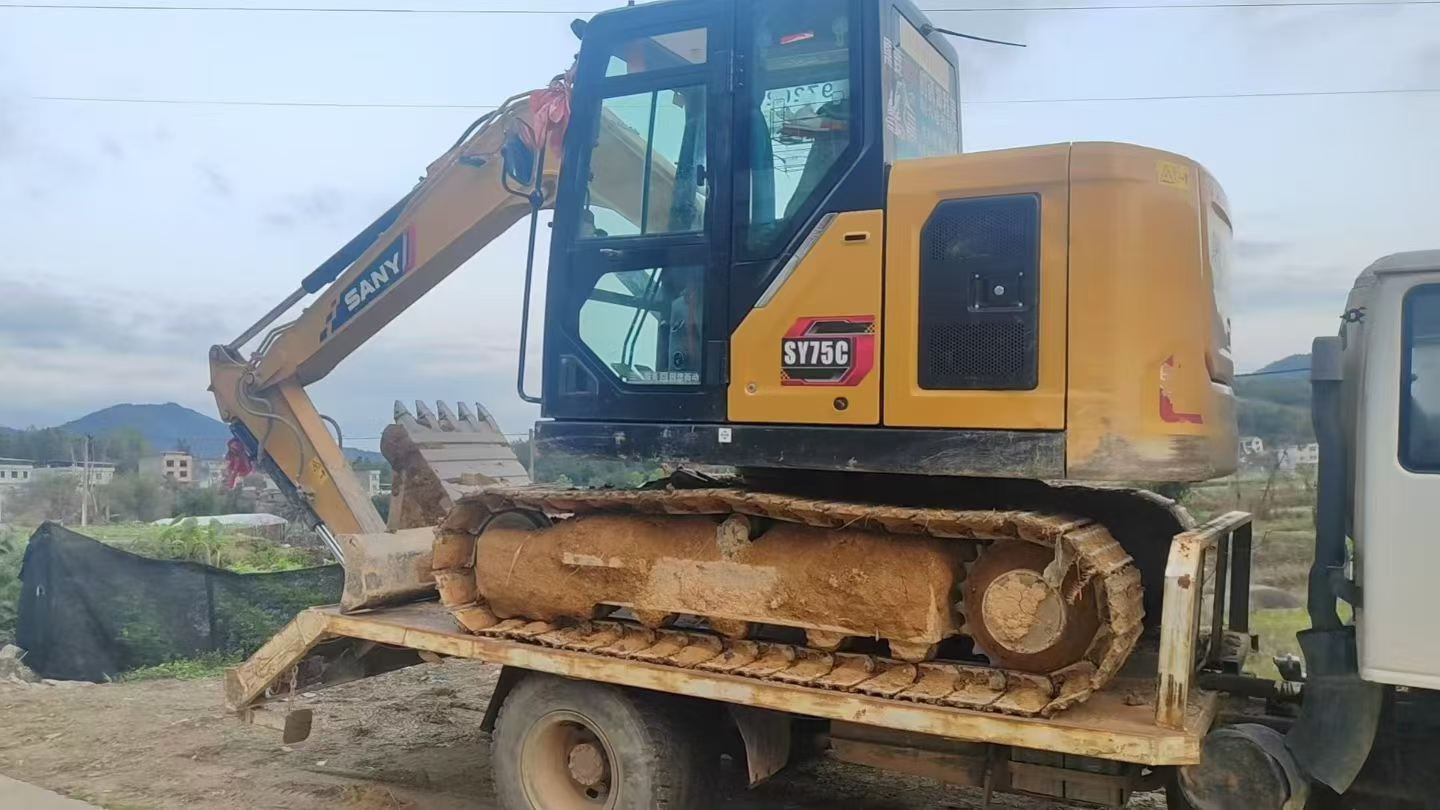

Secure exceptional value with this 2024 Sany SY70C mini excavator, delivering full-scale performance at a fraction of new equipment costs. Operating at 7 tons with a robust 45.4kW Yanmar V2607 engine, this China-manufactured machine combines proven reliability with immediate availability from Shenzhen, Guangdong.
Key performance specifications include:
- Maximum digging depth of 4,065mm with 51kN bucket digging force
- Compact transport dimensions (6,120×2,140×2,645mm) for versatile jobsite mobility
- Water-cooled diesel engine producing 217N.m torque at 1,600rpm
- 0.28m³ bucket capacity with interchangeable options from 0.12-0.32m³
- 150L fuel tank and 120L hydraulic reservoir for extended operation
- 70% grading capability with 11.5rpm rotation speed
Purchasing late-model used equipment eliminates depreciation while maintaining manufacturer specifications. This SY70C offers immediate deployment for contractors requiring dependable compact excavation without capital-intensive new machinery investments. Currently positioned in China's primary equipment hub for streamlined international logistics.
| Specifications | Value |
|---|---|
| No. | 1023660 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.12~0.32 (0.28) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607-DI-T-ET06e |
| Rated power (kw/rpm) | 45.4/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 217/1600 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 36 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Maximum effective digging depth (mm) | 4065 |
