Product Description
Investing in a 2024 Sany SY70C mini excavator means choosing proven reliability backed by one of the world's largest construction equipment manufacturers. This 7-ton workhorse delivers 45.4kW of power through its water-cooled V2607-DI-T-ET06e engine, providing consistent performance across demanding jobsites. With a maximum digging depth of 4,065mm and bucket digging force of 51kN, this compact machine handles excavation, trenching, and utility work with professional-grade capability.
Sany's extensive global dealer network ensures parts availability and service support, protecting your investment for years to come. Key specifications include:
- Operating weight: 6,800kg with 0.28m³ bucket capacity
- Compact dimensions: 6,120mm length × 2,140mm width for tight-access work
- Maximum excavation height: 7,010mm
- Fuel-efficient 150L tank with 4.2km/h travel speed
- 70% grading ability for challenging terrain
Currently located in Jiangsu, China, this near-new machine combines Sany's reputation for durability with strong resale value, making it a smart choice for contractors seeking dependable used equipment.
| Specifications | Value |
|---|---|
| No. | 1024081 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.12~0.32 (0.28) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

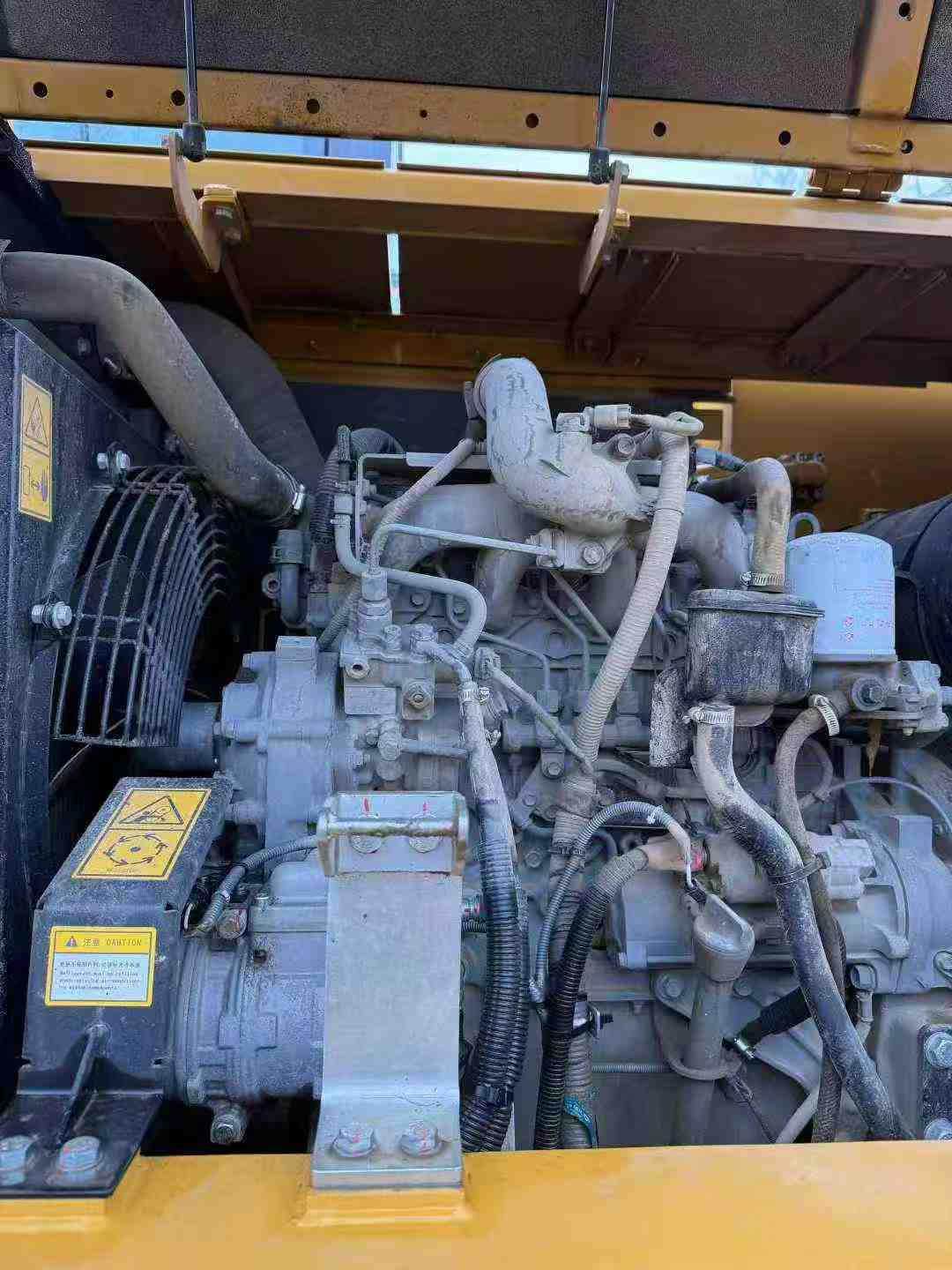

| Engine type | V2607-DI-T-ET06e |
| Rated power (kw/rpm) | 45.4/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 217/1600 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 36 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Maximum effective digging depth (mm) | 4065 |
