Product Description
Built for immediate deployment, this 2024 Sany SY70C compact excavator delivers 45.4 kW of water-cooled power to tackle digging, grading, and demolition tasks across confined job sites. Operating at 6,800 kg working weight with a 0.28 m³ bucket, this 7-ton machine combines maneuverability with serious productivity. Powered by a V2607-DI-T-ET06e engine generating 217 N·m maximum torque, it provides 51 kN bucket digging force and reaches 4,065 mm maximum digging depth—perfect for trenching, foundation work, and utility installation.
- Maximum excavation height: 7,010 mm for loading trucks and material handling
- 70% climbing ability navigates rough terrain and steep grades
- 11.5 rpm rotation speed enables efficient 360-degree operation
- Compact transport dimensions (6,120 × 2,140 × 2,645 mm) for easy site mobilization
- 150L fuel capacity supports extended shifts without refueling downtime
- Currently located in Hunan, China—ready for global shipping
Site-ready from delivery, this machine arrives prepared to handle residential construction, landscaping, and urban infrastructure projects requiring precision and reliability.
| Specifications | Value |
|---|---|
| No. | 1025046 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.12~0.32 (0.28) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

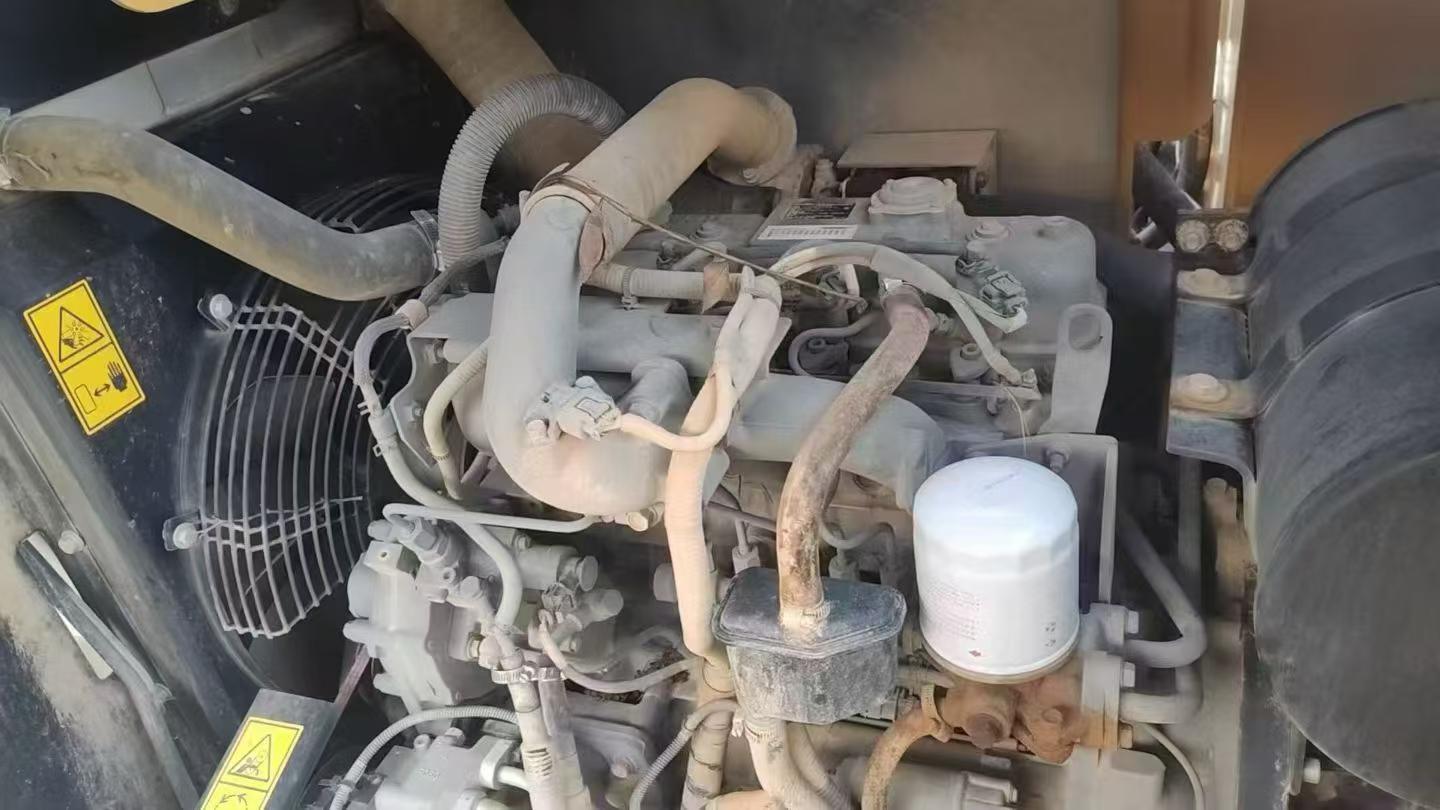

| Engine type | V2607-DI-T-ET06e |
| Rated power (kw/rpm) | 45.4/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 217/1600 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 36 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Maximum effective digging depth (mm) | 4065 |
