Product Description

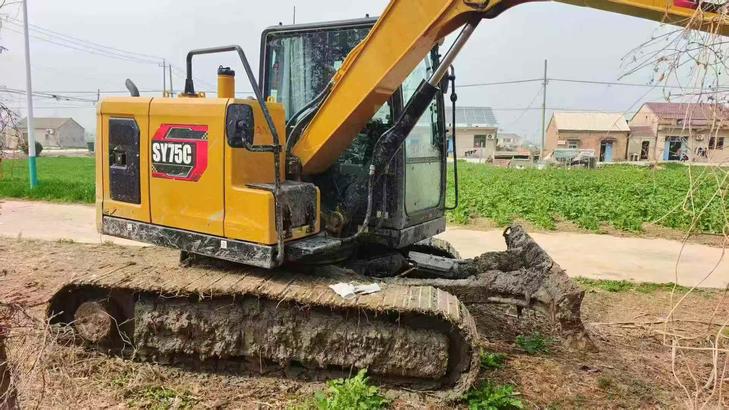

Built for immediate deployment on demanding jobsites, this 2024 Sany SY70C compact excavator delivers 7-ton performance with proven reliability. Powered by a water-cooled V2607-DI-T-ET06e engine generating 45.4 kW at 2400 rpm, this machine tackles digging, grading, and demolition tasks without hesitation. Maximum digging depth reaches 4,065 mm with vertical capability to 3,335 mm, while bucket digging force of 51 kN breaks through compacted soil and fractured rock efficiently.
- Working weight: 6,800 kg with 0.28 m³ backhoe bucket capacity
- Transport dimensions: 6,120 mm (L) × 2,140 mm (W) × 2,645 mm (H)
- Maximum excavation height: 7,010 mm; unloading height: 5,110 mm
- Travel speed: 4.2 km/h (high) / 2.4 km/h (low)
- Climbing ability: 70% gradient with 33 kPa ground pressure
- Fuel capacity: 150 L for extended operation cycles
- Currently located in Jiangsu, China—ready for global shipment
Equipped with 400 mm track plates and a rapid 11.5 rpm rotation speed, this China-manufactured excavator moves material quickly across confined spaces and utility projects.
| Specifications | Value |
|---|---|
| No. | 1036160 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.12~0.32 (0.28) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607-DI-T-ET06e |
| Rated power (kw/rpm) | 45.4/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 217/1600 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 36 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Maximum effective digging depth (mm) | 4065 |
