Product Description

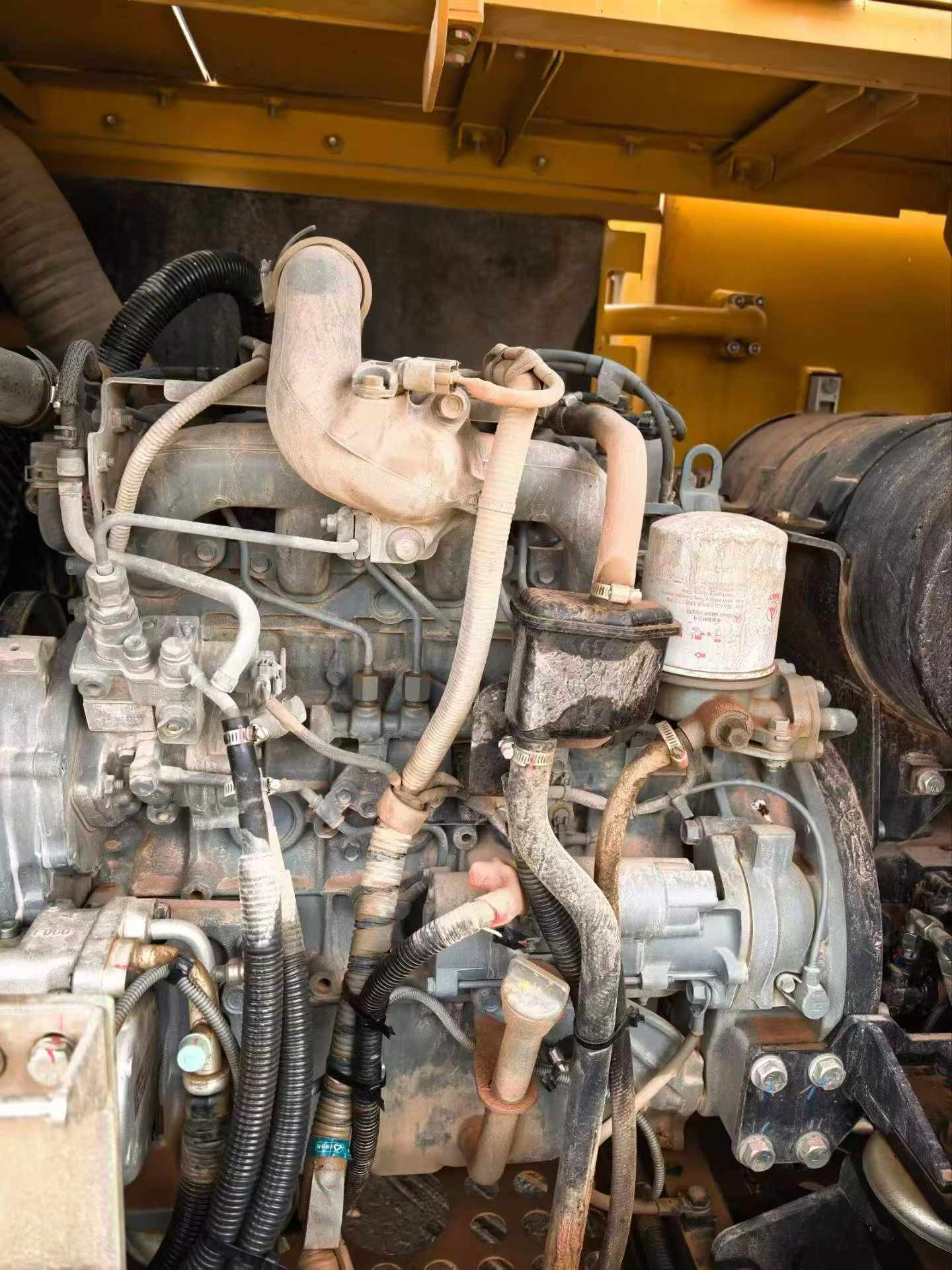

Available now in Hangzhou, Zhejiang, this 2024 Sany SY70C mini excavator eliminates factory lead times and gets your crew operational within days. With a 6,800 kg working weight and powerful 45.4 kW engine, this 7-ton machine delivers 51 kN bucket digging force across versatile 0.12-0.32 m³ bucket configurations. Built for immediate deployment, it features a proven V2607-DI-T-ET06e water-cooled engine producing 217 N.m torque at 1,600 rpm.
- Maximum digging depth: 4,065 mm vertical reach
- Fast positioning: 11.5 rpm rotation speed, 4.2 km/h travel
- Extended runtime: 150 L fuel tank, 120 L hydraulic reservoir
- Compact transport: 6,120 × 2,140 × 2,645 mm dimensions
- Terrain capability: 70% climbing ability, 33 kPa ground pressure
Skip months of factory queues. Positioned strategically in Hangzhou for rapid shipping throughout Asia and beyond, this ready-to-work SY70C moves from our yard to your project site faster than new-order alternatives. Ideal for contractors demanding immediate equipment availability without sacrificing performance or reliability.
| Specifications | Value |
|---|---|
| No. | 1048685 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.12~0.32 (0.28) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607-DI-T-ET06e |
| Rated power (kw/rpm) | 45.4/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 217/1600 |
| Displacement (L) | 2.615 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 51 |
| Rod digging force (kN) | 36 |
| Travel speed (km/h) | 4.2/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2140 |
| Total transport height (mm) | 2645 |
| Track plate width (mm) | 400 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 42 |
| Maximum excavation height (mm) | 7010 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3335 |
| Maximum effective digging depth (mm) | 4065 |
